- 1x PCIe x16, davon 1x PCIe 4.0
- DDR5-Speicher bis 5.600 MHz, mittels RAM-OC bis 6.400 MHz
- 2x M.2-Slot, davon 1x PCIe 4.0
- USB am I/O-Panel: 2x USB 3.1 Typ A, 1x USB 3.1 Typ C, 2x USB 2.0 Typ A
- Insgesamt 4 Anschlüsse für Lüfter und Pumpen
- 2,5-Gbit-LAN

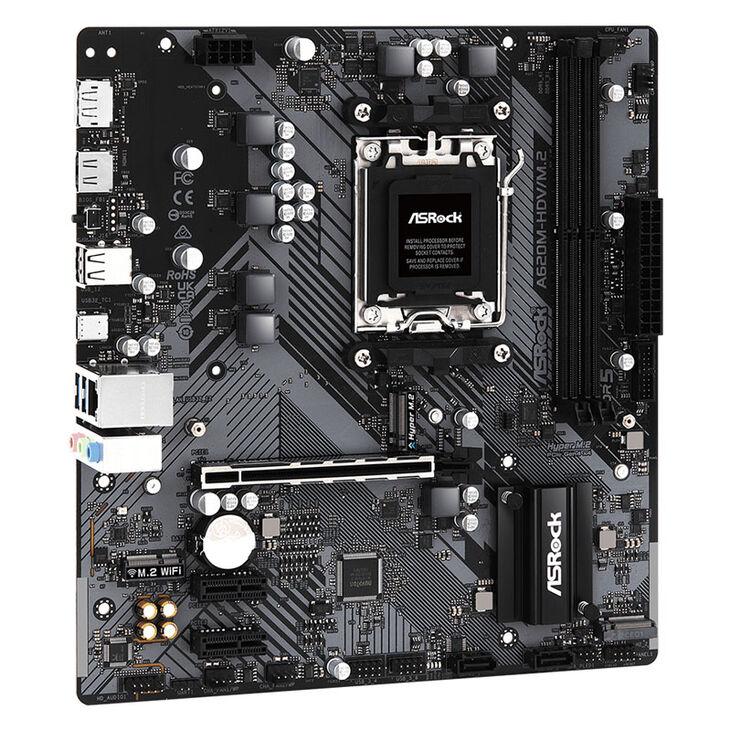

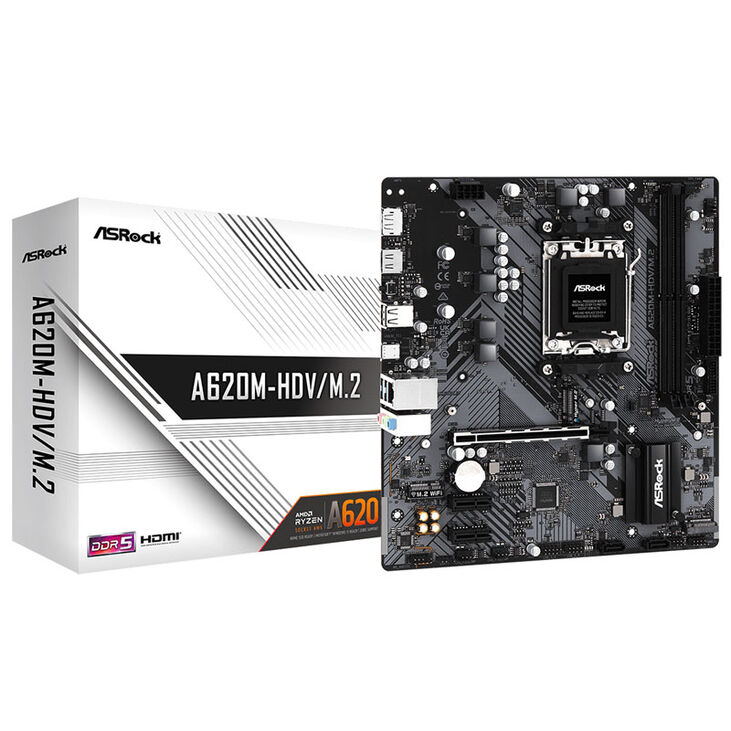

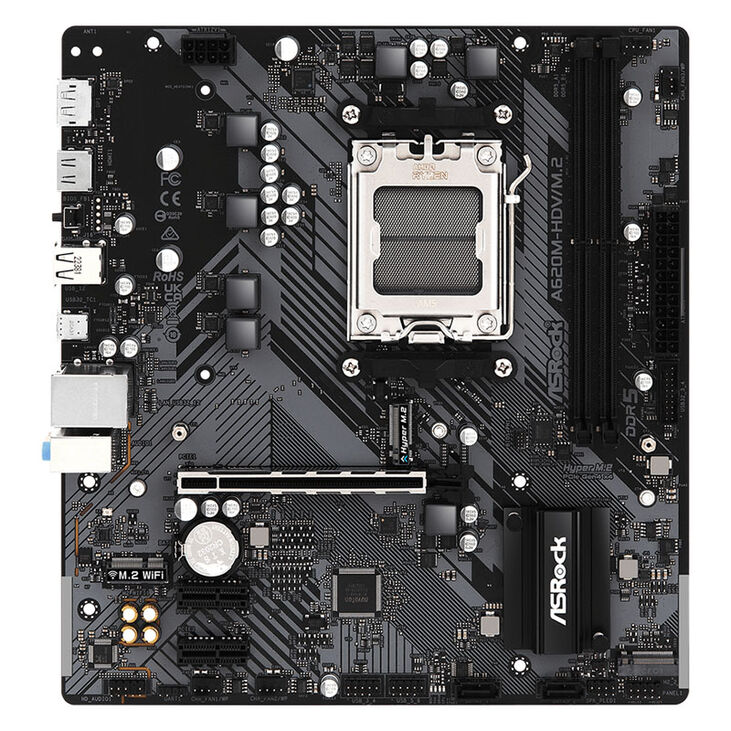

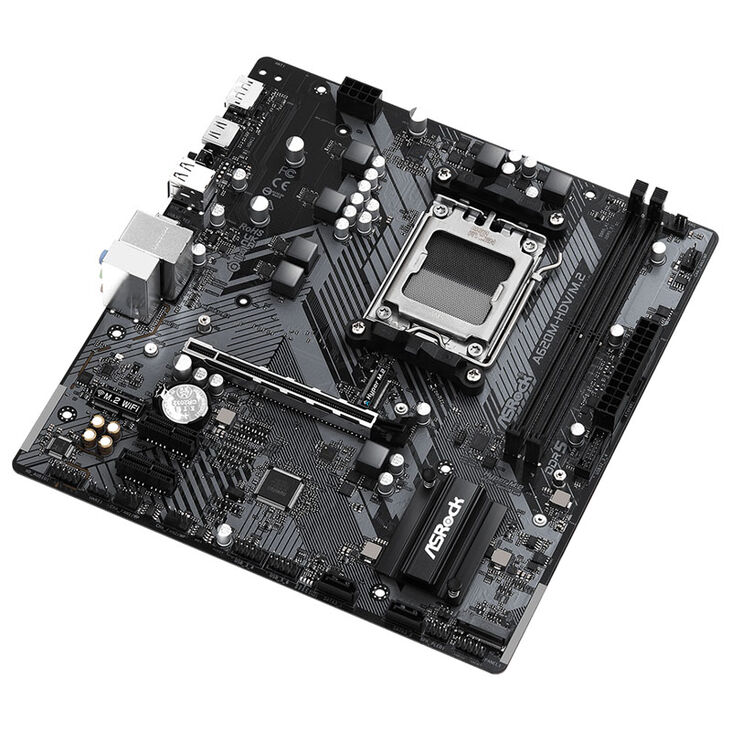

Das Micro-ATX-Mainboard ASRock A620M-HDV/M.2 mit AMD-A620-Chipsatz im Detail
Das ASRock A620M-HDV/M.2 ist ein Micro-ATX-Mainboard mit dem Chipsatz A620 und dem Sockel AM5. Die Hauptplatine eignet sich für AMD-Ryzen-Desktop-Prozessoren. Es unterstützt DDR5-Arbeitsspeicher mit bis zu 5.600 MHz und bietet darüber hinaus Features wie umfangreiche Heatspreader für VRMs und Chipsatz.Technische Details:
- Formfaktor:
Micro-ATX (244 x 226 mm) - Chipsatz:
AMD A620 - Sockel:
AM5 (für AMD-Ryzen-7000-CPUs) - RAM:
2x DDR5 (5.600 MHz, bis zu 6.400 MHz mittels OC)
Dual-Channel
Max. 64 GB - Slots (physisch):
1x PCIe 4.0 x16
1x PCIe 3.0 x1 - Interne Anschlüsse:
2x SATA 6G
1x M.2 (PCIe 4.0 x4, 2280, CPU)
1x M.2 (PCIe 3.0 x4, 2260/2280, Chipsatz)
2x USB 3.0 (zwei Header, USB 3.2 Gen 1, max. 5 Gbit/s)
4x USB 2.0 (zwei Header, max. 480 Mbit/s)
1x Front Panel Audio Connector - Lüfter-Header:
1x CPU-Fan (4-Pin)

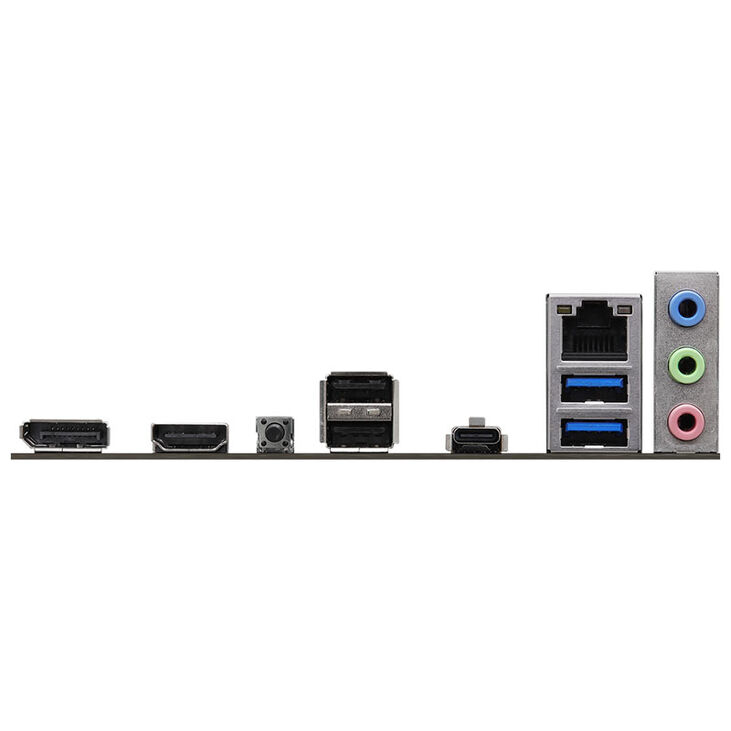

3x Gehäuselüfter (4-Pin) - Externe Anschlüsse:
1x USB 3.0 (Typ C, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 3.0 (Typ A, USB 3.2 Gen 1, max. 5 Gbit/s)
2x USB 2.0 (Typ A, max. 480 Mbit/s)
1x RJ-45 (AMD I225-V, max. 2,5 Gbit/s)
2x 3,5 mm Klinke - Stromversorgung:
1x 24-Pin ATX
2x 8-Pin ATX/EPS 12V - Herstellergarantie: 2 Jahre
Farbe
|
|
Hauptfarbe
|
Schwarz
|
Sekundärfarbe
|
Grau, Silber
|
Formfaktor
|
|
Mainboard Formfaktor
|
Micro-ATX
|
CPU
|
|
CPU-Sockel
|
AM5
|
Mainboard
|
|
Mainboard-Chipsatz
|
AMD A620
|
Arbeitsspeicher
|
|
max. Arbeitsspeicher
|
64 GB
|
Speichertyp
|
DDR5
|
Speicherslots
|
2x
|
WLAN & LAN
|
|
LAN-Anschlüsse
|
1x 1 Gbit/s
|
WLAN / Bluetooth
|
Nein
|
Interne Anschlüsse
|
|
USB 3.0 (intern) mögliche Anschlüsse
|
2
|
Externe Anschlüsse
|
|
USB 3.1 (extern) Type C
|
1
|
USB 3.1 (extern) Type A
|
2
|
Displayanschlüsse
|
Display Port (1x), HDMI (1x)
|
Speicheranschlüsse
|
|
M.2 PCIe 3.0 x2
|
1
|
M.2 PCIe 3.0 x2 & SATA 6G
|
1
|
M.2 PCIe 4.0 x4
|
1
|
SATA 6G (intern)
|
2
|
Erweiterungssteckplätze
|
|
PCIe x16 Slots (gesamt)
|
1
|
PCIe x1 Slots (gesamt)
|
2
|
PCIe 4.0 x16 (mechanisch)
|
1
|
PCIe 3.0 x1 (mechanisch)
|
2
|
Lüfter Header
|
|
4-Pin-Lüfteranschlüsse
|
4
|
Beleuchtung
|
|
Beleuchtung / RGB
|
Nein
|
