This black micro-ATX case for budget systems features a stylish design, a power supply cover, and generous air cooling options with a perforated front for high airflow. With space for Mini-ITX and Micro-ATX motherboards and graphics cards up to 286 mm, even full-fledged gaming PCs can be built.
Features of the Aerocool CS-107 v2 at a glance:
- Mini tower for Micro-ATX and Mini-ITX boards
- Acrylic side panel
- Mesh front for good airflow
- Three pre-installed RGB fans (3x 120 mm)
- The power supply cover ensures a tidy interior
- Graphics cards up to 286 mm in length / CPU coolers up to 157 mm in height
- Four horizontal slots for graphics and expansion cards

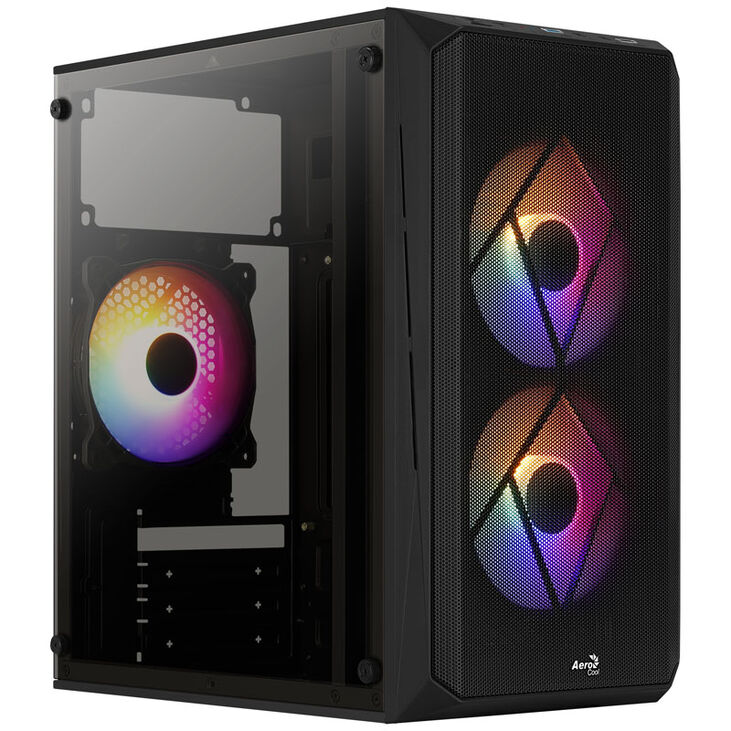

Aerocool CS-107 v2: Stylish mini tower with RGB LED fans

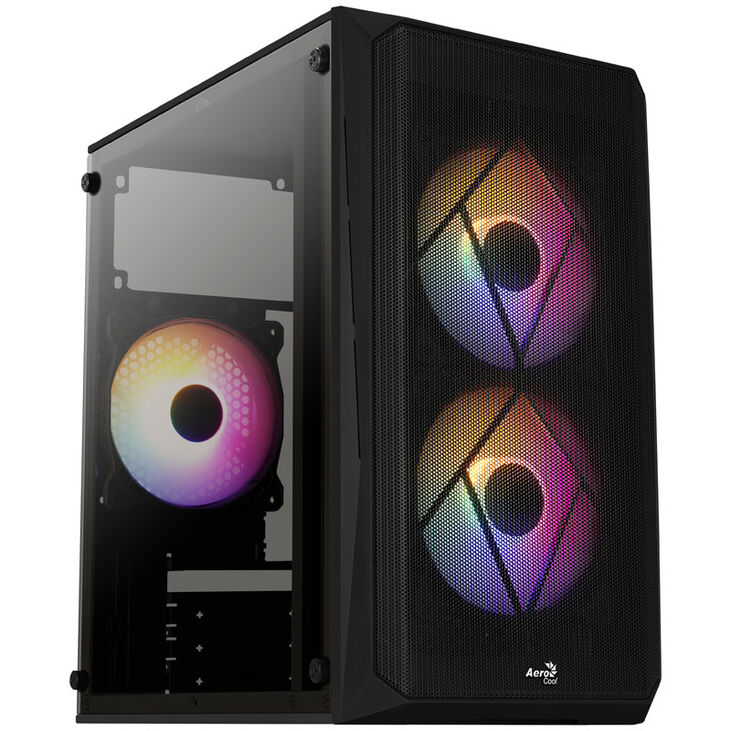

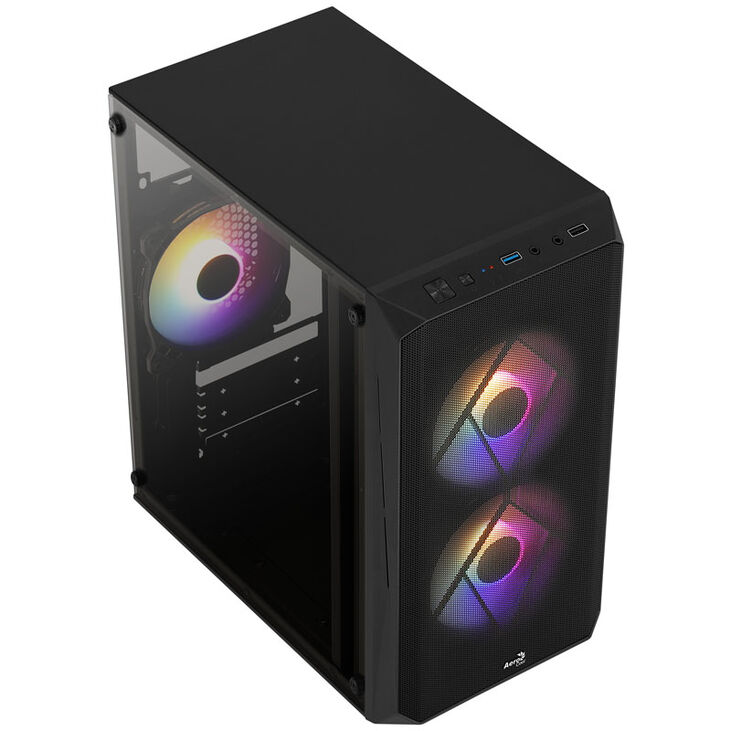

The Aerocool CS-107 v2 offers showcase elements in the compact format of a mini tower. The acrylic side panel allows a view of the installed hardware, and the mesh front ensures high airflow within the case, thus supporting the cooling of the installed components.

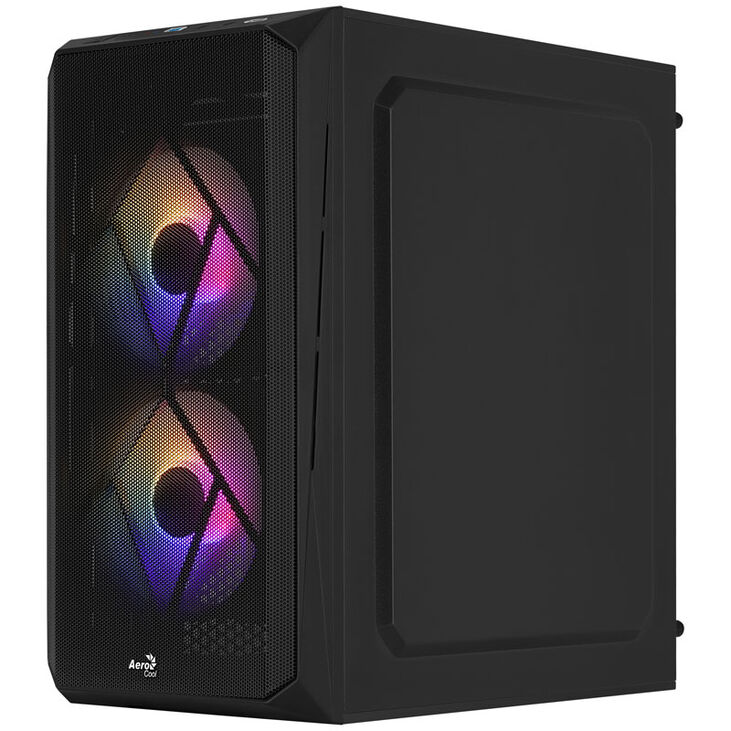

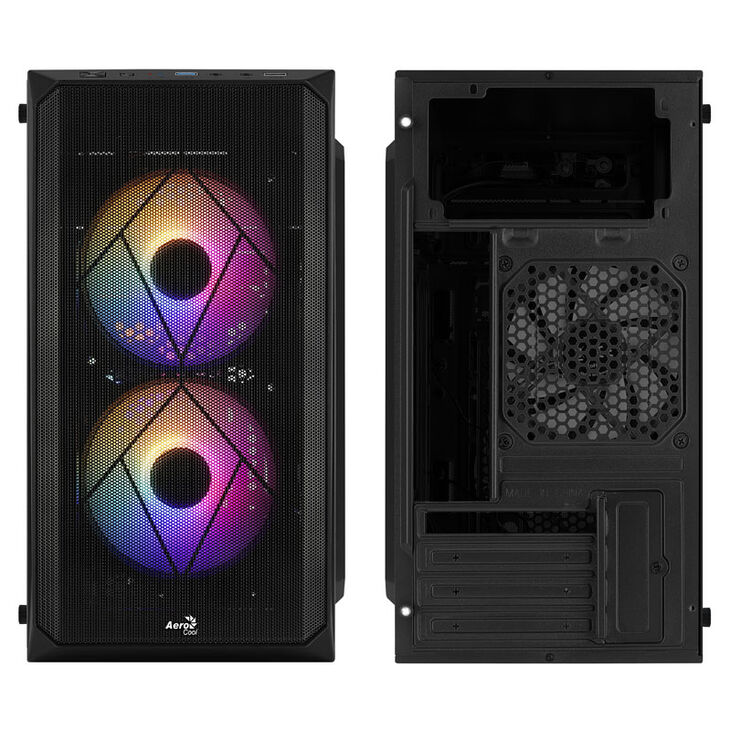

In the Aerocool CS-107 v2, a total of up to three case fans can be installed: Two 120 mm RGB fans are already installed in the front. An additional 120 mm RGB fan is installed at the rear of the case. For water-cooled systems, a 240 mm radiator with a length of 296 mm can be installed in the front of the case.

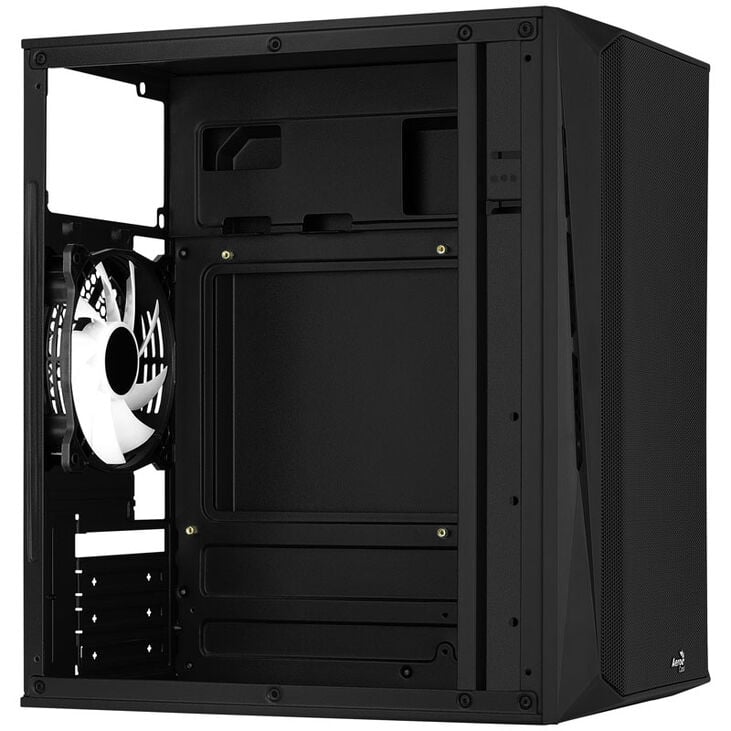

The black power supply cover ensures a particularly tidy interior, as the power supply, cables, and drives can be concealed beneath it. There is space at the bottom for a 2.5 or 3.5-inch storage drive. Additionally, another 2.5-inch storage drive can be accommodated at the front.

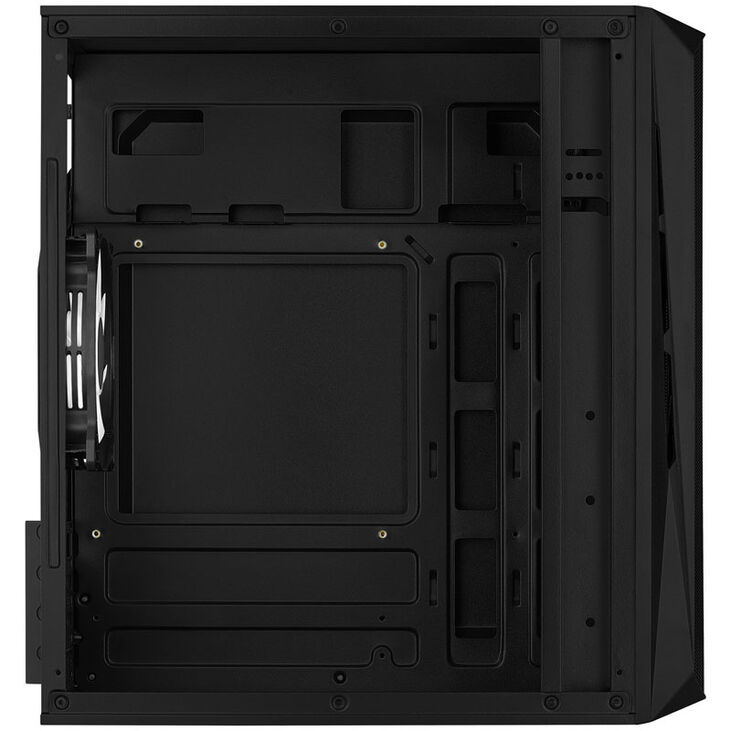

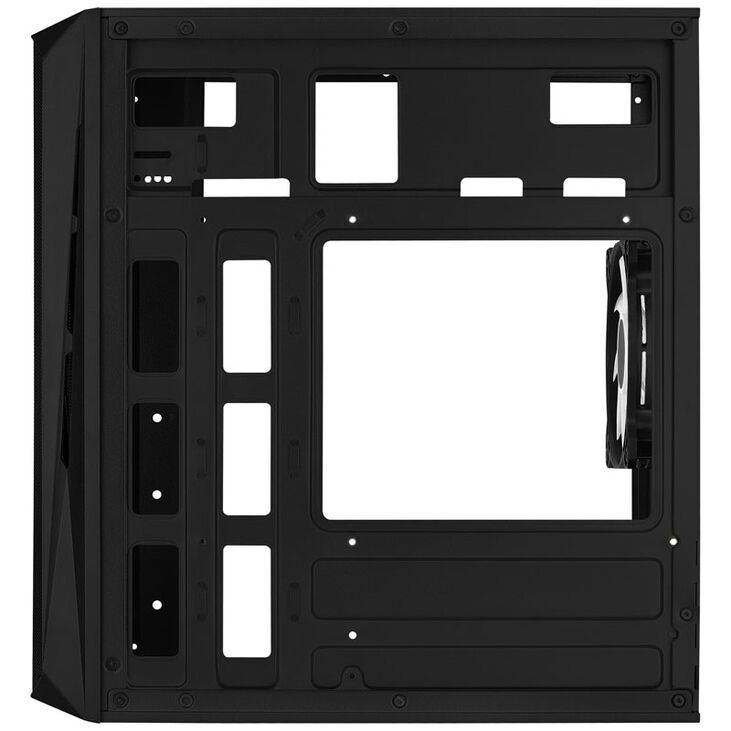

With 24.9 mm of space between the motherboard tray and the right side panel, there is also sufficient room for clean cable management. For the installation of high-performance graphics cards, a length of 286 mm is planned. Tower coolers must not exceed a height of 157 mm.
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
White
|
Dimensions
|
|
Length / Depth
|
340.6 mm
|
Width
|
197.5 mm
|
Height
|
353 mm
|
Case
|
|
Case Type
|
Mini Case
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
Micro-ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
157 mm
|
Max. GPU Length
|
286 mm
|
Max. PSU Length / Depth
|
159 mm
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
rear top
|
Fan Support
|
|
Max. Number of Fans
|
3
|
120 mm fans
|
3
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm)
|
Drive Bays
|
|
Max. 2.5 Inch Drives
|
2
|
Max. 3.5 Inch Drives
|
1
|
Max. 5.25 Inch Drives
|
0
|
2.5 inch internal drive bay
|
1
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
Hot swap drive bays
|
No
|

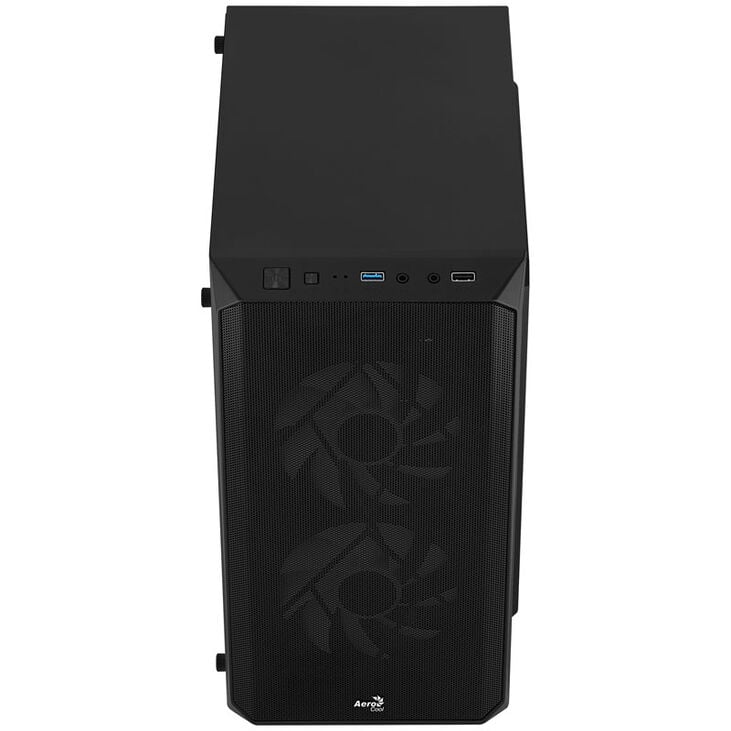

External Ports
|
|
USB 3.0 (external) Type A
|
1
|
USB 2.0 (external) Type A
|
1
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Cover
|
Side panel
|
closed
|
Vertical GPU Mount
|
No
|
Adjustable Vertical GPU Bracket
|
No
|
Riser Cable Included
|
No
|
Front door
|
No
|
Cable Management
|
Yes
|
Filters Included
|
No
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Remote included
|
No
|
Transport System
|
No
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
4
|
PCI slot allocation
|
2x 2
|
Features
|
|
Housing Feedthrough
|
No
|
Fan Header
|
|
Fan Controller / Fan Hub
|
No
|
Mounting
|
|
Case VESA Mountable
|
No
|
Internal Monitor Mount
|
No
|
Materials
|
|
Materials
|
ABS, SPCC (steel), Steel
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Fan / RGB control
|
No
|
RGB Controller
|
No
|
RGB Type
|
Fixed RGB
|
Lighting Colour
|
RGB
|
Additional Contents
|
|
Included fans
|
3x 120 mm
|
