Aerocool Prism FRGB Mid Tower, ATX, Tempered Glass - Black
- Midi tower for Mini-ITX, Micro-ATX, and ATX motherboards
- Side panel and front made of tempered glass
- Power supply cover ensures a tidy interior
- Graphics cards up to 346 mm in length / CPU coolers up to 164 mm in height
- Seven horizontal and two vertical slots for graphics and expansion cards
- Includes four 120 mm FRGB fans
The Aerocool Prism FRGB Midi Tower in Detail

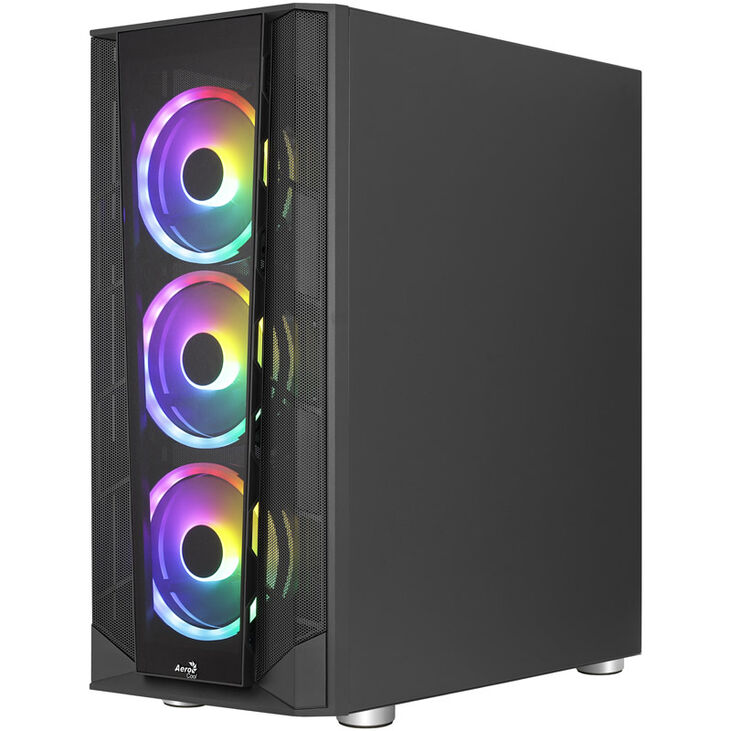

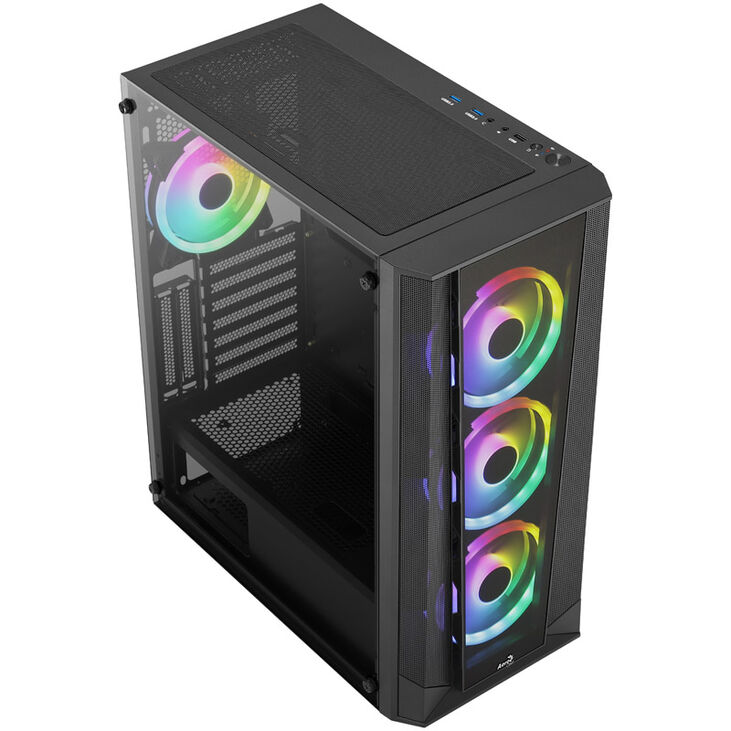

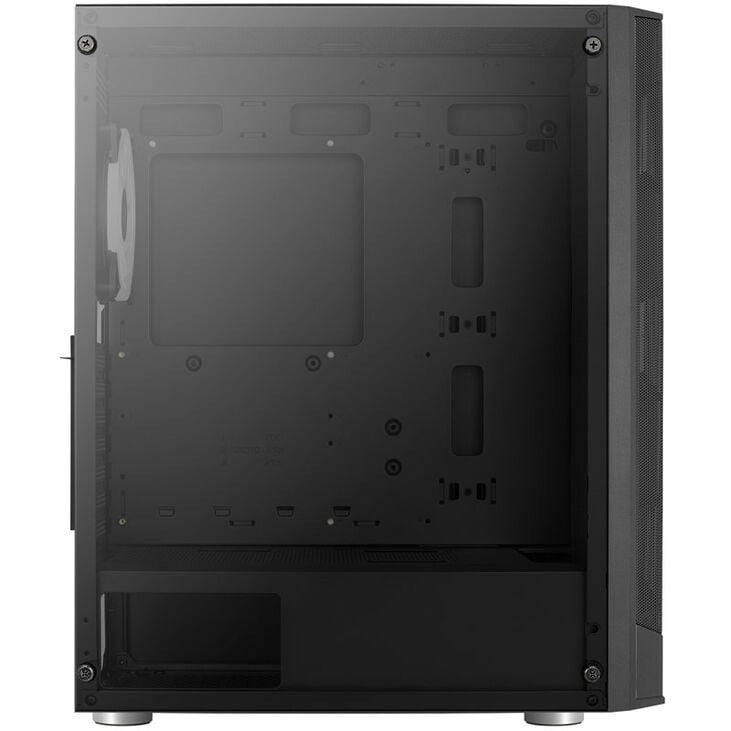

The Aerocool Prism FRGB is a powerful midi tower case equipped with a front cover and side panel made of tempered glass, showcasing your hardware perfectly.
Predestined for air and water cooling
The interior offers space at various points for the installation of radiators: at the front for a 360 or 280, on the top for a 240 or 280, and at the back for a 120. The CPU cooler can be up to 164 mm tall, allowing even large tower models to fit into the Aerocool Prism.

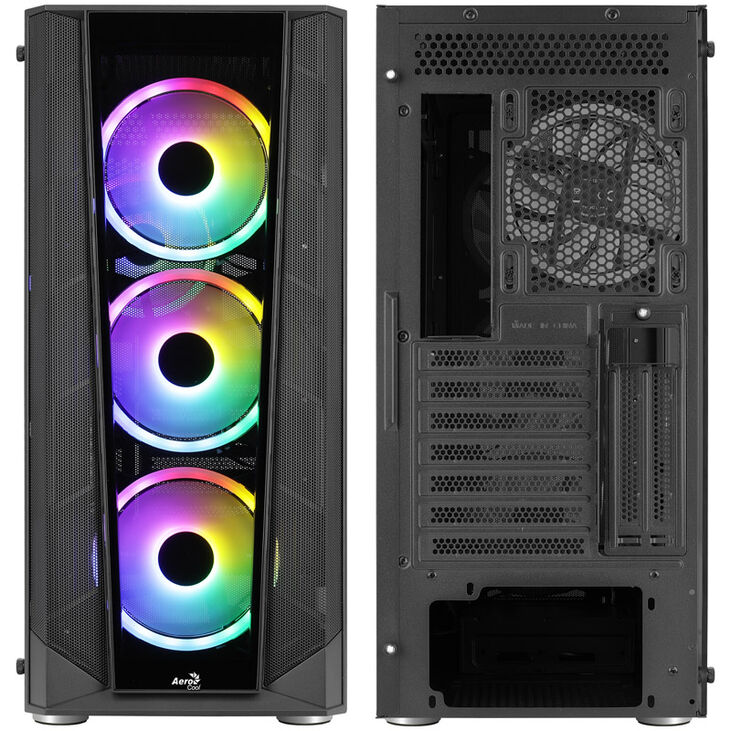

In total, 8 fans can be installed in the case: three 120 or 140 mm fans at the front, two 120 or 140 mm fans on the top, two 120 mm on the power supply cover, and one more at the back. Ventilation openings at the front, top, and rear of the case facilitate air exchange.
Including four stylish FRGB fans

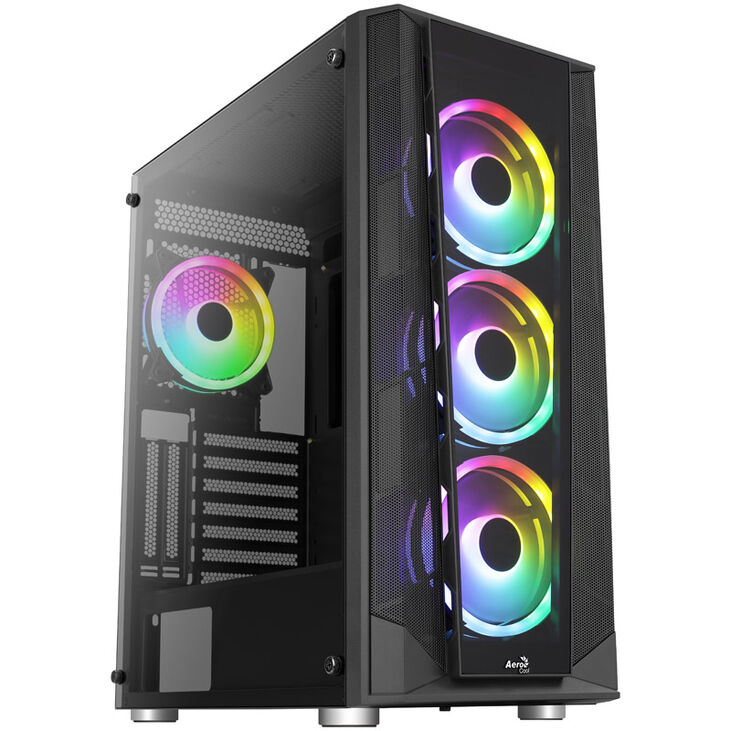

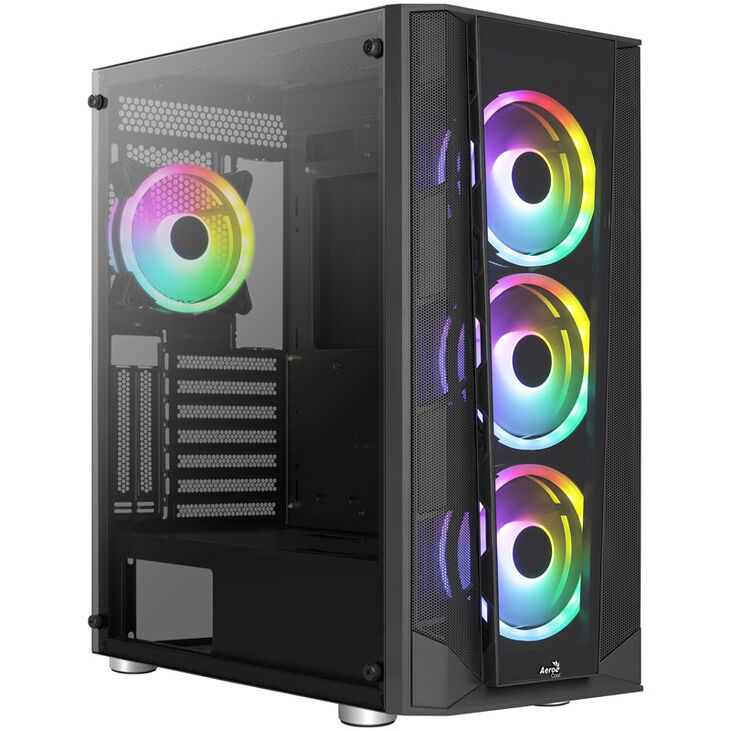

The Aerocool Prism FRGB comes with four illuminated FRGB fans. These shine with colourful lighting, stylishly showcasing your gaming PC. The fans are powered via four-pin Molex connectors. Synchronisation with additional RGB accessories is not provided.
Ample space for hard drives and SSDs
The power supply cage accommodates one 3.5-inch HDD and another 3.5 or 2.5-inch drive on its top. Behind the motherboard tray, there is space for another 2.5-inch SSD, allowing for a total of three SATA drives to be installed in the Aerocool Prism.
Room for powerful hardware

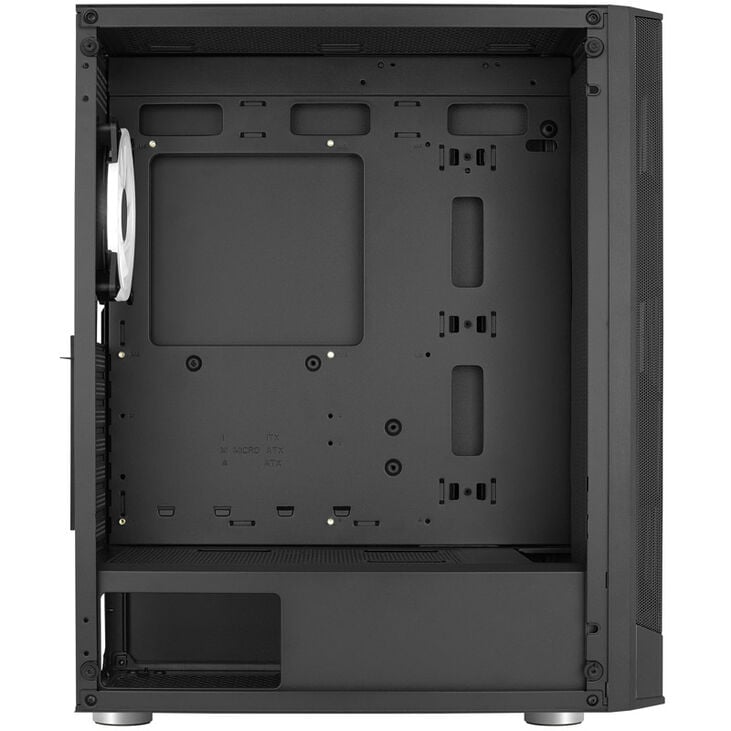

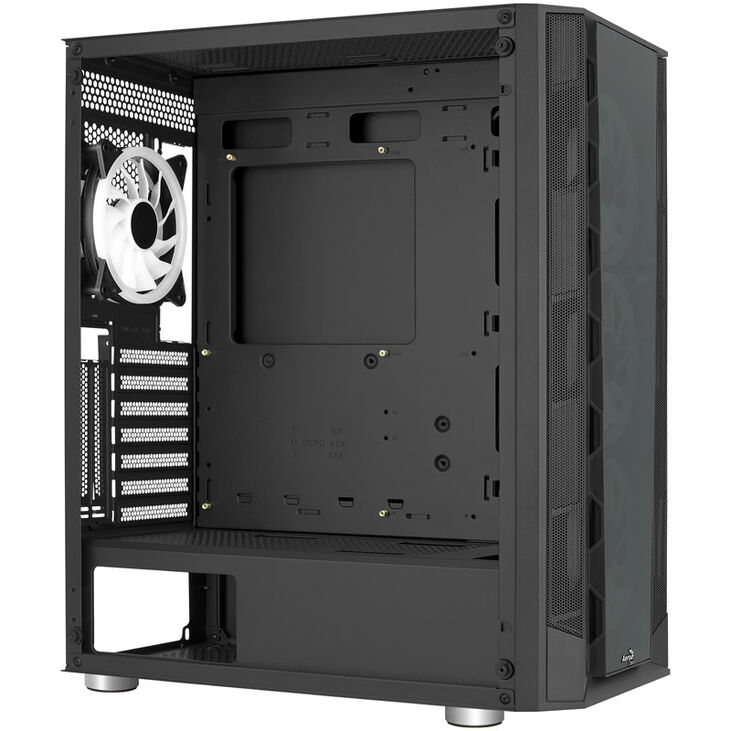

The motherboard tray of the Aerocool Prism FRGB can accommodate an ATX form factor motherboard. Alternatively, smaller Micro-ATX and Mini-ITX motherboards can also be installed. If no radiator is installed at the front, the Aerocool Prism allows for the installation of graphics cards up to 346 mm long, ensuring high-end graphics cards can fit into the case.
For expansion cards, there are a total of 7 horizontal and 2 vertical expansion slots available. With a separately available riser cable, your graphics card can be elegantly showcased. Under the power supply cover, an ATX power supply with a maximum length of 184 mm can be installed.
- Dimensions: 216 x 477 x 403 mm (W x H x D)
- Weight: 6.19 kg
- Material: Steel, plastic, tempered glass
- Colour: Black
- Form factor: ATX, Micro-ATX, Mini-ITX
- Total fans possible:
Front: 3x 120 / 3x 140 mm
Top: 2x 120 / 2x 140 mm
Rear: 1x 120 mm
Power supply cover: 2x 120 mm - Pre-installed:
4x 120 mm FRGB fans (4-pin Molex) - Radiator support:
Front: 1x 360 / 1x 280 mm
Top: 1x 240 / 1x 280 mm
Rear: 1x 120 mm - Drive bays:
1x 3.5/2.5 inches (internal)
1x 3.5 inches (internal)
1x 2.5 inches (internal) - Power supply: 1x standard ATX (optional)
- Expansion slots: 7 + 2 (vertical)

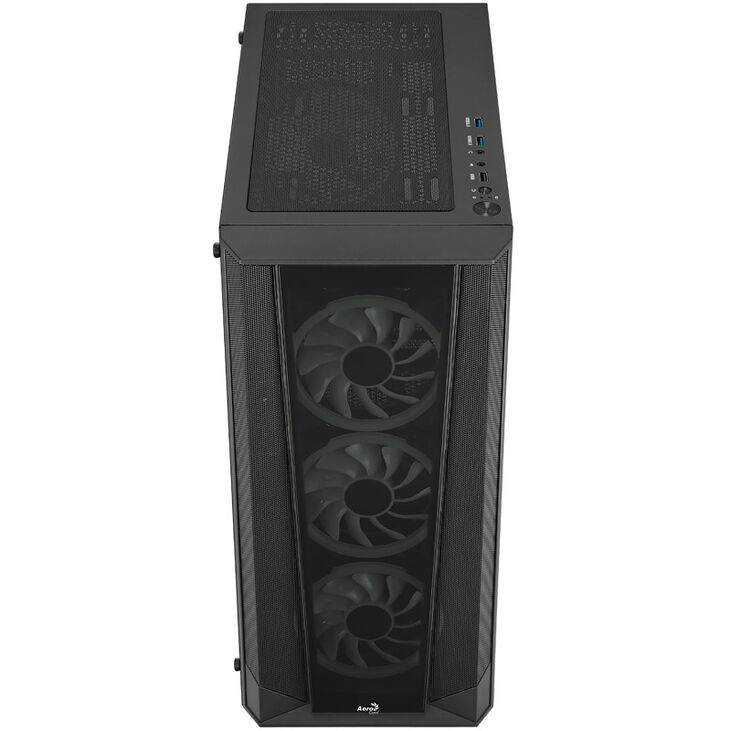

- I/O panel:
2x USB 3.0
1x USB 2.0
2x 3.5 mm jack (Audio-In/-Out) - Maximum graphics card length: 346 mm (without front radiator)
- Maximum CPU cooler height: 164 mm
- Maximum power supply length: 184 mm
- Maximum radiator thickness including fans (top): 55 mm
- Space for cable management: 22.6 mm
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
403 mm
|
|
Width
|
216 mm
|
|
Height
|
477 mm
|
|
Weight
|
6.19 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
164 mm
|
|
Max. GPU Length
|
346 mm
|
|
Max. PSU Length / Depth
|
184 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Fan Support
|
|
|
120 mm fans
|
8
|
|
140 mm fans
|
5
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm), 2x Dual (280 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
1
|
|
3.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Cover
|
|
Side panel
|
with window
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
PCI slot allocation
|
7 + 2
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Fan / RGB control
|
No
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Included fans
|
4x 120 mm
|
