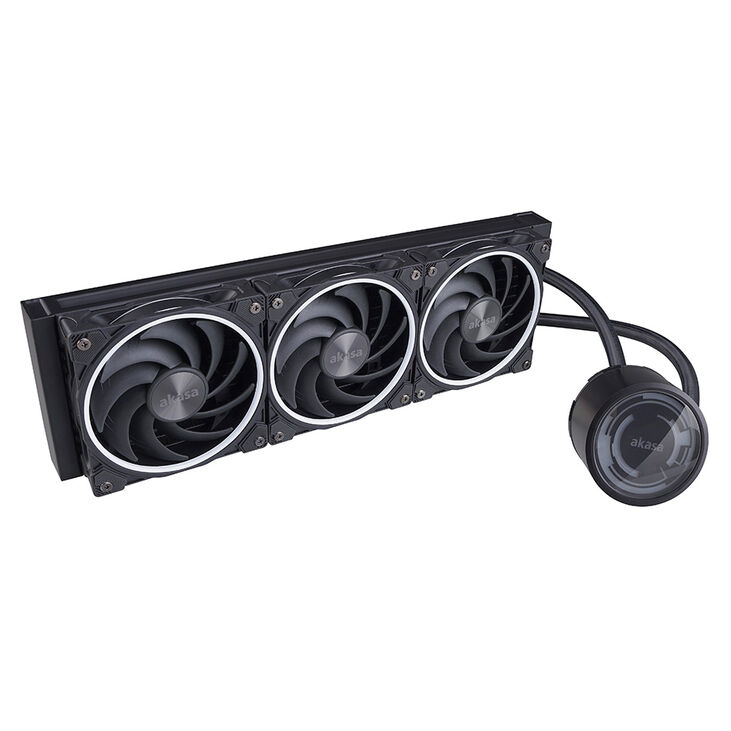

Akasa SOHO 360 Dusk Edition AIO Cooler - 360 mm

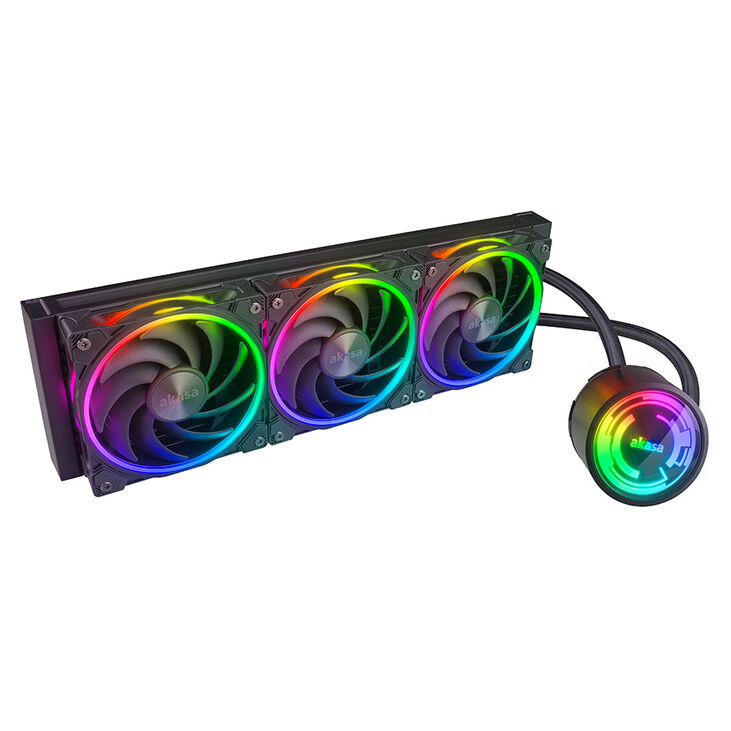

- Addressable RGB LED lighting on pump block and fans
- 360 dual radiator made of aluminium for maximum cooling performance
- Includes three 120mm PWM fans with high static pressure
- Max. 89.9 m³/h flow rate at max. 2,000 RPM
- Easy handling due to flexible hoses with anti-kink protection
- Compatible with common AMD & Intel sockets
Powerful complete water cooling with extensive RGB lighting
The AIO Cooler SOHO 360 Dusk Edition from Akasa combines high cooling performance with an appealing design. The pump block and the two fans are equipped with digitally addressable RGB lighting that can be controlled via the common synchronisation interfaces of major motherboard manufacturers. The 120mm fans, optimised for use on radiators, are controlled by PWM signal.
The Akasa SOHO 360 Dusk Edition features a dual radiator made of aluminium. It is equipped with two 120mm ARGB fans. The airflow rate is 89.9 cubic metres per hour. When combined with the low fin density of the radiator, efficient cooling is ensured, effectively cooling high-performance processors. The fans are controlled by PWM in a range between 500 and 2,000 RPM. At maximum speed, each of the two fans generates a static pressure of 1.75 mmH2O.
Connections and Lighting
The base plate of the CPU cooling block is made of copper and ensures the best possible heat dissipation from the CPU. Thermal paste is included with the Akasa SOHO 360 Dusk Edition. The pump is powered via SATA, the tachometer signal is provided through a 3-pin fan connection. The fans are operated and controlled via 4-pin PWM connectors.
The fans and pump have digitally addressable 3-pin RGB connectors. These are equipped with Y-splitters for daisy-chaining the signal. Colours and lighting modes can be customised to your preferences using the motherboard software. The AiO comes with an RGB controller, allowing you to conveniently configure the RGB lighting to suit your aesthetic preferences.
Technical Details:
- CPU cooler/pump:
Base plate material: Copper
Connections:
1x 3-pin fan (pump control)
1x 3-pin RGB (5V) - Hoses:
Material: PTFE (with nylon sheathing)
Connections: 90 degrees angled, rotatable - Radiator:
Dimensions: 397 x 120 x 27 mm (L x W x H)
Material: Aluminium
Colour: Black - Fans:
Type: 2x 120mm ARGB (4-pin PWM / 3-pin ARGB)
Speed: 500 - 2,000 RPM
Flow rate: max. 89.9 m³/h
Static pressure: 1.75 mmH2O
Noise level: max. 31.8 dB(A)
Connections:
4-pin PWM
3-pin ARGB (5V) - Compatibility:
Intel socket: 1700, 1200, 20XX, 115X
AMD socket: AM5, AM4
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
397 mm
|
|
Width
|
120 mm
|
|
Height
|
27 mm
|
|
Fan height
|
25 mm
|
|
Radiator Size
|
360 mm
|
|
Radiator Height With Fan
|
27 mm
|
|
Tube length
|
400 mm
|
|
Type
|
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
|
CPU
|
|
|
CPU Socket
|
115X, 1200, 1700, 2011, 2011-V3, 2066, AM4
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
31.8 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Pump connectors
|
3-Pin
|
|
Materials
|
|
|
Materials
|
Aluminium, Copper, PTFE
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm
|
