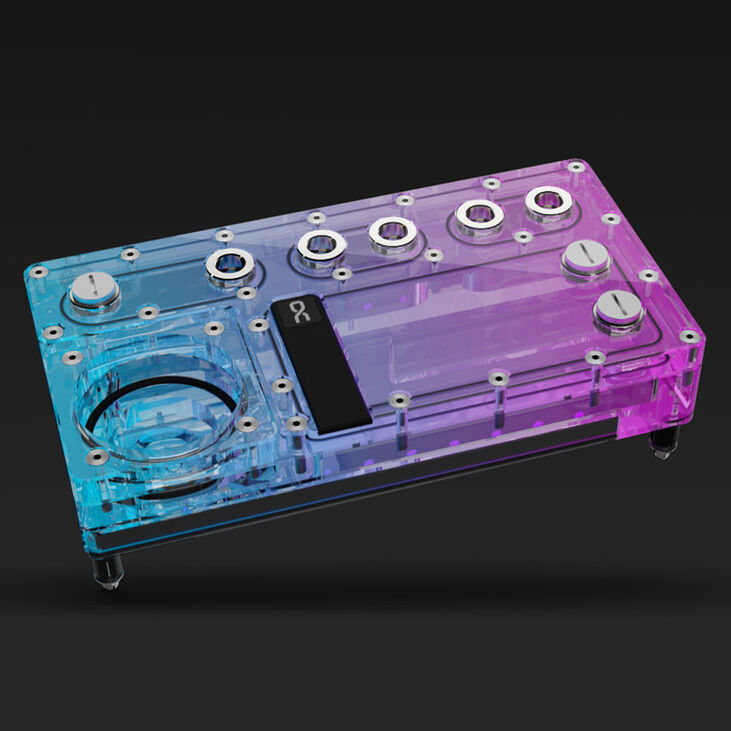

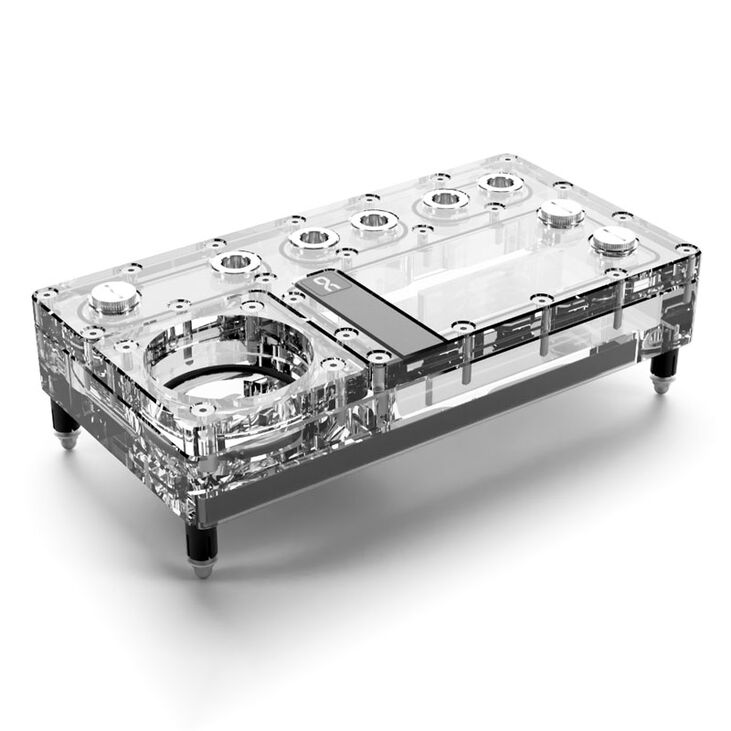

Alphacool Core Distro Plate 240 mm Left VPP/D5, ARGB - Acrylic

Alphacool Core Distro Plate 240 mm Left VPP/D5, ARGB - Acrylic

Distribution plates for water cooling, with mounting options for D5 pumps, integrated reservoir, easy to install, integrated RGB lighting
159,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU WACH-828 |
EAN 4250197154734 |
MPN 15473 |
Manufacturer Alphacool
  • Extremely compact and versatile in use
  • Mounting option for D5 pumps on the right side of the distro plate
  • Integrated reservoir with a capacity of 164 ml
  • A total of 8x G1/4 inch ports for easy integration into the loop
  • Click system for easy installation in your case

Distro Plate for Custom Water Cooling

With the Alphacool Core Distro Plate 240 mm Left VPP/D5, you won't have to compromise on cooling your high-end hardware. The numerous ports allow you to simplify the complex tube routing in your system, reducing the need for bends. With the integrated mount for D5 pumps, you can easily add a pump to your water cooling loop.

Versatile and Easy Placement in Your Case

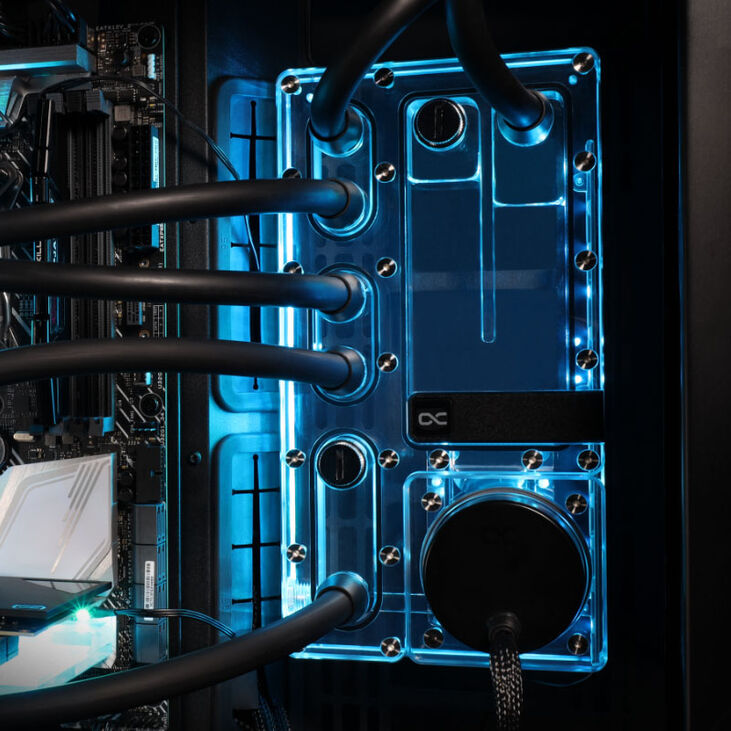

Thanks to the total of 8 G1/4 inch threads, you can integrate the reservoir into your water cooling loop without much effort. To save space, you can easily mount the combination of reservoir, distro plate, and pump to a radiator or use the included click mechanism. With this mechanism, the distro plate can be mounted to the back panel of your case using sleeves and simply clicked into place.

RGB Lighting for Eye-Catching Builds

The acrylic distro plate offers an integrated RGB lighting highlight for your gaming PC. The LEDs make your build shine in all imaginable colors. You have the choice and can select the lighting effects and colors that suit you best through software.

  • Dimensions: 240 x 125 x 42 mm (L x W x H)
  • Material: Acrylic
  • Weight: 1260 g
  • Colour: Transparent
  • Fill volume: approx. 164 ml
  • Threads:
    Inlet: 4x G1/4 inch
    Outlet: 4x G1/4 inch
    Drain Port: 1x G1/4 inch
  • Operating temperature: max. 60 °C
  • Pump compatibility:
    D5
  • Lighting:
    Number of LEDs: 12 digitally addressable RGB LEDs
    Connector: 3-Pin JST + 3-Pin 5V
  • Delivery contents:
    1x 240 Distroplate
    1x Allen key
    3x Screw Plug
    6x Core Push Mount Set
    1x ARGB Adapter

Note: Please only use with clear, transparent water cooling fluids. Particles and additives in pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers, and hoses. This may result in the manufacturer's warranty being void.
Dimensions
Width
125 mm
Height
42 mm
Internal Ports
RGB / LED connectors
1x Digital RGB (3-Pin 5VDG), 1x Digital RGB PHANTEKS (3-Pin 5VDG)
Lighting
Lighting Colour
RGB
