- Extremely compact and versatile in use
- Mounting option for D5 pumps on the left side of the distro plate
- Integrated reservoir with a capacity of 309 ml
- A total of 10x G1/4 inch ports for easy integration into the loop
- Click system for easy installation in your case

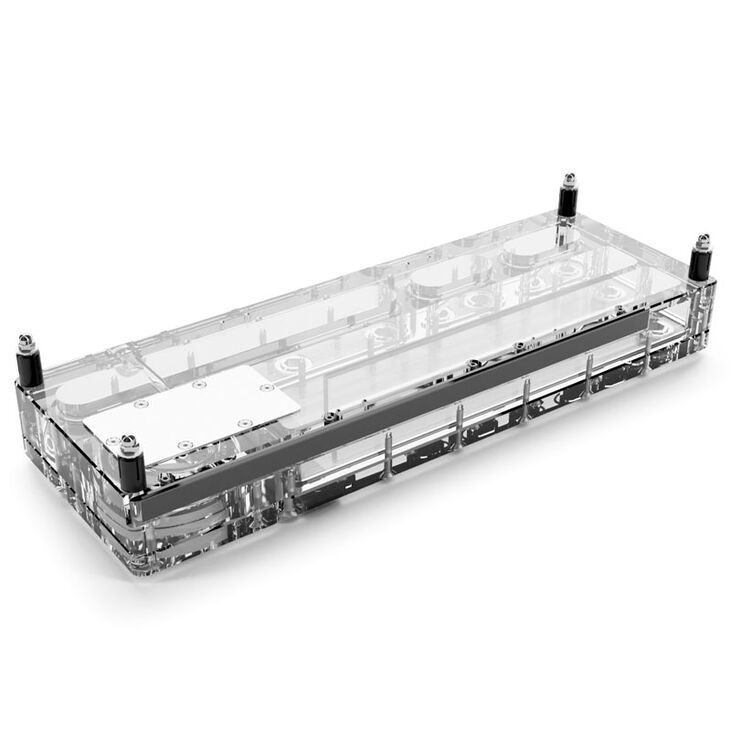

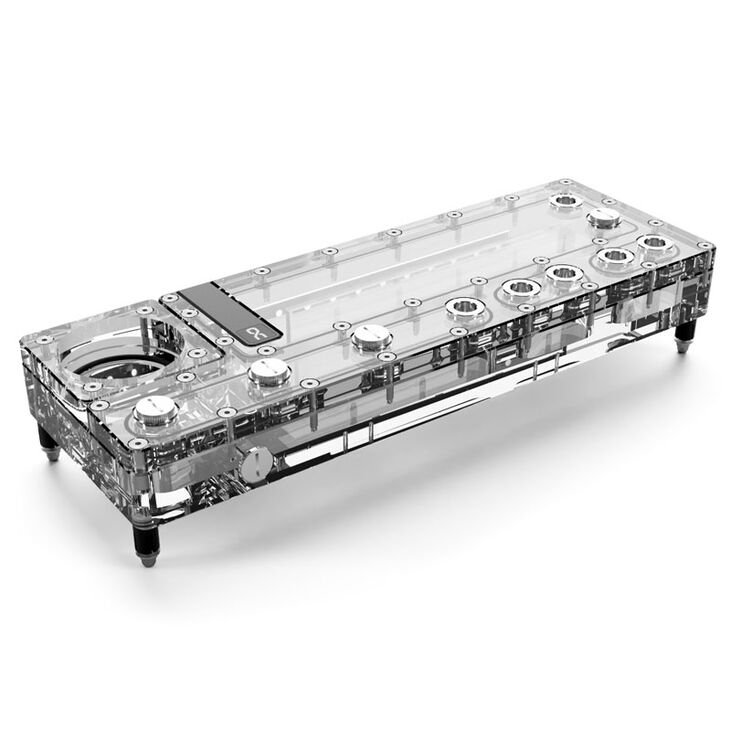

Distro Plate for Custom Water Cooling
With the Alphacool Core Distro Plate 360 mm Left VPP/D5, you won't have to compromise on cooling your high-end hardware. The numerous ports allow you to simplify the complex tube routing in your system, reducing the need for bends. With the integrated mount for D5 pumps, you can easily add a pump to your water cooling loop.

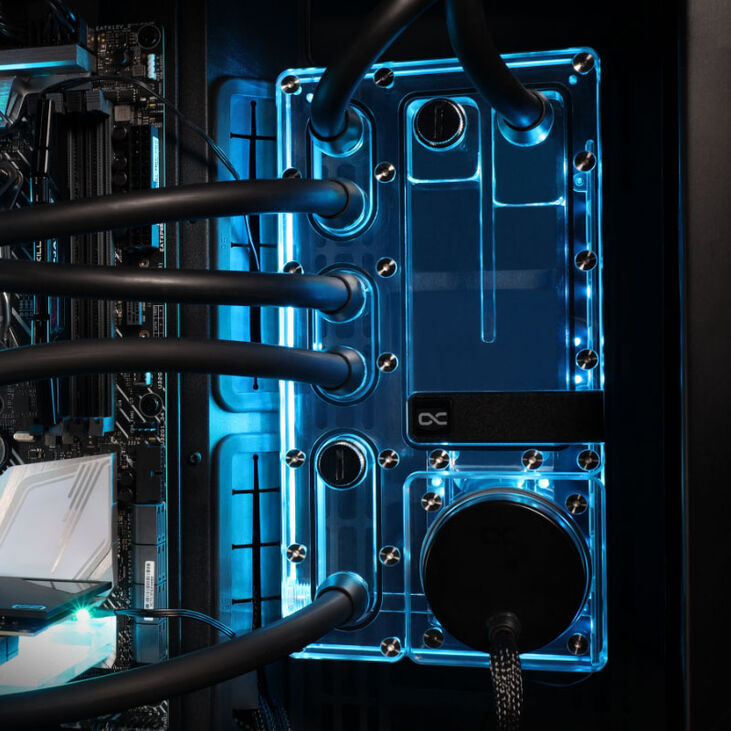

Versatile and Easy Placement in Your Case
Thanks to the total of 10 G1/4 inch threads, you can integrate the reservoir into your water cooling loop without much effort. To save space, you can easily mount the combination of reservoir, distro plate, and pump to a radiator or use the included click mechanism. With this mechanism, the distro plate can be mounted to the back panel of your case using sleeves and simply clicked into place.

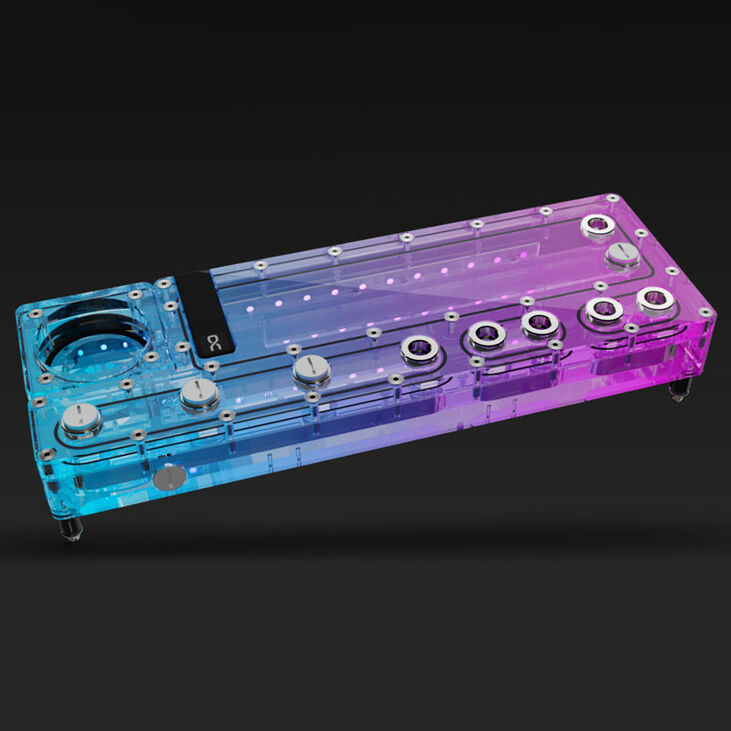

RGB Lighting for Eye-Catching Builds
The acrylic distro plate offers an integrated RGB lighting highlight for your gaming PC. The LEDs make your build shine in all imaginable colors. You have the choice and can select the lighting effects and colors that suit you best through software.
- Dimensions: 360 x 125 x 42 mm (L x W x H)
- Material: Acrylic
- Weight: 1840 g
- Colour: Transparent
- Capacity: approx. 309 ml
- Thread:
Inlet: 5x G1/4 inch
Outlet: 5x G1/4 inch
Drain Port: 1x G1/4 inch - Operating Temperature: max. 60 °C
- Pump Compatibility:
D5 - Lighting:
Number of LEDs: 18 digitally addressable RGB LEDs
Connector: 3-Pin JST + 3-Pin 5V - Delivery Content:
1x 360 Distroplate
1x Hex Key
5x Screw Plug
6x Core Push Mount Set
1x ARGB Adapter
Note: Please only use with clear, transparent water cooling fluids. Particles and additives in pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers, and hoses. This can result in voiding the manufacturer's warranty.
Dimensions
|
|
Width
|
125 mm
|
Height
|
42 mm
|
Internal Ports
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
Lighting
|
|
Lighting Colour
|
RGB
|
