- Extremely compact and versatile in use
- With pre-installed VPP pump on the left side of the reservoir
- Integrated reservoir with a capacity of 309 ml
- A total of 10x G1/4 inch ports for easy integration into the loop
- Click system for easy installation in your case

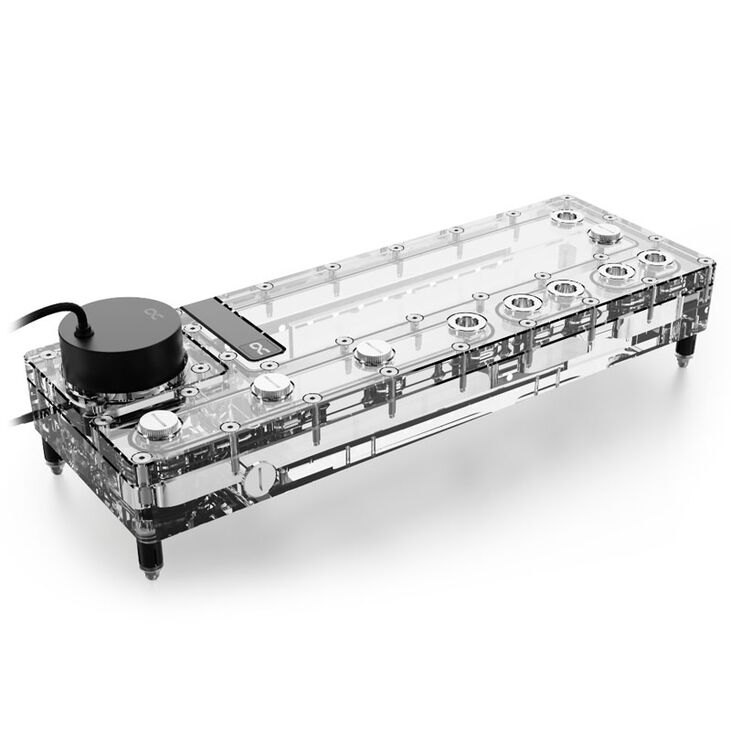

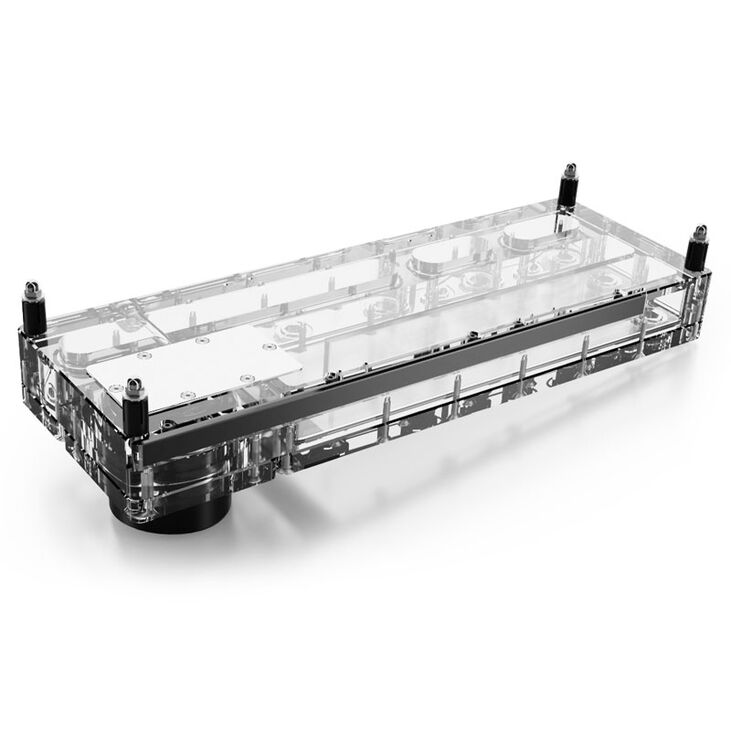

Distro Plate with Pump for Custom Water Cooling
With the Alphacool Core Distro Plate 360 mm Right with VPP, you won't have to compromise on cooling your high-end hardware. The numerous ports allow you to simplify the complex tube routing in your system, reducing the need for bends. With the integrated pump, you can easily ensure sufficient flow in your loop.
Versatile and Easy Placement in Your Case
Thanks to the total of 10 G1/4 inch threads, you can integrate the reservoir into your water cooling loop without much effort. To save space, you can easily mount the combination of reservoir, distro plate, and pump to a radiator or use the included click mechanism. With this mechanism, the distro plate can be mounted to the back panel of your case using sleeves and simply clicked into place.
Integrated Pump
The integrated VPP pump provides a flow rate of 340 liters per hour, ensuring adequate flow for your loop. Additionally, you don't have to worry about fitting the pump, as it is already embedded in the distro plate.
RGB Lighting for Eye-Catching Builds
The acrylic distro plate offers an integrated RGB lighting highlight for your gaming PC. The LEDs make your build shine in all imaginable colors. You have the choice and can select the lighting effects and colors that suit you best through software.
- Distroplate:
Dimensions: 360 x 125 x 68.80 mm (L x W x H)
Material: Acrylic
Weight: 1840 g
Colour: Transparent
Fill volume: approx. 309 ml
Threads:
Inlet: 5x G1/4 inch
Outlet: 5x G1/4 inch
Drain port: 1x G1/4 inch
Operating temperature: max. 60 °C
Pump compatibility:
D5 - Pump:
Dimensions: 360 x 125 x 93.31 mm (L x W x H)
Material: Plastic, Aluminium, Ceramic
Colour: Black
Weight: 276 g
Maximum head: 4.25 m
Maximum flow rate: 340 L/h
Control range: 2500 - 4500 RPM
Starting voltage: 12 V DC - Lighting:
Number of LEDs: 18 digitally addressable RGB LEDs

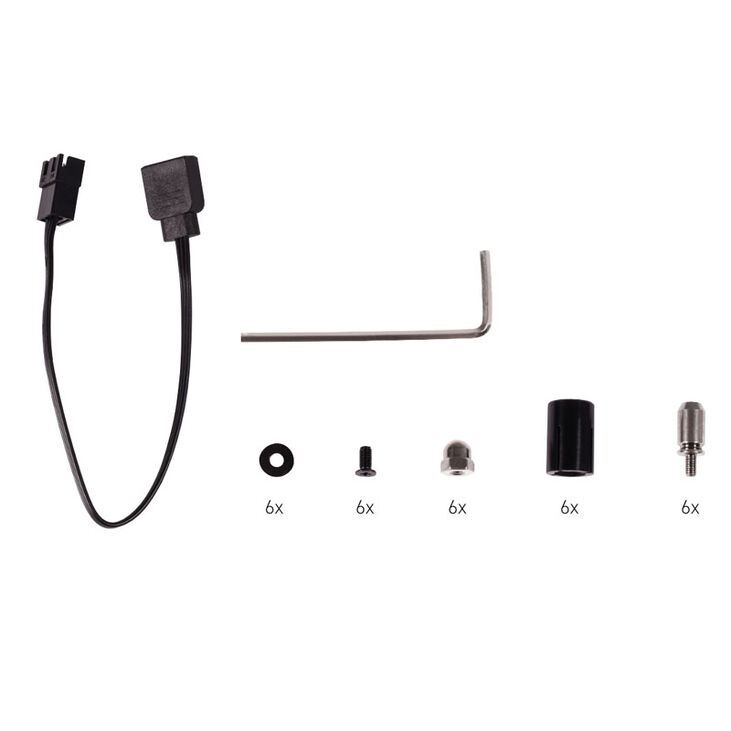

Connector: 3-Pin JST + 3-Pin 5V - Scope of delivery:
1x 360 Distroplate
1x VPP Pump
1x Mounting kit
Note: Please only use with clear, transparent water cooling fluids. Particles and additives in pastel fluids can clog and permanently damage water cooling products such as radiators, pumps, coolers, and hoses. This can result in the manufacturer's warranty being voided.
Dimensions
|
|
Width
|
125 mm
|
Height
|
68.8 mm
|
Internal Ports
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x Digital RGB PHANTEKS (3-Pin 5VDG)
|
Lighting
|
|
Lighting Colour
|
RGB
|
