- Compressor cooling system from Alphacool
- Integrated pump for better cooling performance
- 1000 watts cooling capacity
- Stationary unit with carrying handle for easy transport
- Integrated display for more precise adjustment of cooling steps

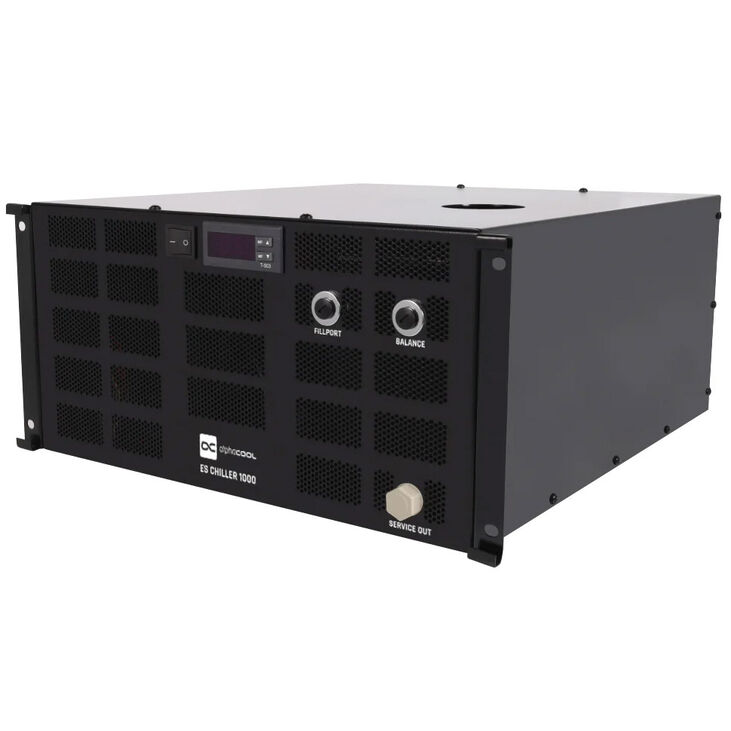

The ES Chiller 1000 Server Rack 5U - Overview
With a maximum cooling capacity of 1000 watts, the Alphacool ES Chiller 1000 Server Rack 5U is a compressor cooling system that represents an ideal option for cooling your servers and workstation systems.
The chiller is equipped with a built-in pump that circulates and cools the coolant. This ensures that your desired temperature is maintained.
All-In-One Cooling System
The ES Chiller Server Rack 5U is equipped with a display that allows you to make various settings, including temperature control in precise steps of 0.3 °C.
The built-in pump, with a delivery height of up to 10 m, enables the chiller to be directly integrated into the cooling circuit. Therefore, no additional pump is required.
Additionally, the chiller features overvoltage protection for the compressor and an alarm that warns you of low flow or overheating, ensuring extra safety.
Uncomplicated transport is also possible, as the ES Chiller 1000 is a stationary device with a carrying handle.
- Colour: Black
- Dimensions: 440 x 260 x 390 mm (L x W x H)
- Weight: 16 kg
- Voltage: 220 V
- Frequency: 50 Hz
- Current: 0.4 – 2.68 A
- Compressor power: 0.44 / 0.46 kW
- Cooling capacity: 0.89 / 1.08 kW
- Refrigerant: R-134a
- Refrigerant charge: 280g
- Precision: ± 0.3°C
- Reducer: Capillary
- Protection:
Overcurrent protection for compressor
Flow alarm
Overtemperature alarm - Pump power: 0.03 kW
- Expansion tank capacity: 2 l
- Inlet and outlet: G1/4 internal thread
- Max. delivery height: 10m
- Max. delivery rate: 10 l/min
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
520 mm
|
Width
|
440 mm
|
Height
|
220 mm
|
Weight
|
22 kg
|
Lighting
|
|
Lighting / RGB
|
No
|
