- Square reservoir with a flat design, perfect for compact systems
- Flexible mounting: freestanding or fixed installation
- A high-performance D5 pump is included!
- Six G1/4 ports for hassle-free maintenance
- Enhance the transparent acrylic with integrated ARGB lighting

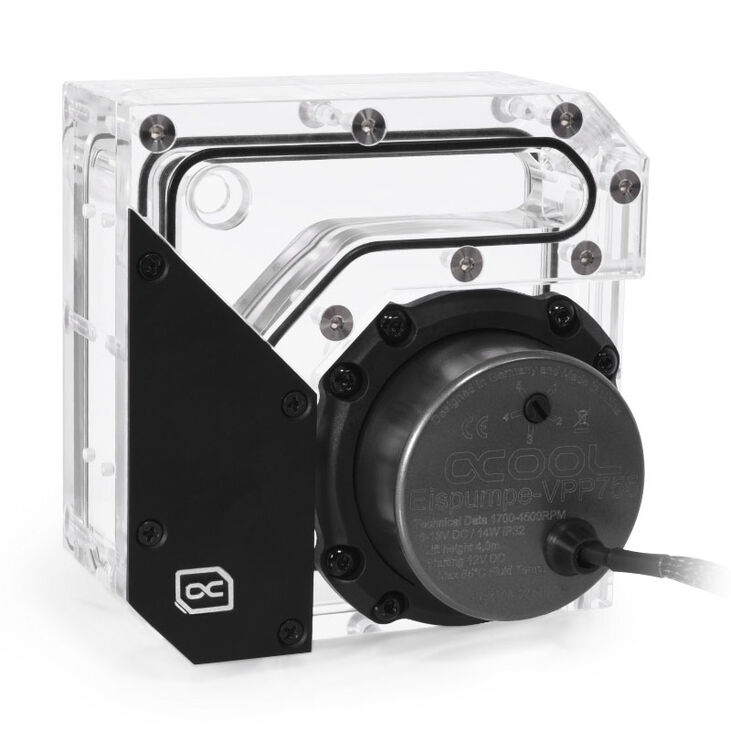

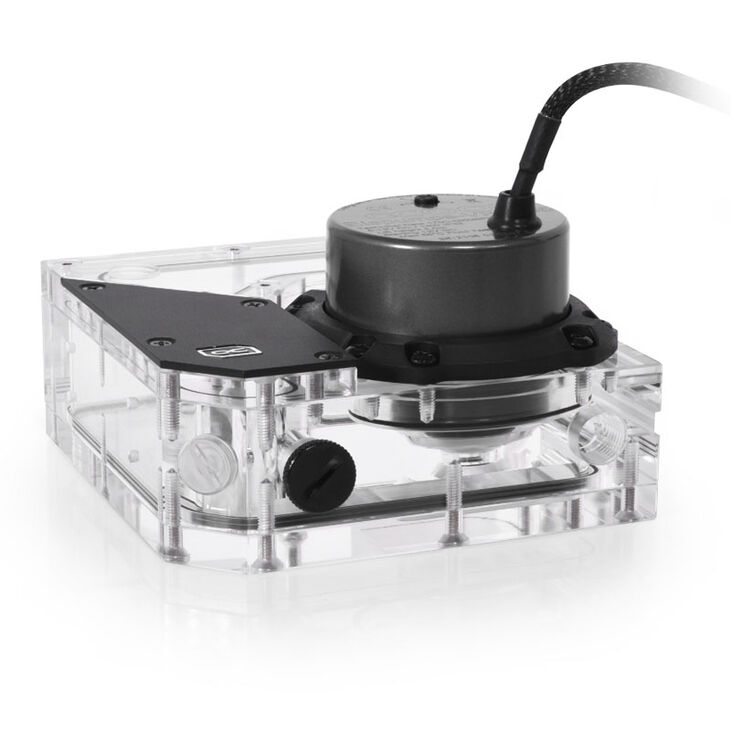

The Alphacool Rise Flat Reservoir D5 with Included Pump in Detail

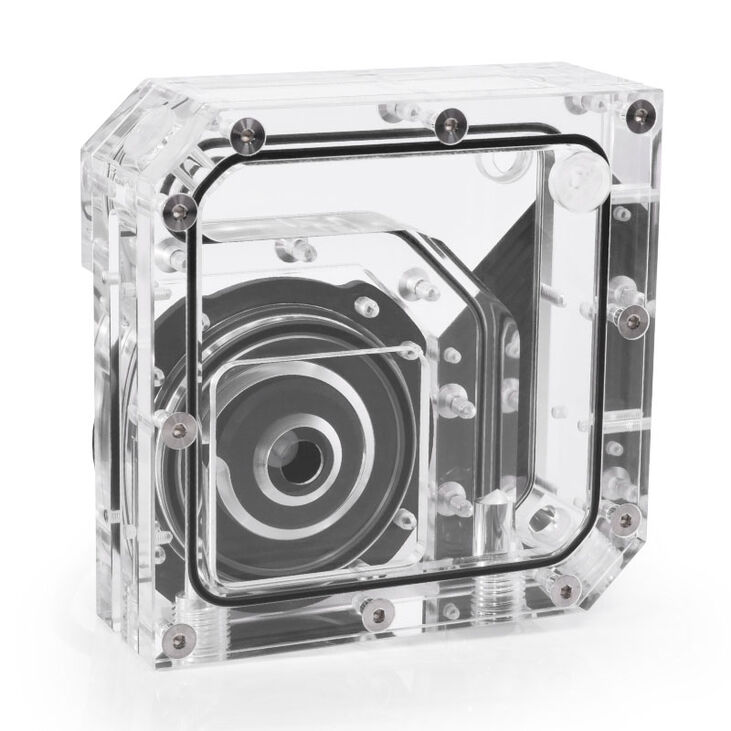

The Rise Flat Reservoir combines a reservoir with a powerful D5 pump to maximise the performance of your cooling loop. Made entirely of acrylic, it allows you to showcase the vibrant colour of your coolant — or keep it clear and let the five ARGB LEDs provide ambient highlights. Its flat form factor makes it ideal even for very compact cases.
Make the Centre of Your Cooling Loop Count

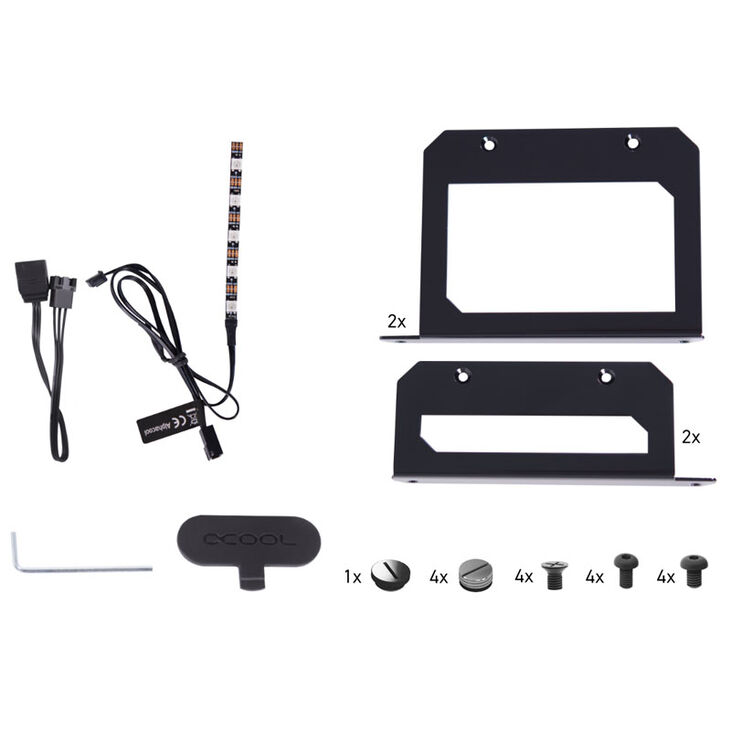

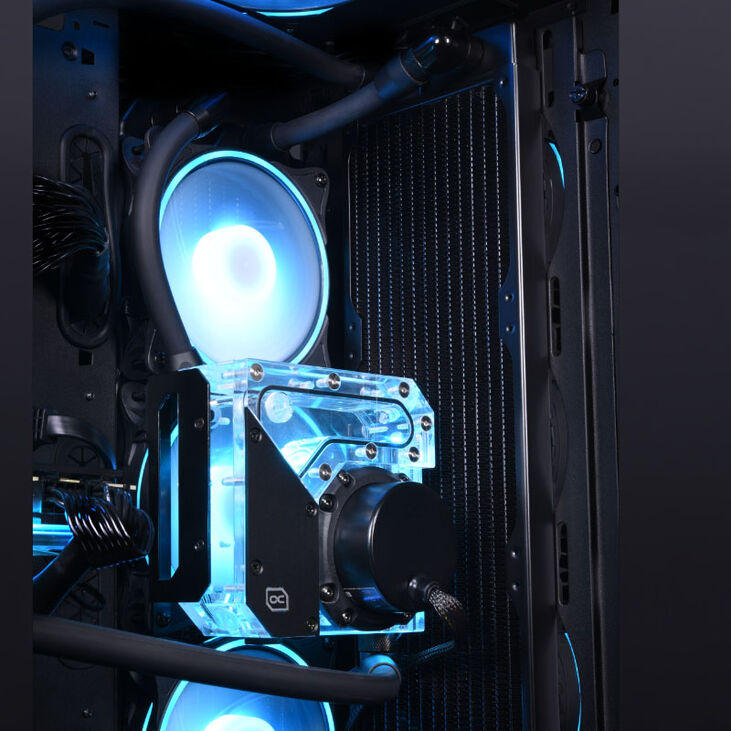

The Rise Flat Reservoir is highly versatile thanks to its slim profile. It can be used freestanding within the case or mounted on a radiator or available fan slots. The included mounting kit makes all of this possible. In this version, the Rise Flat Reservoir comes equipped with a D5 pump.
The Rise Flat Reservoir features five inlets, all with G1/4 threading. These are well-positioned to make filling and draining your coolant simple and convenient.

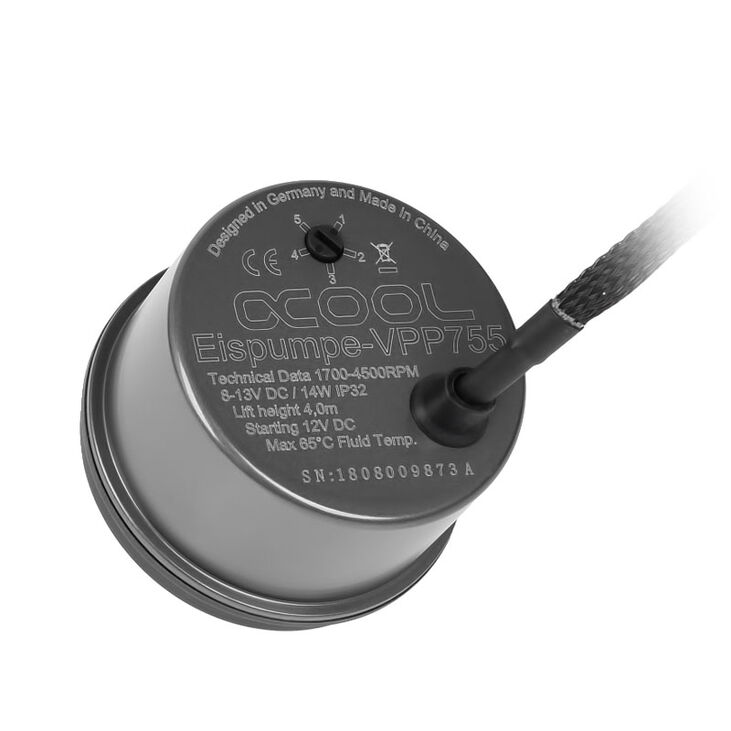

Take Control with the VPP755 D5 Pump
Alphacool’s VPP755 is a high-performance D5 pump that ensures excellent coolant flow to keep your components cool. By eliminating the spherical bearing and using a ceramic shaft, it operates more smoothly. The motor coils are located on the outside, reducing power consumption. The pump speed is controlled via PWM signal, allowing for quiet operation. You can also select from five speed settings:
- 120 l/h at 2,100 RPM
- 140 l/h at 2,700 RPM
- 280 l/h at 3,330 RPM
- 320 l/h at 3,950 RPM
- 340 l/h at 4,350 RPM
Add a Splash of Colour to Your Reservoir

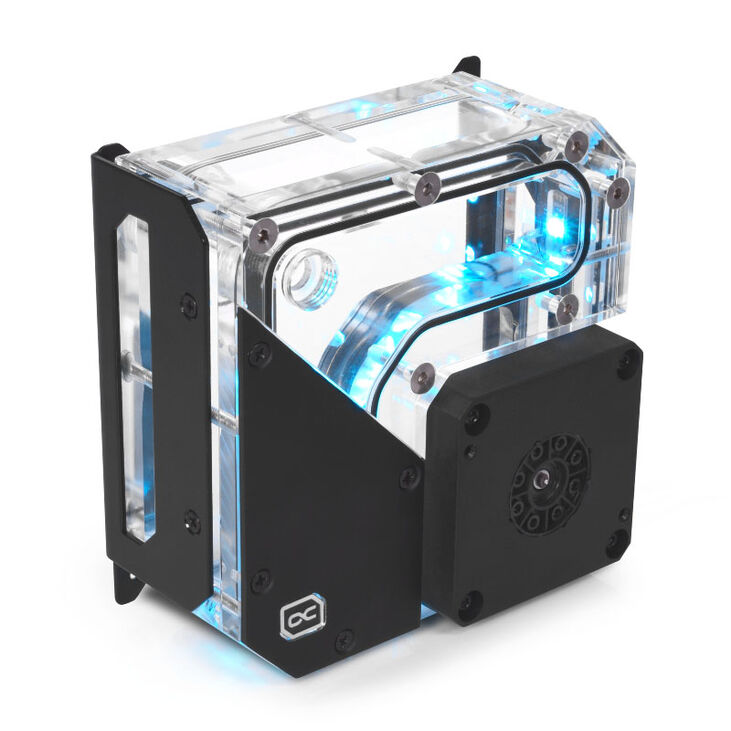

The Alphacool Rise Flat Reservoir is made from acrylic, giving you the freedom to customise your colour scheme while still maintaining visual access to the coolant level. If you're into lighting effects, you won't want to miss the RGB illumination. The digitally addressable RGB LED lighting connects via a JST 3-pin connector and can be controlled using a digital RGB controller or – using the included adapter – a DRGB-compatible motherboard.
Note: It is recommended to use only clear, transparent coolant. Colour particles and additives in pastel liquids can clog and damage water cooling components. Manufacturer warranty does not cover such damage.
Colour
|
|
Primary Colour
|
Black
|
Secondary Colour
|
Transparent
|
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Height
|
50 mm
|
Volume
|
0.2 l
|
Weight
|
0.565 kg
|
Pump Specifications
|
|
Max. Pressure Head
|
4 m
|
Max. Water Flow
|
350 l/h
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Power consumption
|
14 W
|
Rated voltage
|
12 V
|
Water Cooling
|
|
Water cooling component
|
Pump + Reservoir
|
Water cooling connectors
|
6x G1/4"
|
Internal Ports
|
|
Pump connectors
|
4 Pin (PWM control), Molex (4-Pin) Netzteil
|
RGB / LED connectors
|
3-Pin, yes
|
Thermal Specifications
|
|
Max. System Temperature
|
60 °C
|
Compatibility
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
Materials
|
|
Materials
|
Acrylic glass, Aluminium
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
