- Square reservoir with a flat design fits compact systems
- Flexible mounting options: freestanding or fixed installation
- Compatible with high-performance D5 pumps
- Six G1/4 ports provide hassle-free maintenance
- Enhance the transparent acrylic glass with integrated ARGB lighting

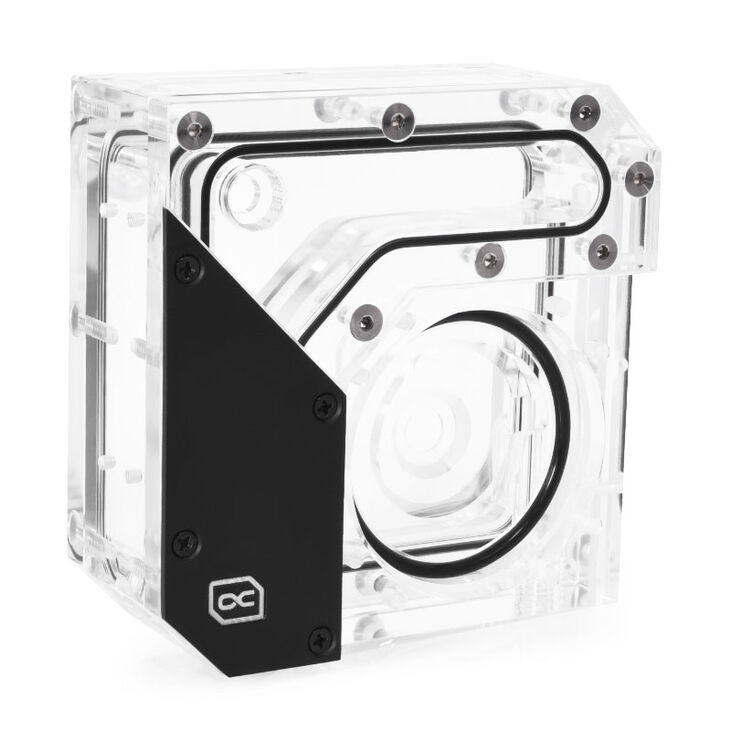

The Alphacool Rise Flat Reservoir for D5 Pumps in Detail
The Rise Flat Reservoir combines a reservoir with a high-performance D5 pump to get the most out of your cooling loop. It is made entirely from acrylic glass, allowing you to admire the vibrant colour of your coolant — or leave it clear and let the five ARGB LEDs set the tone. Thanks to its flat design, it’s ideal even for the most compact cases.
Make the Centre of Your Cooling Loop Count

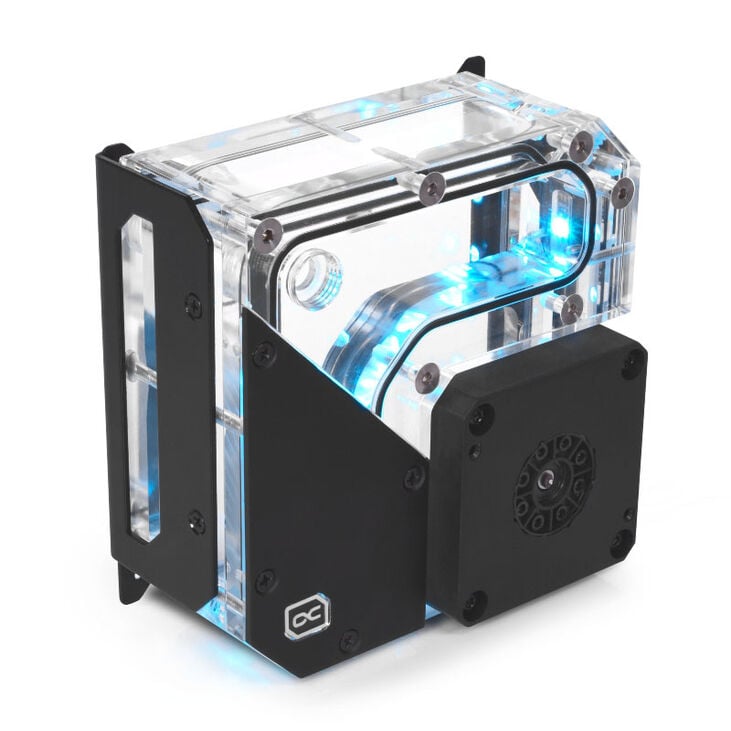

The Rise Flat Reservoir D5 is versatile in application due to its slim form factor. It can be used freestanding inside the case or mounted on a radiator or available fan slots. This is all made possible by the included mounting kit. The Rise Flat Reservoir can be paired with a D5 pump.

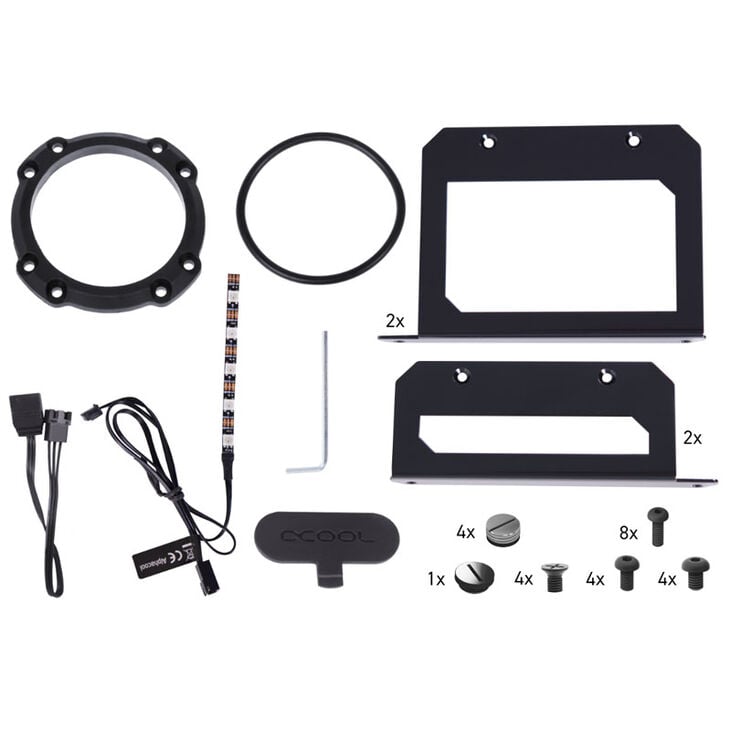

To install it, all you need is the pump retention ring, a pump O-ring, and the included screws provided with the reservoir.
As for connectivity: the Rise Flat Reservoir features five inlets, all using G1/4 threading. Their practical layout ensures you won’t struggle with filling or draining your coolant during installation.
Bring Colour to Your Reservoir
The Alphacool Rise Flat Reservoir is made of acrylic, giving you full freedom to play with colour while retaining visibility of your coolant level. If you’re a fan of lighting effects, the RGB illumination is a must. The digitally addressable RGB LED lighting connects via a JST 3-pin connector and can be controlled using a digital RGB controller or – via the included adapter – a DRGB-compatible motherboard.
Note: It is recommended to use only clear, transparent coolant in the reservoir. Coloured particles and additives found in pastel coolants may clog or damage water cooling components. Manufacturer warranty does not cover such damage!
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Height
|
50 mm
|
Volume
|
0.2 l
|
Weight
|
0.565 kg
|
Type
|
|
Pump type
|
D5
|
Power Specifications
|
|
Rated voltage
|
5 V
|
Water Cooling
|
|
Water cooling component
|
Reservoir
|
Water cooling connectors
|
6x G1/4"
|
Internal Ports
|
|
RGB / LED connectors
|
3-Pin, yes
|
Thermal Specifications
|
|
Max. System Temperature
|
60 °C
|
Compatibility
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
Materials
|
|
Materials
|
Acrylic glass
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
