- 24.1-inch gaming monitor
- TN panel with Full HD resolution (1,920 x 1,080 pixels)
- DisplayHDR True Black 400 / HDR10 for vibrant colours and contrasts
- Ultra-fast refresh rate of 540 Hz for smooth images
- AMD FreeSync Premium and 0.2 ms (GtG) response time
- Tilt, swivel, and height adjustable with pivot function & headphone holder for optimal ergonomics

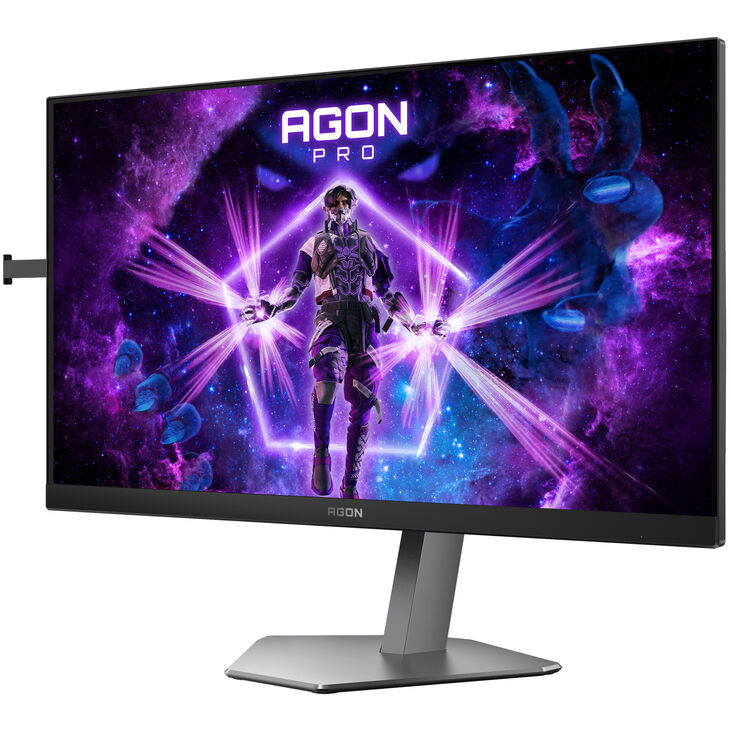

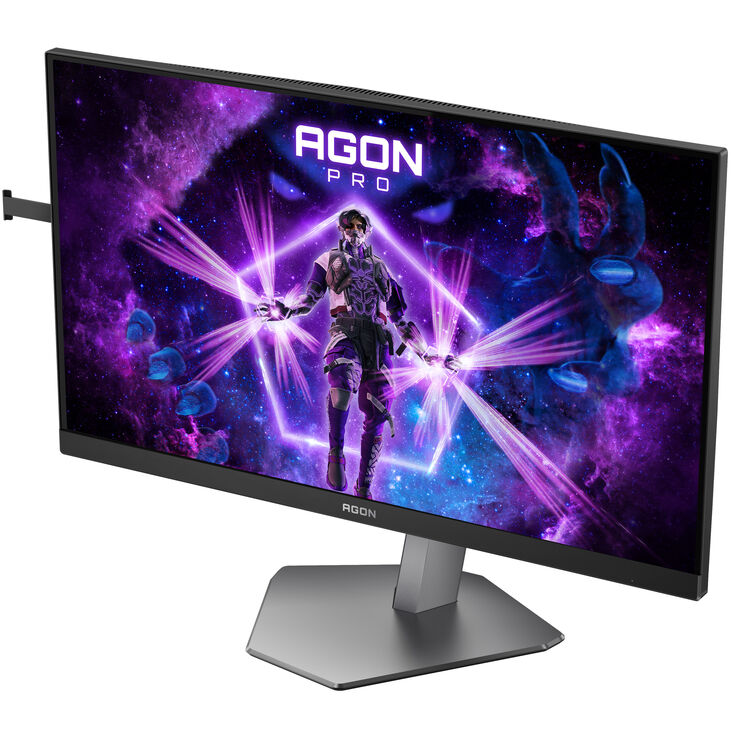

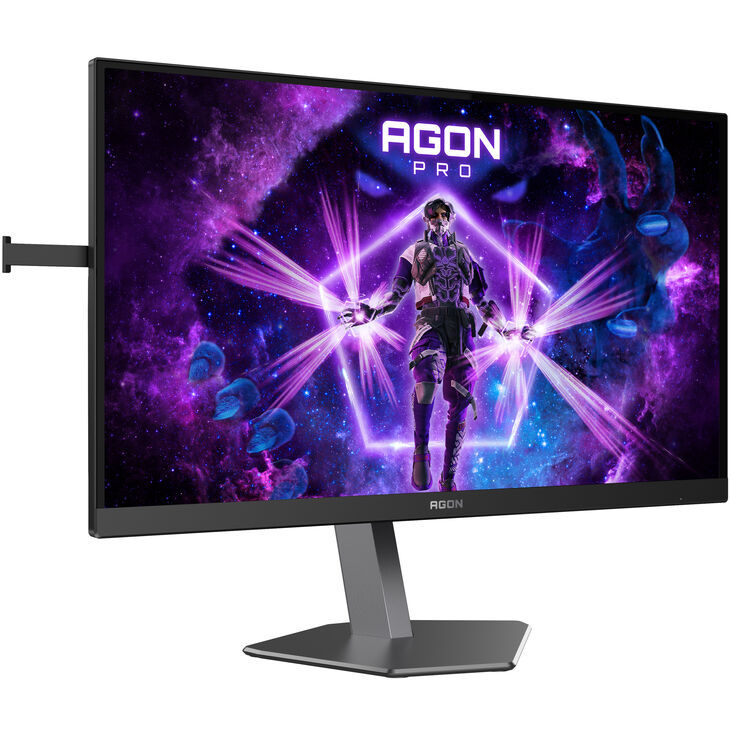

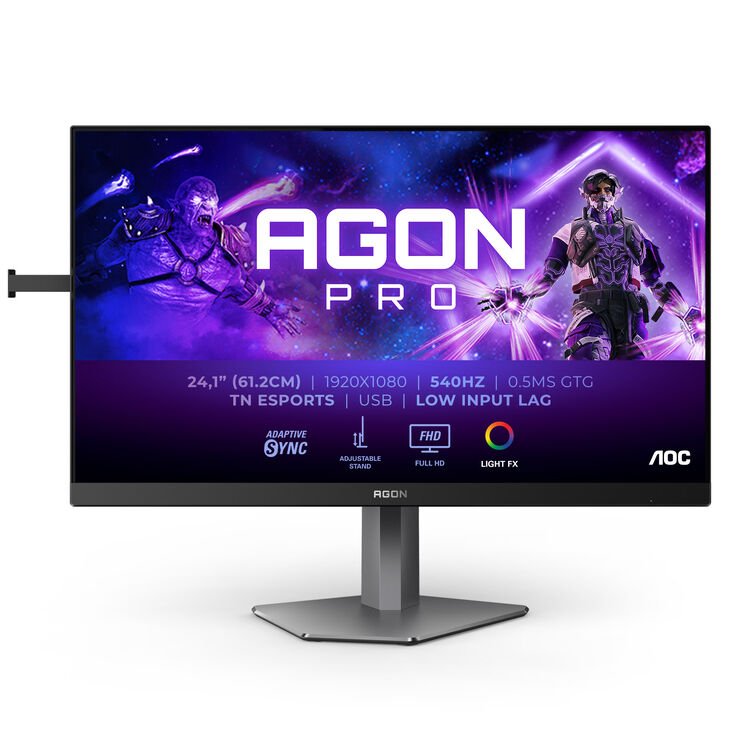

AOC AGON PRO AG246FK - extremely high refresh rate
With the AOC AGON PRO AG246FK, AOC offers a gaming monitor for gamers seeking the highest performance. The 24.1-inch display (61.2 cm) combined with Full HD resolution (1,920 x 1,080 pixels) ensures an optimal gaming experience.
The main feature of the monitor is the extremely high refresh rate of 540 Hz. Paired with a low response time of just 0.2 ms (GtG), this gaming monitor is ideal for playing more demanding FPS action games where response time determines victory.
Colour space, ergonomics, and connectivity
The TN panel of the AOC AGON PRO AG246FK offers incredibly vibrant, beautiful colours due to its 8-bit colour depth, representing 16.7 million colours, and its high static contrast ratio of 1,000:1 combined with DisplayHDR True Black 400 / HDR10.

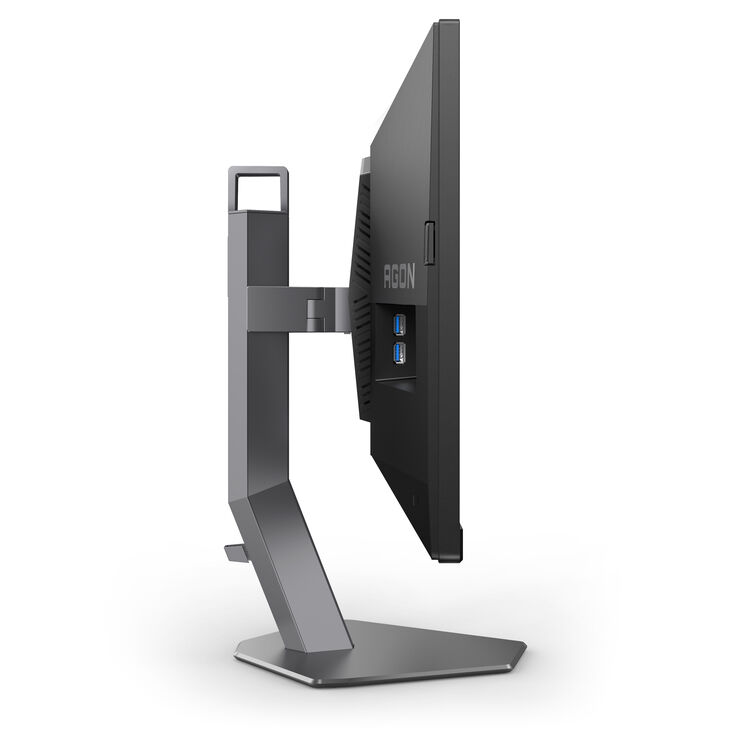

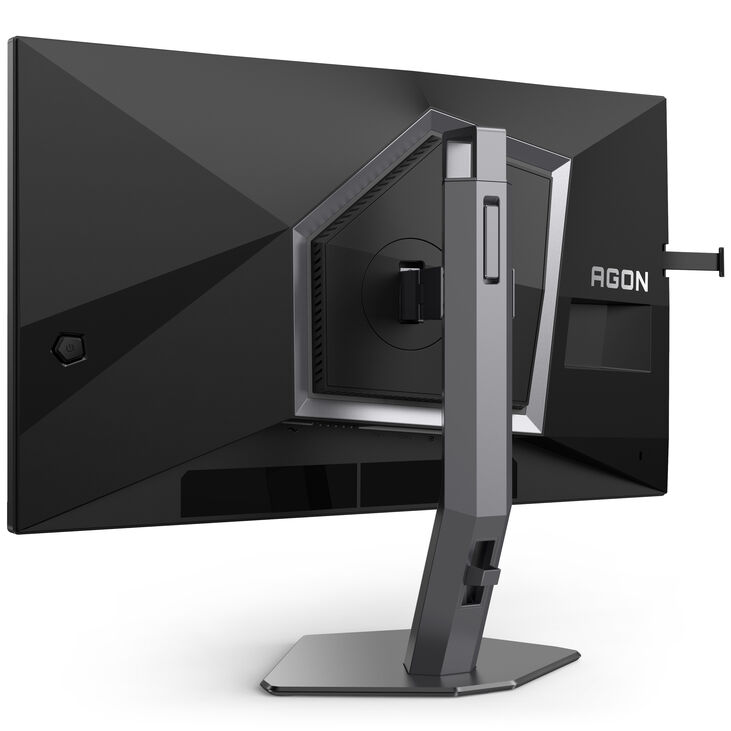

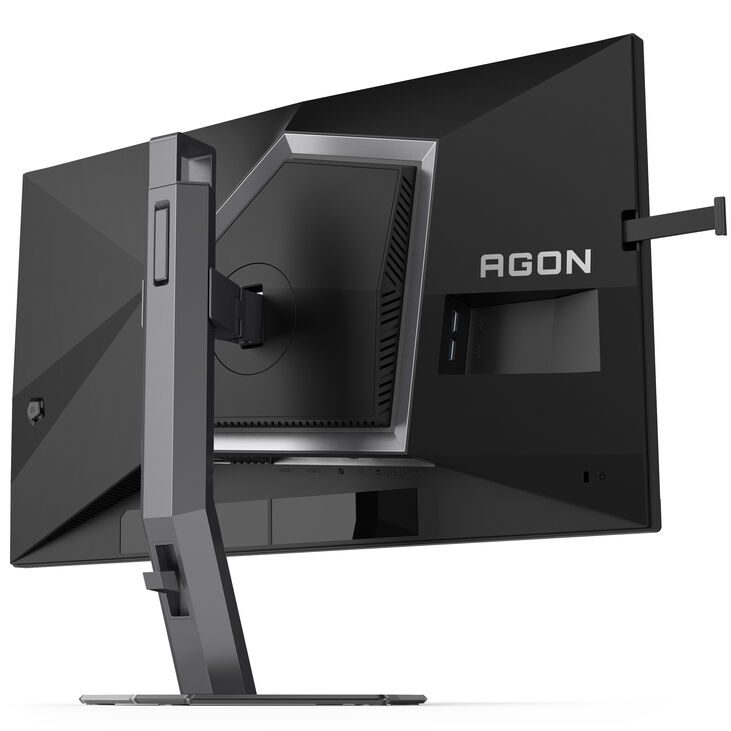

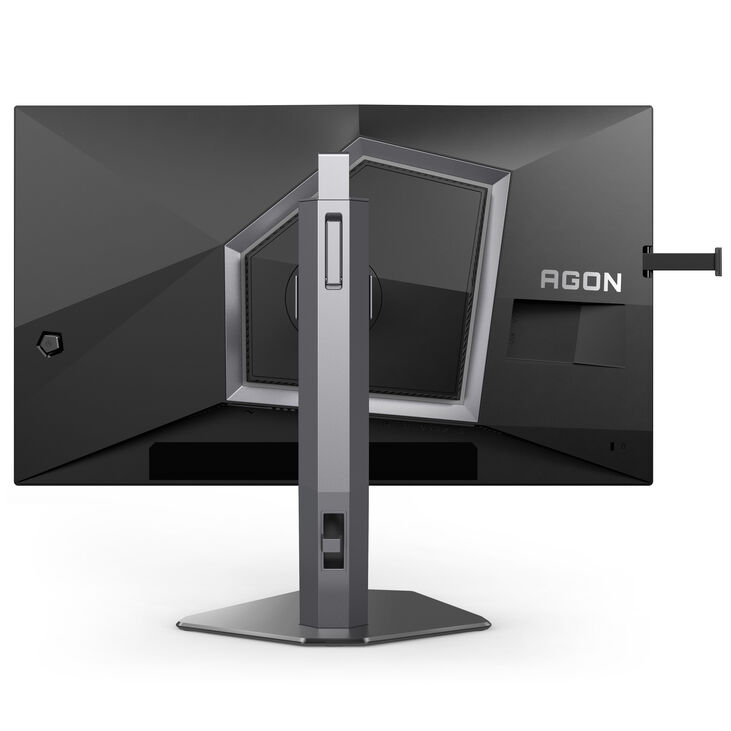

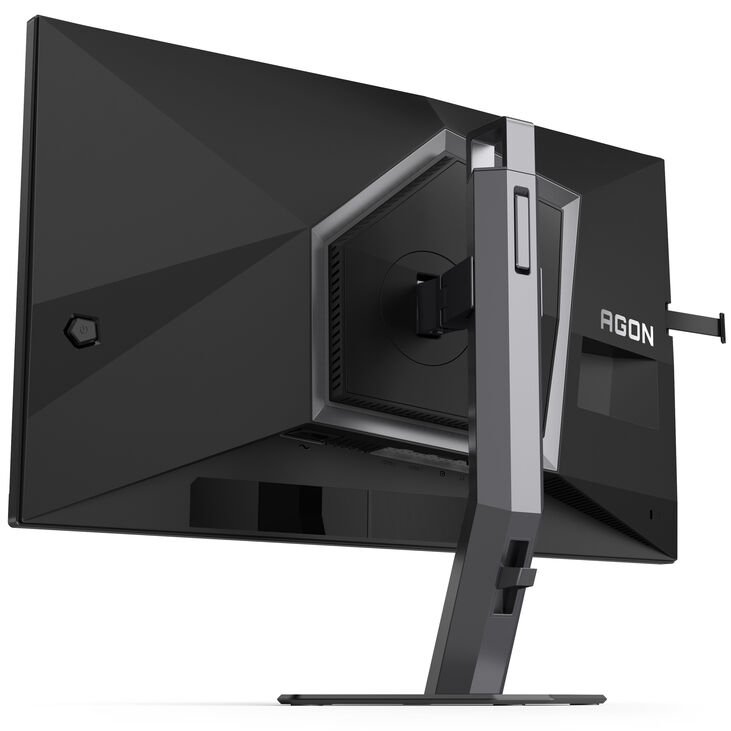

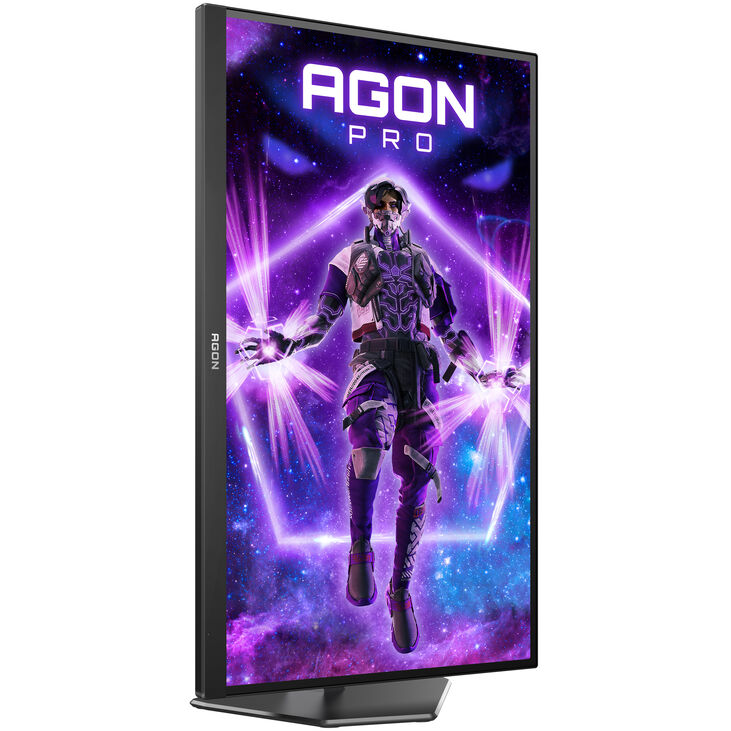

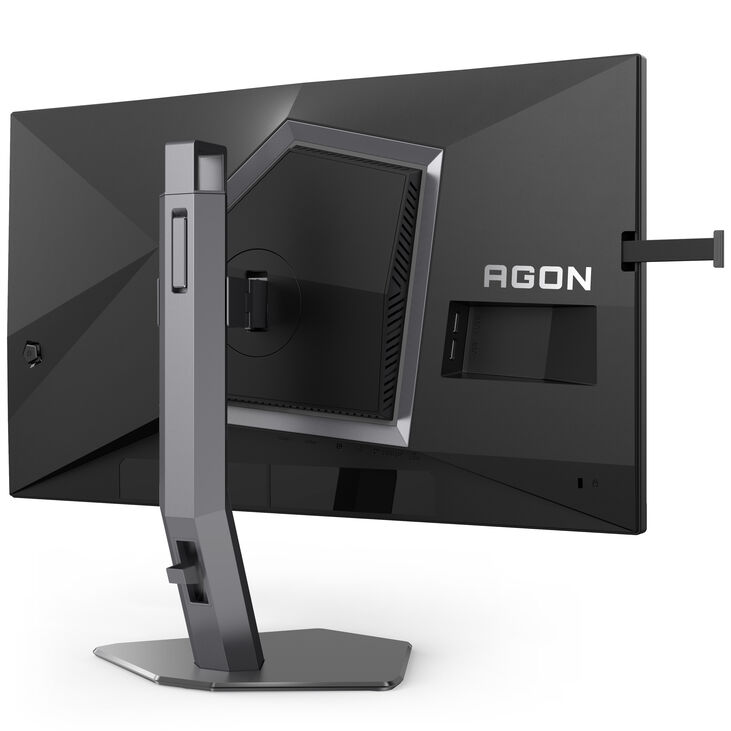

The monitor is rotatable by ±30°, tiltable by +25°/-5°, height adjustable up to 130 mm, and offers a pivot function. With viewing angles of 170° and the high ergonomics of the monitor, you see the colours virtually unaltered from almost any position.

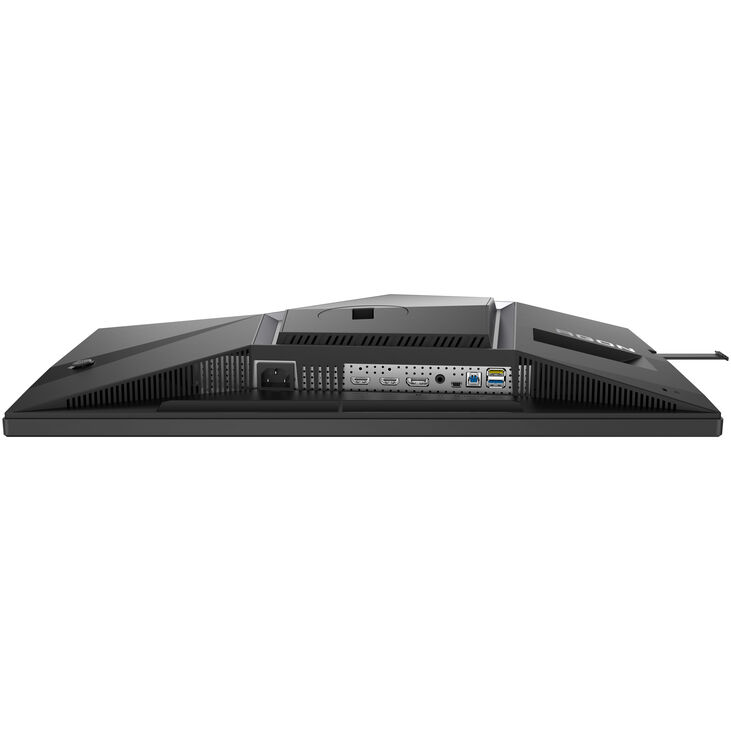

In terms of connectivity, the monitor initially comes with two HDMI 2.0 ports. Additionally, there is a DisplayPort 1.4, a USB-B 3.0 port, three USB-A 3.0 ports, as well as a USB-A 3.0 BC port for your peripheral devices. A headphone jack is also available.
- Dimensions: 557 x 489.8 x 228.9 mm (W x H x D)
- Weight: 5.00 kg
- Colour: Black, Silver
- Connections:
2x HDMI 2.0
1x DisplayPort 1.4
1x USB-B 3.0 (Upstream, 5Gb/s)
1x USB-A 3.0 (Downstream, 5Gb/s, BC)
3x USB-A 3.0 (Downstream, 5Gb/s)
1x 3.5mm Jack (Line-Out)
1x AC-In C13 (Power Input) - Diagonal: 24.1 inches (61.2 cm)
- Resolution: 1920x1080 (Full-HD)
- Refresh Rate: 540 Hz
- Response Time: 0.2ms (GtG)
- Panel: TN (ETN, Esports TN)
- Colour Depth: 8bit (16.7 million colours)
- Brightness: 400cd/m² (typical)
- Contrast: 1,000:1 (static)
- HDR: VESA DisplayHDR 400, HDR10
- Viewing Angle: 170°/160°
- Variable Synchronisation: Adaptive Sync, AMD FreeSync Premium
- Colour Coverage:
sRGB: 99%
DCI-P3: 95% - Ergonomics:
Height Adjustable: 130mm

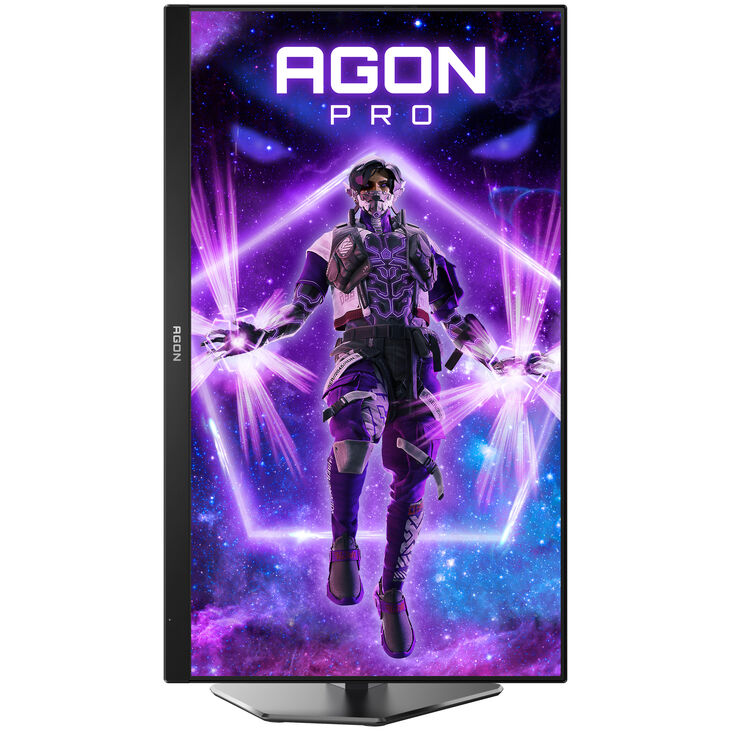

Pivot: ±90°
Swivel: ±30°
Tilt: +25°/-5°
Headphone Holder - VESA: 100x100 (occupied)
- Power Consumption: 30W (typical), 0.5W (Standby), 0.5W (off)
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
228.9 mm
|
Width
|
557 mm
|
Height
|
489.8 mm
|
Width (without stand)
|
557 mm
|
Depth (without stand)
|
73 mm
|
Height (without stand)
|
331.4 mm
|
Weight
|
8.45 kg
|
Weight (without stand)
|
3.75 kg
|
Display
|
|
Display Size in Inch
|
24.1 "
|
Display Resolution
|
Full-HD (1920 x 1080 Pixel)
|
Display Aspect Ratio
|
16:9
|
Display Refresh Rate
|
540 Hz
|
Display Panel Type
|
TN
|
Colour depth
|
max. 16.7 million colours (8 bit)
|
Colour space
|
95% DCI-P3, 99% sRGB
|
Contrast Ratio (Dynamic)
|
80,000,000:1
|
Contrast Ratio (Static)
|
1000:1
|
Display Response Time
|
0,2 ms (grey-to-grey)
|
Display Response Time (Grey-to-Grey)
|
0.2 ms
|
HDR
|
Yes
|
HDR Standard
|
VESA DisplayHDR 400
|
Screen Brightness HDR
|
400 cd/m²
|
Viewing angle
|
170° horizontal / 160° vertical
|
Display Surface Type
|
non-glare
|
Power Supply
|
|
Power Supply Position
|
Internal
|
External Ports
|
|
Display Connectors
|
Display Port (1x), HDMI (2x)
|
USB hub
|
Yes
|
Standards / Specifications
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
adaptiveSync, AMD FreeSync Premium
|
Standard / specification
|
DisplayPort 1.4, HDMI 2.0, USB 3.2 Gen. 1
|
Connectivity
|
|
Peripheral connectors
|
3.5 mm jack 3-pole, TRS (1x), USB 3.0 Typ-A (4x), USB 3.0 Typ-B (1x)
|
Ergonomics
|
|
Height adjustment
|
Yes
|
Max. Adjustable Height
|
150 mm
|
Min. Swivel
|
-2 °
|
Max. Swivel
|
28 °
|
Min. Tilt
|
-5 °
|
Max. Tilt
|
25 °
|
Pivot
|
Yes
|
Mounting
|
|
Vesa standard
|
100 x 100 mm
|
Speakers
|
|
Speakers
|
Yes
|
Efficiency Class
|
|
EU Energy Efficiency Class
|
E
|
EU Energy Efficiency Class HDR
|
G
|
