aqua computer aqualis D5 reservoir, 150 ml

aqua computer aqualis D5 reservoir, 150 ml

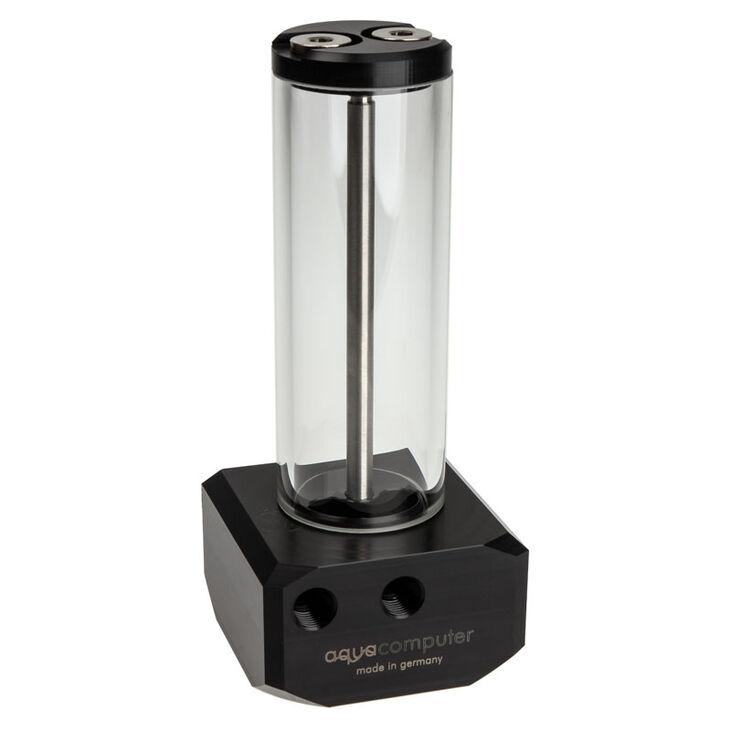

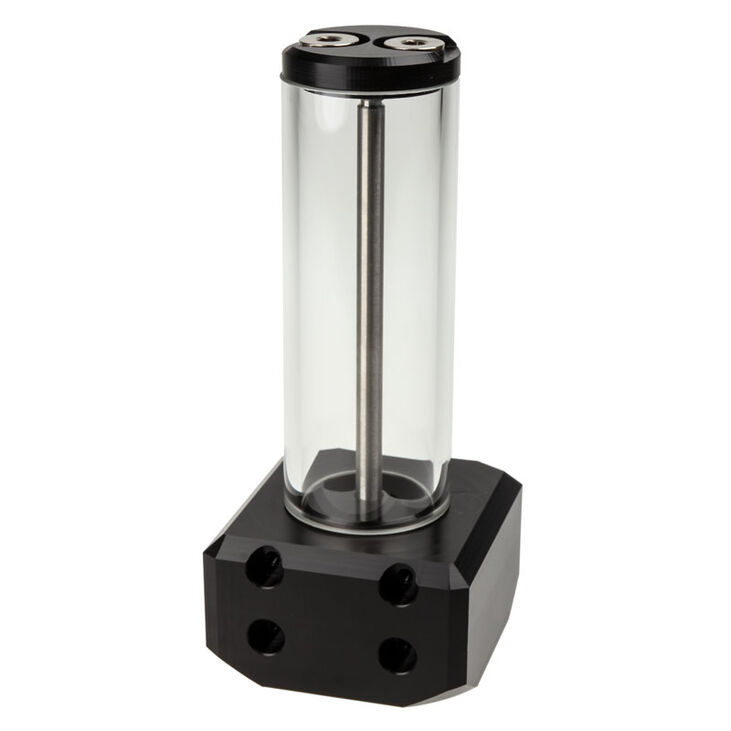

Aqualis D5 reservoir made of borosilicate glass and Delrin with 150 ml capacity for mounting on a Laing D5 pump
Price reduced from 53,90 € to 42,90 €
-20%
incl. VAT , add. delivery costs starting from 4.99€
SKU WAAU-468 |
EAN 4260073417839 |
MPN 34081 |
Manufacturer aqua computer

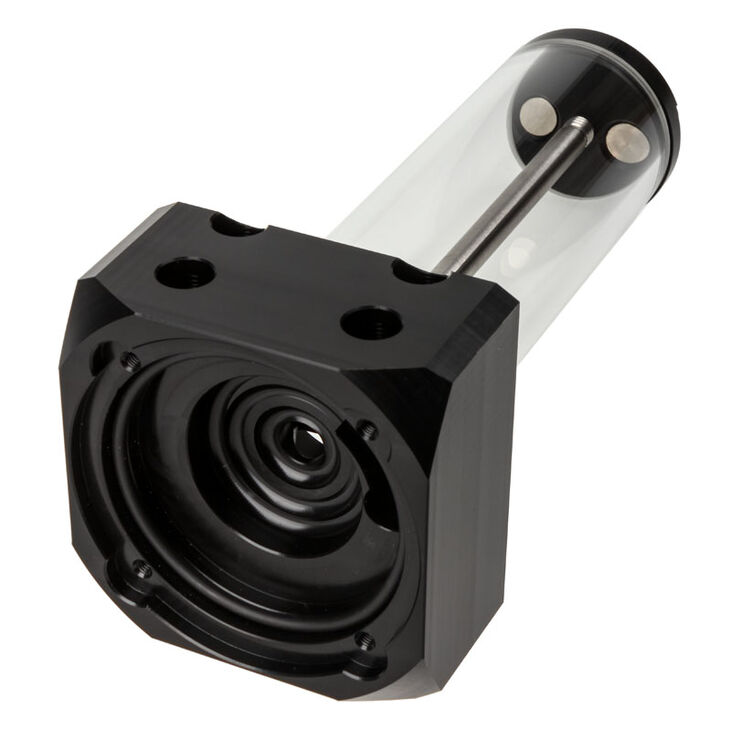

The aqualis D5 150 ml reservoir from aqua computer is designed for direct mounting onto a Laing D5 pump, which is not included. The pump is attached to the reservoir's base using a retaining ring and four screws. Additionally, separately available mounting rubbers can be screwed into the reservoir's base to facilitate installation in the PC case.

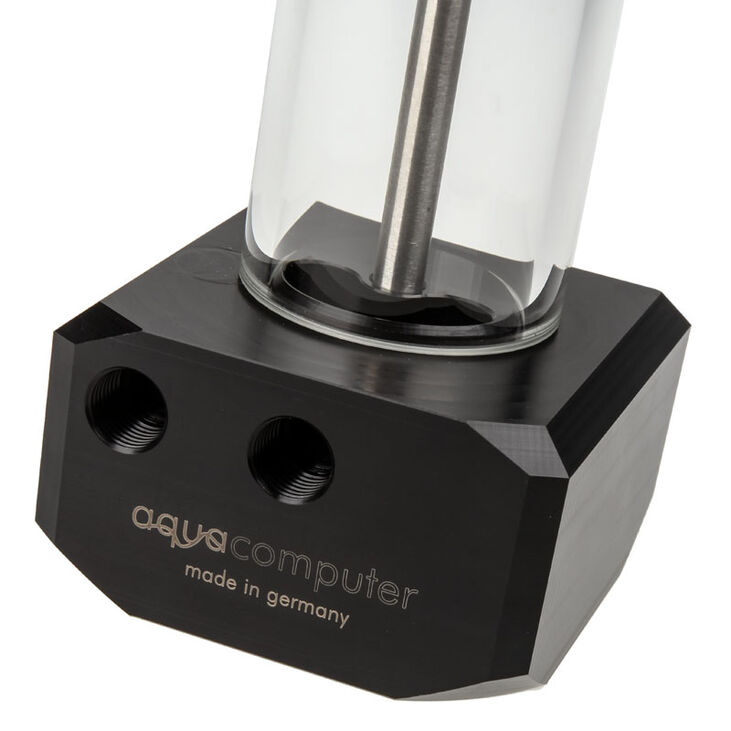

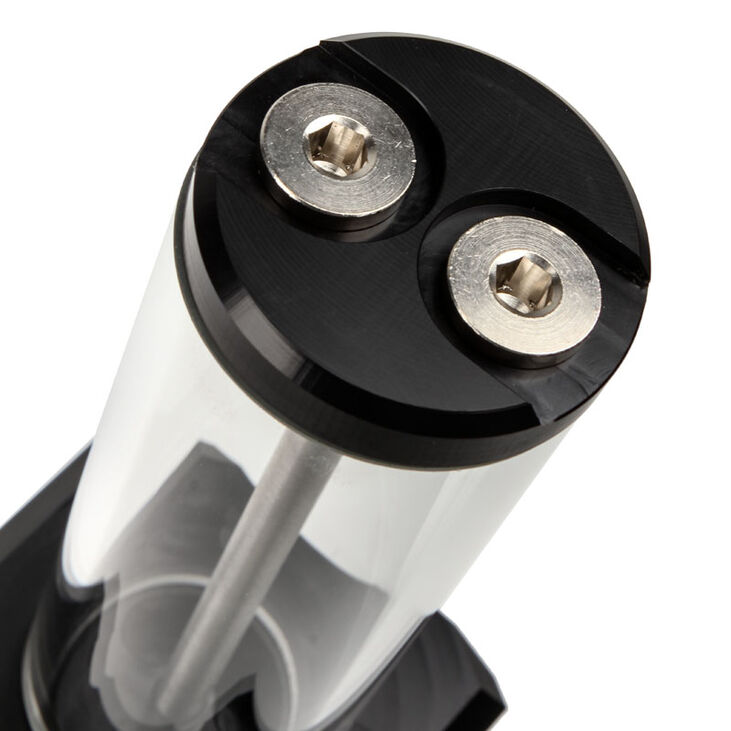

The reservoir itself is made of high-quality borosilicate glass, which offers significantly greater hardness and scratch resistance compared to the commonly used acrylic glass for tubular reservoirs. It also has low thermal expansion and excellent chemical and thermal resistance. The glass tube of this 150 ml version has an outer diameter of 50 mm and a wall thickness of 5 mm. The base and lid are made of Delrin, each featuring two G1/4-inch ports, and are connected inside the tube by a stainless-steel rod.

Note: Pump, fittings, and mounting rubbers are not included and must be purchased separately.

  • Dimensions without pump: 80 x 80 x 185 mm (W x H x D)
  • Dimensions with pump (not included): 80 x 80 x 220 mm (W x H x D)
  • Tubing diameter: 50 mm
  • Wall thickness: 5 mm
  • Material: Borosilicate glass (reservoir), Delrin (base & lid), stainless steel (screws & connecting rod)
  • Capacity: 150 ml
  • Thread type: G1/4 inch
  • Included in delivery:
    1x reservoir
    2x G1/4 sealing screw (pre-installed)

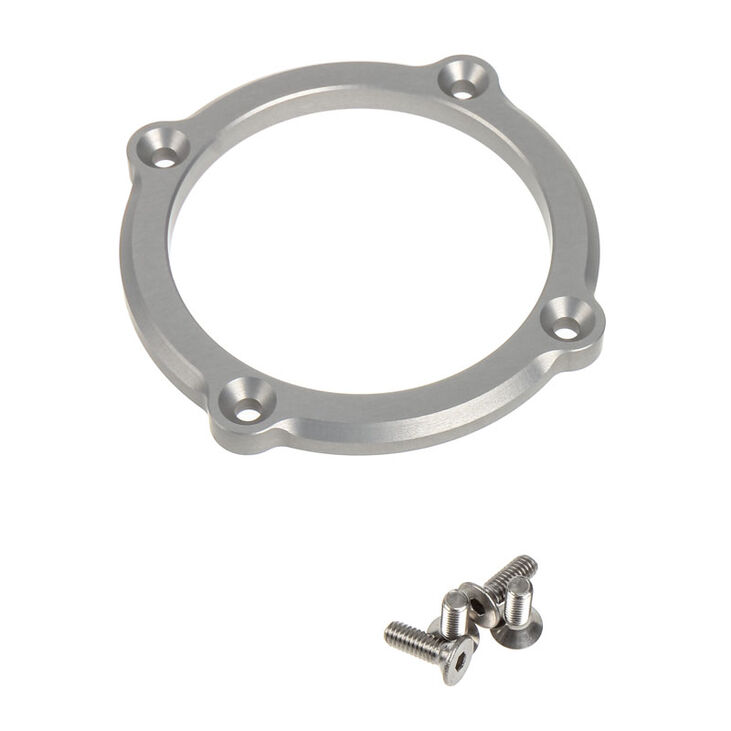

    Retaining ring and four screws for pump attachment
Colour
Primary Colour
Black
Secondary Colour
Silver
Dimensions
Length / Depth
80 mm
Width
80 mm
Height
185 mm
Volume
150 ml
Type
Pump type
D5
Water Cooling
Water cooling component
Pump Adapter + Reservoir
Water cooling connectors
2x G1/4"
Materials
Materials
Delrin, Glass, Stainless steel
Manufacturer Information Aqua Computer GmbH & Co. KG Gelliehäuser Str. 1, 37130 Gleichen, Deutschland
Responsible Person Aqua Computer GmbH & Co. KG Gelliehäuser Str. 1, 37130 Gleichen, Deutschland
