- Reservoir from aqua computer with 110 ml capacity
- Made of durable borosilicate glass and acetal
- With removable stainless steel filter in the base
- With integrated pressure equalization membrane in the lid
- With RGB LED lighting through RGBpx ring

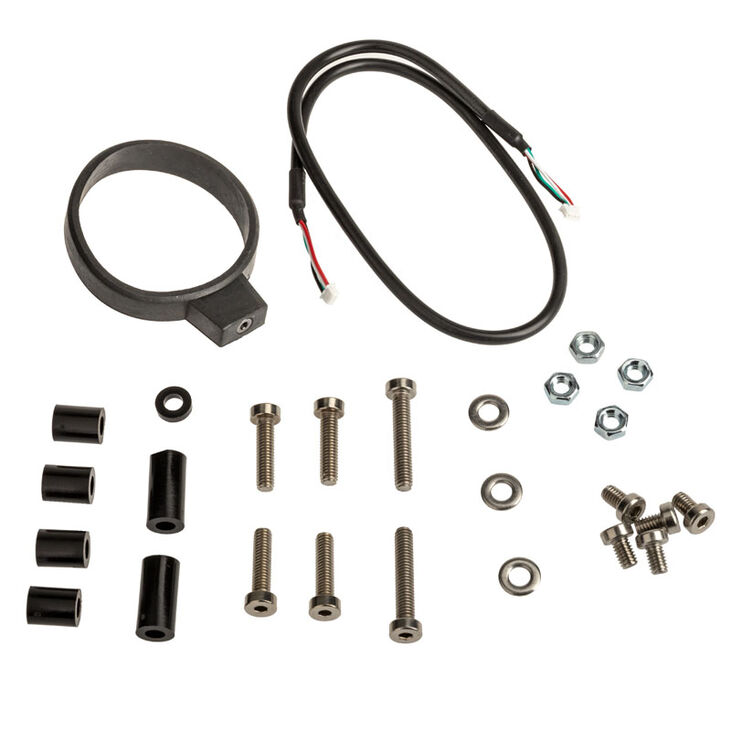

- Mounting material for wall and floor installation included
The features of the ULTITUBE 50 PRO reservoir in detail

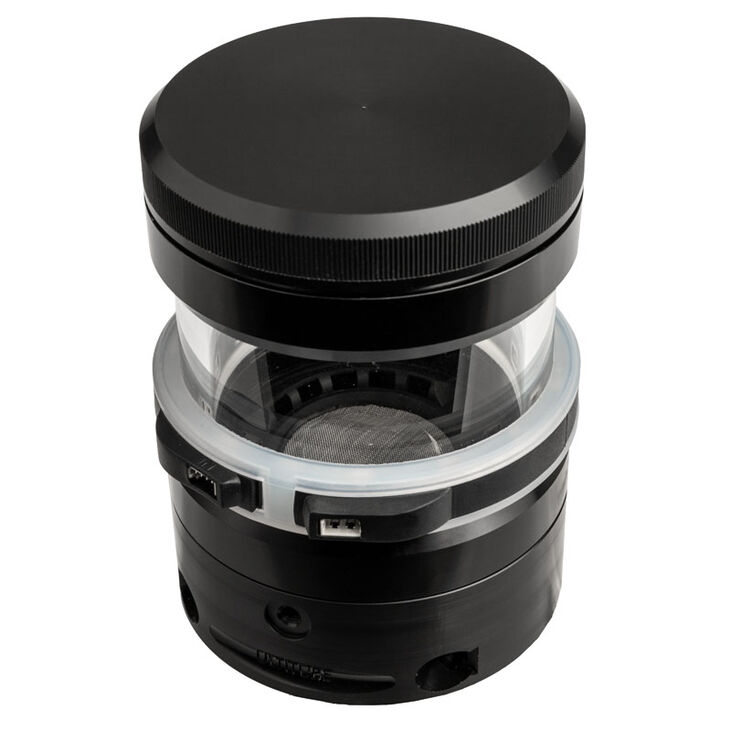

The ULTITUBE 50 PRO reservoir from aqua computer is equipped with a tube made of borosilicate glass. Unlike commonly used plexiglass, borosilicate glass has a very high hardness and scratch resistance. It also has excellent chemical and thermal resistance and expands very little when heated.
Both ends of the glass tube are firmly connected with metal rings made of black anodized aluminum, which do not come into contact with the cooling medium. Thanks to the clever design, internal struts or additional tubes are not required. The lid and the base of the ULTITUBE 50 are made of durable acetal and are screwed together with the aluminum rings and the tube.
The glass tube has a wall thickness of 5 mm and an outer diameter of 65 mm. The base of the reservoir includes an integrated filter made of stainless steel wire mesh. The filter retains particles and eliminates annoying air bubbles. The filter element is easily removable and can be cleaned under running water.
The package includes digitally addressable RGB LED lighting in the form of an LED ring with 13 RGB LEDs. The RGBpx ring can be easily slid over the reservoir and illuminates the reservoir and the coolant. The silicone construction diffuses the LED light and minimizes unsightly LED spots. The RGBpx ring has an input and an output, allowing multiple LED rings to be connected in series.
The seal in the lid of the reservoir is designed as a rubber molded part for easy installation, ensuring secure positioning when the lid is screwed on. The lid also features an almost invisible integrated pressure equalization membrane, which continuously compensates for pressure fluctuations caused by temperature changes without allowing coolant to escape.
- Dimensions: 72 x 100 x 72 mm (W x H x D)
- Glass tube diameter: 65 mm
(Pump not included in delivery, all dimensions without fastening material) - Material: Borosilicate glass (tube), Acetal (lid, base), Aluminium (rings), Stainless steel (filter), Silicone (RGBpx ring)
- Capacity: 110 ml
- Connections: 2x G1/4 inch
- Lighting:
1x RGBpx ring with 13 RGB LEDs
Type: digitally addressable RGB
Connection: 2x proprietary (aqua computer RGBpx, 1x input, 1x output)
Cable length: 50 cm - Compatibility RGBpx ring: Aqua Computer controller with RGBpx output (e.g. NEXT pump)
Dimensions
|
|
Width
|
72 mm
|
Height
|
100 mm
|
Internal Ports
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB)
|
Lighting
|
|
Lighting Colour
|
RGB
|
