ASRock Radeon RX 7600 XT Challenger 16GB, 16384 MB GDDR6
- Efficient dual-fan cooler design with semi-passive cooling
- Subtle RGB LED lighting
- Enormous GPU boost clock: 2,799 MHz
- 16 GB GDDR6 graphics memory with 32 MB AMD Infinity Cache
- High memory clock: 2,250 MHz (effective 18,000 MHz)
- Wide memory interface of 128 bit
- Very large memory bandwidth of 288 GB/s

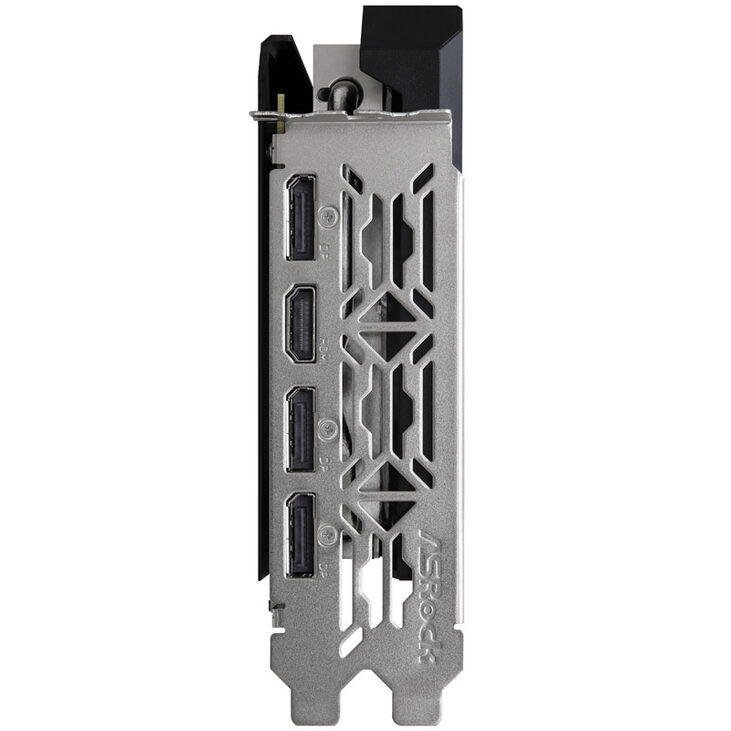

- Video outputs: 3x DP 2.1, 1x HDMI 2.1a
The ASRock Radeon RX 7600 XT Challenger 16GO in Detail
The ASRock Radeon RX 7600 XT Challenger 16GO is equipped with a powerful graphics processor and fast GDDR6 graphics memory. This gaming graphics card is the ideal choice for gamers seeking an uncompromising Full HD gaming experience. With the ASRock Radeon RX 7600 XT Challenger 16GO, you get strong rasterisation performance and the ability to enjoy real-time ray tracing. With a Radeon RX 7600 XT, you can enjoy maximum graphics presets and high frame rates in Full HD and smooth gameplay with high settings in WQHD resolution.
AMD RDNA-3 GPU with Efficient Cooling
This high graphics performance is provided by the Navi 33 XT GPU with a maximum boost clock of 2,799 MHz and the 16 GB GDDR6 memory with an effective clock frequency of 18,000 MHz. The ASRock Radeon RX 7600 XT Challenger 16GO is kept at low temperatures by the cooling system developed by ASRock in a dual-fan design.
Your case should have at least 267 mm of space and 3 expansion slots for this graphics card. The manufacturer recommends a power supply with at least 650 watts of rated power.
- Dimensions: 267 x 130 x 51 mm (L x W x H)
- Height: 2.6 slots
- GPU: AMD Radeon RX 7600 XT
- Chip: Navi 33 XT
- Clock speeds:
Base clock: 1,720 MHz
Game clock: 2,516 MHz
Boost clock: 2,799 MHz - Shader units: 2,048
- Compute units: 32
- Ray accelerators: 32
- Graphics memory:
Memory size: 16,384 MB + 32 MB AMD Infinity Cache
Memory clock: 2,250 (effective 18,000) MHz
Type: GDDR6
Memory interface: 128 bit
Memory bandwidth: 288 GB/s - Slot: PCIe 4.0 x16 (electrical x8)
- Connections:
3x DisplayPort 2.1
1x HDMI 2.1 - Power supply:
Connections: 2x 8-pin PCIe
Recommended power supply: min. 650 watts - TDP: 190 watts
- Dual BIOS: no
- Features:
RDNA-3 GPU architecture, H265/HEVC video encoding, AV1 video encoding, FidelityFX, DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 2.1, Eyefinity 2.0, TrueAudio Next, FreeSync Premium Pro, AMD Smart Access Memory, HDCP 2.3
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Dimensions
|
|
|
Length / Depth
|
267 mm
|
|
Width
|
130 mm
|
|
Height
|
51 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 7000 Series, AMD Radeon RX Gaming
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1720 MHz
|
|
Max. Memory Clock
|
18000 MHz
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (2x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (1x), Display Port (2x), Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2.6 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync, AMD FreeSync Premium, AMD FreeSync Premium Pro
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
