ASRock Radeon RX 7700 XT Challenger 12GO, 12288 MB GDDR6
- Efficient dual-fan cooling design with semi-passive cooling
- Subtle LED lighting
- Enormous GPU boost clock: 2,854 MHz
- 12 GB GDDR6 graphics memory with 48 MB AMD Infinity Cache
- High memory clock: 2,250 MHz (effective 18,000 MHz)
- Wide memory interface of 192 bit
- Large memory bandwidth of 432 GB/s

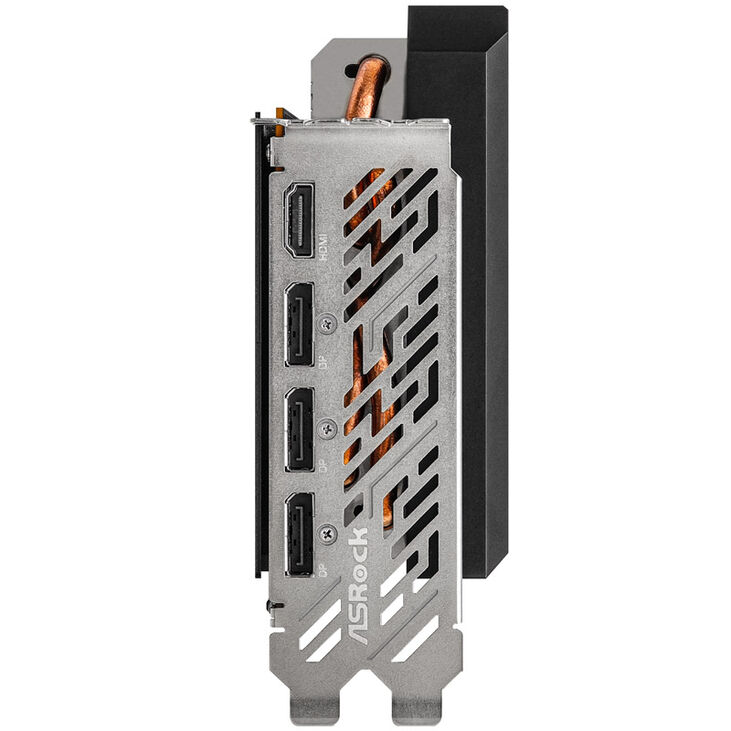

- Video outputs: 3x DP 2.1, 1x HDMI 2.1
The ASRock Radeon RX 7700 XT Challenger 12GO in Detail
The ASRock Radeon RX 7700 XT Challenger 12GO is equipped with a powerful graphics processor and fast GDDR6 graphics memory. This gaming graphics card is the ideal choice for gamers looking for an uncompromising WQHD gaming experience. With the ASRock Radeon RX 7700 XT Challenger 12GO, you get powerful rasterization performance and the ability to enjoy real-time ray tracing. With a Radeon RX 7700 XT, you can enjoy maximum graphics presets and high frame rates in WQHD resolution.
AMD's RDNA 3 Graphics Card with Efficient Cooling
This high graphics performance is driven by the Navi 32 GPU with a maximum boost clock of 2,854 MHz and the 12 GB GDDR6 memory with an effective clock frequency of 18,000 MHz. The ASRock Radeon RX 7700 XT Challenger 12GO is kept at low temperatures by the cooling system developed by ASRock in a dual-fan design.
Your case should provide at least 266 mm of space and 2.5 expansion slots for this graphics card. The manufacturer recommends a power supply with at least 750 watts of nominal power.
- Dimensions: 266 x 130 x 51 mm (L x W x H)
- Height: 2.5 slots
- GPU: AMD Radeon RX 7700 XT
- Chip: Navi 32
- Clock rates:
Base clock: 1,900 MHz
Game clock: 2,226 MHz
Boost clock: 2,854 MHz - Shader units: 3,456
- Compute units: 54
- Ray accelerators: 54
- Graphics memory:
Memory size: 12,288 MB + 48 MB AMD Infinity Cache
Memory clock: 2,250 (effective 18,000) MHz
Type: GDDR6
Memory interface: 192 bit
Memory bandwidth: 432 GB/s - Slot: PCIe 4.0 x16
- Connections:
3x DisplayPort 2.1
1x HDMI 2.1 - Power supply:
Connections: 2x 8-pin PCIe
Recommended power supply: min. 750 watts - TDP: 245 watts
- Dual-BIOS: no
- Features:
RDNA 3 GPU architecture, H265/HEVC video encoding, AV1 video encoding, FidelityFX, DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 2.1, Eyefinity 2.0, TrueAudio Next, FreeSync Premium Pro, AMD Smart Access Memory, HDCP 2.3
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey
|
|
Dimensions
|
|
|
Length / Depth
|
266 mm
|
|
Width
|
130 mm
|
|
Height
|
51 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 7000 Series, AMD Radeon RX Gaming
|
|
GPU Model
|
AMD Radeon RX 7700 XT
|
|
GPU Series Name
|
AMD Radeon RX 7700 XT
|
|
Graphics Chip
|
Navi 32
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
3456
|
|
Raytracing Cores / Ray Acceleratorss
|
54
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 4.0
|
|
Compute Units
|
54
|
|
GPU Memory Size (GB)
|
12
|
|
GPU Memory Interface (bit)
|
192
|
|
GPU Memory Bandwidth (GB/s)
|
432
|
|
GPU Effective Memory Clock (MHz)
|
18000
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1900 MHz
|
|
Max. GPU Clock (Boost)
|
2854 MHz
|
|
Max. Memory Clock
|
18000 MHz
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (2x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (1x), Display Port (2x), Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2.5 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync, AMD FreeSync Premium, AMD FreeSync Premium Pro
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
White
|
