- Base Clock at 1,830 MHz and Boost Clock up to 2,535 MHz
- 8 GB GDDR6 Graphics Memory
- NVIDIA DLSS 3.0, 3rd Generation Ray Tracing, and Ada Lovelace Architecture
- Dual-Fan Design with two Axial-Tech Fans
- Support for up to four displays: 1x HDMI 2.1a and 3x DisplayPort 1.4a

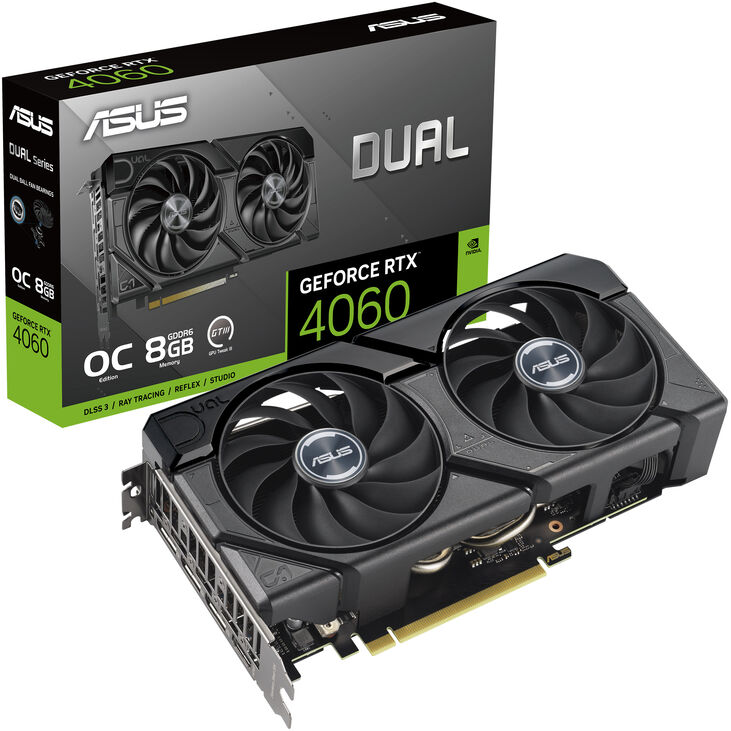

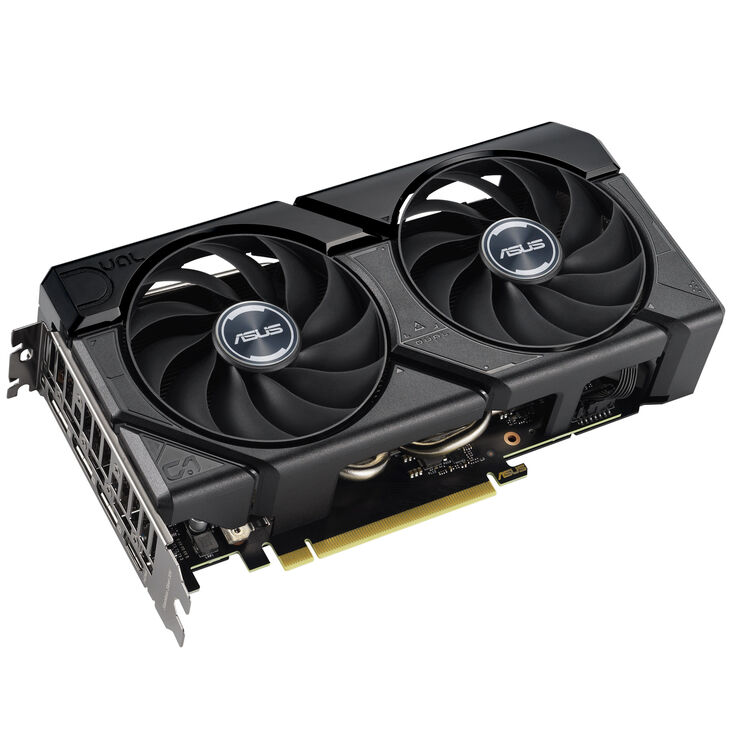

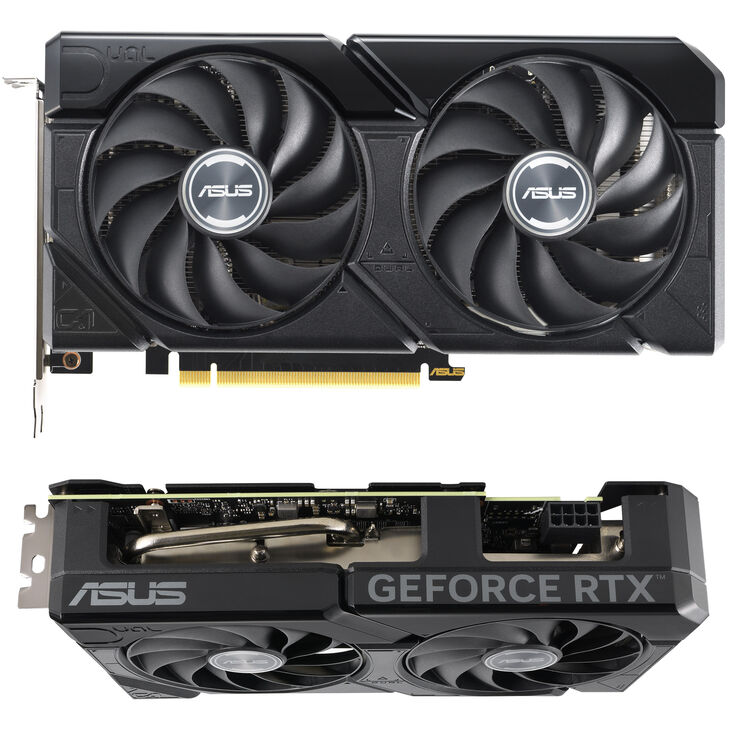

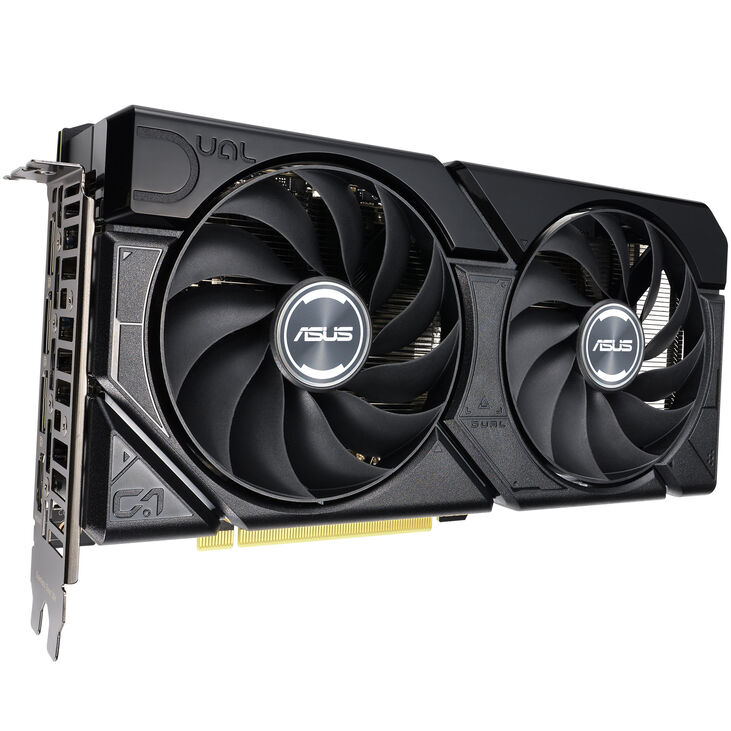

The ASUS GeForce RTX 4060 Dual O8G EVO: Mid-Range Graphics Card
If you are looking for a mid-range gaming graphics card that can handle current games with good graphics and high frame rates, the GeForce RTX 4060 Dual O8G EVO from Asus is the right choice.
Powerful Graphics Processor and Ray Tracing
This graphics card is equipped with particularly fast 8 GB GDDR6 graphics memory. The high graphics performance is ensured by the boost clock, which can reach up to 2,535 MHz.
With 3rd Generation Ray Tracing, you get even more realistic and immersive images in your games, allowing you to dive deeper into other worlds. Additionally, the graphics card supports DLSS 3.0, which ensures higher frame rates despite high graphics settings. Combined with other features, you get the best possible gaming experience.
Cooling and Connections

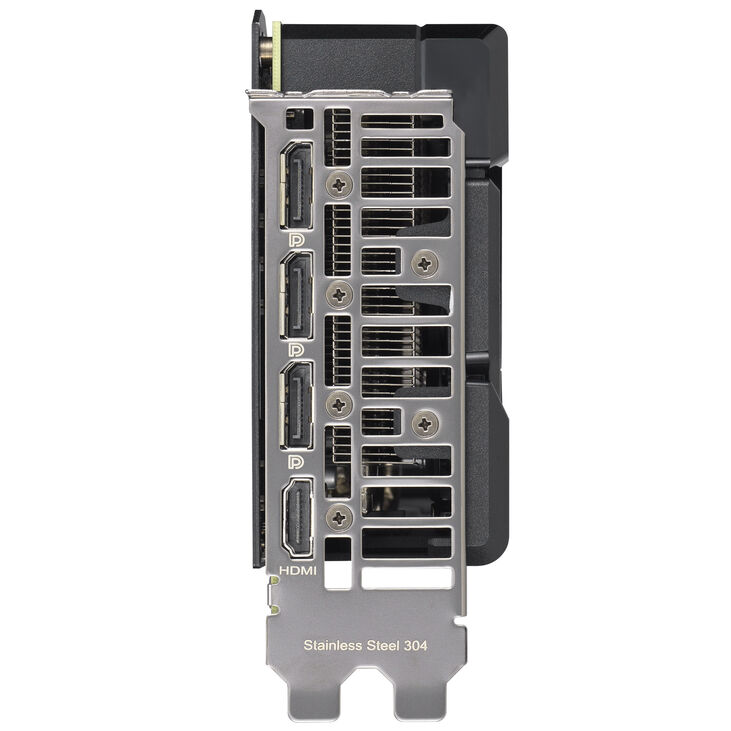

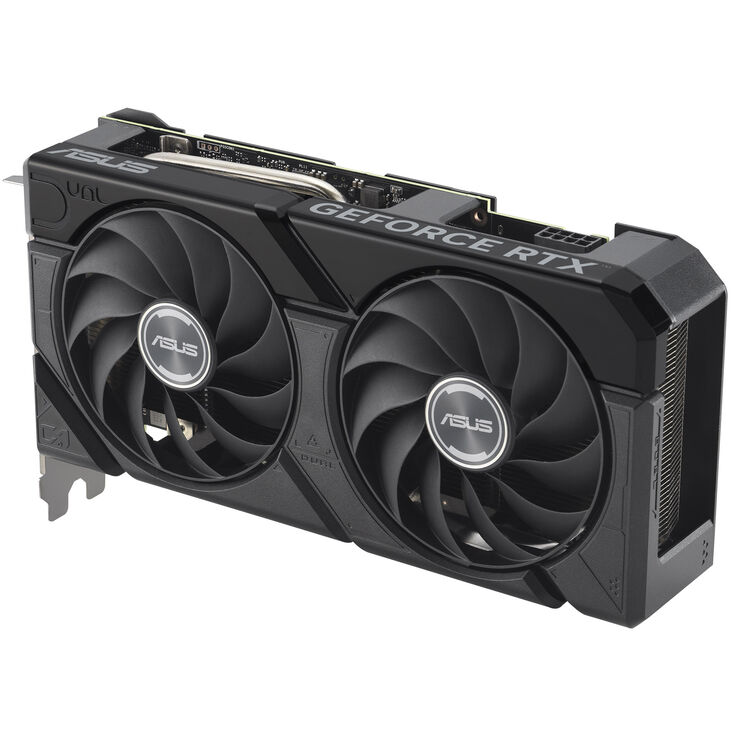

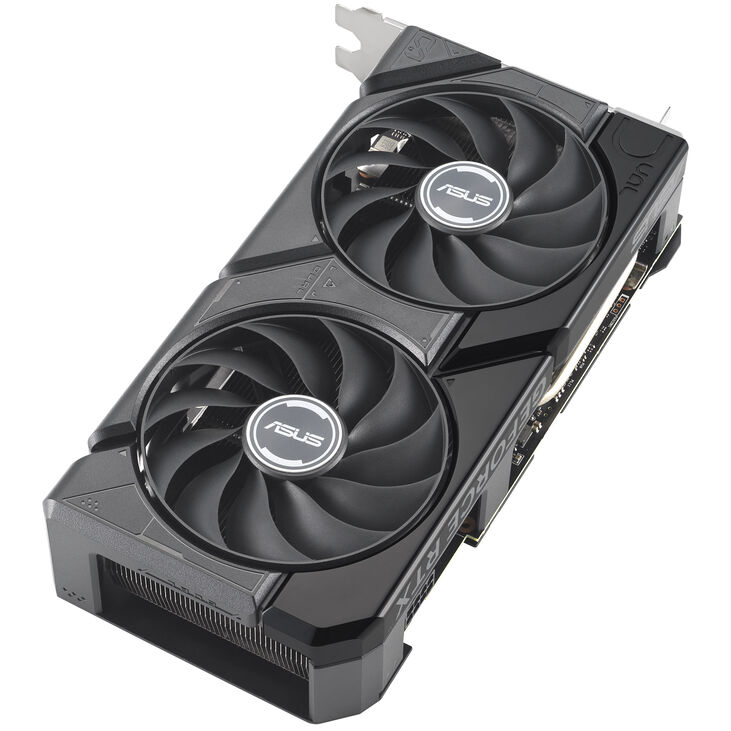

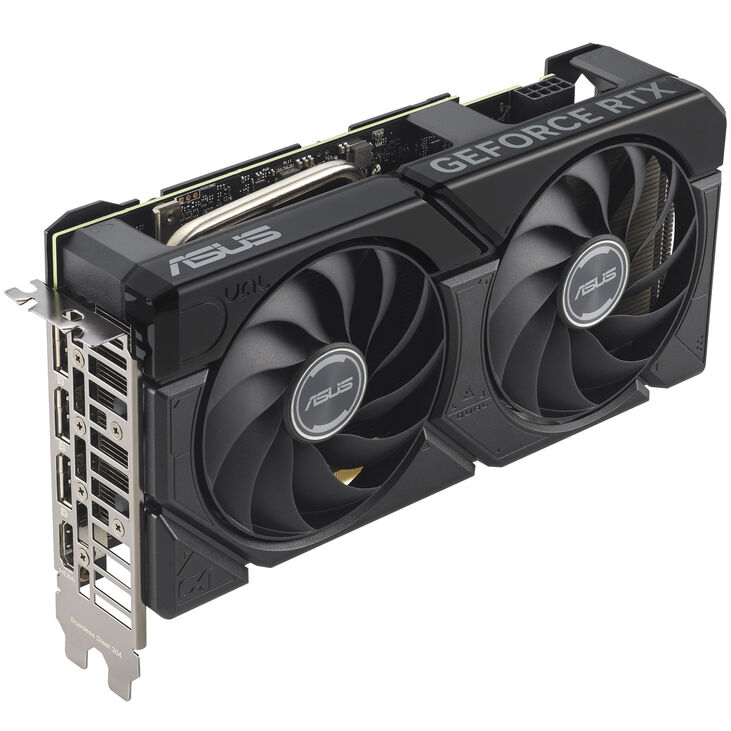

The RTX 4060 EVO is equipped with two Axial-Tech fans that effectively cool even under high performance. You can also connect up to four displays, as it has one HDMI 2.1a and three DisplayPort 1.4a ports.
Your case should have at least 227.2 mm of space and 2.5 expansion slots for this graphics card. A power supply with a minimum of 550 watts is also recommended.
- Dimensions: 227.2 x 123.24 x 49.6 mm (W x H x D)
- Height: 2.5-slot
- GPU:
Model: GeForce RTX 4060
Base Clock: 1,830 MHz
Boost Clock: 2,505 MHz
Boost Clock (OC): 2,535 MHz
Shader Units (CUDA Cores): 3,072 - Memory:
Size: 8 GB
Type: GDDR6
Data Transfer Rate: 17 Gbps
Memory Interface: 128-bit - Slot: PCIe 4.0 x16 (electrically x8)
- Power Supply: 1x 8-Pin PCIe
TDP: 115 W
Recommended Power Supply: min. 550 W - Connections:
1x HDMI 2.1a
3x DisplayPort 1.4a - Features: DirectX 12 Ultimate, OpenGL 4.6, RTX IO, DLSS 3.0, G-Sync, AV1 Encoder, Vulkan RT API, NVENC Gen 8, Real-Time Ray Tracing, 3rd Generation Ray Tracing Cores, 4th Generation Tensor Cores, NVIDIA ShadowPlay, NVIDIA FreeStyle, NVIDIA Ansel, NVIDIA Highlights, VR-Ready
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Width
|
227.2 mm
|
Depth
|
49.6 mm
|
Height
|
123.24 mm
|
Graphics Card
|
|
GPU Series
|
RTX 40 Series
|
GPU Model
|
|
NVIDIA GeForce RTX 4060
|
|
GPU Series Name
|
NVIDIA GeForce RTX 4060
|
Graphics Chip
|
AD107-400
|
Manufacturing Process
|
4 nm
|
Shader Units
|
3072
|
Tensor Cores
|
96
|
Raytracing Cores / Ray Acceleratorss
|
28
|
GPU Memory Type
|
GDDR6
|
Slot Type Standard
|
PCIe 4.0
|
GPU Memory Size (GB)
|
8
|
GPU Memory Interface (bit)
|
128
|
GPU Memory Bandwidth (GB/s)
|
272
|
GPU Effective Memory Clock (MHz)
|
17000
|
Clock Speeds
|
|
Max. GPU Clock (Base)
|
1830 MHz
|
Max. GPU Clock (Boost)
|
2535 MHz
|
Cooling
|
|
Number of fans
|
2
|
Internal Ports
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
External Ports
|
|
Display Connectors
|
Display Port (3x), HDMI
|
Expansion Slots
|
|
Expansion Slots Required
|
2.5 Slots
|
Standards / Specifications
|
|
Adaptive Sync Technology (G-Sync / Freesync)
|
NVIDIA G-Sync
|
Features
|
|
Virtual Reality Ready
|
Yes
|
Lighting
|
|
Lighting
|
No
|
