ASUS Radeon RX 7900 XT Dual O20G, 20480 MB GDDR6
- Efficient dual-fan cooler design with semi-passive cooling
- Subtle RGB-LED lighting
- Enormous GPU boost clock: 2,535 MHz
- 20 GB GDDR6 graphics memory with 84 MB AMD Infinity Cache
- Extremely high memory clock: 2,500 MHz (effective 20,000 MHz)
- Wide 320-bit memory interface
- Very large memory bandwidth of 800 GB/s
- Video outputs: 3x DP 2.1 and 1x HDMI 2.1a

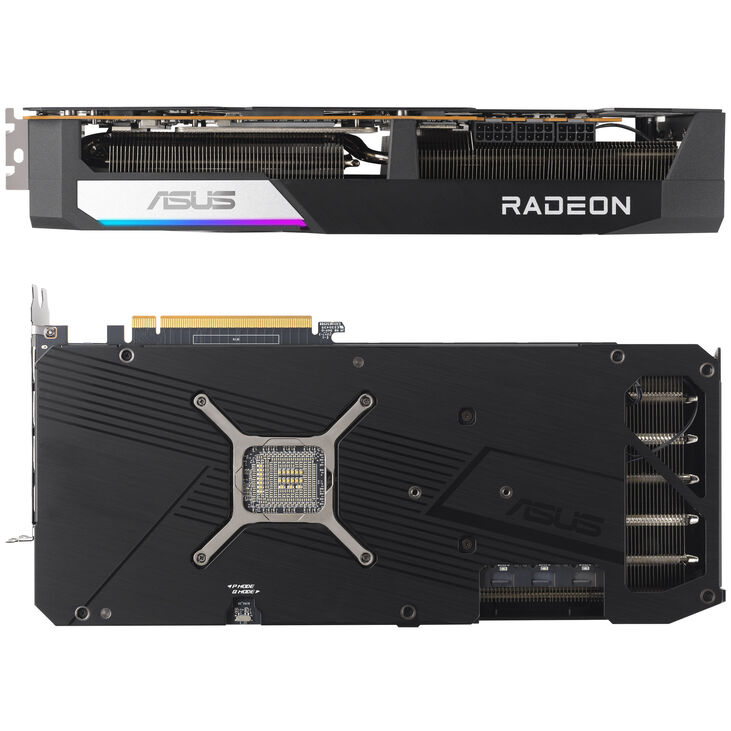

The ASUS Radeon RX 7900 XT Dual O20G in Detail
The ASUS Radeon RX 7900 XT Dual O20G is equipped with a powerful graphics processor and particularly fast GDDR6 graphics memory. If you have the highest demands on graphics quality, then this gaming graphics card is the right choice for you, as the ASUS Radeon RX 7900 XT Dual O20G offers strong rasterisation performance and real-time ray tracing. With a Radeon RX 7900 XT, you can enjoy high frame rates in 4K.
AMD's RDNA-3 Graphics Card with Efficient Cooling

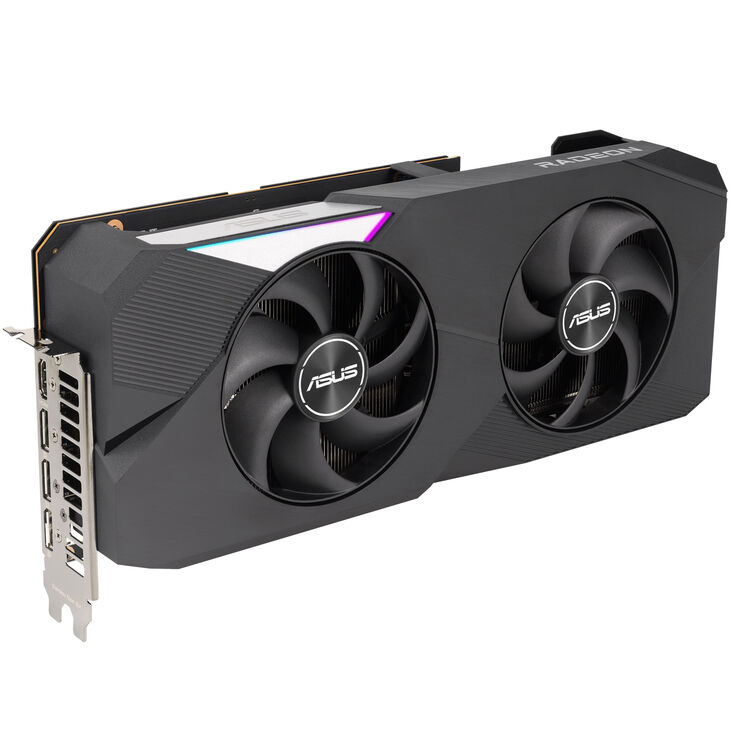

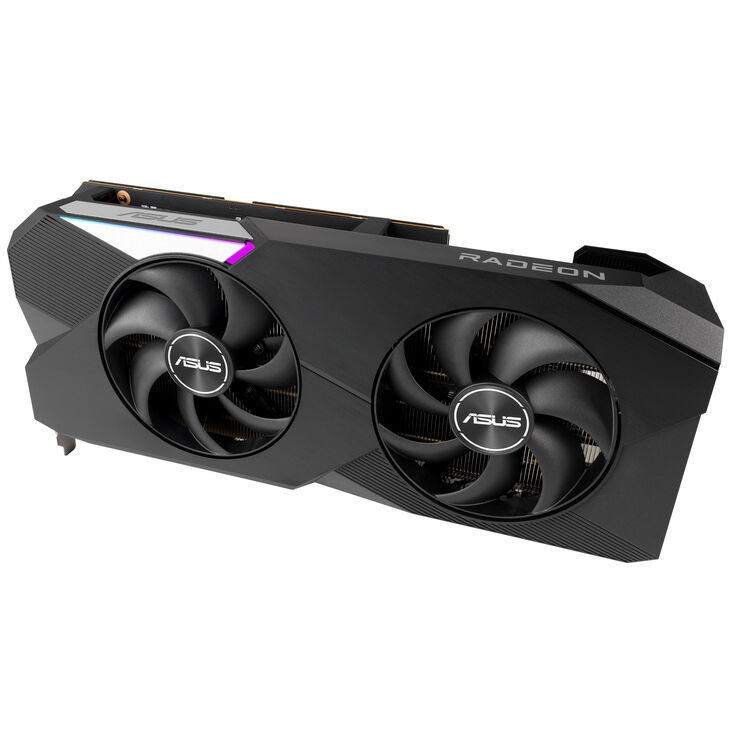

This high graphics performance is provided by the Navi 31 GPU with a maximum boost clock of 2,535 MHz and the 20 GB GDDR6 memory with an effective clock frequency of 20,000 MHz. The ASUS Radeon RX 7900 XT Dual O20G is kept at low temperatures by the cooling system developed by ASUS in a dual-fan design.
Your case should provide at least 323 mm of space and 3 expansion slots for this graphics card. The manufacturer recommends a power supply with a minimum output of 750 watts.
- Dimensions: 323 x 147 x 58 mm (L x W x H)
- Height: 2.95 slots
- GPU: AMD Radeon RX 7900 XT
- Chip: Navi 31
- Clock rates:
Base clock: 1,500 MHz
Game clock (Standard Mode): 2,075 MHz
Game clock (OC Mode): 2,450 MHz
Boost clock (Standard Mode): 2,175 MHz
Boost clock (OC Mode): 2,535 MHz - Shader units: 5,376
- Compute units: 84
- Ray accelerators: 84
- Graphics memory:
Memory size: 20,480 MB + 84 MB AMD Infinity Cache
Memory clock: 2,500 (effective 20,000) MHz
Type: GDDR6
Memory interface: 320-bit
Memory bandwidth: 800 GB/s - Slot: PCIe 4.0 x16

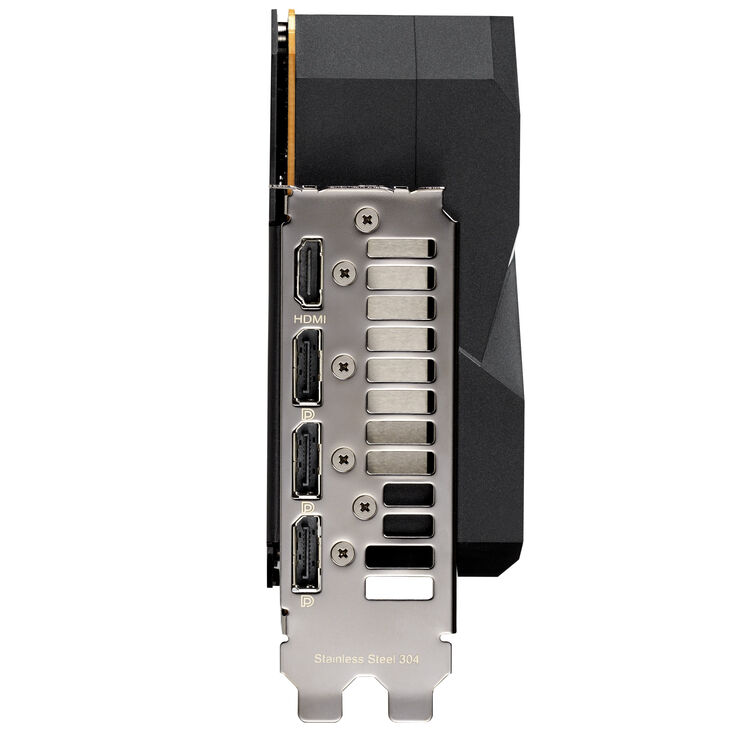

- Connections:
3x DisplayPort 2.1
1x HDMI 2.1a - Power supply:
Connections: 3x 8-Pin PCIe
Recommended power supply output: min. 750 watts - TDP: 320 watts
- Dual BIOS: Yes
- Features:
RDNA-3 GPU architecture, H265/HEVC video encoding, AV1 video encoding, FidelityFX, DirectX 12 Ultimate, Vulkan 1.3, OpenGL 4.6, OpenCL 2.1, Eyefinity 2.0, TrueAudio Next, FreeSync Premium Pro, AMD Smart Access Memory, HDCP 2.3
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
323 mm
|
|
Width
|
147 mm
|
|
Height
|
58 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 7000 Series
|
|
GPU Model
|
AMD Radeon RX 7900 XT
|
|
GPU Series Name
|
AMD Radeon RX 7900 XT
|
|
Graphics Chip
|
Navi 31
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
5376
|
|
Raytracing Cores / Ray Acceleratorss
|
84
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 4.0
|
|
Compute Units
|
84
|
|
GPU Memory Size (GB)
|
20
|
|
GPU Memory Interface (bit)
|
320
|
|
GPU Memory Bandwidth (GB/s)
|
800
|
|
GPU Effective Memory Clock (MHz)
|
20000
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1500 MHz
|
|
Max. GPU Clock (Boost)
|
2535 MHz
|
|
Max. Memory Clock
|
20000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
2
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (3x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
3 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
adaptiveSync, AMD FreeSync Premium Pro
|
|
Features
|
|
|
Virtual Reality Ready
|
Yes
|
|
AI
|
|
|
AI Acceleration
|
No
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
