- AIO from be quiet! for high-performance systems
- 120mm aluminium radiator with 27mm height and refill port
- One Pure Wings High Speed 120mm PWM fan
- Doubly decoupled PWM pump for quiet operation and minimal vibrations
- Flexible hoses with a length of 400mm
- Integrated subtle ARGB lighting in the cooler

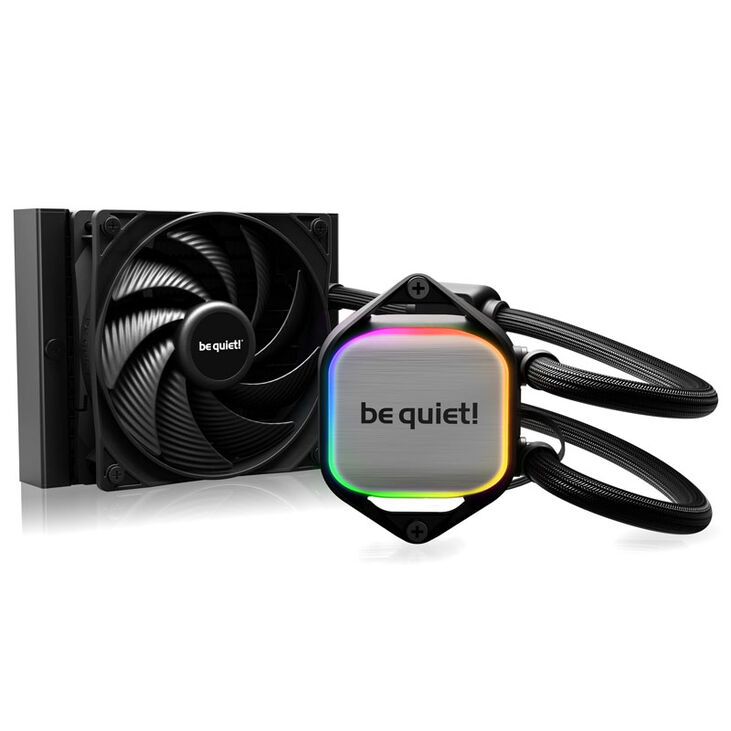

be quiet! Pure Loop 2 120: suitable for high-performance systems
The AiO Pure Loop 2 120 from be quiet! has been optimised for high performance and quiet operation. This is ensured by the 27mm high aluminium radiator, the well-thought-out construction of the CPU cooler and pump unit, and the one Pure Wings 3 120mm PWM fan.
The doubly decoupled pump unit reduces noise emissions and additionally increases performance and lifespan. The copper base plate ensures rapid heat dissipation to the coolant. The PWM-controlled pump operates between 4,000 and 5,500 RPM, making it suitable for overclocking purposes. It operates at a noise level of only 13 to 32.1 dB(A).
Sleek Design: Subtle ARGB lighting on the pump
Together with the PWM-controlled 120mm PWM fan Pure Wings 3 High Speed, quiet operation with maximum cooling performance is guaranteed. The fans operate at a maximum speed of 2,100 RPM and deliver up to 101.2 m³/h of air at up to 2.41 mmH2O static pressure.
In addition to its strong performance, the AiO Pure Loop 2 120 also impresses with its elegant appearance. All parts are completely black. The subtle digitally addressable RGB lighting on the pump housing stands out particularly well. The lighting is connected to the motherboard via 3-pin RGB (5V) and synchronised with the entire setup via software.
Technical Details:
- Colour: Black

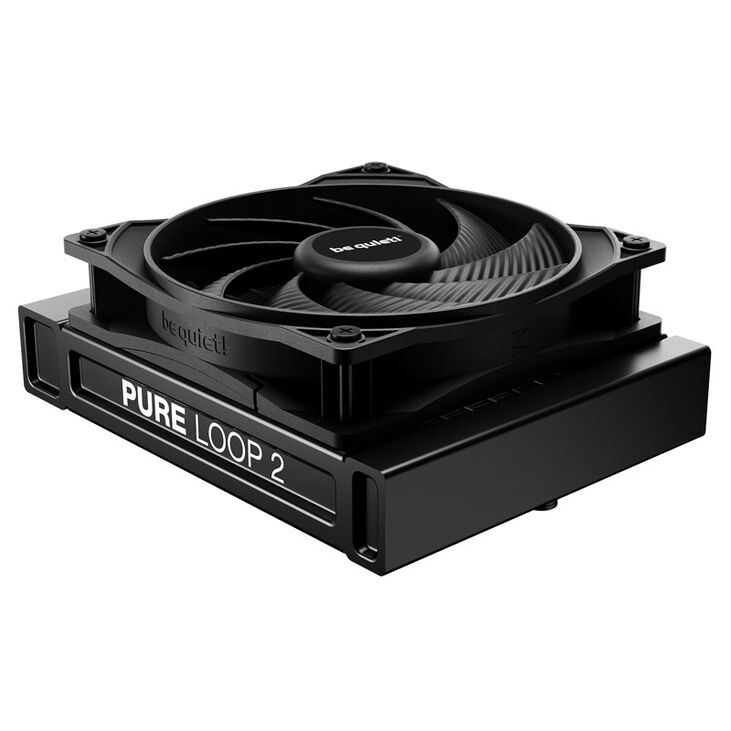

- Radiator:
Dimensions (without fans): 152 x 120 x 27 mm (L x W x H)
Dimensions (with fans): 152 x 120 x 52 mm (L x W x H)
Material: Aluminium

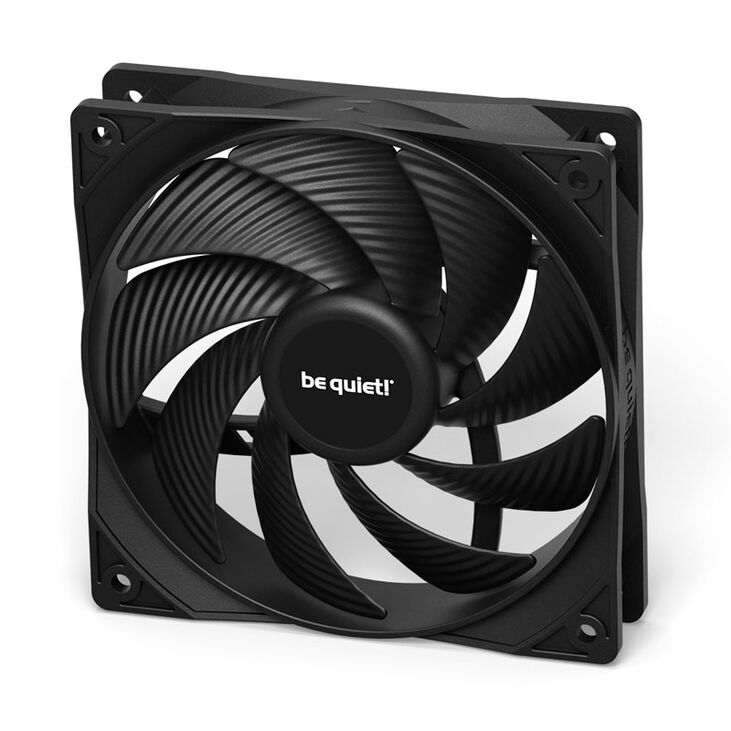

Hose length: 400 mm - Fan:
1x 120mm Pure Wings 3 High Speed
Dimensions: 120 x 120 x 25 mm (L x W x H)
Connection: 4-pin PWM
Cable length: 500 mm
Speed: max. 2,100 RPM
Airflow: max. 101.2 m³/h
Static pressure: max. 2.41 mmH2O
Bearing: Rifle Bearing
Noise level: max. 30.9 dB(A)
Voltage range: 5 to 13.2 V DC
Power consumption: 5.4 W
Maximum current: 0.45 A
Lifespan: 80,000 h - Cooler/Pump:
Base plate material: Copper
Noise level: 13 / 23.8 / 32.1 dB(A) (at 25 / 50 / 100 % performance)
Lighting: ARGB, 3-pin RGB (5VDG, 5V)
Speed: 4,000 to 5,500 RPM
Connection: 4-pin, 5VDG - Compatibility (Socket):
Intel: 1700 / 1200 / 1150 / 1151 / 1155

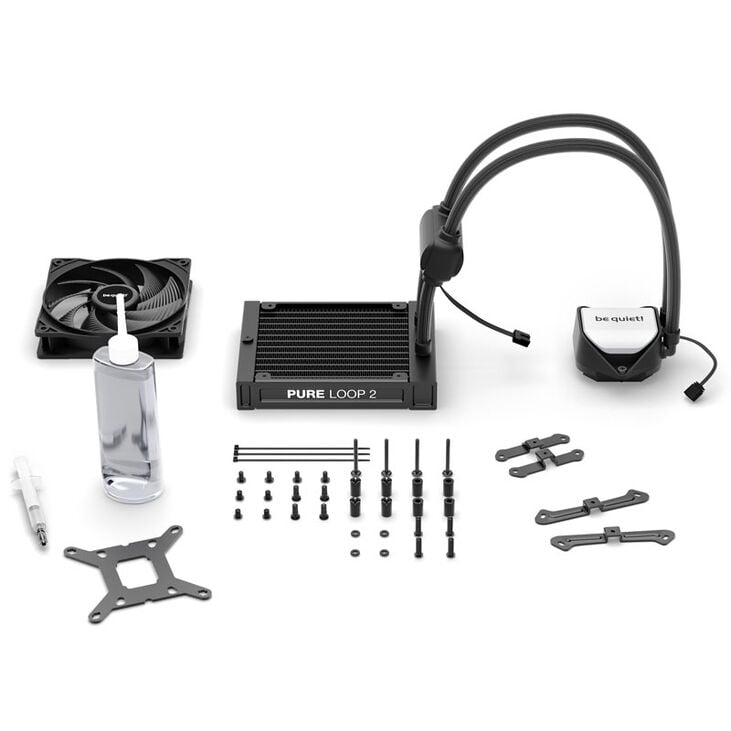

AMD: AM5 / AM4 - Scope of delivery:
1x be quiet! Pure Loop 2 120
Thermal paste
Mounting sets for AMD and Intel
1x Y-cable
Bottle of coolant (100 ml)
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Dimensions
|
|
Height
|
27 mm
|
Weight
|
0.8 kg
|
Radiator Size
|
120 mm
|
Radiator Height With Fan
|
52 mm
|
Tube length
|
40 cm
|
Type
|
|
CPU Cooler Type
|
AiO Liquid Cooler
|
CPU
|
|
CPU Socket
|
1150, 1151, 1155, 1200, 1700, 1851, AM4, AM5
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Fan Support
|
|
Included fans
|
1
|
Noise
|
|
Min. Pump Noise dB(A)
|
13 dB(A)
|
Max. Pump Noise dB(A)
|
32.1 dB(A)
|
Min. Single Fan Noise dB(A)
|
13 dB(A)
|
Max. Single Fan Noise dB(A)
|
32.1 dB(A)
|
Internal Ports
|
|
Fan connectors
|
3 Pin, 4 Pin (PWM)
|
Pump connectors
|
4 Pin (PWM control)
|
Materials
|
|
Materials
|
Aluminium, Copper
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
Additional Contents
|
|
Included fans
|
1x 120 mm
|
