CableMod RT-Series PRO ModMesh 12VHPWR Dual Cable Kit for ASUS/Seasonic - black
NVIDIA's GeForce RTX 4000 series graphics cards use a new 16-pin connector (12+4-pin) with PCIe 5.0 standard for power supply. This connector is also referred to as 12VHPWR. CableMod offers the RT-Series Pro ModMesh 12VHPWR Dual Cable Kit to 3x PCI-e cable, including two 12VHPWR PCIe 5.0 adapters designed for for RT-Series PSUs from ASUS and Seasonic with or without a native 12VHPWR connector.
In addition to a 16-pin to 16-pin and a 16-pin 12VHPWR to 3x 8-PCIe cable with 16AWG conductors, the kit includes cables for powering the mainboard, SATA devices and for Molex connections. The RT-Series Pro ModMesh 12VHPWR Dual Cable Kit uses a high quality sleeving made of ModMesh. Some cables are equipped with pre-installed, closed cable combs. Further cable combs and a cable shroud are included in the kit.
Important notes: For the 12VHPWR cable to work correctly, all 8-pin connectors must be connected to the power supply. The distance between the connector of the graphics card and the side panel must be at least 4 to 4.5 cm. In addition, the cable should only be bent at a distance of 35 mm from the connector on the GPU. Finally, ensure that the 12+4 pin connector is fully and securely inserted into the socket on the graphics card.Technical Details:
- Colour: Black
- Material: ModMesh

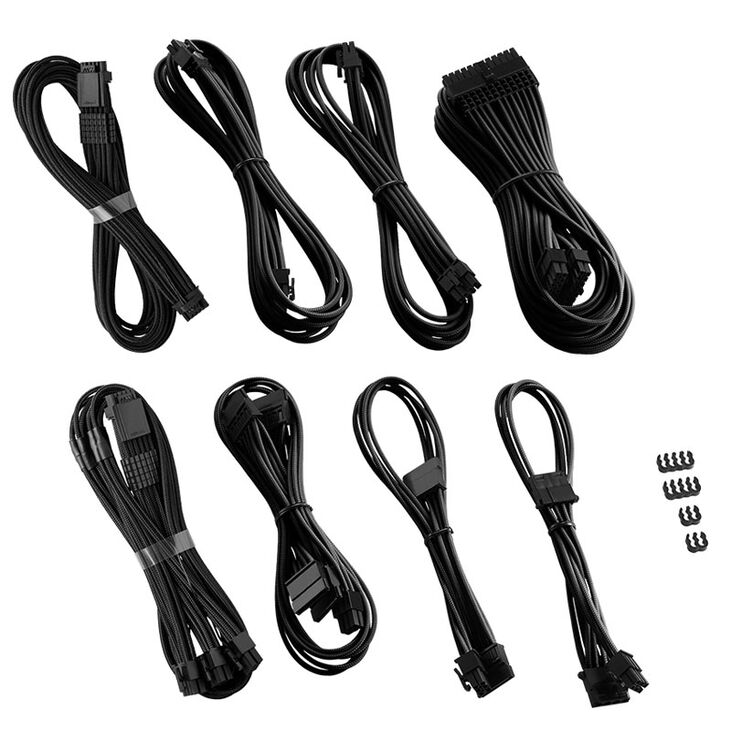

- Included cables:

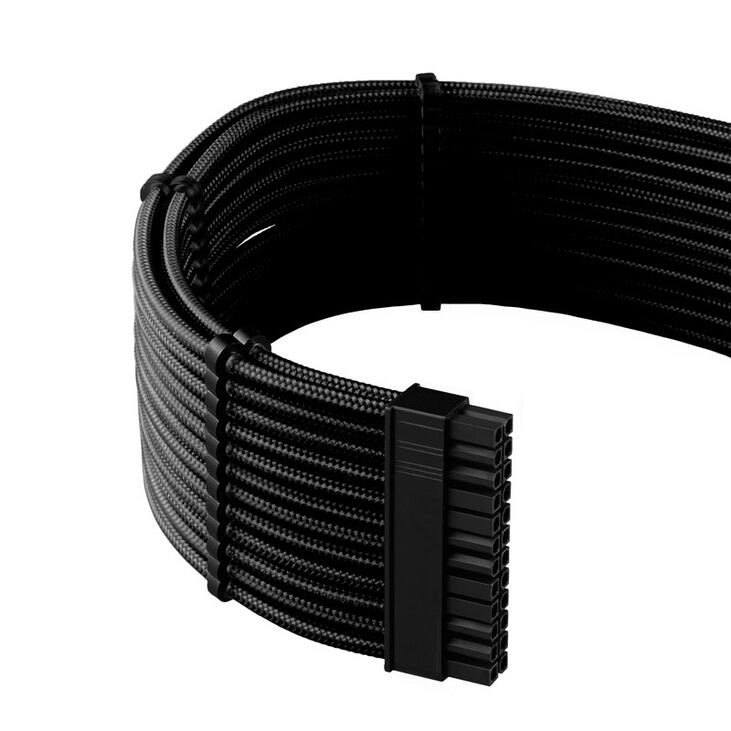

1x 24-Pin ATX cable (60 cm)
1x 8-Pin EPS cable (75 cm)
1x 4+4-Pin EPS cable (75 cm)

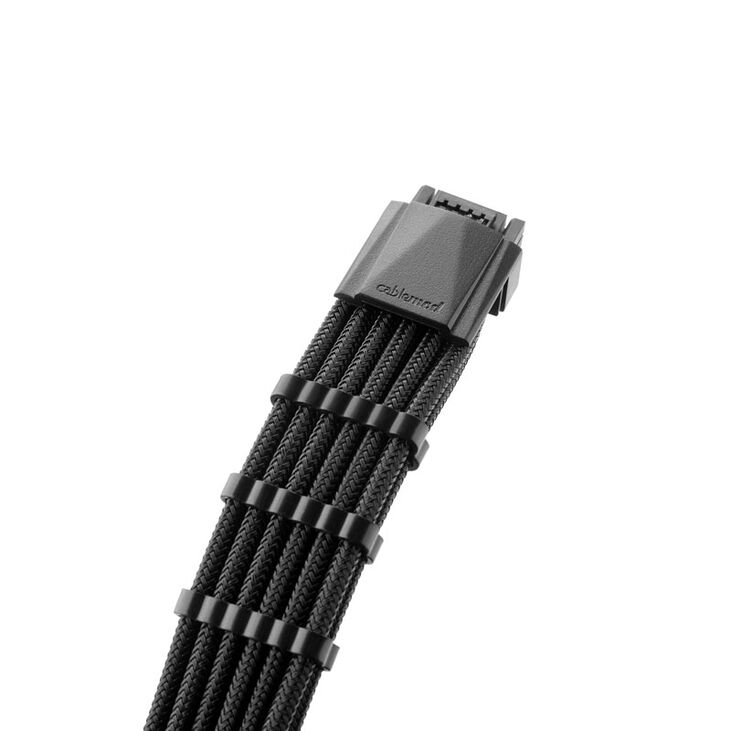

1x 16-Pin to 16-Pin PCI-e cable (60 cm)
1x 16-Pin to 3x 8-Pin PCI-e cable (60 cm)
1x Quad SATA cable (85 cm)
1x Dual SATA cable (50 cm)
1x Dual Molex cable (50cm) - Accessories:
1x Cable shroud
2x 8-Pin hybrid cable comb
2x 4-Pin hybrid cable comb - Compatibility:
ASUS RT-Series
Seasonic RT-Series
|
Colour
|
|
|
Main Colour Cable
|
Black
|
|
Main colour connector / plug
|
Black
|
|
Cable Specifications
|
|
|
Cable Type
|
cable set
|
|
Shielded Cable
|
No
|
|
Sleeved Cable
|
Yes
|
|
Angle
|
|
|
Connector angled
|
No
|
|
Standards / Specifications
|
|
|
Standard / specification
|
PCIe 5.0
|
|
Connectivity
|
|
|
Connector 1 (internal)
|
ATX (24-Pin) PLUG, EPS12V (4+4-PIN) PLUG, EPS12V (8-Pin) PLUG, Molex large (4-Pin) SOCKET 2x, PCIe (12+4-Pin / 16-Pin) 12VHPWR PLUG 2x, SATA (power) PLUG 2x, SATA (power) PLUG 4x
|
|
Connector 2 (internal)
|
ATX (24-Pin) SOCKET, ATX/EPS12V (4+4-PIN) SOCKET, EPS12V (8-Pin) SOCKET, Molex large (4-Pin) SOCKET, PCIe (12+4-Pin / 16-Pin) 12VHPWR PLUG, PCIe (8-Pin) PLUG 3x, SATA (power) SOCKET 2x
|
|
Cable Length
|
85 cm
|
