Corsair Hydro X Series XD7 RGB D5 Pump Reservoir Combo - black
- Combination of reservoir and D5-PWM pump
- Can be installed in any case with 360-mm or 3x 120-mm fan slots
- Fill and drain ports for easy filling and draining of liquid
- Quiet, efficient, and decoupled for minimal noise
- Check cooling performance easily with the temperature sensor
- Combination of acrylic glass and nylon makes it heat and shock resistant
- iCUE-compatible RGB lighting with 36 digitally addressable LEDs
- Transparent reservoir with 140 ml capacity

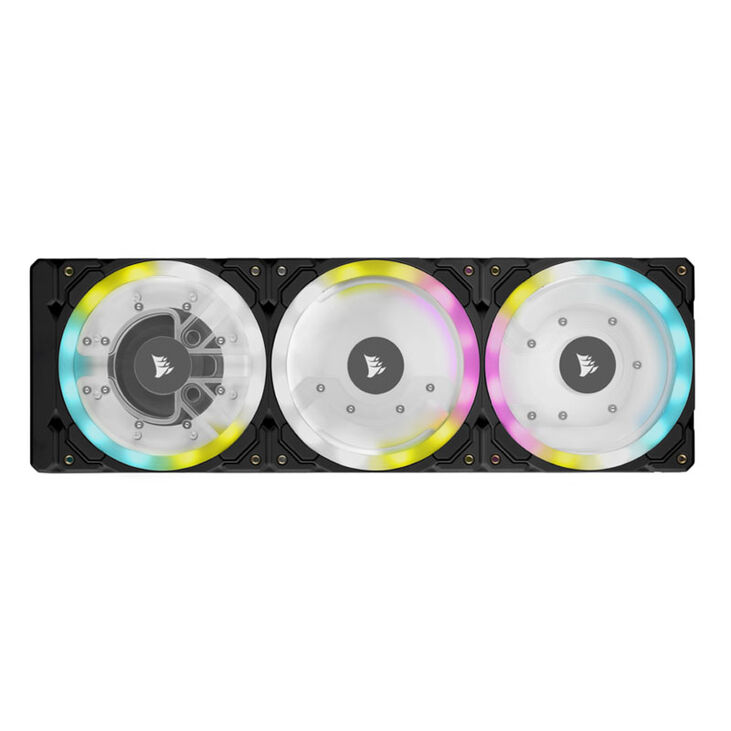

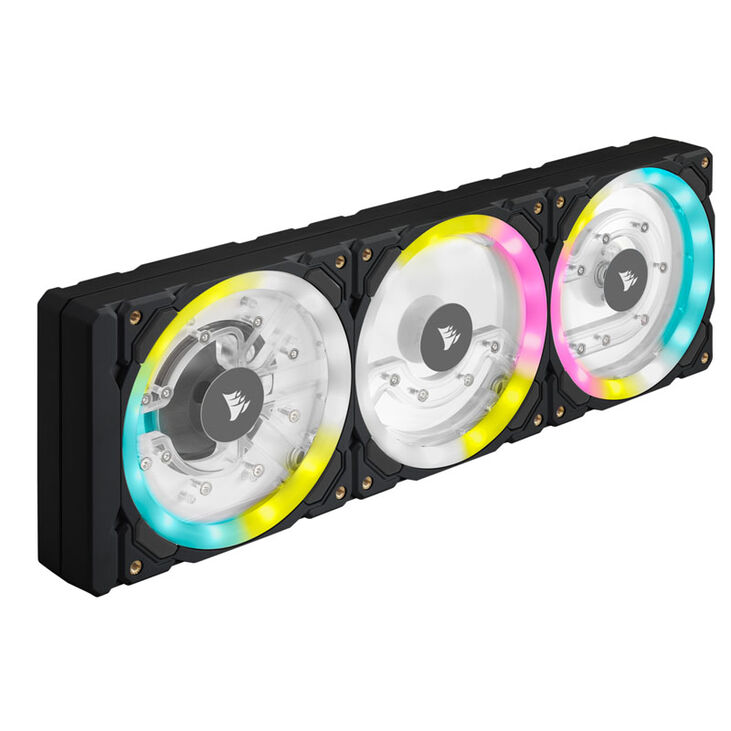

The Corsair Hydro X Series XD7 RGB D5 Pump Reservoir Combo in detail
Corsair presents the Hydro X Series XD7 RGB pump and tank combo as a "complete package." It offers a powerful 360-mm distribution plate with D5-PWM pump, exciting RGB lighting effects, and a temperature sensor, making it ideal for demanding cooling systems.
Powerful cooling system: universal 360-mm distribution plate system
The Corsair Hydro X Series XD7 RGB D5 Pump Reservoir Combo fits all cases that support a 360 mm radiator. It acts as the hub of any water cooling system, connecting all components and driving the flow. With PWM control, it manages everything automatically, so you don't need to intervene.
Liquid can be easily filled or drained. The Corsair Hydro X Series XD7 RGB D5 Pump Reservoir Combo includes integrated fill and drain ports. Additionally, it has a temperature sensor, providing real-time updates on your cooling loop or showing the current temperature. The iCUE Commander PRO manages the cooling using the iCUE software, optimising it to the most efficient level.
Durable and bold design with striking RGB lighting
The Corsair Hydro X Series XD7 RGB D5 Pump Reservoir Combo is heat and shock resistant thanks to the combination of acrylic glass and nylon. This not only makes it durable but also transparent, allowing you to see the vibrant colours within the cooling liquid or RGB lighting.
To keep it as quiet as possible, decouplers have been added to the mounting system. These reduce pump vibrations that could otherwise be transmitted to the case.
36 individually addressable RGB LEDs make all your colour effect dreams come true, highlighting the reservoir with its 140 ml capacity.
Note: In combination with a CORSAIR iCUE controller, you can customise and synchronise all RGB LEDs for all iCUE-compatible products. The controller must be purchased separately.
- Dimensions: approx. 120 x 376 x 93 mm (W x H x D)
- Material: POM (Pump cover), PMMA (Reservoir)
- Colour: Black, Transparent
- Reservoir capacity: 140 ml
- Pump: Xylem D5 PWM
- Head height: approx. 2.1 m
- Maximum flow rate: 800 l/h
- Input voltage: 12 V
- Power consumption: 30 W
- Connections:
4-Pin Molex (Power supply)
4-Pin PWM (Control)
Ports: 9x G1/4 inch - Lighting:
Type: RGB (3-Pin RGB, 5VDG, 5V)
Number of LEDs: 36 - Compatibility:
Commander Pro/ Lighting Node PRO
iCUE Software
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Width
|
120 mm
|
|
Height
|
376 mm
|
|
Volume
|
140 ml
|
|
Pump Specifications
|
|
|
Max. Pressure Head
|
2.1 m
|
|
Max. Water Flow
|
800 l/h
|
|
Type
|
|
|
Pump type
|
D5
|
|
Power Specifications
|
|
|
Power Consumption
|
30 W
|
|
Rated voltage
|
12 V
|
|
Water Cooling
|
|
|
Water cooling component
|
Pump + Reservoir
|
|
Water cooling connectors
|
2x G1/4"
|
|
Internal Ports
|
|
|
Pump connectors
|
Molex (4-Pin) Netzteil
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Thermal Specifications
|
|
|
Max. System Temperature
|
60 °C
|
|
Materials
|
|
|
Materials
|
Acrylic, Brass, Copper
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
|
Lighting Compatibility
|
Corsair iCUE
|
