EK Water Blocks EK-Loop vertical graphics card holder EVO with Riser PCIE 4.0 cable - black

EK Water Blocks EK-Loop vertical graphics card holder EVO with Riser PCIE 4.0 cable - black

Vertical graphics card holder in black, with flexible riser cable, PCIe x16 to PCIe x16, PCIe standard 4.0, 20 cm long, for individual positioning of graphics cards
147,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU GAZU-902 |
EAN 3831109892077 |
MPN 3831109892077 |
Manufacturer EK Water Blocks
  • GPU bracket
  • Compatible chassis type: Universal
  • Steel
  • Number of graphics cards supported: 1
  • Black

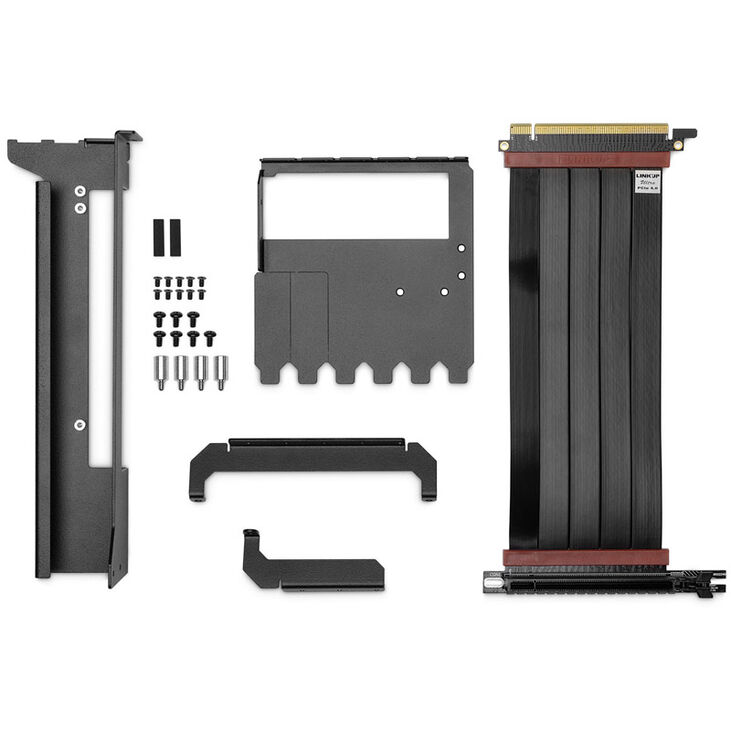

EK-Loop Vertical GPU Holder EVO - Gen4 Riser is a steel mounting bracket with a PCIe 4.0 riser cable that enables the user to mount the GPU vertically and show it off. Displaying your water-cooled graphics card or, alternatively, a GPU with a standard massive air cooler has become more and more popular over the years. One way to do this is to use the special aftermarket brackets that allow mounting the GPU vertically if the case is not already equipped with vertical PCIe slots.

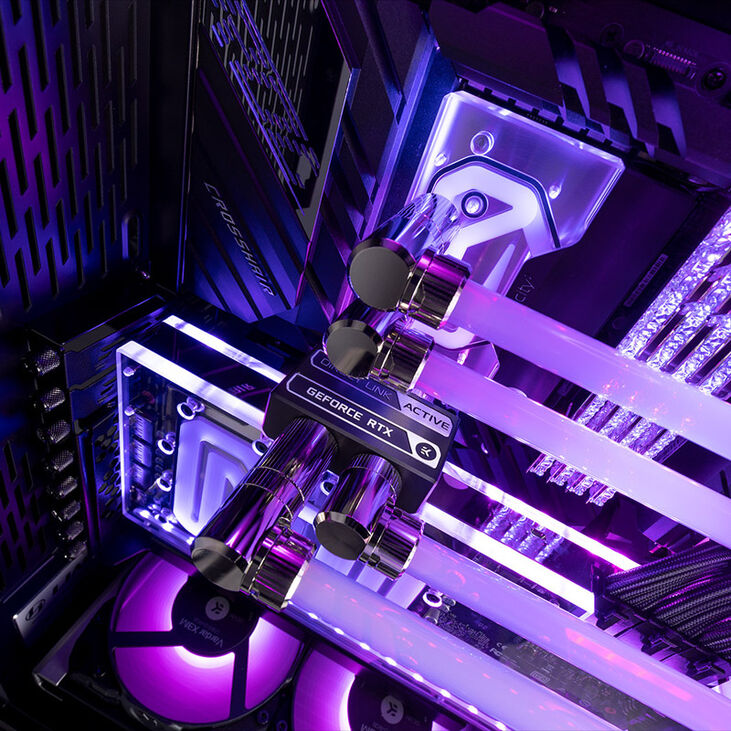

However, the user often faces issues with how these solutions work since they don't offer enough support, allowing the GPU to move around, sag, and stay crooked. This can significantly impair the aesthetics of said PC, which is a major problem as improving the looks is the primary purpose of this bracket. Things can be even more challenging with liquid cooling, especially when installing fittings and tubing to a vertically placed GPU. Not to mention trying to ship a PC with a vertically mounted GPU.

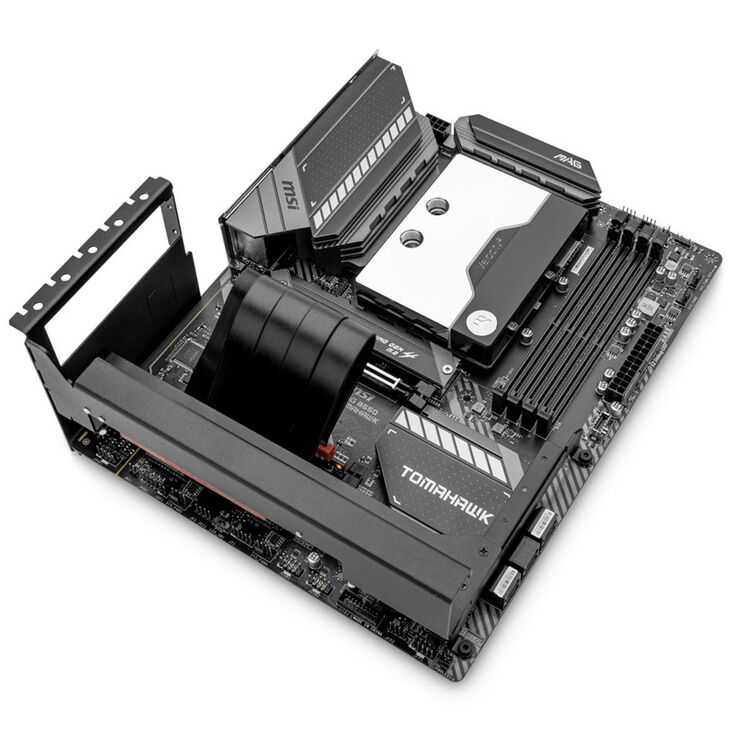

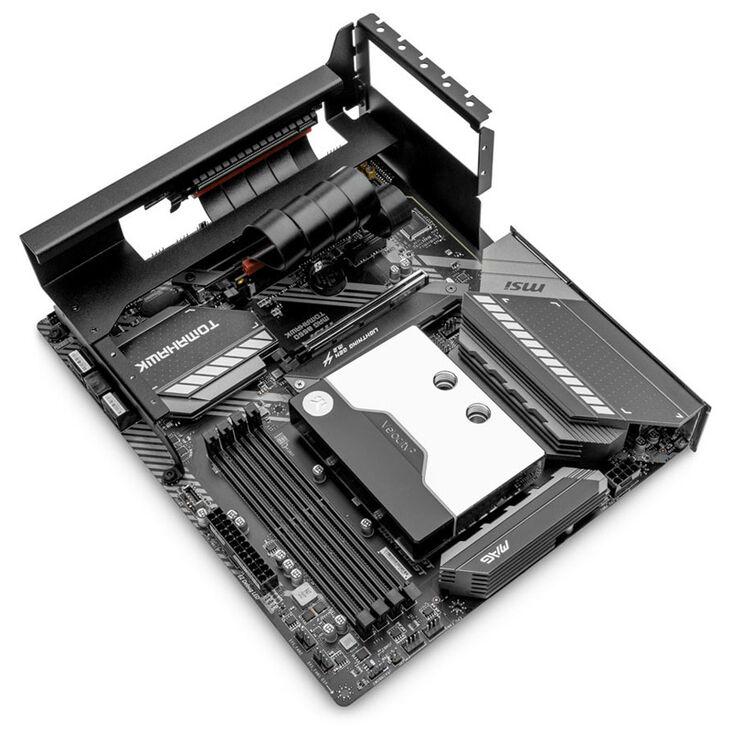

Not anymore, as EK's unique and IP-protected mounting system allows this vertical GPU bracket to screw into two ATX motherboard stand-offs for unparalleled structural rigidity.

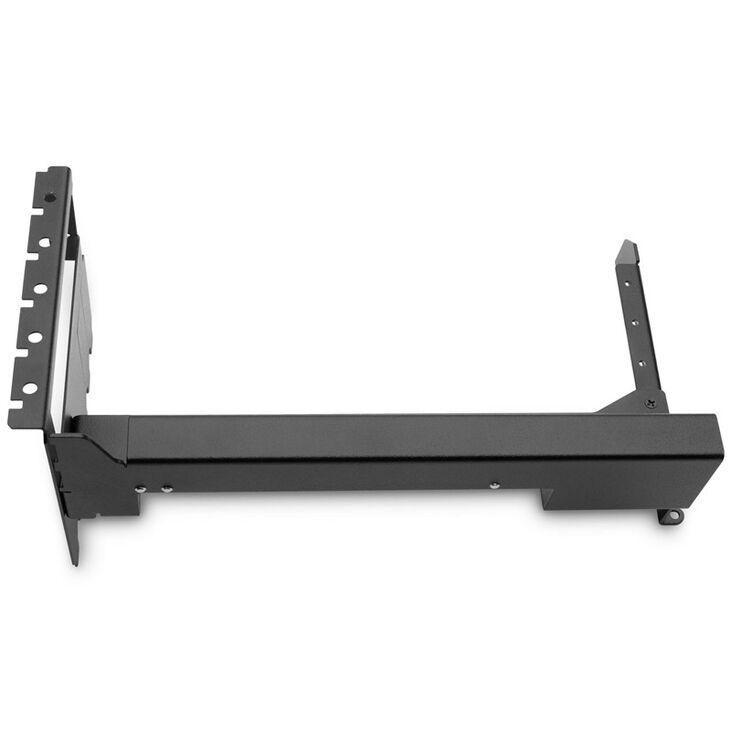

Made of 1-1.5mm thick black coated steel, the EK-Loop Vertical GPU holder EVO - Gen4 is keeping your hardware safe and immovable even during transport or installation of tubing and fittings.

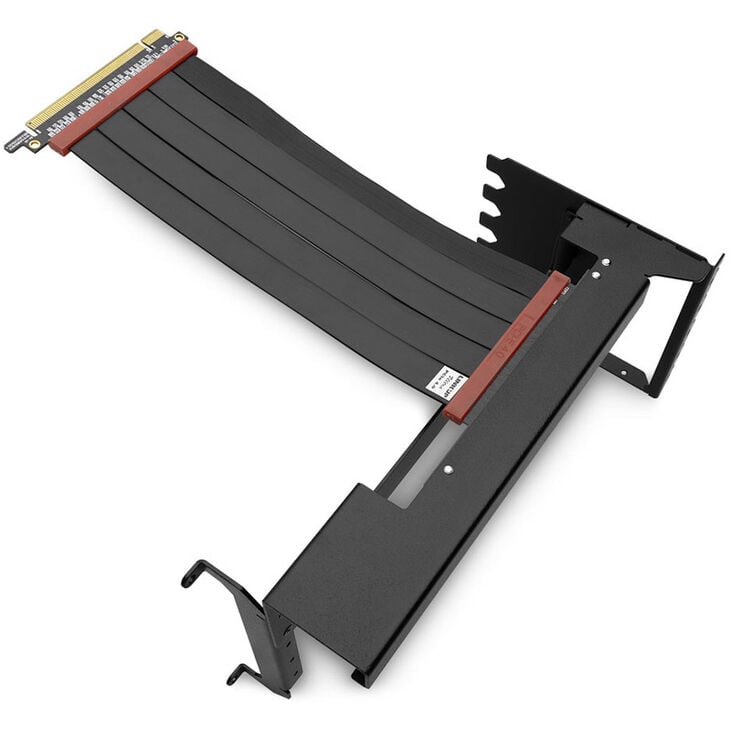

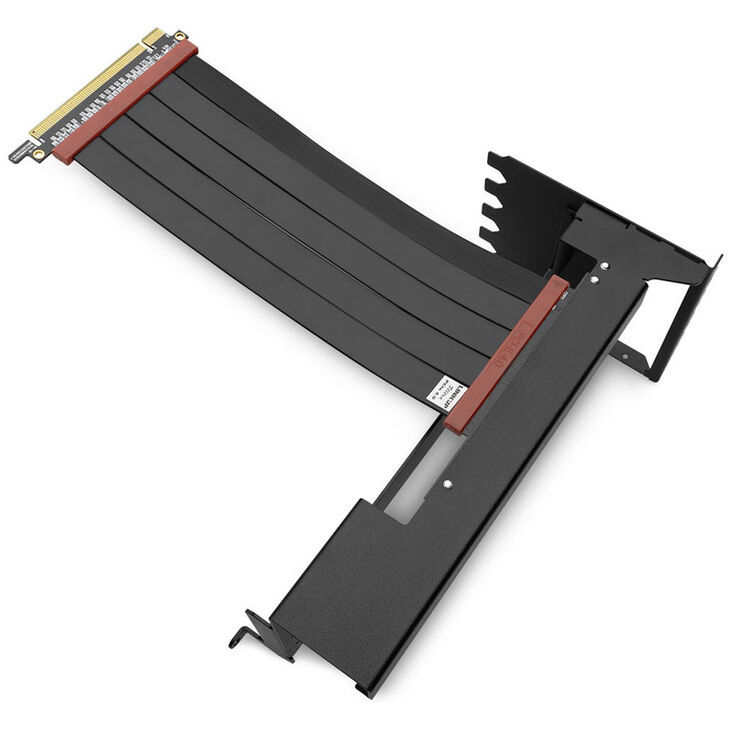

Premium Gen4 PCIe Riser Cable
The premium-quality PCI-E riser cable in this vertical bracket is 200mm long allowing plenty of leeways no matter how big your case is. Most other solutions that provide a PCIe 3.0 cable cause issues with PCIe 4.0 motherboards coupled with gen4 GPUs. The EK-Loop Vertical GPU Holder EVO, on the other hand, provides a fully certified gen4 riser cable that is rigorously tested with both the RX 6000 series AMD® GPUs and RTX 30 series NVIDIA® GPUs. Although this is a true PCIe 4.0 riser cable, it is also 100% compatible with PCIe 3.0 standard.

Case, GPU, and Active Backplate Compatibility:
EK-Loop Vertical GPU Holder EVO - Gen4 Riser requires open-design PCI-E expansion slots. This means there are no horizontal bars between PCI-E expansion slots. Also, the minimum required to mount this vertical bracket is 4-6 expansion slots. The case also needs to be ATX compatible.

An upgrade to the original Vertical GPU holder is the option to offset the mount, providing additional space for the radiator at the bottom of the case or allowing you to mount a 3-slot GPU. In this raised position, the GPU Holder may support 3-slot GPUs because the GPU clamping part of the Holder is raised above the PCIe bracket holder in the PC chassis. You still need to double-check and ensure there will be no overlapping of the I/O ports or interference of the GPU with the CPU cooler.
Colour
Main Colour Cable
Black
Main colour connector / plug
Red
Cable Specifications
Cable Type
Connection cable
Sleeved Cable
No
Angle
Connector angled
Yes
Standards / Specifications
Standard / specification
PCIe 1.0, PCIe 2.0, PCIe 3.0, PCIe 4.0
Connectivity
Connector 1 (internal)
PCIe (16x) PLUG
Connector 2 (internal)
PCIe (16x) SOCKET
Cable Length
20 cm
