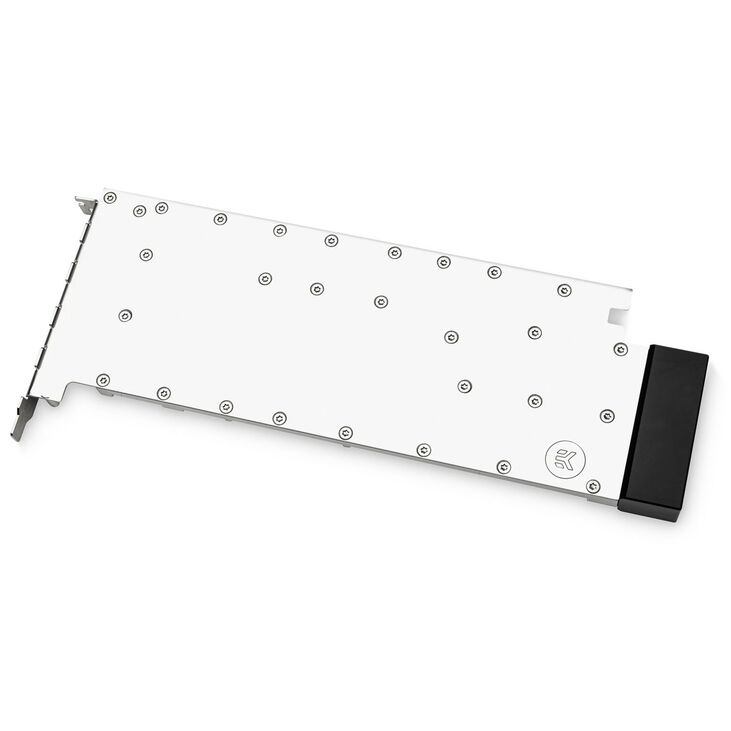

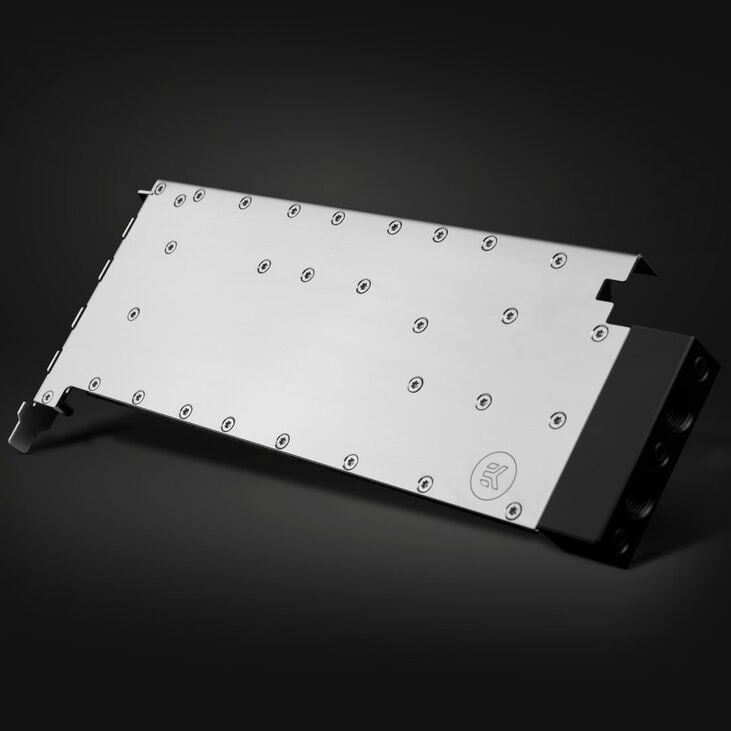

EK Water Blocks EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox
- Custom-fit for the NVIDIA RTX 4090 WINDFORCE V2 24G graphics card
- Effective cooling performance with a nickel-plated electrolytic copper base
- Industrial-grade stainless steel (Inox) top
- Two G1/4-inch ports for loop integration
Overview of the EK-Pro GPU WB RTX 4090 WINDFORCE V2 Water Block
Coolers from the EK-Pro series by EK Water Blocks are high-performance full-block water coolers designed for professional graphics cards in server and workstation environments. The EK-Pro series emphasizes robust and functional design as well as high durability, utilizing only the highest quality materials such as nickel-plated copper and stainless steel (Inox).
The EK-Pro GPU WB RTX 4090 WINDFORCE V2 by EK Water Blocks is a high-quality and powerful water block designed to fit NVIDIA RTX 4090 WINDFORCE V2 graphics cards. With an optimized channel structure and nickel-plated electrolytic copper block, efficient cooling of the GPU, memory, and voltage regulators is guaranteed.
Details of the EK-Pro GPU WB RTX 4090 WINDFORCE V2 Water Block

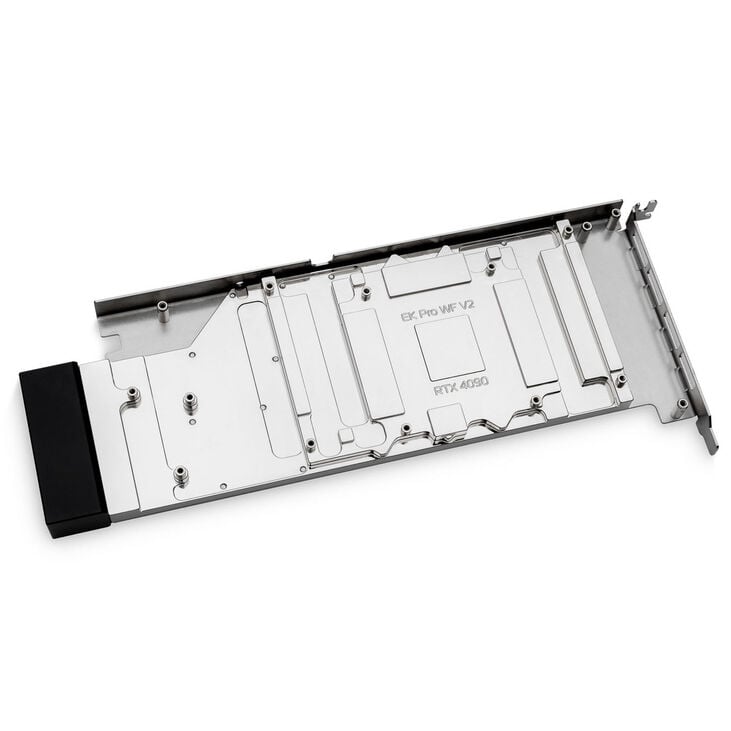

This is a full-block design that covers all relevant heat sources of the graphics card, providing effective cooling for the GPU, memory, and voltage regulators. The use of nickel-plated electrolytic copper and an optimized channel structure ensures optimal heat transfer. The top is made of industrial-grade stainless steel (Inox). The acetal terminal features two ports with G1/4-inch threads.
Note 1: Fittings are required to integrate into the cooling loop and are not included. It is important to note that this cooler is exclusively for NVIDIA RTX 4090 WINDFORCE V2 graphics cards. The original cooler must be removed before installation, which may void the manufacturer's warranty. Note 2: This water block is not compatible with the factory-installed backplate of the graphics card. However, the original NVIDIA NVLink bridges can be used.- Dimensions (with PCI bracket): 284 x 107 x 19.50 (L x W x H)
- Weight: 1.365 kg
- Material: Nickel-plated electrolytic copper (base), stainless steel (lid)
- Threads: 2x G1/4 inch
- Compatibility: Gigabyte GeForce RTX 4090 WINDFORCE V2 24G

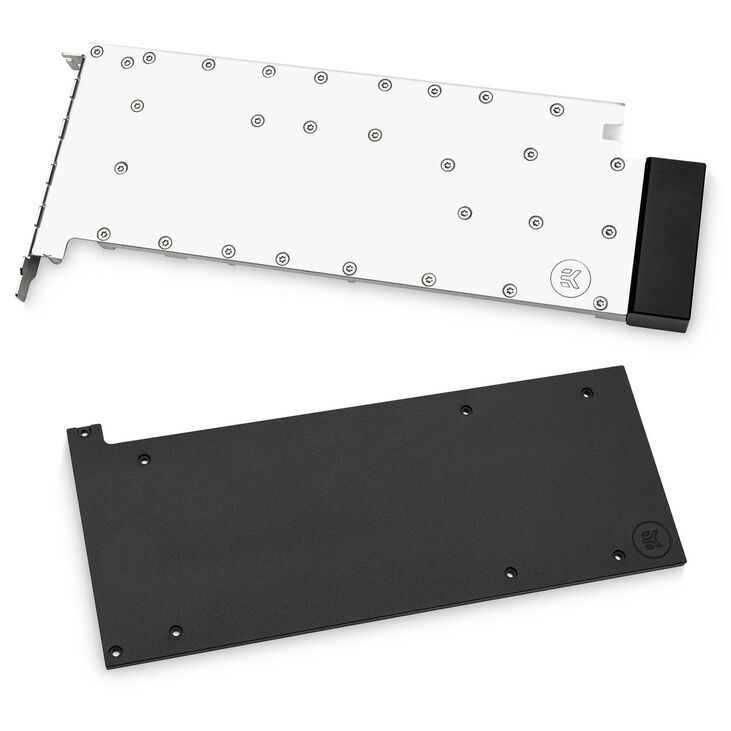

- Delivery contents:
EK-Pro GPU WB RTX 4090 WindForce V2 - Nickel + Inox Workstation and Server-Grade Water Cooling Block

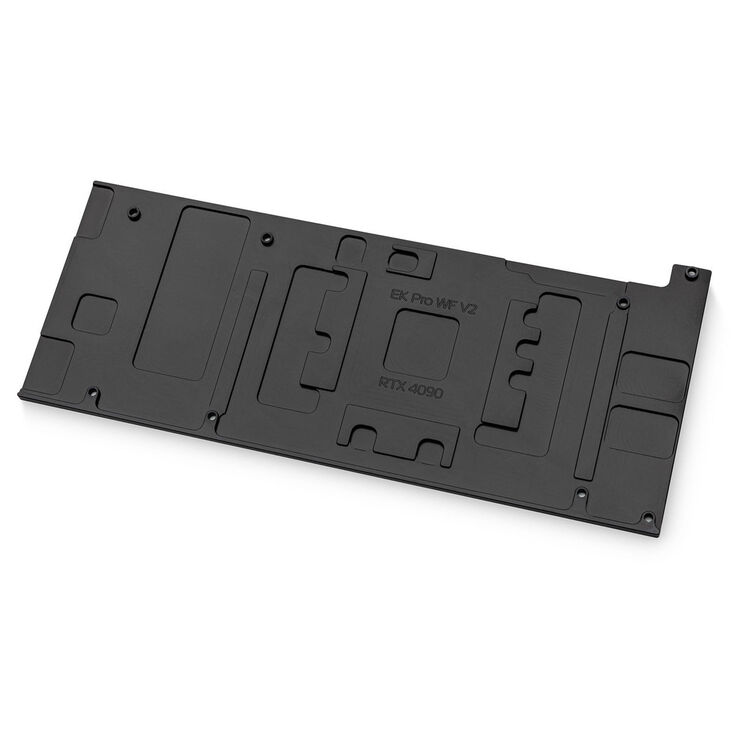

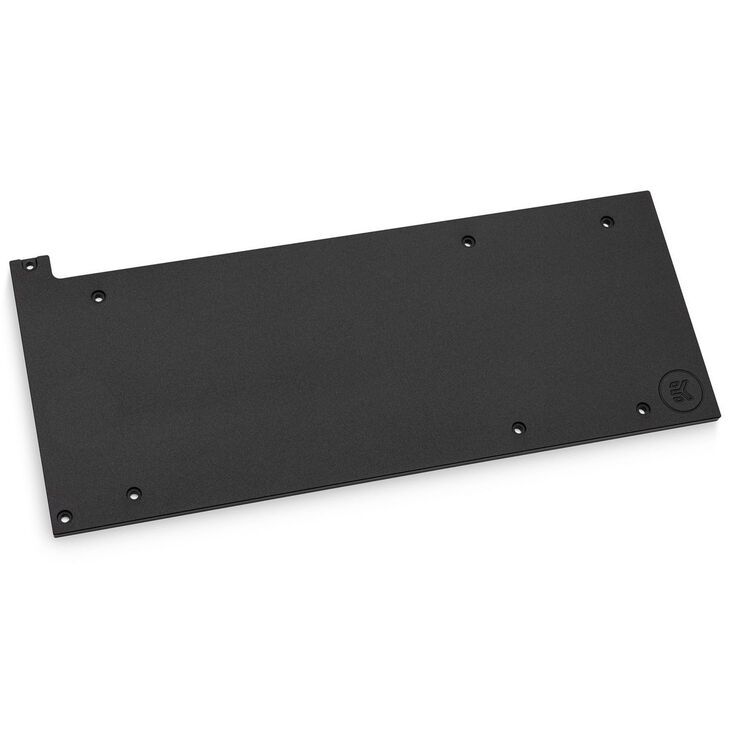

Retention Backplate
Mounting mechanism with threaded brass standoffs
Mounting screws, nuts, and washers
Thermal paste
Note: Some coolers are delivered with a protective film on the underside. This must be removed before installation and commissioning in any case. We do not accept liability for damage caused by incorrect or improper installation and use!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
284 mm
|
|
Width
|
107 mm
|
|
Height
|
19.5 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 40 Series
|
|
Water Cooling
|
|
|
Water cooling connectors
|
2x G1/4"
|
|
Compatibility
|
|
|
GPU Compatibility
|
NVIDIA GeForce RTX 4090
|
|
Materials
|
|
|
Base Plate Material
|
Nickel-plated electrolytic copper
|
|
Material Top Piece / Lid
|
Stainless steel
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
