EK Water Blocks EK-Quantum Kinetic FLT 360 D5 PWM D-RGB - Acryl

EK Water Blocks EK-Quantum Kinetic FLT 360 D5 PWM D-RGB - Acryl

Elegant reservoir from EK Water Blocks, made of transparent acrylic glass, pre-installed D5 pump with PWM control, 1,500 L/h flow rate and 3.9 m head, mounting in three 120 mm fan slots, integrated and digitally addressable RGB lighting
249,90 €
incl. VAT , add. delivery costs starting from 4.99€
SKU WAEK-1829 |
EAN 3831109819807 |
MPN 3831109819807 |
Manufacturer EK Water Blocks

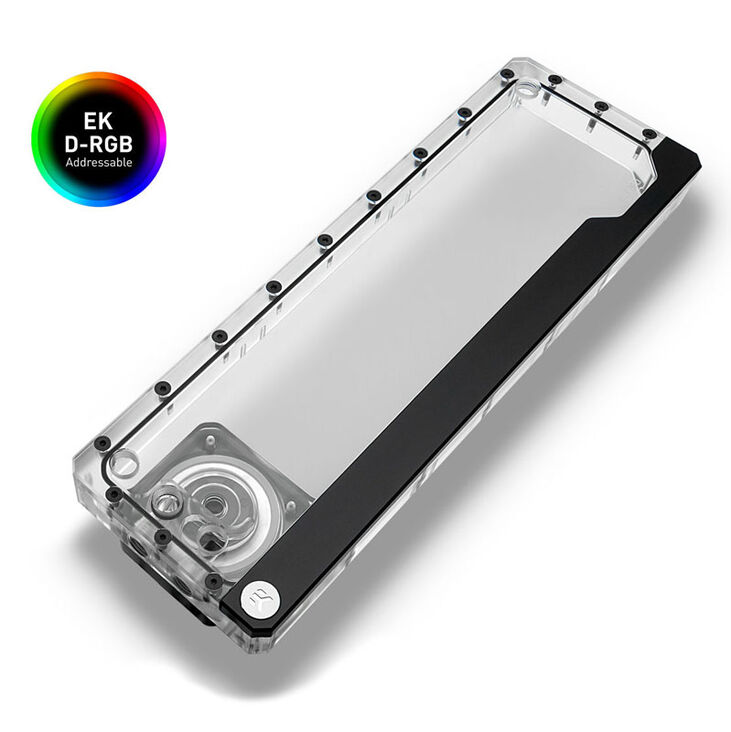

The EK-Quantum Kinetic FLT 360 D5 PWM D-RGB from EK Water Blocks is a reservoir with a pre-installed D5 pump. Made from transparent acrylic glass, the reservoir features integrated, digitally addressable RGB LED lighting and six G1/4-inch ports. Designed for installation in three free 120mm fan slots, the EK-Quantum Kinetic FLT 360 D5 is compatible with almost any case.

An overview of the EK-Quantum Kinetic FLT 360 D5 PWM D-RGB features:

  • Elegant reservoir from EK Water Blocks
  • Mounting in three free 120mm fan slots
  • 435 milliliter capacity
  • Integrated D5 pump with 4-pin PWM connector
  • Six G1/4-inch ports for various connection options
  • Made from transparent acrylic glass with high-quality seals
  • Stylish, digitally addressable RGB LED lighting with 3-pin 5VDG connector

Details of the EK-Quantum Kinetic FLT 360 D5 PWM D-RGB features

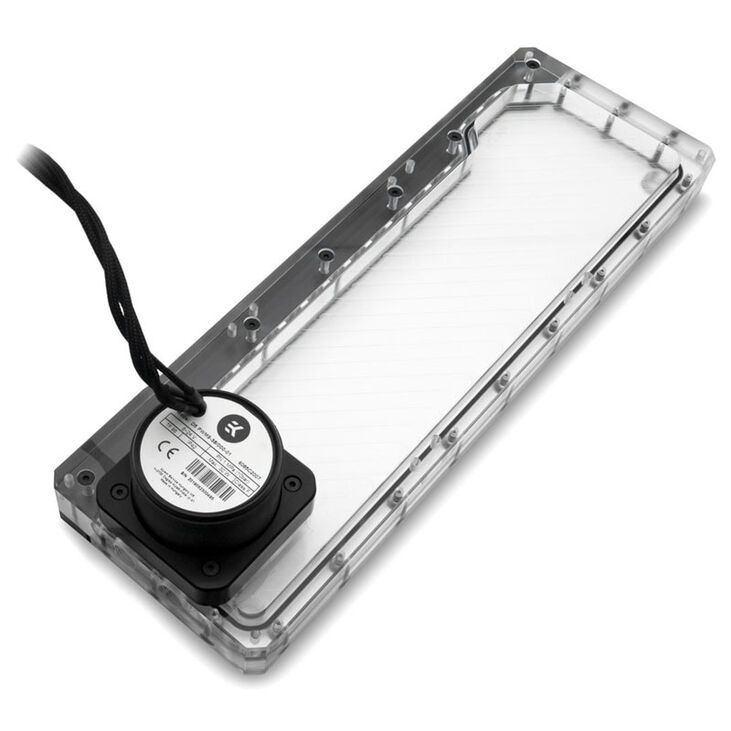

The EK-Quantum Kinetic FLT 360 D5 PWM D-RGB is more than just a reservoir for custom water-cooling loops. With a 435 ml capacity and the pre-installed D5 pump, the reservoir is a full-fledged high-end solution. With a head pressure of 3.9 meters and a maximum flow rate of 1,500 liters per hour, the pump is suitable for even extensive water-cooling loops. The pump is connected via a SATA and a 4-pin PWM connector to the power supply and motherboard, allowing for speed control.

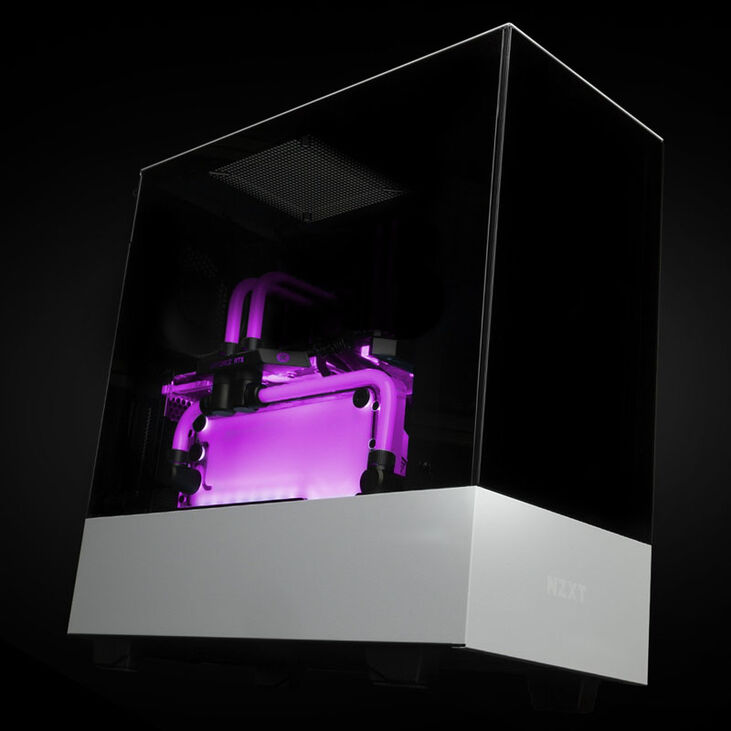

Thanks to its clever and universal design, the reservoir can be installed in three free 120mm fan slots, making it compatible with almost any case. The six G1/4-inch ports provide multiple connection options and flexible mounting possibilities. Depending on the orientation of the reservoir, the ports can be used as inlet, outlet, drain, or fill ports.

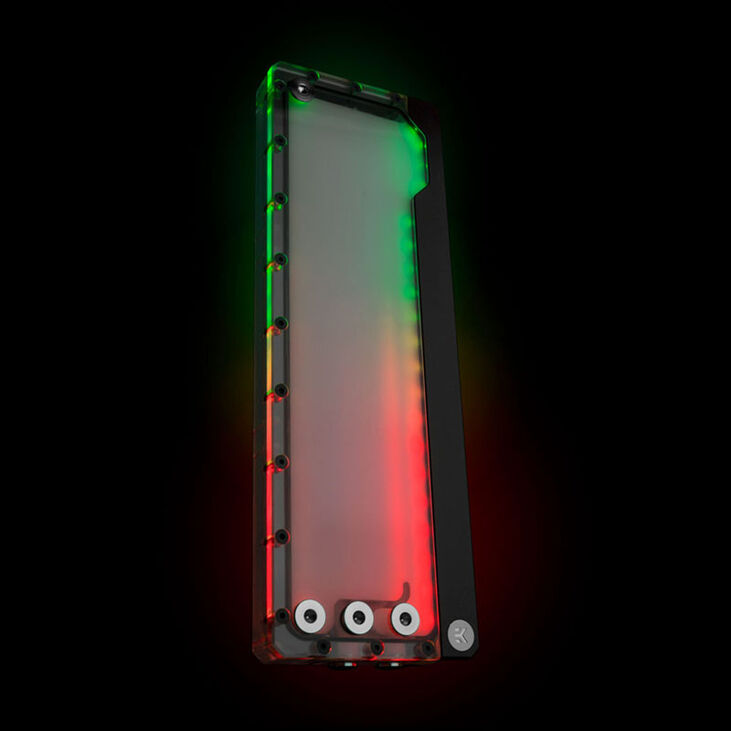

The EK-Quantum Kinetic FLT 360 D5 PWM D-RGB is made entirely from transparent acrylic glass, allowing a view of the flowing coolant. Along with its elegant design, the EK-Quantum Kinetic FLT 360 D5 PWM D-RGB becomes a real eye-catcher thanks to the integrated and addressable RGB LED lighting. The LEDs are connected via the 3-pin connector to standard 5VDG slots on a motherboard or RGB controller. The lighting can be controlled via ASUS Aura Sync, ASRock Polychrome Sync, GIGABYTE RGB Fusion, or MSI Mystic Light Sync.

  • Material: Acrylic glass, Aluminium (LED cover)
  • Dimensions: 120 x 365 x 86 mm (W x H x D)
  • Colour: Transparent
  • Connections: 6x G1/4 ports
  • Capacity: 435 ml
  • Pump:
    Type: D5
    Motor: Electronically commutated ball bearing motor
    Operating voltage: 12 V
    Power consumption: 23 W
    Delivery height: up to 3.9 m
    Adjustable PWM range: approx. 20 to 100 %
    Flow rate: up to 1,500 L/h
    Maximum temperature of coolant: 60 °C
    Material: Stainless steel, PPS-GF40, graphite, EPDM (sealing rings), Aluminium oxide
    Connection: 1x SATA, 1x 4-pin PWM
  • RGB lighting:
    Voltage: 5 V
    Connection: 3-pin 5VDG
    Compatibility: ASUS Aura Sync, ASRock Polychrome Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
  • Compatibility: 3x 120 mm fan slots
Colour
Primary Colour
Transparent
Secondary Colour
Black
Dimensions
Length / Depth
86 mm
Width
120 mm
Height
365 mm
Volume
435 ml
Pump Specifications
Max. Pressure Head
3.9 m
Max. Water Flow
1500 l/h
Type
Pump type
D5
Power Specifications
Power Consumption
23 W
Rated voltage
12 V
Water Cooling
Water cooling component
Pump + Reservoir
Water cooling connectors
4x G1/4"
Internal Ports
Pump connectors
4 Pin (PWM control), SATA (power)
RGB / LED connectors
1x Digital RGB (3-Pin 5VDG)
Thermal Specifications
Max. System Temperature
60 °C
Materials
Materials
Aluminium oxide, EPDM, Hard coal, PPS-GF40, Stainless steel
Lighting
Lighting / RGB
Yes
Lighting Colour
RGB
Lighting Compatibility
ASRock Polychrome Sync, ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync
Prepared for lighting
Yes
Product Series
Product Series/Family
Gaming
