Fractal Design Define 7 XL Black TG Full Tower - tempered glass, silent, black

Fractal Design's Define 7 XL is the product of continuous development on a proven and innovative design idea. This full-tower case combines a minimalist aesthetic with extensive customisation options for the interior. It has both smooth outer surfaces, characterised by a clear design language, and interior flexibility for system configuration and expandability. As a result the Define 7 XL can be the centrepiece for a system that is inconspicuous and silent while also being an eye-catching gaming PC.

The Fractal Design Define 7 XL Full-Tower at a Glance:

• Premium, high-end full-tower in black
• Virtually silent operations due to optimised case insulation
• Front panel constructed from brushed aluminium
• Extensive air- and water cooling options
• Three fans and fan controller pre-installed
• Capacity for up to eleven cooling fans
• Removable dust filters in the top, front and bottom
• Dual-layout for flexible customisation of the interior
• Three slots for the vertical installation of an expansion card

The Fractal Design Define 7 XL: Optimised for Liquid Cooling

The Fractal Design Define 7 XL has extensive options for liquid cooling. For instance it is possible to fit radiators to the front, top, base and back of the case. If the 5.25″ bays are installed, a 360mm or 280mm radiator can be attached to the front and a second 360mm dual radiator to the top.

If an optional optical drive is not fitted, 420mm or even 480mm triple fan radiators can be attached to the top and the front of the case. A 240mm or 280mm dual radiator can be fitted to the bottom. Finally there is still space for a 120mm radiator at the back.

Air Cooling Support

Up to eleven 120mm or nine 140mm case fans can be accommodated in the Fractal Design Define 7 XL: With the two 5.25-inch bays removed, the top and the front can be equipped with four fans each, two fans can be attached to the bottom and one to the rear. With optical drives, one of the fan mounts at the top and one at the front is blocked.

The Fractal Design Define 7 XL comes with three 140 mm fans with PWM control preinstalled, two in the front and one in the rear of the full-tower. The fans are connected to the integrated Nexus + 2 fan hub, to which a total of nine fans can be connected. The manufacturer provides a generous 185mm clearance for powerful CPU coolers.

Substantial internal capacity

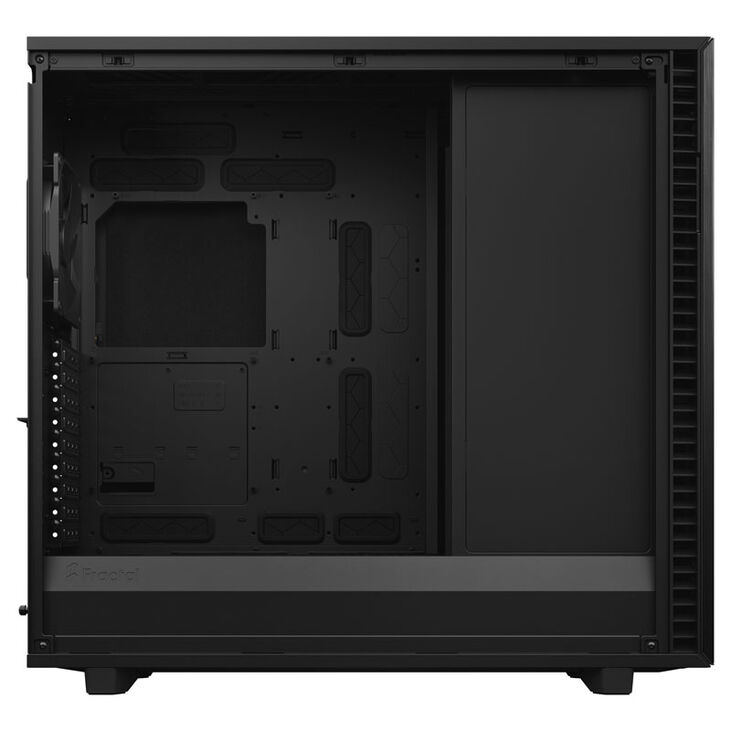

Motherboards from the Mini-ITX all the way up to the expansive EE-ATX form factor can be accommodated by the Fractal Design Define 7 XL. In respect to GPUs there is support for cards up to 359mm in length. While the open layout offers up to 524mm when fans are installed in the front or a whopping 549mm without fans.

A total of nine horizontal and three vertical expansion slots are available and a riser cable (sold separately) enables vertical installation of the GPU. There is also space for an ATX power supply and, with an HDD cage installed, the maximum length available is 250mm under the PSU shroud.

Comprehensive Support for Storage Drives

A prominent feature of the Define 7 XL is its dual interior layout. This allows the user to adapt the case to their needs. Regarding storage options this layout allows for several drive bays to be fitted. The Define 7 XL is bundled with six 3.5/2.5″ drive carriers, two 2.5″ drive bays and two multi-brackets for attaching a 3.5/2.5″ drive to one of the dedicated mounting positions. With the addition of separate accessories up to eighteen 3.5/2.5″ carriers and five 2.5″ carriers can be accommodated.

The large drive cage in the front can be completely removed. Under this configuration the storage plate is used to extend the motherboard tray. Two multi-brackets with 3.5″ hard drives or 2.5″ SSDs can be attached to the rear of the storage plate. An additional mounting position for a multi-bracket on the PSU shroud is also present. In the upper part of the case there are two modular 5.25″ bays for optical drives that can be removed in favor of larger radiators.

The Define 7 XL's elegant design

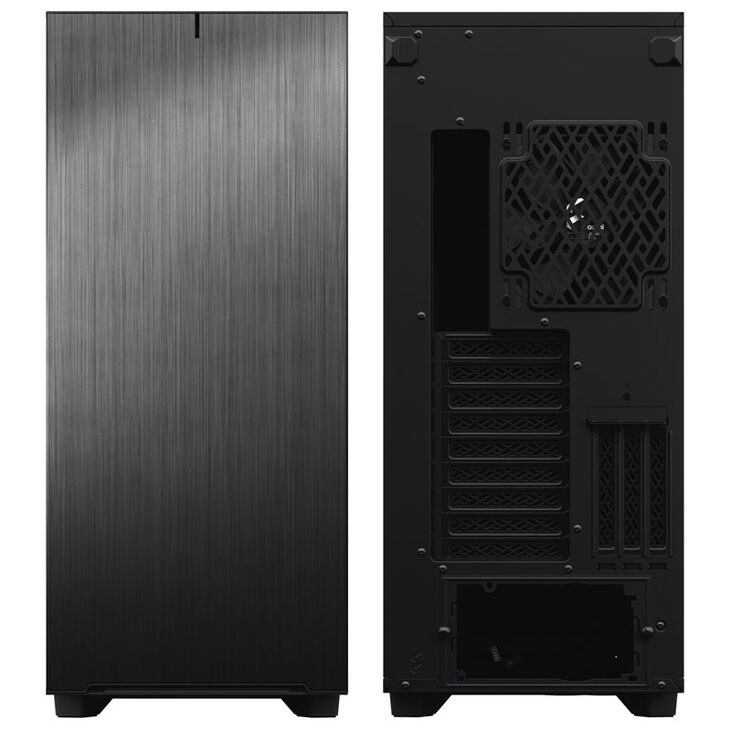

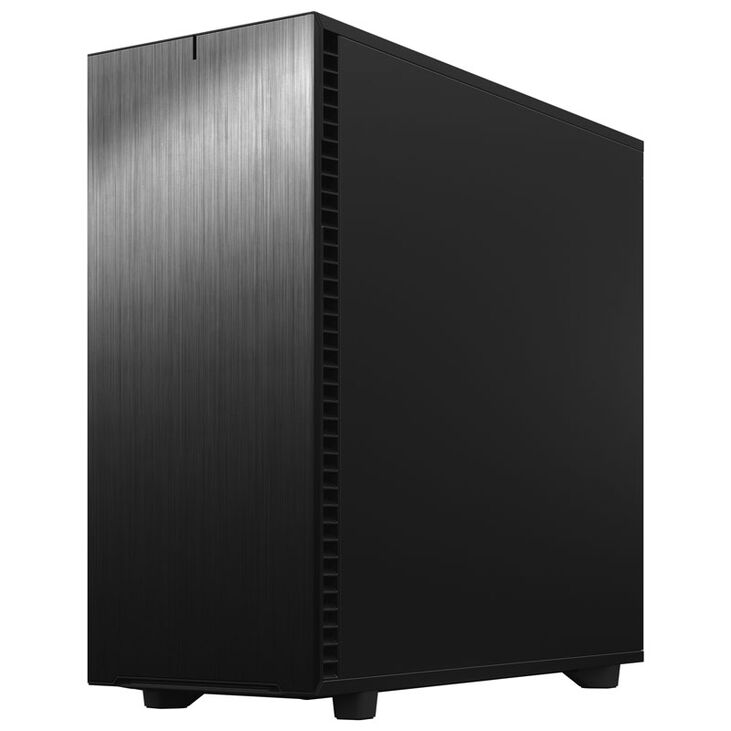

When sealed the Define 7 XL looks as if it's made from a single piece. This is due to its straight lines, smooth surfaces and angular shape. This impression is further enhanced by the front panel which is clad in brushed aluminium. A magnetic locking mechanism ensures the front panel stays closed and its hinges can be fitted to either the left or right. Users can choose from several colour variants per their preference.

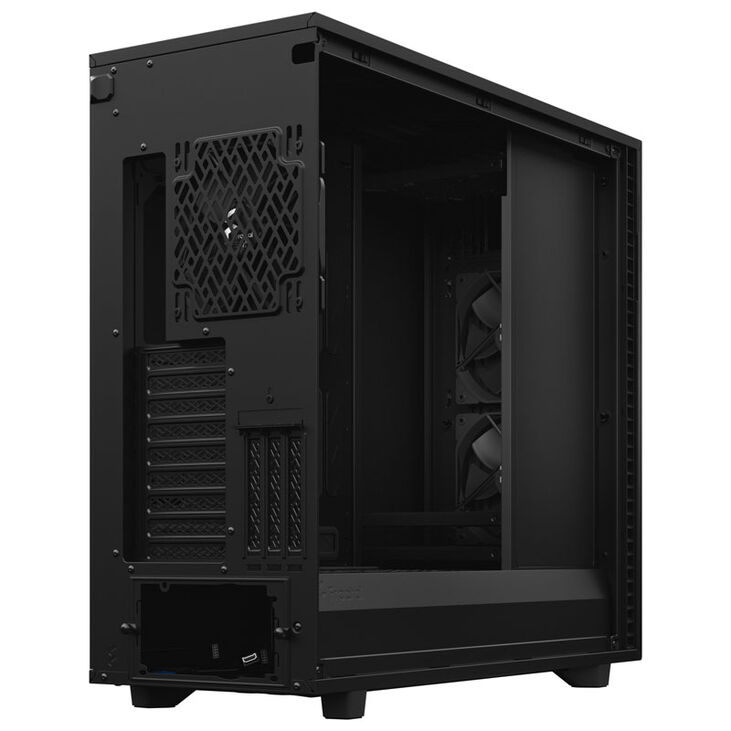

In order to reduce running noise, steel panels are provided with acoustic insulation made of bitumen. A second top cover with ventilation slots is included. This version of the Define 7 XL is black on the inside and outside and has a tempered glass side panel. The right side panel is made of steel and equipped with soundptoping.

Modular Design for Easy Installation

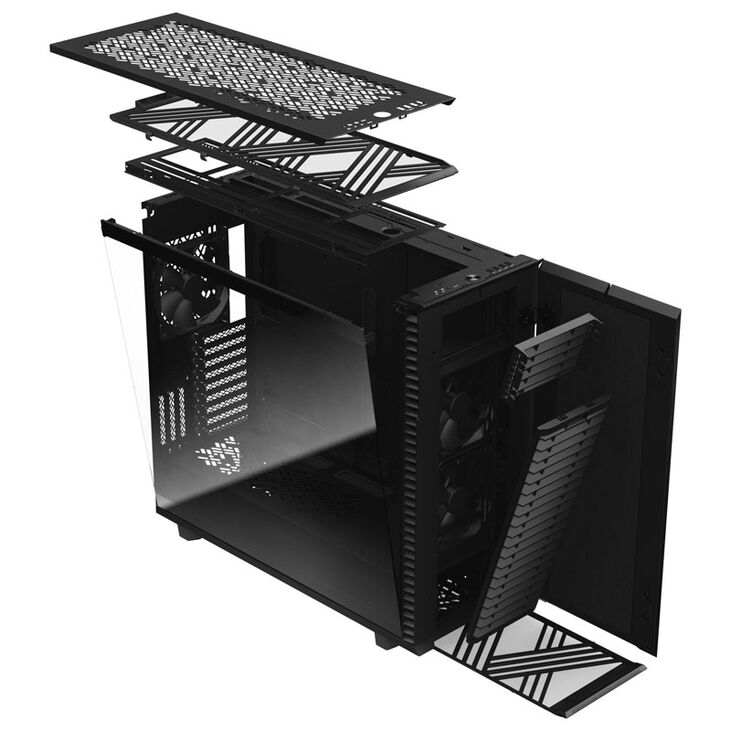

The top cover can be completely removed and is equipped with a tool-free push-to-lock mechanism for easy access. With the side panels removed, the full-tower is freely accessible on three sides. This makes it simple to install components and manage cables effectively.

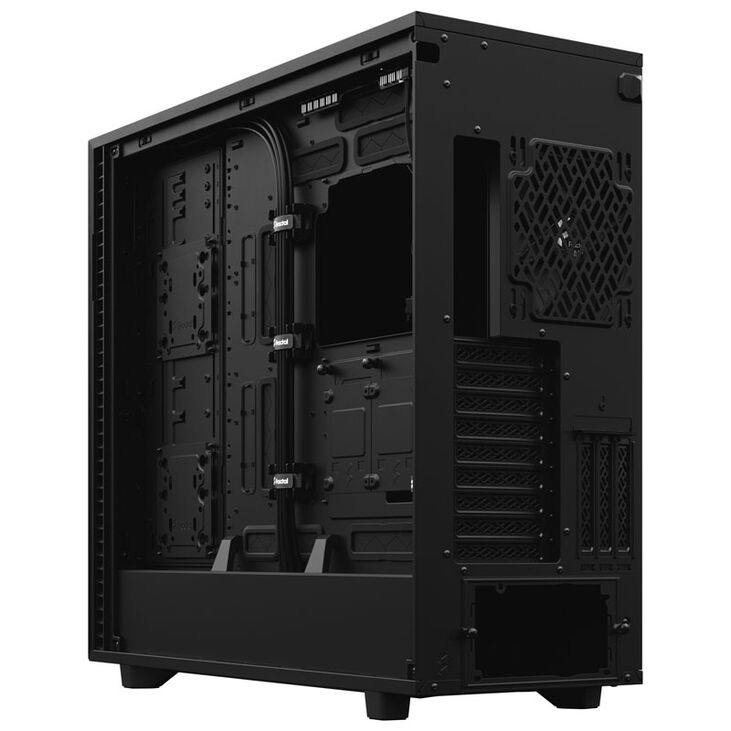

Indeed rubberized cable guides and a full 30mm behind the motherboard tray makes cable management straightforward. The Define 7 XL's new multi-brackets means that any free fan slot can be converted into a mounting position for a hard drive, SSD, pump or a surge tank.

Versatile I/O Interface

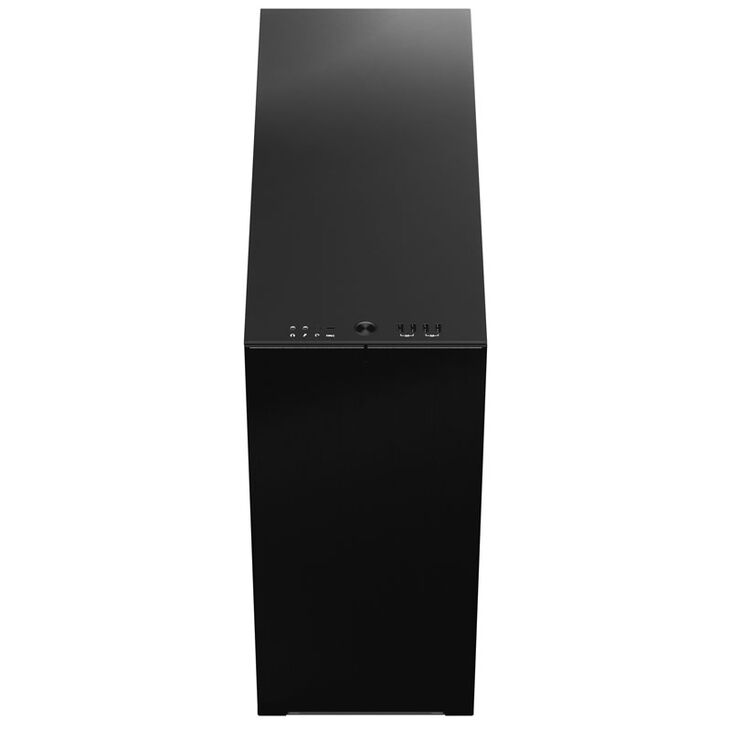

The I/O panel of the Define 7 XL is equipped with one USB 3.1 type C, two USB 3.0 type A, and two USB 2.0 ports. There are also two 3.5mm jack sockets, one of which functions as a headphone output and the other as a microphone input. The full-tower is equipped with power and reset buttons. The Nexus + 2 PWM fan hub offers three 4-pin PWM and six 3-pin fan connectors. A total of nine fans can be connected to the hub.
