GIGABYTE B760M DS3H AX motherboard, Socket 1700, Intel B760, Micro-ATX, DDR5
Micro-ATX motherboard with B760 chipset, with Intel socket 1700, PCIe 4.0 for graphics card, suitable for DDR5 RAM, 2x M.2 PCIe 4.0 slots, 2.5 Gbit LAN and WiFi / Bluetooth
150,02 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 4.0 x16 (x16), 2x PCIe 3.0 x1
- DDR5 memory up to 4,800 MHz, via RAM OC up to 7,600 MHz
- 2x M.2 slots with PCIe 4.0 for NVMe SSDs

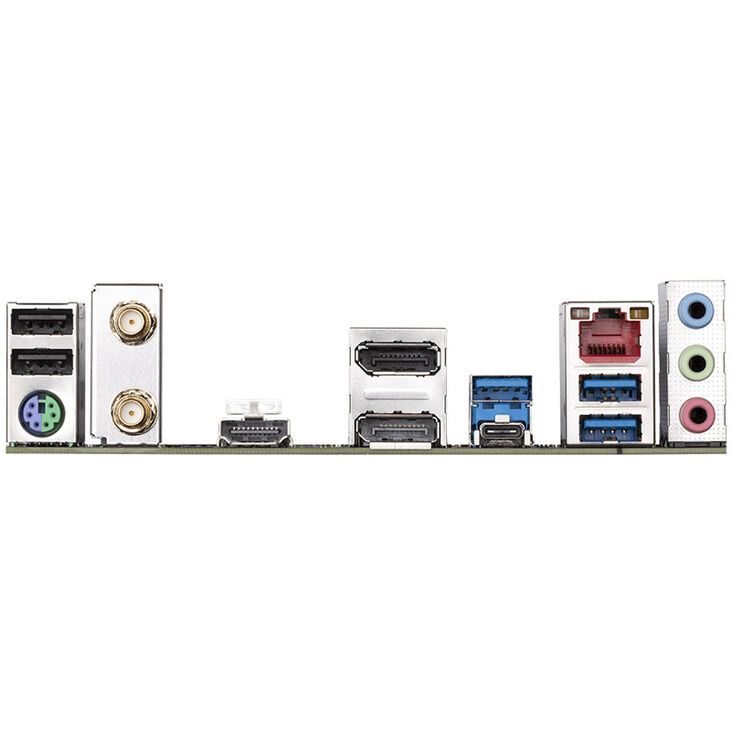

- USB on the I/O panel: 4x USB 3.0 and 2x USB 2.0
- Features: 8 virtual phases (6 + 2)
- A total of four connectors for fans and pumps
The GIGABYTE B760M DS3H AX with Intel B760 chipset in detail
The GIGABYTE B760M DS3H AX is a Micro-ATX motherboard and features a PCI Express 4.0 slot with full x16 connectivity for graphics cards. With the LGA 1700 socket, you are well-equipped for powerful processors from Intel. Additionally, the GIGABYTE B760M DS3H AX supports DDR5 memory with speeds of up to 7,600 MHz via OC.
Note: This motherboard supports memory with the DDR5 standard. LGA 1700 motherboards with DDR4 compatibility can be found at the following link:
For the best possible performance of the processor, it is recommended to regularly perform BIOS updates for the motherboard. This is especially true for motherboards that may have been shipped with an early BIOS version by the manufacturer.
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Our King Mod Service is happy to perform a BIOS update to the latest version in advance:
Please note that this may delay shipping preparation by 1 to 4 working days!
More information on Intel Alder Lake and Raptor Lake, as well as the Core processors of the 12th, 13th, and 14th generations, can be found at the following link:|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Grey, Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
Micro-ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
Intel
|
|
CPU Socket
|
1700
|
|
Motherboard
|
|
|
Motherboard Chipset
|
Intel B760
|
|
Memory
|
|
|
Max. Memory
|
192 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Water Cooling
|
|
|
Watercooling
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
1x 8-Pin
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 1x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
Display Port (1x), Display Port (2x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
4
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
