Jonsbo D30 Micro-ATX Case, Tempered Glass - black
Versatile mATX case, water cooling with 240 mm radiator, six 120 mm fans possible, graphics cards up to 355 mm long, space for 4x SSDs and HDDs, Tempered Glass side panel, with dust filter
94,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- Lightweight, compact aluminium housing

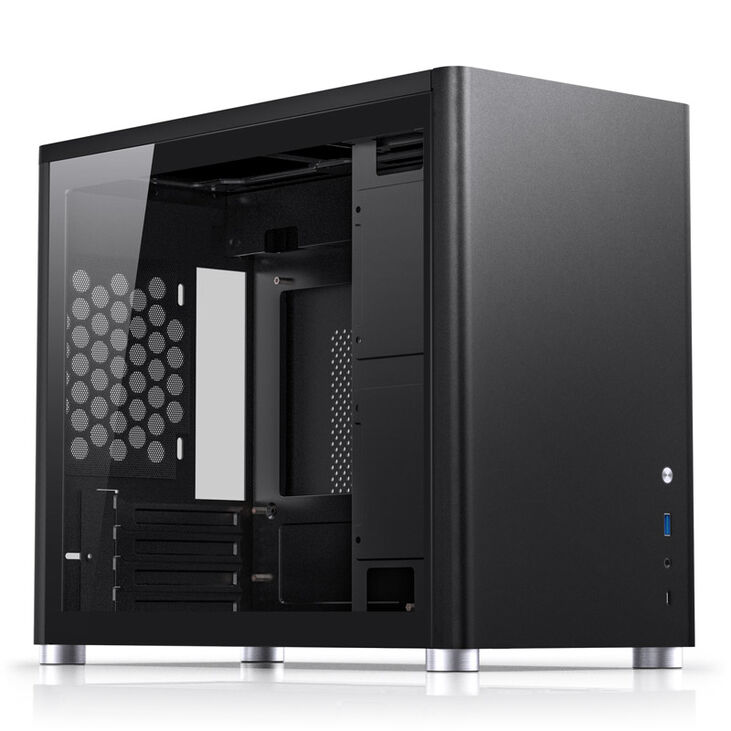

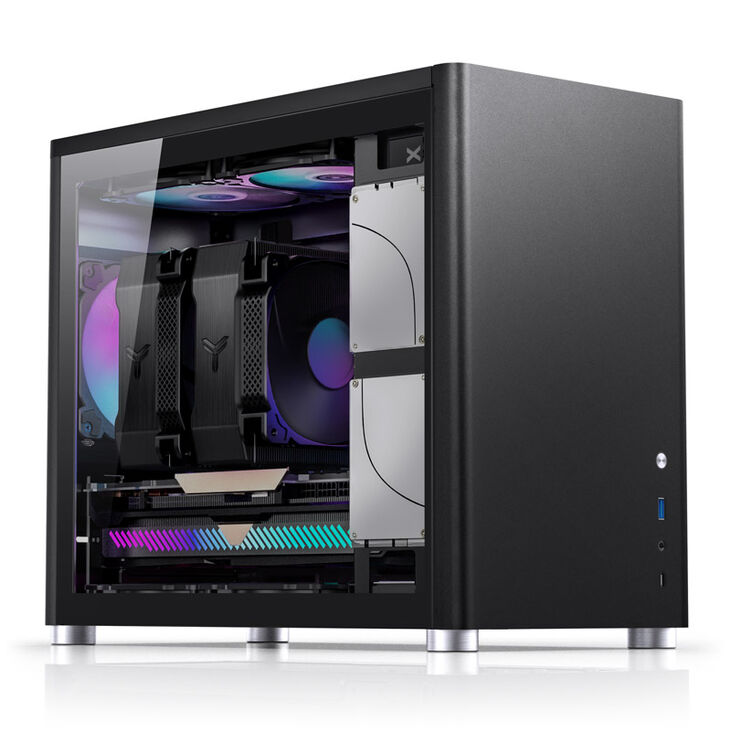

- Tempered glass side panel allows a view of the hardware
- Space for Micro-ATX, DTX, and Mini-ITX boards
- Compatible with radiators up to 240 mm
- Up to six 120 mm fans possible
- Space for 3 x 2.5-inch and 1 x 3.5-inch or 4 x 2.5-inch drives
- Graphics cards up to 355 mm length
- I/O panel with 1 x USB-C and 1 x USB 3.0
The Jonsbo D30 M-ATX case in detail
The Jonsbo D30 Micro-ATX case fascinates not only with its minimalist, clean design, but also with its generous hardware compatibility. Both fans of air and water cooling will get their money's worth with this gaming case. Integrated dust filters protect your precious hardware from dust.The Micro-ATX case comes with plenty of cooling options

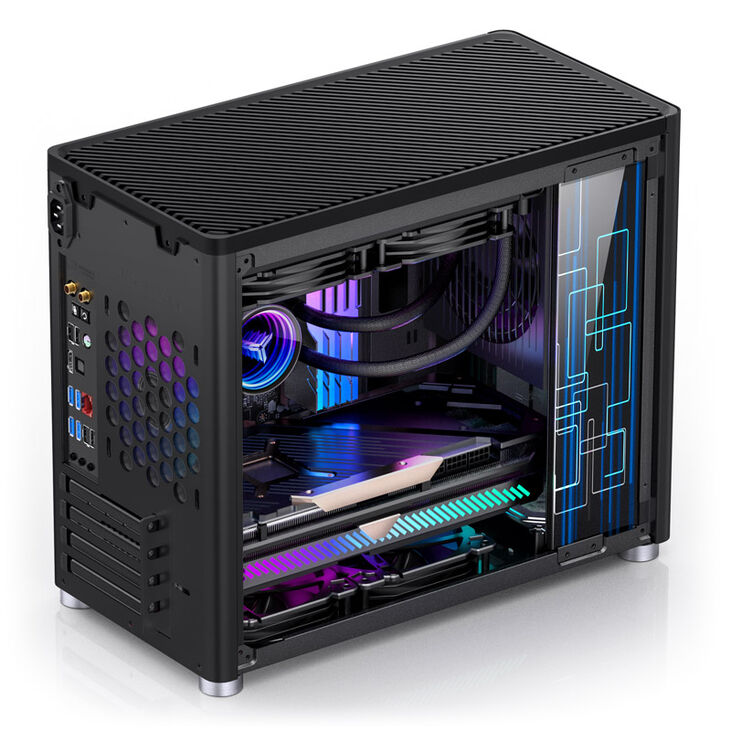

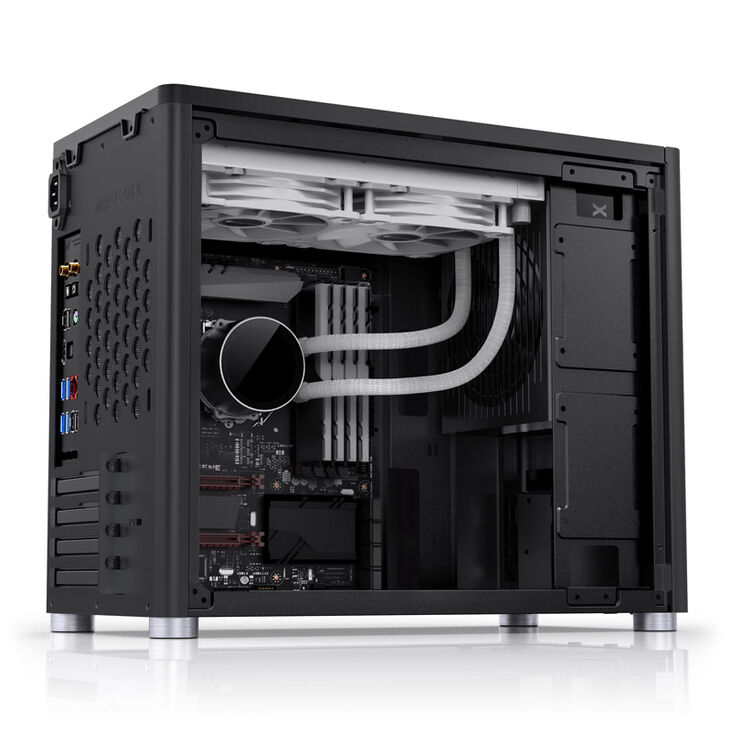

Jonsbo does not compromise on cooling options with this case. A radiator up to 240 mm in size fits in the lid. In addition, you can install a 240 mm radiator on the bottom or alternatively two 120 or two 140 mm fans that serve as additional cooling for the graphics card.You can install a total of six 120 mm fans. The top panel can hold either two 140 mm or two 120 mm fans. If you decide to install a CPU cooler, it can be up to 168 mm high. Even powerful tower coolers can be used.
Plenty of space for your HDDs and SSDs

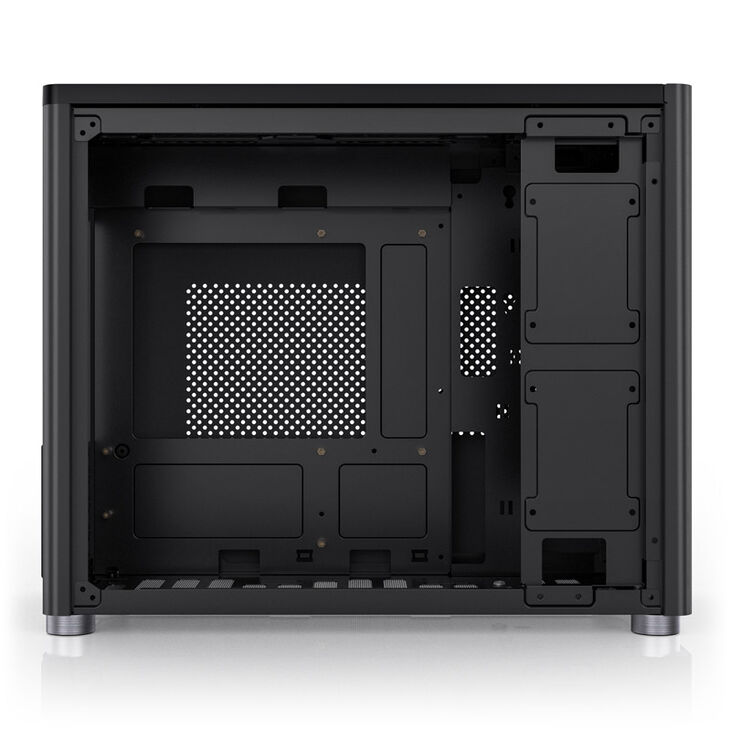

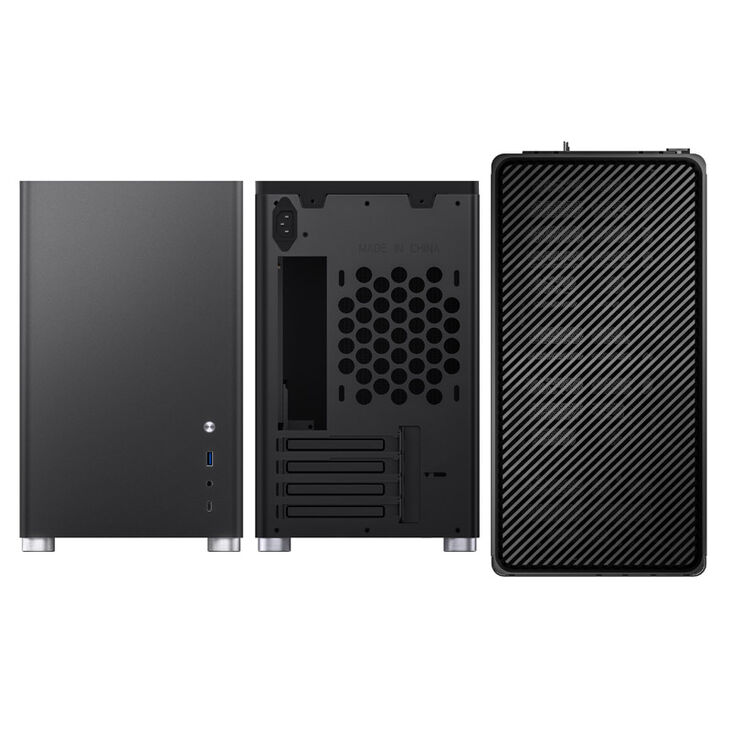

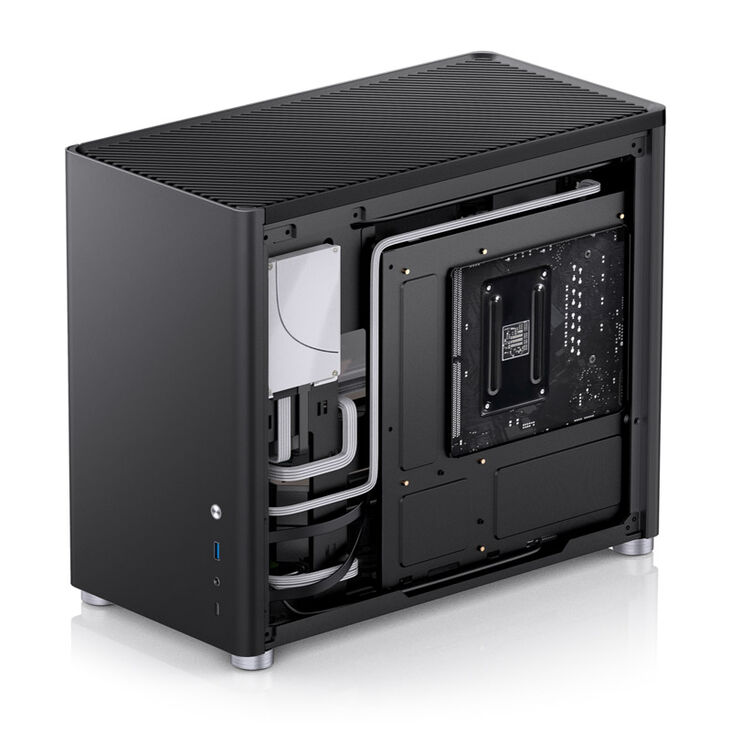

There is room for two 2.5-inch SSDs in the front of the case. Behind this is a power supply unit, which is installed on the side and may be between 170 and 220 mm long. Please note that a large PSU will limit your GPU space. Directly underneath is a free space for a 3.5-inch HDD or another 2.5-inch drive.Behind the mainboard tray, you alternatively have space for another 2.5-inch SSD. The I/O panel is located on the bottom of the front panel.USB 3.0 ports of type A and type C are available there.
Technical Details:
- Dimensions: 204 x 325 x 401 mm (W x H x D)
- Material: Aluminium, Steel, Tempered Glass
- Weight: 4.96 kg
- Colour: Black
- Mainboard Form Factor:
Micro-ATX
DTX
Mini-ITX - Fans (possible):
Lid: 2x 120 or 2x 140 mm
Back: 1x 120 mm
Bottom: 2x 120 mm or 2x 140 mm - Radiators:
Lid: 1x 240 / 120 mm
Bottom: 1x 240 / 120 mm
Back: 1x 120 mm - Drives:
3x 2.5" and 1x 3.5"
or 4x 2.5" - Expansion Slots: 4
- I/O-Panel:
1x USB 3.0 (Type C, USB 3.2 Gen 1, max. 5 Gbit/s)
1x USB 3.0 (Type A, USB 3.2 Gen 1, max. 5 Gbit/s)
1x Power-Button - Max. CPU cooler height: 168 mm
- Max. GPU lenght: 355 mm (305 mm, if PSU longer than 170 mm)
- Max. PSU lenght: 220 mm
- Scope of Delivery: 1x Jonsbo D30 Case - Black
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
White
|
|
Dimensions
|
|
|
Length / Depth
|
401 mm
|
|
Width
|
240 mm
|
|
Height
|
325 mm
|
|
Weight
|
4.96 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
DTX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
Micro-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
168 mm
|
|
Max. GPU Length
|
355 mm
|
|
Max. PSU Length / Depth
|
220 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
front
|
|
Fan Support
|
|
|
120 mm fans
|
6
|
|
140 mm fans
|
3
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Dual (240 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
7
|
|
3.5 inch internal drive bay
|
1
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
1
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Card reader
|
No
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
4
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium-magnesium alloy, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
None
|
