Kolink Enclave 80 PLUS Gold PSU, modular - 700 Watt

Kolink Enclave 80 PLUS Gold PSU, modular - 700 Watt

Premium 80 PLUS Gold power supply rated for 700 Watts output, Fully modular cable management, Four 6+2-Pin PCIe connectors , Power cable not included
efficiency label
free delivery
84,90 €
incl. VAT , incl. delivery costs
SKU NEKL-028 |
EAN 5999094002432 |
MPN KL-G700FM |
Manufacturer Kolink
The Enclave Series from Kolink represents a new series of high-performance power supplies with 80 PLUS Gold certification. The premium quality components, advance design and powerful 12V single-rail ensure robust and reliable power delivery as well as precise voltage regulation. The premium quality power supply is rounded off by the welcome addition of fully modular cable management as well as a whisper-quiet 120 mm fan.

The Kolink Enclave 80 PLUS Gold PSU Rated for 700 Watts at a Glance:

  • 700 Watt PSU with powerful 58A single rail
  • High efficiency thanks to 80 PLUS Gold certification
  • Quiet 120 mm fan
  • Fully modular cable managemnet with flat cables
  • Four 6+2-Pin PCIe connectors for graphics cards
  • Eight SATA- and four Molex connectors

The Kolink Enclave 80 PLUS Gold PSU Rated at 700 Watts in Detail

The advanced design and the use of high-quality components mean that Kolink has been able to produce an efficient and high-performance power supply in the form of the Enclave 80 PLUS Gold 700W. To this end, the manufacturer has opted for LLC transformers and DC-DC technology alongside independent voltage regulation. This combination also provides benefits to the unit's operating efficiency as well as the precision with which voltages are regulated, particularly when it comes to asymmetric loads.

As a result, the Enclave is capable of outputting nearly its entire rated power delivery through the +12 Volt rail if necessary. This can be up to 48A and means that all your high-performance components are kept well-supplied with all the power they need. The high operating effectiveness means that it meets the criteria for 80 PLUS Gold certification as well as an average efficiency of 92 percent when used on a European 230 Volt network.

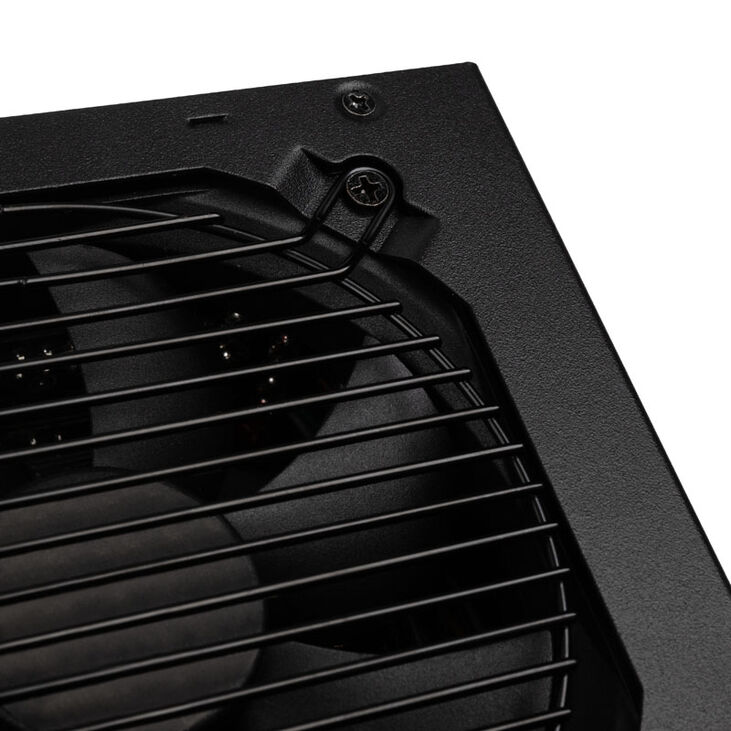

In terms of cooling, the units use a slow-spinning 120 mm fan with ultra-durable rifle bearings. Apart from the impressive performance specifications, the Kolink Enclave 700W isn't short of connectivity options either: in addition to a 20+4-Pin ATX- and a 4+4-Pin 12V EPS connector, there are four 6+2-Pin PCIe connectors for powering your graphics cards. Additional components are powered by means of eight SATA- and four Molex connectors.

Note: For environmental reasons, the manufacturer does not supply a wall outlet power cable with the unit.

Technical Details:
  • Dimensions: 150 x 86 x 160 mm (W x H x D)
  • Fan: 120 mm (automatic regulation, rifle-bearing fan)
  • Colour: Black (PSU, fan)
  • Efficiency: min 90/87/87 percent at 50/20/100 percent load on European 230 Volt network. Meets requirements for 80 PLUS Gold.
  • Active PFC
  • Form factor: ATX 12V V2.31
  • Output: 700W
    +3,3V: 16 A
    +5V: 16 A
    +3,3V and +5V combined: 100 W
    +12V: 696 W / 58 A
    -12V: 6 W / 0,5 A
    +5Vsb: 15 W / 3 A

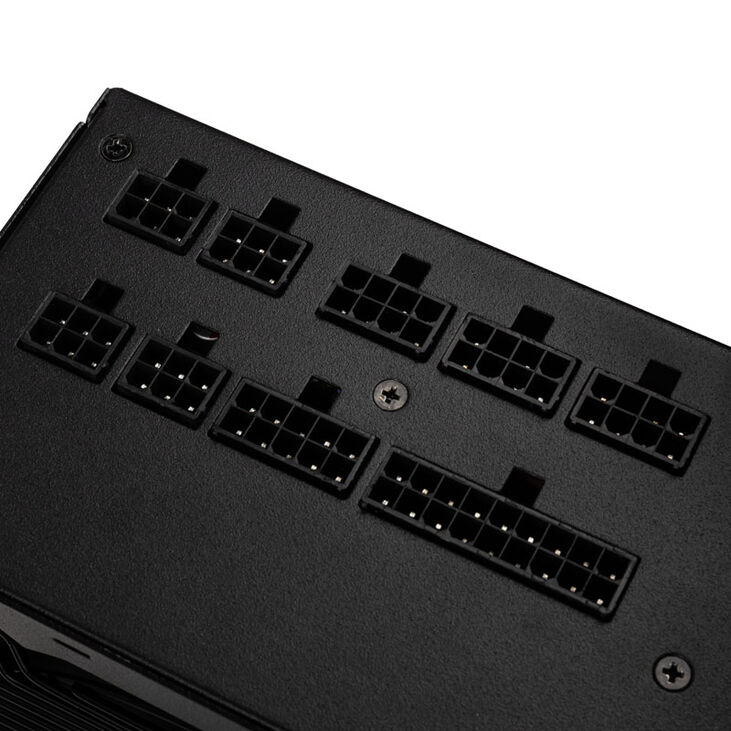

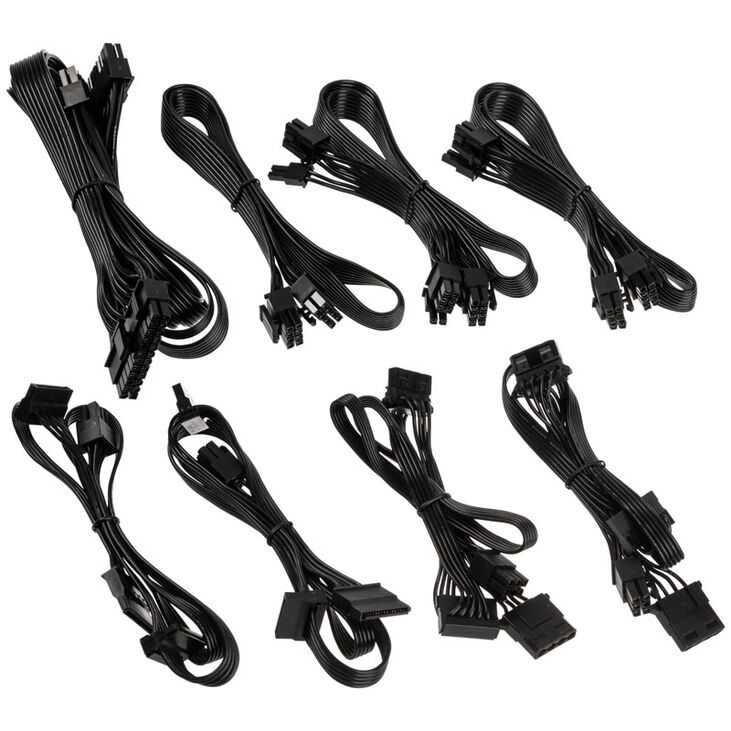

  • Connectors (removable):
    1x 20+4-Pin ATX12V/EPS12V
    1x 4+4-Pin ATX12V/EPS12V
    4x 6+2-Pin PCIe
    8x SATA
    4x 4-Pin Molex
  • Safety:
    OVP/UVP (protection against over- and undervoltage)
    SCP (short circuit)
    OPP (overload)
    OCP (over-current protection on +12, +3,3 and +5 Volt rails)
  • Manufacturer's guarantee: 3 Years
Colour
Primary Colour
Black
Dimensions
Length / Depth
160 mm
Width
150 mm
Height
86 mm
Installation depth
16 cm
Fan Specifications
Fan Size
120 mm
Power Supply
PSU Format
ATX
12V Distribution
single rail
Modular Power Supply
Yes
Modular Type
fully modular
Power Specifications
Total Power Output
700 W
Power Output +12V rails
696 W
Cooling
Semi Passive Power Supply
No
Case Fan Controller
No
Internal Ports
CPU Power Connectors 12V ATX/EPS
2
CPU Power Supply
1x 4+4-Pin
6+2 Pin PCIe Power Connectors
4
SATA Power Connectors
8
4 Pin Molex Power Connectors
4
Software interface digital
No
Efficiency Class
80PLUS Efficiency
80 PLUS Gold
Lighting
Lighting / RGB
No
HardwareLuxx - Hardwareluxx > Tests > Hardware > Netzteile > Kolink Enclave 600W: vielversprechendes voll-modulares Einsteigernetzteil mit 80 PLUS Gold im Test Kolink Enclave 600W: vielversprechendes voll-modulares Einsteigernetzteil mit 80 PLUS Gold
HardwareLuxx - Hardwareluxx > Tests > Hardware > Netzteile > Kolink Enclave 600W: vielversprechendes voll-modulares Einsteigernetzteil mit 80 PLUS Gold im Test Kolink Enclave 600W: vielversprechendes voll-modulares Einsteigernetzteil mit 80 PLUS Gold

Positive Punkte bei dem Kolink Enclave 600W

+ gute Effizienz (80 PLUS Gold), überdurchschnittlich bei höherer Last
+ hohe Leistungsfähigkeit
+ stabile Ausgangsspannungen und niedrige Ripple-/Noise-Spannungen
+ funktionierende Schutzschaltungen
+ insgesamt angenehm leiser Lüfter
+ voll-modulares Kabelmanagement mit guten Anschlussmöglichkeiten (z.B. 4x PCI-Express)
+ sehr gutes Preis-/Leistungsverhältnis

Learn more
Gamezoom - Kolink Enclave 700W
Gamezoom - Kolink Enclave 700W

Pro
+ saubere Verarbeitungsqualität
+ Lötqualität
+ sehr gute Leistung
+ hoher Wirkungsgrad
+ gute Technik und Messwerte
+ alle wichtigen Schutzschaltungen vorhanden
+ ausreichend Anschlussmöglichkeiten
+ Länge der Kabel
+ (voll)modulares Kabelmanagement
+ Preis

Learn more
Profesional Review - Kolink Enclave 500W
Profesional Review - Kolink Enclave 500W

Advantages
+ 80 Plus Gold certification.
+ Really low PVP, and price in some stores even below the PVP (in Portugal), we hope you arrive in Spain at these good prices.
+ 100% modular wiring.
+ Distribution of PCIe connectors on separate cables (in the 500W model), a very good practice that is not seen in most higher-end sources.
+ Good internal construction, with decent and reliable components.
+ Silent operation is not the best in the world, but it exceeds much of the competition.

Learn more
TechPowerUp - Kolink Enclave Series 700 W
TechPowerUp - Kolink Enclave Series 700 W

+ Delivered full power with 46.5 °C
+ Affordable
+ Good soldering quality (and many Infineon parts used)
+ Good performance per buck ratio
+ Support for Alternative Sleep Mode (able to turn on the system within 5 seconds)
+ Efficient with normal loads
+ Load regulation at +12V is within 1%
+ Long hold-up time
+ Efficient 5VSB rail
+ Sufficient number of PCIe and peripheral connectors
+ Full protection feature set (but some OCP triggering points are on the high side)

Learn more
KitGuru - Kolink Enclave 80 Plus Gold 700W PSU
KitGuru - Kolink Enclave 80 Plus Gold 700W PSU

Pros:

+ Quality of finish is good.
+ Fully modular.
+ Not too loud under load.
+ load regulation.
+ 105c capacitors.
+ +3.3V and +5V rails are quite weak by competitors standards.

Learn more
TweakPC - Kolink Enclave 500 im Test - vollmodulares 80 PLUS Gold zum Schnäppchenpreis
TweakPC - Kolink Enclave 500 im Test - vollmodulares 80 PLUS Gold zum Schnäppchenpreis

Vorteile
+ Mit günstigstes vollmodulares Gold-Netzteil
+ Effizienz über Gold-Level 91-92 %
+ Gute Spannungsregulation auf 12V
+ Extrem niedrige PSON/PWROK Timings
+ vollmodulare Kabel

Learn more
