Expected restock at 07.02.2025
- 750 watts power with a 62A single rail for high-end components
- 80 PLUS Gold certified efficiency

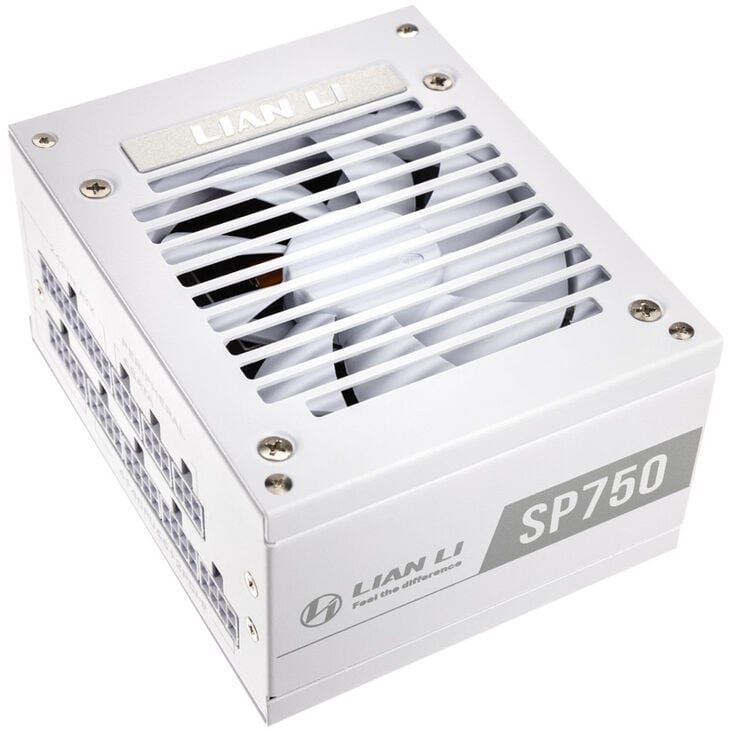

- High-quality power supply housing made of brushed aluminium

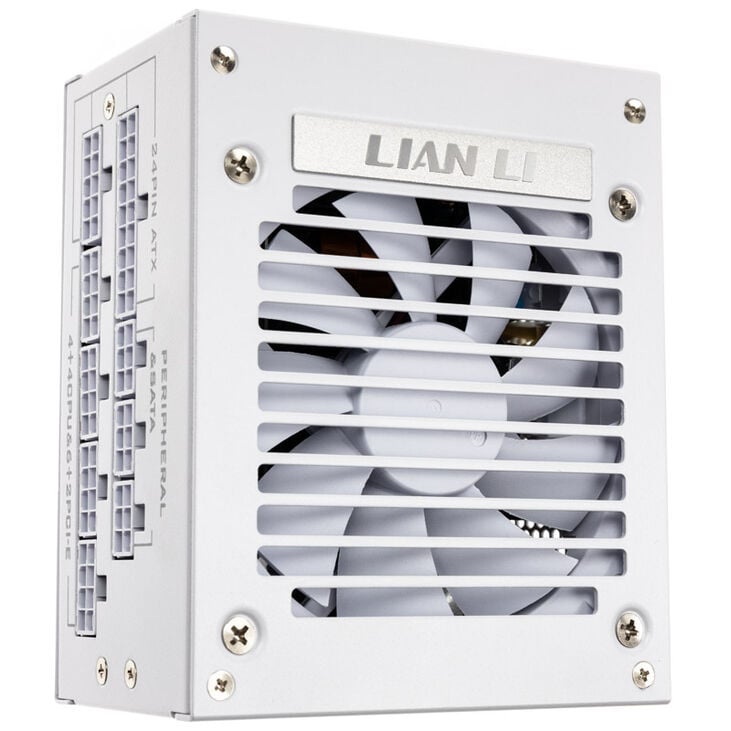

- 92 mm fan ensures constant cooling performance
- Compact design for small footprint systems
- Fan silently operating at max. 40% load or less
- Modular cables with white braided for a clean look and interior
High-performance power supply with 80 PLUS Gold efficiency

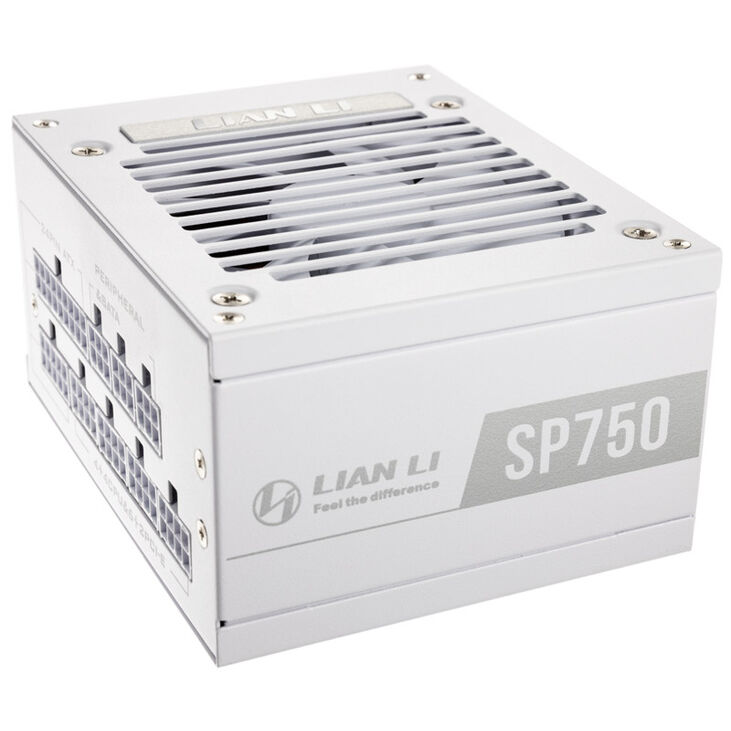

The Lian Li SP750 SFX power supply offers a total output power of 750 watts and is therefore a great match for high-end gaming PCs. The power supply is extremely efficient, resulting from the use of high-quality components, and achieves an efficiency of up to 92% at 50% load.Its particularly small SFX form factor allows for usage in compact cases without having to compromise in terms of performance and connectivity. The power supply is housed in a stylish white case made of brushed aluminium. With its classic design, it blends perfectly into dark builds, whilst the fully modular, white braided cables ensure a clean look.
High level of connectivity and strong single rail

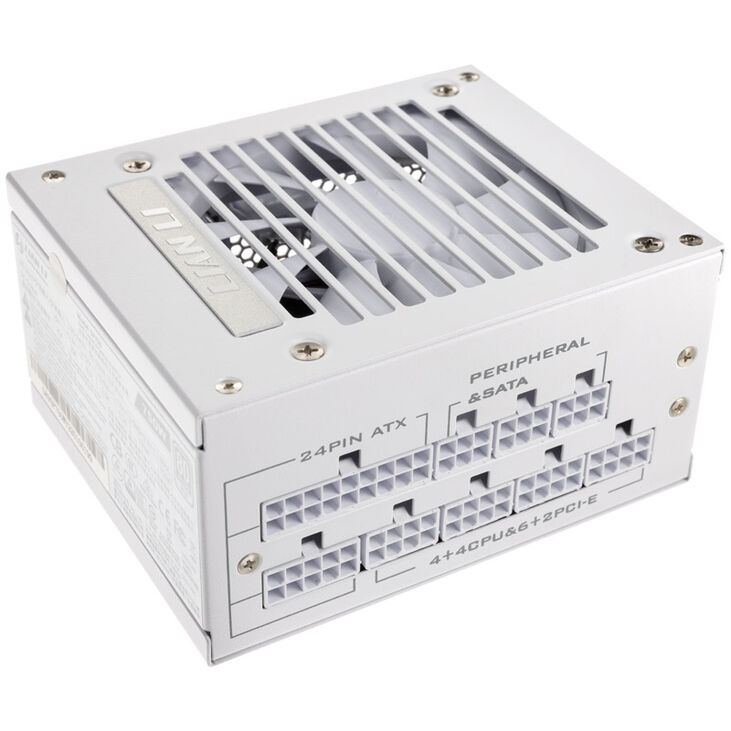

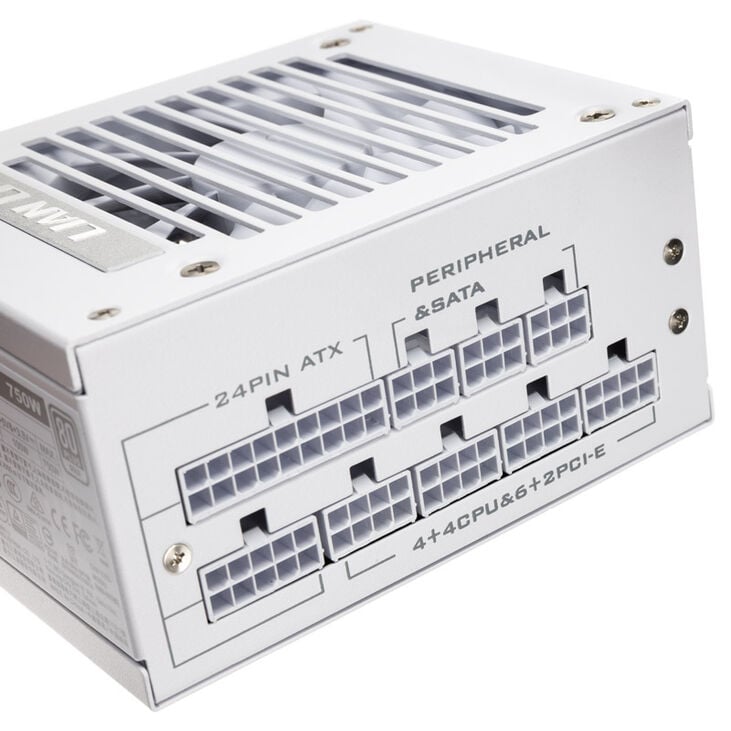

The Lian Li SP750 offers extensive connectivity. In addition to one 20+4-pin connector and two 4+4-pin connectors for motherboard and CPU, there are also three 6+2-pin PCIe connectors for a high-performance graphics card, as well as eight SATA and four 4-pin Molex connectors for drives and other components.Thanks to the 62A single rail, the Lian Li SP 750 is also suitable for power-hungry, overclocked PCs. With a rotation speed of up to 3,000rpm, an airflow of 69.66 m³/h and a static pressure of 3.3mmH2O, this power supply unit maintains a cool operating temperature.

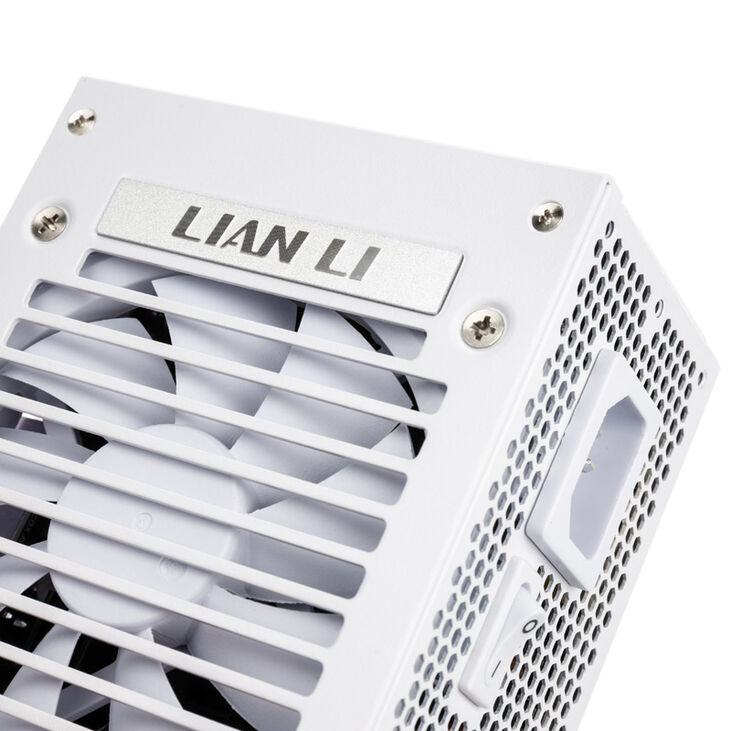

The fan automatically switches itself off at a load of 40% or less. As a result, the power supply operates without making any noise - if the user prefers so. This feature can be easily switched on and off using the additional button on the back of the power supply unit. This is particularly interesting for users who, apart from high-end performance, also value a power supply unit that operates silent in office use or multimedia applications.
Technical details:
- Dimensions: 63.5 x 125 x 100 mm (W x H x D)
- Colour: White
- Fan:
Dimensions: 92 x 16.5 x 92 mm
Bearings: hydrodynamic plain bearings
Speed: 3,000rpm
Delivery volume: 69.66 m³/h
Static pressure: 3.3mmH2O
Expected lifespan: 4,000 hours at 25 °C - Efficiency: ~ 90/92/89% @ 20/50/100% load at 230V, 80 PLUS Gold certificate
- Volume: 31.8dB(A)
- Form factor: SFX
- Power: 750W
+ 3.3V and + 5V: 100W
+ 12V: 62A / 744W - Connections:
1x 20 + 4-pin
2x 4 + 4-pin
3x 6 + 2-pin PCIe
8x SATA
4x 4-pole Molex - Protection: OCP/ OPP/ UVP/ OVP/ OTP/ SCP

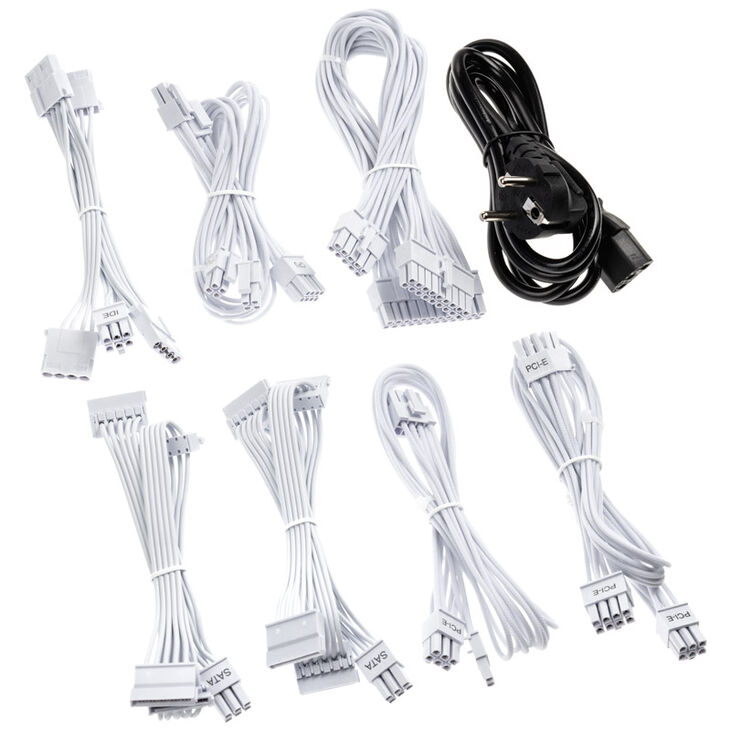

- Package content:
1x Lian Li SP750 SFX 750W power supply
1x 20+4-pin cable (one connector, 600 mm)
1x 8 (4+4) -pin cable (two plugs, 450 + 70 mm)
1x PCIe 6+2-pin cable (one connector, 400 mm)
1x PCIe 6+2-pin cable (two plugs, 400 + 120 mm)
2x SATA cables (four plugs, 120 + 120 + 120 +120 mm)
1x Molex cable (four plugs, 550 + 150 + 150 + 150 mm) - Manufacturer's guarantee: 5 years
Colour
|
|
Primary Colour
|
White
|
Secondary Colour
|
Silver
|
Dimensions
|
|
Length / Depth
|
100 mm
|
Installation depth
|
10 cm
|
Fan Specifications
|
|
Fan Size
|
92 mm
|
Power Supply
|
|
PSU Format
|
SFX
|
12V Distribution
|
single rail
|
Modular Power Supply
|
Yes
|
Modular Type
|
fully modular
|
Power Specifications
|
|
Total Power Output
|
750 W
|
Power Output +12V rails
|
744 W
|
Cooling
|
|
Semi Passive Power Supply
|
No
|
Case Fan Controller
|
No
|
Internal Ports
|
|
CPU Power Supply
|
2x 4+4-Pin
|
6+2 Pin PCIe Power Connectors
|
3
|
SATA Power Connectors
|
8
|
4 Pin Molex Power Connectors
|
4
|
Software interface digital
|
No
|
Efficiency Class
|
|
80PLUS Efficiency
|
80 PLUS Gold
|
Lighting
|
|
Lighting
|
No
|
