The Montech HS02 redefines the modern showcase case: An elegant design with a curved glass front, reversible assembly option, and innovative cooling concept makes it the ideal choice for aesthetically demanding gaming or creator PCs.
- Front made of 8° curved tempered glass – minimalist look, maximum view
- Reversibly mountable – side window can be chosen on the left or right
- Chimney effect for natural airflow from bottom to top
- Extended radiator and fan compatibility (up to 123 mm top width)
- I/O with USB-C, 2× USB-A, audio/mic, and ARGB control
Design meets function: Reversible and crystal clear
The HS02 offers a dual-use layout with a panoramic window made of curved glass. It is a true showcase case for enthusiasts who want to perfectly showcase their setup. The modular design allows you to install your glass side panel from the left to the right side, and the large metal elements provide maximum visibility of your hardware, making your system an absolute eye-catcher.
The addressable RGB lighting along the glass panels of the HS02 PC case perfectly highlights your setup. With customizable colours and effects, you can personalise your look and create a unique atmosphere – whether subtle accents or a spectacular light show.
Thanks to back-connect support, your build looks like it's from a distant future – no visible cables, just maximum order, perfect airflow, and uncompromising design.
Efficient cooling using the chimney effect principle

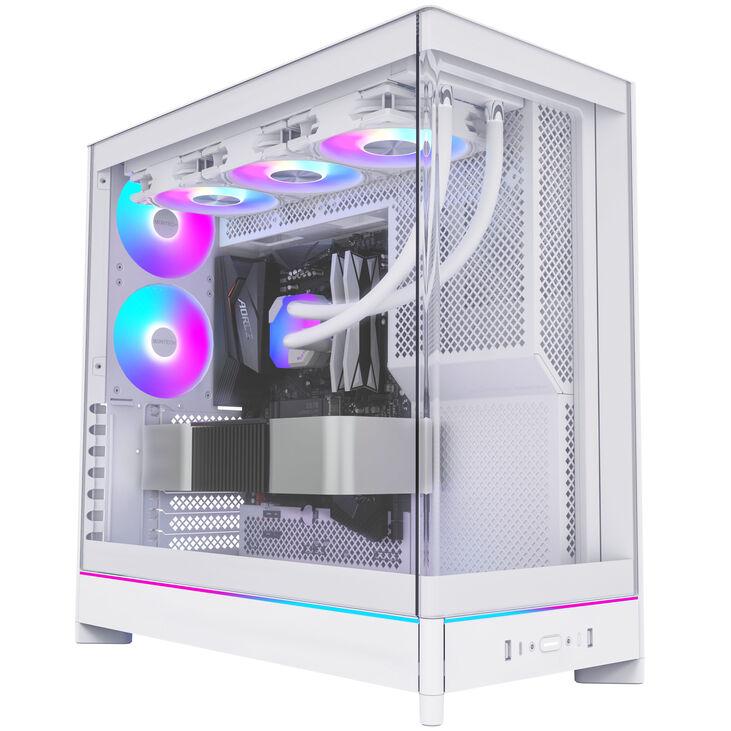

The natural airflow from bottom to top is supported by optimised fan positioning. Two rear fans and additional mounting points offer maximum thermal performance while simultaneously saving space inside. There is enough room in the top to install a 360mm radiator. A 240mm radiator can be mounted at the bottom.
Space for powerful hardware
With support for motherboards up to ATX and GPUs up to 420 mm, the HS02 offers plenty of space for high-end components – including a large power supply space of up to 200 mm. CPU coolers are supported up to a length of 175 mm. With space for up to two 3.5-inch HDDs or four SSDs, the case also provides ample capacity to store your games.
Modern connections & lighting
The front panel delivers everything you need: one USB-C, two USB 3.0 ports, and two audio jacks. Thanks to the integrated ARGB control, you have full control over your lighting. Synchronise it with your motherboard or adjust it directly via the button control to illuminate your system exactly as you envision.
Colour
|
|
Primary Colour
|
White
|
Dimensions
|
|
Length / Depth
|
480 mm
|
Width
|
240 mm
|
Height
|
480 mm
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
175 mm
|
Max. GPU Length
|
420 mm
|
Max. PSU Length / Depth
|
200 mm
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
rear top
|
Fan Support
|
|
Max. Number of Fans
|
8
|
120 mm fans
|
8
|
Radiator Support
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (120 mm), 1x Triple (360 mm)
|
Drive Bays
|
|
Max. 2.5 Inch Drives
|
4
|
Max. 3.5 Inch Drives
|
2
|
Max. 5.25 Inch Drives
|
0
|
Hot swap drive bays
|
No
|
External Ports
|
|
USB 3.1 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Front
|
Side panel
|
with window
|
Vertical GPU Mount
|
No
|
Adjustable Vertical GPU Bracket
|
No
|
Riser Cable Included
|
No
|
Front door
|
No
|
Cable Management
|
No
|
Filters Included
|
Yes
|
Filter Position
|
Bottom
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Remote included
|
No
|
Transport System
|
No
|
Back Connect
|
|
Back Connect
|
Yes
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
7
|
Features
|
|
Housing Feedthrough
|
No
|
Fan Header
|
|
Fan Controller / Fan Hub
|
Yes
|
Mounting
|
|
Case VESA Mountable
|
No
|
Internal Monitor Mount
|
No
|
Materials
|
|
Materials
|
Aluminium, Tempered Glass
|
Lighting
|
|
Lighting / RGB
|
Yes
|
RGB Controller
|
Yes
|
RGB Type
|
RGB
|
Additional Contents
|
|
Included fans
|
None
|
