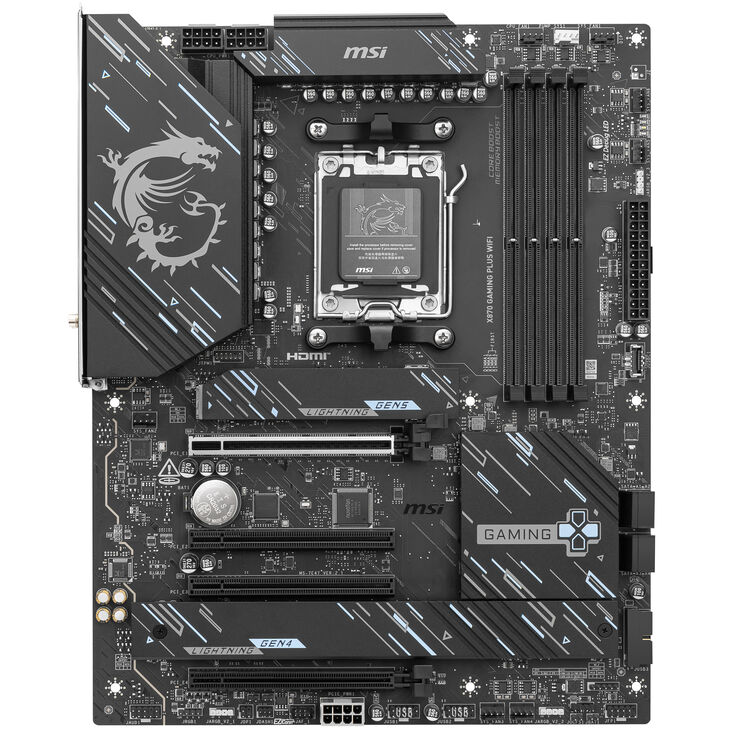

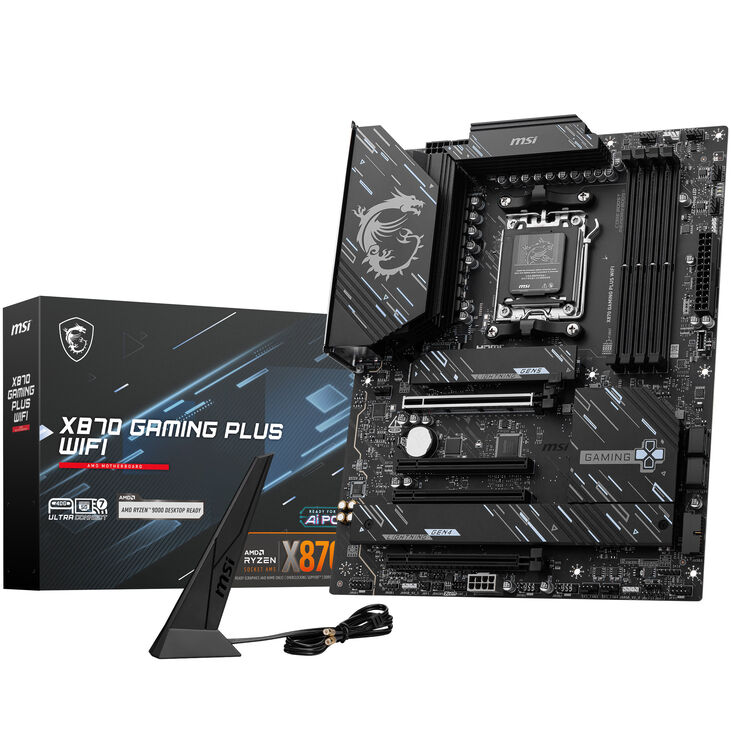

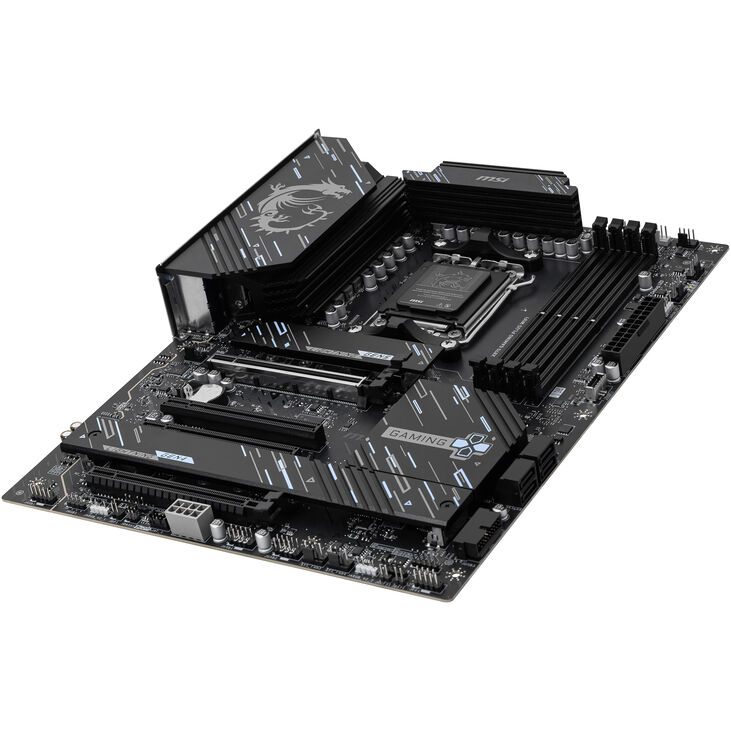

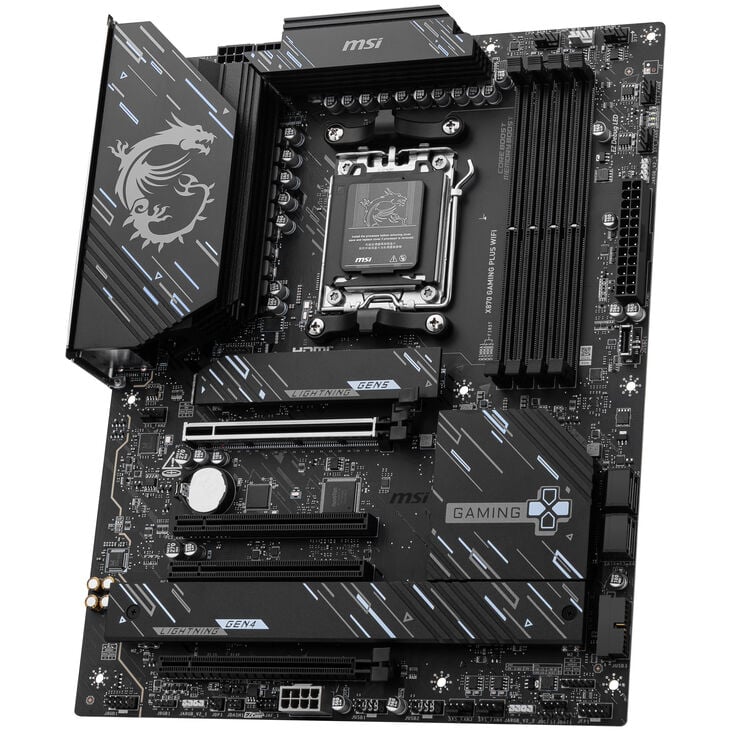

MSI X870 Gaming Plus WiFi motherboard, Socket AM5, AMD X870, ATX, DDR5
ATX motherboard with AMD X870 chipset, 1x PCIe 5.0 x16 / 1x PCIe 4.0 x4 / 2x PCIe 3.0 x1, 1x USB4 / 1x USB-C 3.2 / 2x USB 3.1 / 2x USB 3.0 / 4x USB 2.0, 3x M.2 (1x PCIe 5.0, 2x PCIe 4.0) / 2x SATA 6G, 8x 4-pin PWM connectors
277,76 €
incl. VAT
, add. delivery costs starting from 4.99€
This motherboard is perfect for gaming enthusiasts.
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x4 (x4), and 2x PCIe 3.0 x1
- 4x DIMM slots supporting up to 256 GB DDR5 RAM at up to 8,200 MHz
- 3x M.2 slots (1x PCIe 5.0 and 2x PCIe 4.0) / 4x SATA 6G

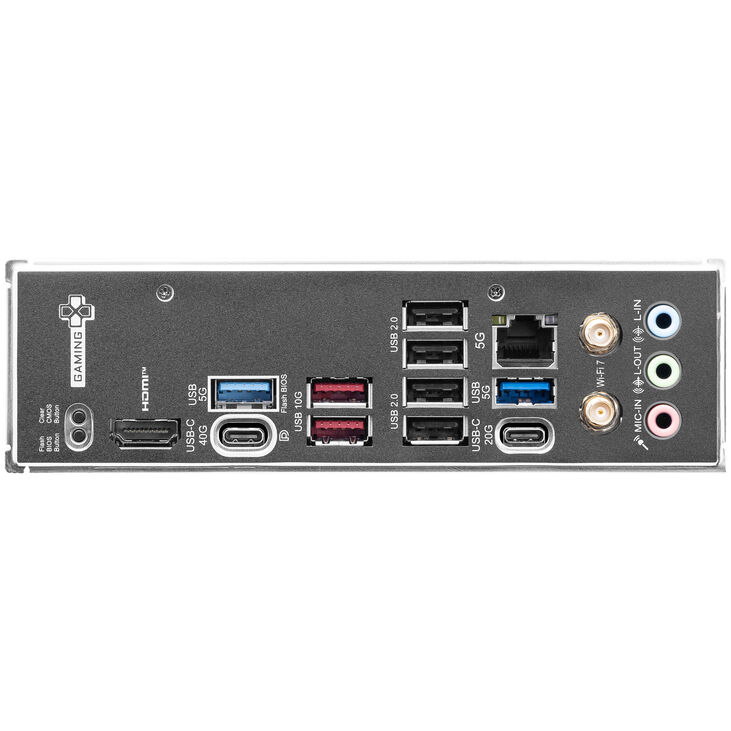

- USB on the I/O panel: 1x USB4, 1x USB-C 3.2, 1x USB-C 3.1, 2x USB 3.1, 2x USB 3.0, 4x USB 3.0, and 2x USB 2.0
- A total of 8x 4-pin headers for fans and pumps
- Supports WiFi 7 and Bluetooth 5.4
MSI X870 Gaming Plus WiFi: ATX Motherboard with AMD AM5 Socket and X870 Chipset
The MSI X870 Gaming Plus WiFi features the mid-tier X870 chipset for AMD’s Ryzen 9000 series processors and comes packed with numerous features for gamers. The Ryzen 9000 series processors utilize the reliable AM5 socket (LGA 1718).
Additionally, the AMD X870 motherboard supports USB 4.0, now standard, offering data transfer rates of up to 40 Gbps. Furthermore, the MSI X870 Gaming Plus WiFi supports PCIe 5.0, providing double the bandwidth for graphics cards and NVMe SSDs compared to PCIe 4.0.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
305 mm
|
|
Width
|
243.48 mm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD X870
|
|
Built-In I/O Shield
|
Yes
|
|
Memory
|
|
|
Max. Memory
|
256 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Max. Memory Speed (Standard)
|
5600 MT/s
|
|
Max. Memory Speed (OC)
|
8200 MT/s
|
|
EEC Support
|
Yes
|
|
Memory slots
|
4x
|
|
Performance Profile
|
AMD EXPO
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 5 Gbit/s
|
|
LAN Chip
|
Realtek 8126VB
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Wi-Fi Standard
|
Wi-Fi 7
|
|
Bluetooth Standard
|
5.4
|
|
Cooling
|
|
|
Backplate
|
Yes
|
|
M.2 Heatsinks
|
Yes
|
|
VRM Heatsinks
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Header
|
1
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Header
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Header
|
2
|
|
USB 2.0 (internal) Possible Ports
|
4
|
|
RGB / LED connectors
|
1x RGB (4-Pin 5050 12VGRB), 3x Digital RGB (3-Pin 5VDG)
|
|
Front Panel Audio Header
|
Yes
|
|
SPI TPM Header
|
Yes
|
|
External Ports
|
|
|
USB4 Gen 2x2 (external) Type C
|
1
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
2
|
|
USB 3.0 (external) Type A
|
2
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x2
|
1
|
|
M.2 PCIe 4.0 x4
|
1
|
|
M.2 PCIe 5.0 x4
|
1
|
|
SATA 6G (internal)
|
4
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
1
|
|
PCIe x4 slots (total)
|
1
|
|
PCIe x1 slots (total)
|
2
|
|
PCIe 5.0 x16 mechanical slot
|
1
|
|
PCIe 4.0 x4 mechanical slot
|
1
|
|
PCIe 3.0 x1 mechanical slot
|
2
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Audio
|
|
|
Soundchip
|
Realtek ALC897
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
