Palit GeForce RTX 5060 Ti Infinity 3, 8192 MB GDDR7
- Efficient triple-fan cooler design with semi-passive cooling
- High base clock of the GPU: 2,407 MHz
- Strong boost clock of the GPU: 2,572 MHz
- Next-generation graphics memory: 8 GB GDDR7
- Memory clock: 1,750 MHz (effectively 28 GHz)
- Solid memory interface of 128 bits
- Memory bandwidth of 448 GB/s
- For Full HD gaming: 4,608 CUDA cores (shaders)
- Additional PCIe power connectors: 1x 8-pin
- Video outputs: 3x DP 2.1b, 1x HDMI 2.1b
- Supports DLSS 4 and NVIDIA Reflex 2
The GeForce RTX 5060 Ti in Detail
The GeForce RTX 5060 Ti is the perfect choice for anyone looking to experience smooth gaming in Full HD and WQHD. With GDDR7 graphics memory and a powerful graphics processor based on NVIDIA's Blackwell architecture, it delivers high frame rates and detailed visuals - ideal for medium to high graphics settings.
Compared to the previous generation, the RTX 5060 Ti offers improved performance in traditional rendering and ray tracing. Thanks to the new Blackwell architecture and support for PCI Express 5.0, you are also prepared for upcoming games.
Whether it's a fast-paced multiplayer match or an immersive open world, the RTX 5060 Ti provides stable frame rates and a consistently smooth gaming experience at 1080p. With DLSS 4 and Multi Frame Generation, you additionally leverage AI-powered technologies that enhance frame rates and make visuals even smoother - even in graphically intensive scenes.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
291.9 mm
|
|
Width
|
116.6 mm
|
|
Height
|
41.3 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RTX 50 Series
|
|
GPU Model
|
NVIDIA GeForce RTX 5060 Ti 8GB
|
|
GPU Series Name
|
NVIDIA GeForce RTX 5060 Ti 8GB
|
|
Graphics Chip
|
GB206-300
|
|
Manufacturing Process
|
5 nm
|
|
Shader Units
|
4608
|
|
Tensor Cores
|
144
|
|
Raytracing Cores / Ray Acceleratorss
|
36
|
|
GPU Memory Type
|
GDDR7
|
|
Slot Type Standard
|
PCIe 5.0
|
|
GPU Memory Size (GB)
|
8
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
448
|
|
GPU Effective Memory Clock (MHz)
|
1750
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
2407 MHz
|
|
Max. GPU Clock (Boost)
|
2572 MHz
|
|
Max. Memory Clock
|
28000 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|

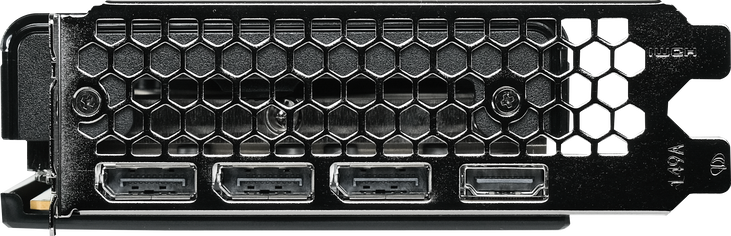

Display Connectors
|
Display Port (3x), HDMI (1x)
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
NVIDIA G-SYNC
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
Tensor Cores
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
