PHANTEKS AMP GH 1200W 80 PLUS Platinum power supply, PCIe 5.1, ATX 3.1 - 1200 watts, black
- High-performance ATX-3.1 power supply with 1,200 watts for high-end PCs
- 80 PLUS Platinum certification thanks to high efficiency of up to 94%
- Quiet 120mm fan with hydrodynamic bearing for efficient cooling
- Less cable clutter and better airflow thanks to modular cable management

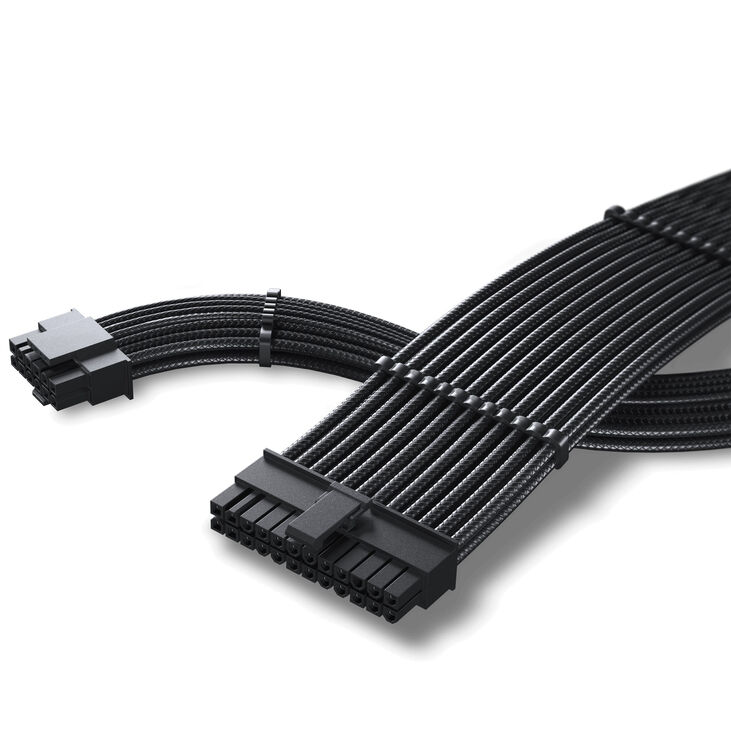

- Cables with individually textured cable strands for a tidy build
- Silent operation at the push of a button thanks to semi-passive hybrid mode
- Includes 12V-2x6 power cable for powerful graphics cards

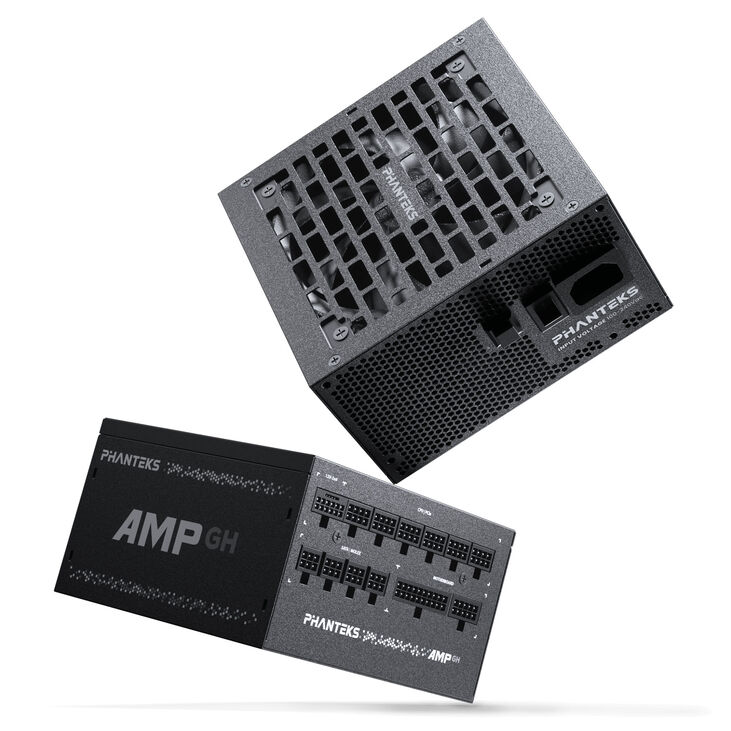

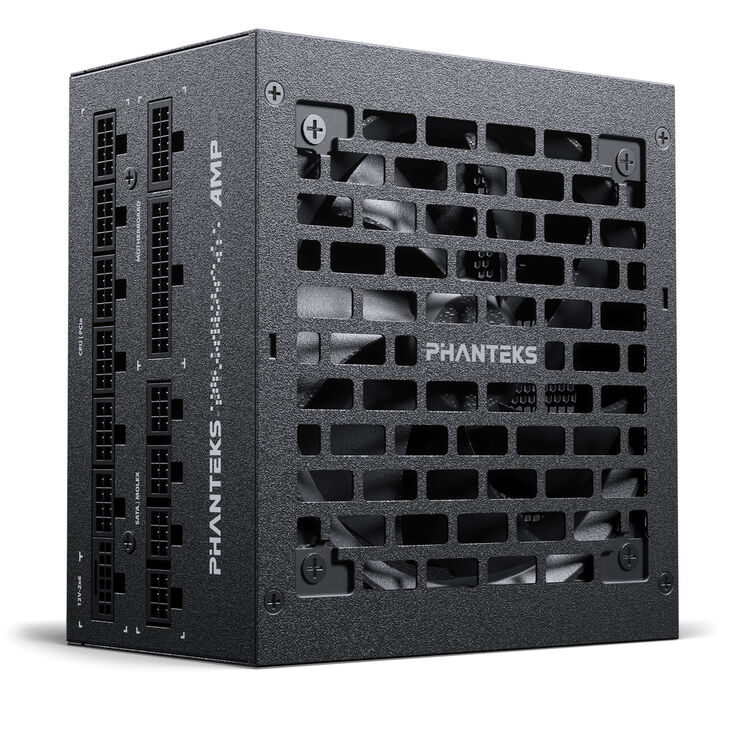

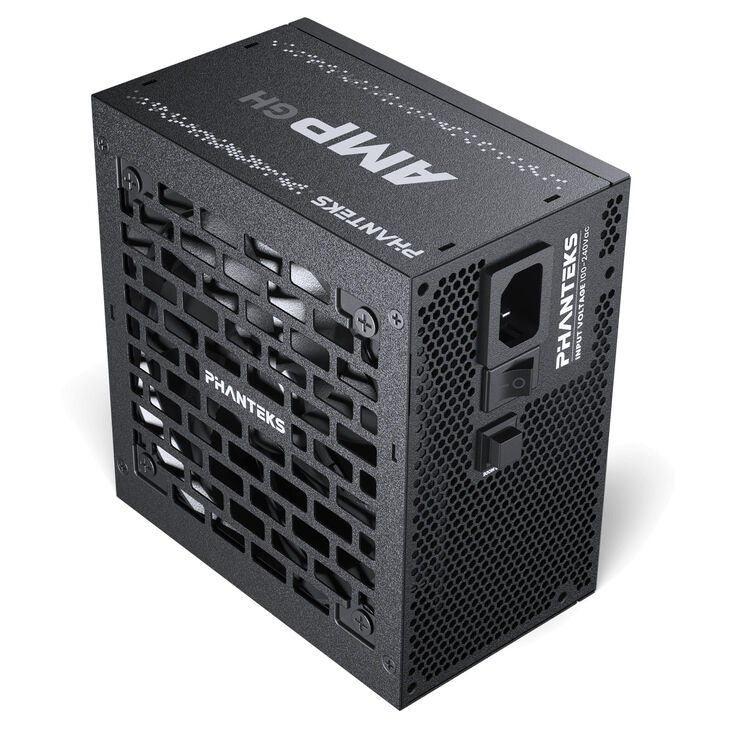

The Phanteks AMP GH 1200W: Powerful and Reliable
The Phanteks AMP GH 1200W is a high-performance ATX-3.1 power supply that safely powers your gaming hardware. Phanteks has developed a compact power supply that, with a depth of only 140mm, conforms to the standard ATX form factor and fits in most cases. By using high-quality electrical components, this 80 PLUS Platinum-certified power supply operates extremely efficiently. Its fully modular design with individually shielded and specially textured cables makes installation easier and provides a tidy appearance.
ATX-3.1 PSU with PCIe-5.1 connector for graphics cards
The AMP-GH series fully complies with the ATX 3.0 and 3.1 standards and is therefore compatible with the latest components. Phanteks has also equipped this power supply with a 12V-2x6 connector based on the PCIe-5.1 standard: Thus, you are well-prepared for current and upcoming high-end GPUs.

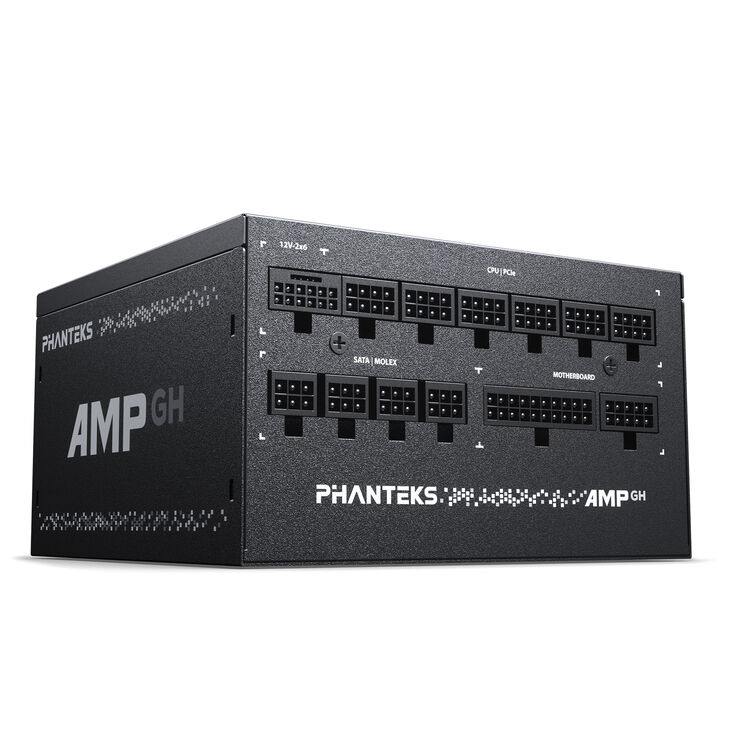

Maximum Flexibility: Various Connection Options and Modular Design
The gold-plated connectors reduce electrical resistance and increase efficiency, ensuring energy-efficient and reliable operation. In addition to the power supply, the package includes all necessary cables for motherboard, CPU, PCIe cards, SATA, and Molex for drives and accessories. The completely modular design allows for easy installation and reduces cable clutter. Thanks to the diverse connection options, you can flexibly adapt your desktop PC to your requirements.
Silent, semi-passive hybrid mode

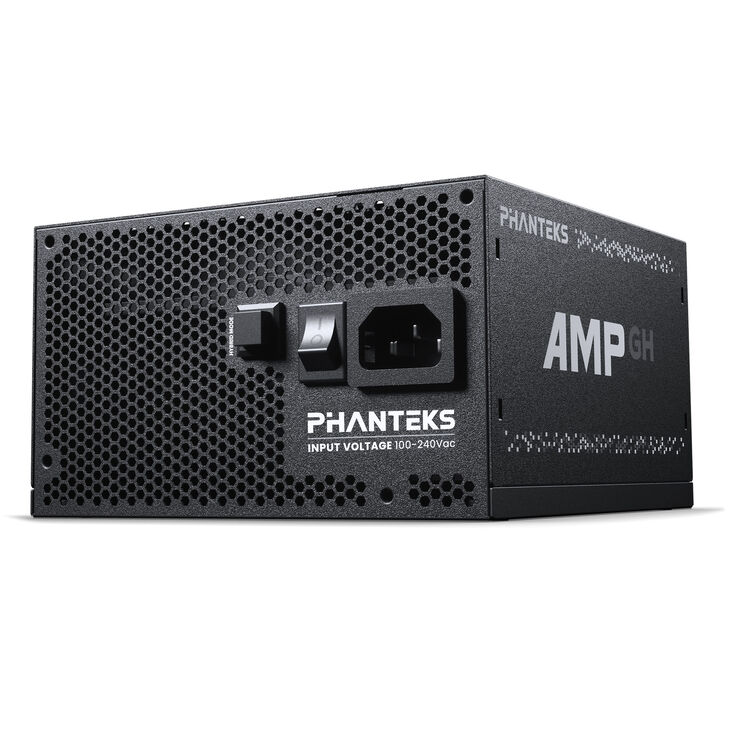

The 120mm fan with hydrodynamic bearing provides optimal cooling with minimal noise. In this mode, the power supply fan automatically turns off at a load of under 40%, enabling nearly silent operation. The semi-passive hybrid mode can be easily turned on and off using a switch on the back.
Silent operation offers you several advantages: It creates a quieter working and gaming environment, reduces distractions, and thus enhances your overall experience. Additionally, this helps preserve the fan, which contributes to an even longer lifespan of your power supply.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
140 mm
|
|
Width
|
150 mm
|
|
Height
|
86 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
120 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
ATX Standard
|
ATX 3.1
|
|
12V Distribution
|
single rail
|
|
Modular Power Supply
|
Yes
|
|
Modular Type
|
fully modular
|
|
Protection Circuits
|
No-Load Protection, OCP (Overcurrent Protection), OPP (Overload Protection), OTP (Overtemperature Protection), OVP (Overvoltage and Undervoltage Protection), Reset Protection, SCP (Short-Circuit Protection), UVP (Undervoltage Protection)
|
|
Power Specifications
|
|
|
Total Power Output
|
1200 W
|
|
Power Output +3.3V
|
66 W
|
|
Power Output +5V
|
100 W
|
|
Power Output +3.3V & +5V (combined)
|
120 W
|
|
Power Output +12V rails
|
1200 W
|
|
Power Output -12V
|
3.6 W
|
|
Power Output +5Vsb
|
15 W
|
|
Cable Specifications
|
|
|
Max. CPU Power Cable Length
|
650 mm
|
|
Max. 24-Pin Motherboard Power Cable Length
|
610 mm
|
|
Max. 12V-2x6 Cable Length
|
720 mm
|
|
Max. PCIe Power Cable Length
|
750 mm
|
|
Max. SATA Power Cable Length
|
900 mm
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
Yes
|
|
Switchable Semi Passive Mode
|
Yes
|
|
Semi Passive Type
|
passive
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
CPU Power Supply
|
2x 4+4-Pin
|
|
12V-2x6 Power Connectors
|
1
|
|
6+2 Pin PCIe Power Connectors
|
4
|
|
SATA Power Connectors
|
14
|
|
4 Pin Molex Power Connectors
|
2
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Platinum
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
