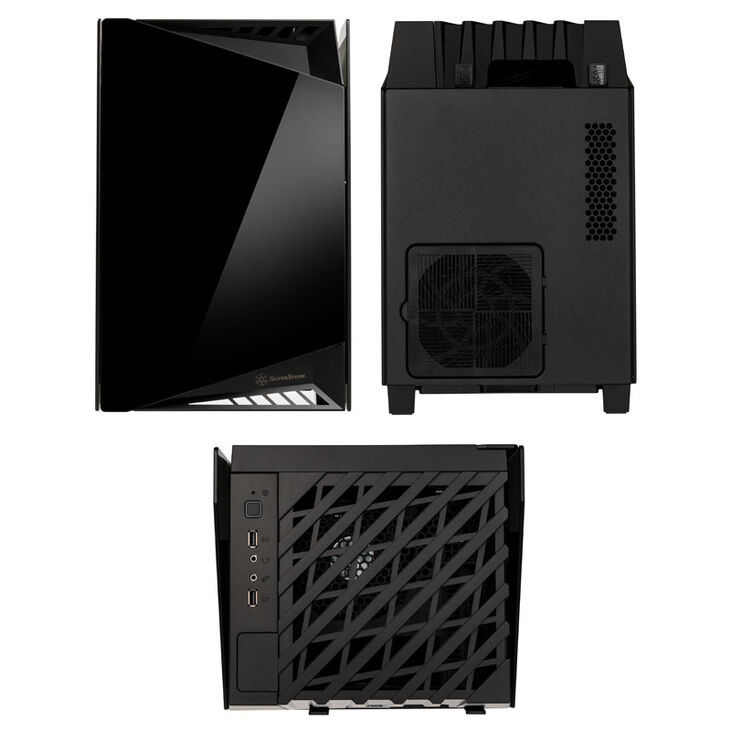

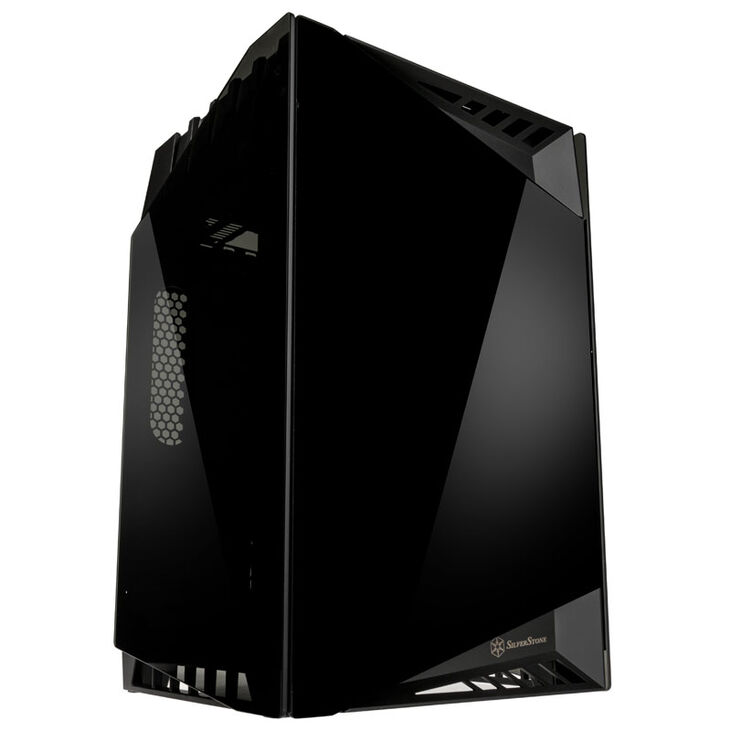

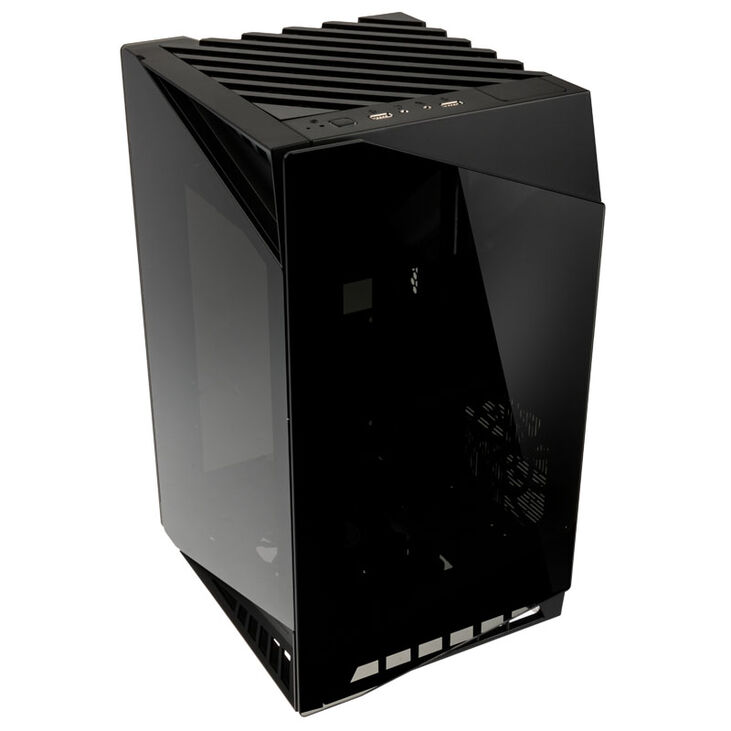

SilverStone SST-LD03B Lucid Mini-ITX Case - black
Mini-ITX case from SilverStone in black, with tinted tempered glass and panoramic view of the hardware, 90-degree rotated motherboard tray, vertical graphics card mounting, 2x USB 3.0 & HD audio
139,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- Tinted tempered glass panels for reserved or expressive styling
- Super mini footprint design with no cables and vents on four sides for excellent integration into any computing environment
- Includes two 120mm fans for excellent airflow and supports up to two 120mm radiators
- Supports 2.5” and 3.5” drives
- Mini-DTX / Mini-ITX motherboard & SFX / SFX-L PSU compatible
- Supports full size CPU cooler and graphics cards

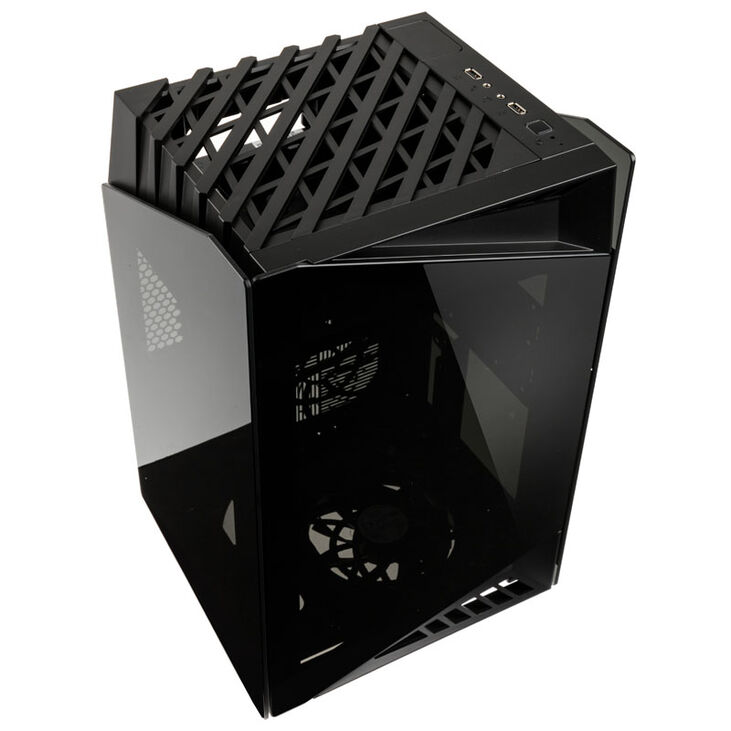

Provide low-key overall look but with enough transparency to show off your unique system build
Stack effect design

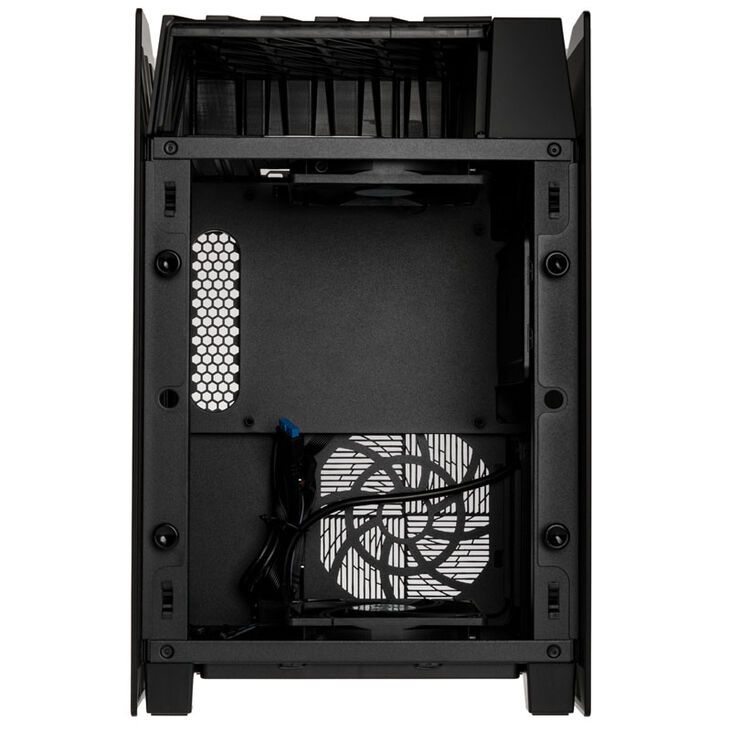

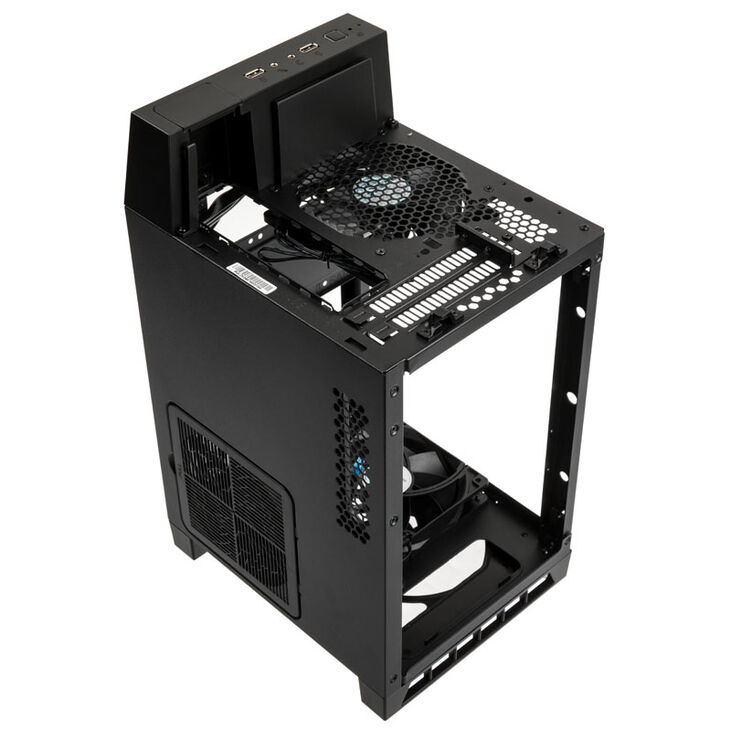

With motherboard rotated 90 degrees, cool air can flow smoothly from the bottom up for the most efficient heat dissipation to all important heat-generating components.
Combining advanced engineering with precision manufacturing
Exclusive tool-less buckle design makes front panel and side panels removal easier than ever. Exterior also looks sharper and cleaner as a result of no exposed screws.

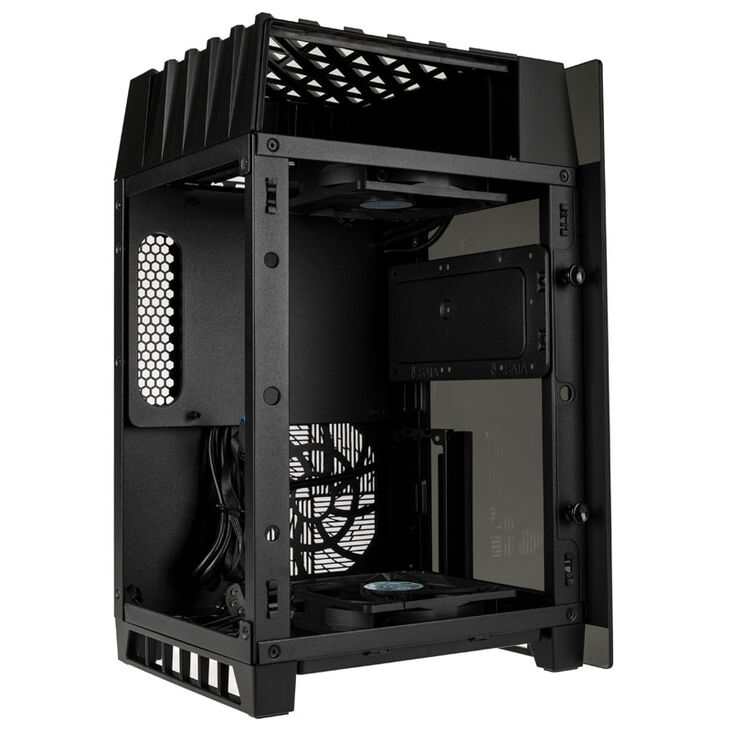

Modest size, extraordinary accommodation
LD03’s generous interior space means there is nearly no limit in what you can build into it.
Support up to 190mm air cooler of height
- Support SFX / SFX-L power supply up to 130mm of length (The maximum wattage for SFX-L is 800W, SilverStone SX800-LTI is recommended)
- Support graphics card up to 309mm of length

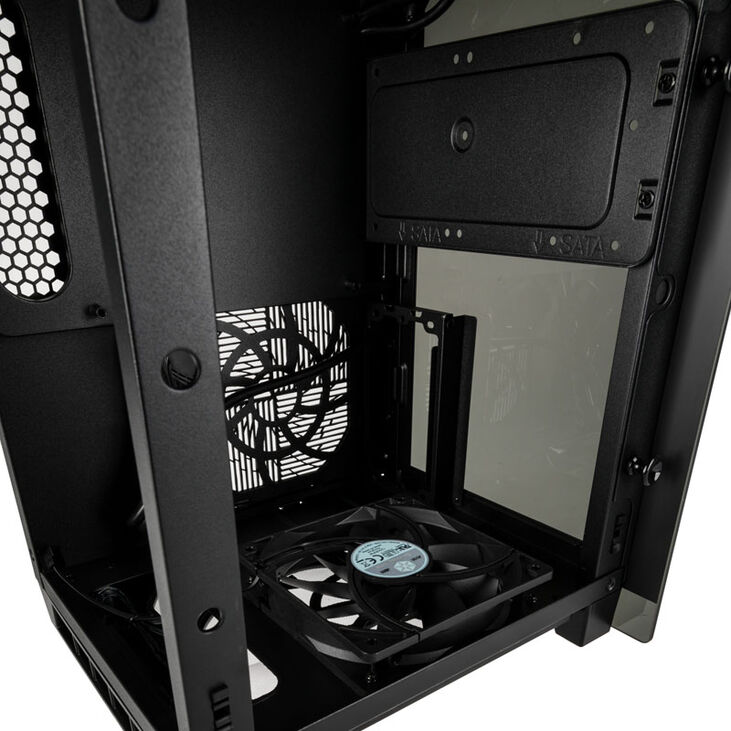

- Support 2.5” x 2 or (2.5” x 1) + (3.5” x 1) devices
Modest size, extraordinary accommodation II
Supports various high-end graphics cards
Quick access to all removable filters
Filters are made of fine nylon mesh to catch dust effectively without airflow performance penalty. They are easy to remove to help you better maintain your system.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
230 mm
|
|
Width
|
265 mm
|
|
Height
|
414 mm
|
|
Weight
|
5.34 kg
|
|
Case
|
|
|
Case Type
|
Mini Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-DTX, Mini-ITX
|
|
Max. Motherboard Format
|
Mini-DTX, Mini-ITX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
190 mm
|
|
Max. GPU Length
|
309 mm
|
|
Max. PSU Length / Depth
|
130 mm
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU Format
|
SFX, SFX-L
|
|
Power Supply Position
|
Internal
|
|
Fan Support
|
|
|
120 mm fans
|
2
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
2x Single (120 mm)
|
|
Drive Bays
|
|
|
2.5 inch internal drive bay
|
1
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
1
|
|
Hot swap drive bays
|
No
|
|

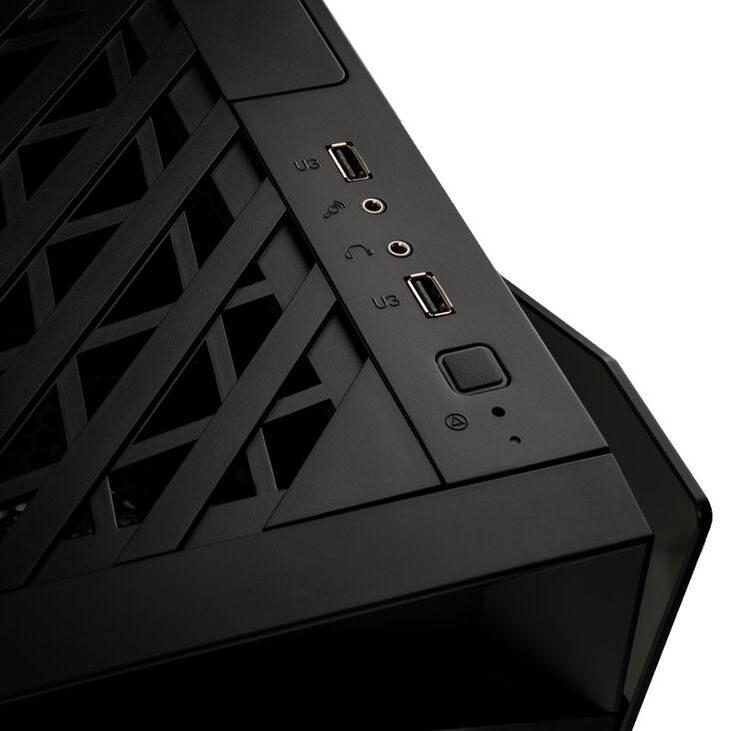

External Ports
|
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
|
Case Features
|
|
|
I/O position
|
Cover
|
|
Side panel
|
with window
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
No
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Remote included
|
No
|
|
Transport System
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
2
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Fan / RGB control
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm
|
