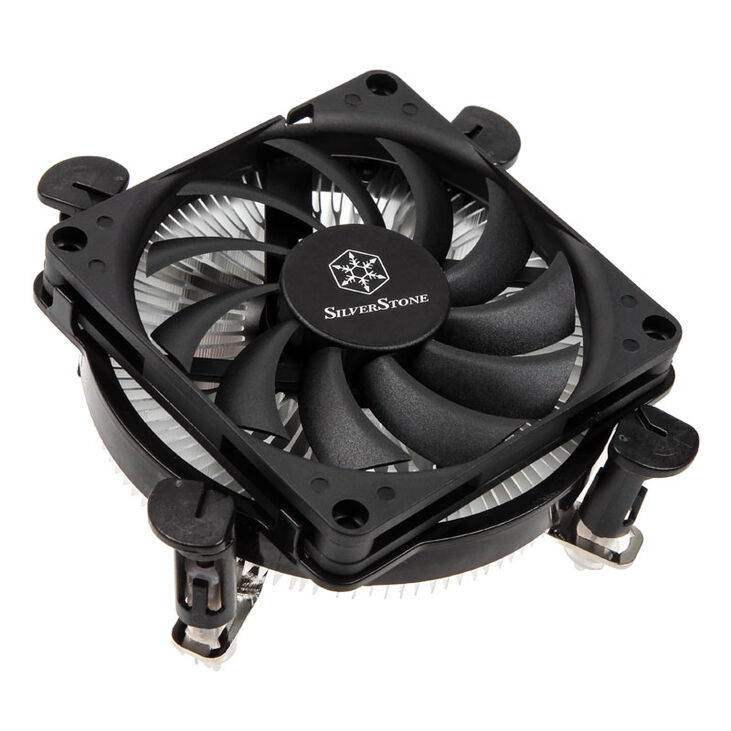

- Supports Intel LGA1150/1151/1155/1156 processors

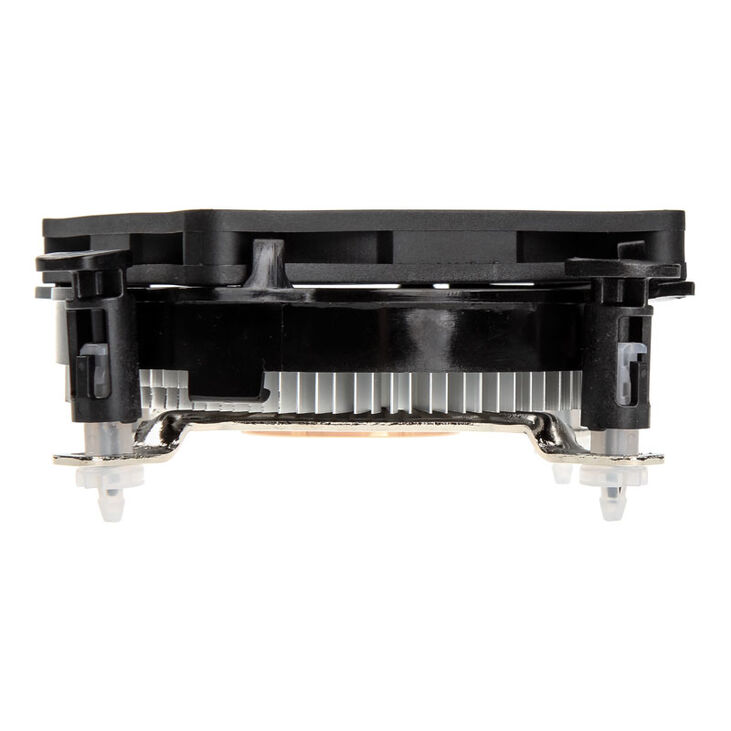

- Designed for Mini-STX systems at 33mm tall

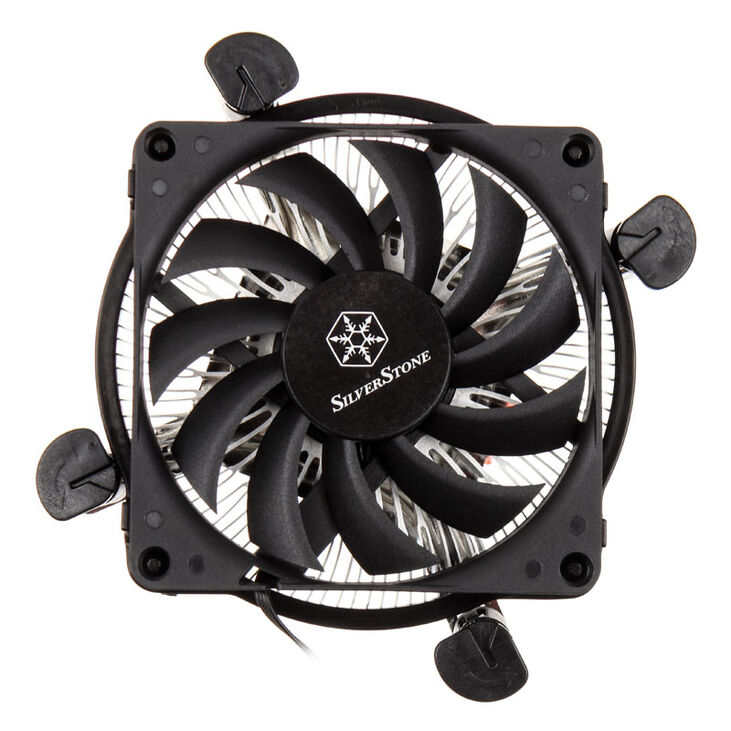

- Custom slim 80mm PWM fan for excellent cooling and low noise

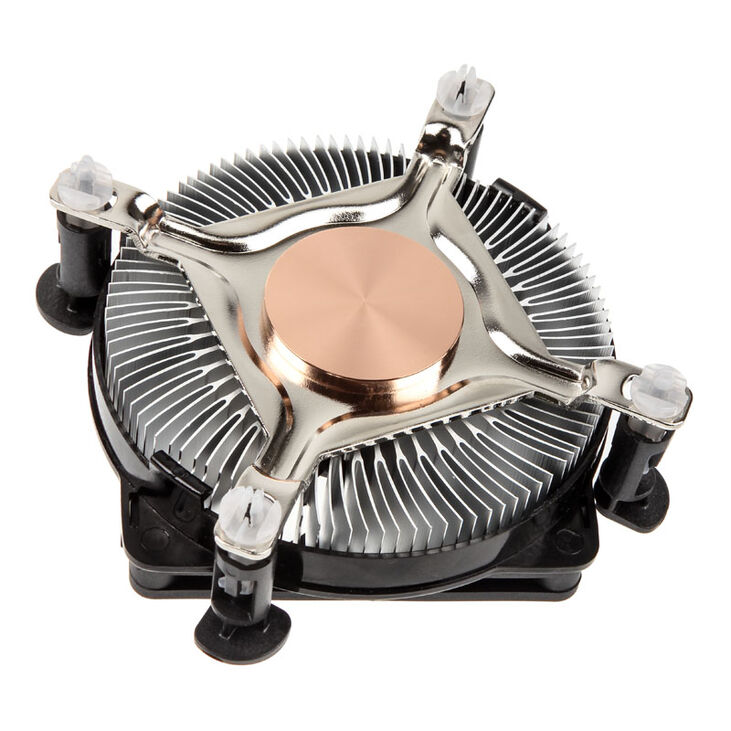

- True solid copper base with extruded aluminum fins for up to 65W TDP

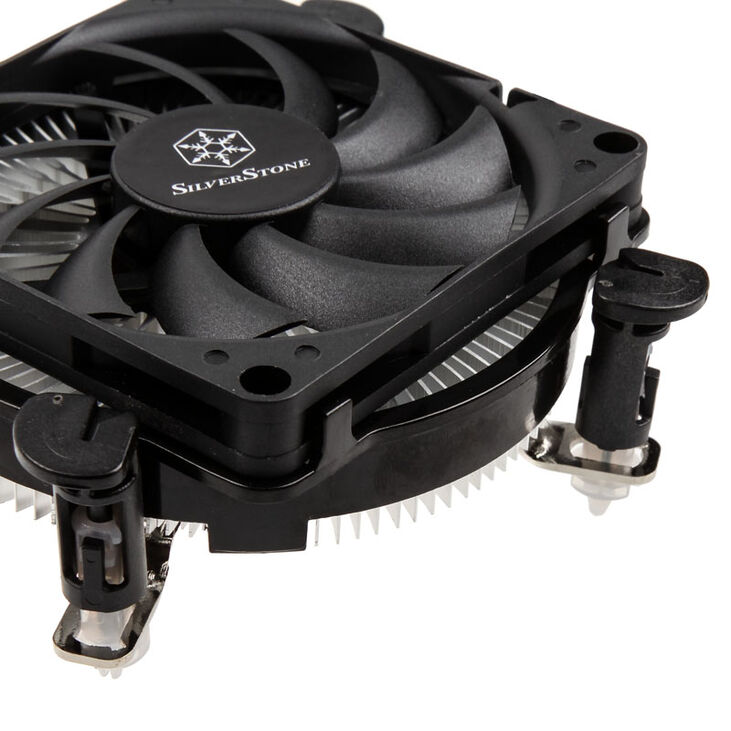

- Push-pin design for easy installation
Colour
|
|
Primary Colour
|
Silver
|
Fan Main Colour (Frame)
|
Black
|
Dimensions
|
|
Length / Depth
|
101 mm
|
Width
|
101 mm
|
Height
|
33 mm
|
Cooler Specifications
|
|
Additional fans possible
|
No
|
Ventilation type
|
active
|
Type
|
|
CPU Cooler Type
|
Top Blower
|
CPU
|
|
CPU Socket
|
1150, 1151, 1155, 1156
|
Fan Specifications
|
|
Min. Fan RPM
|
1200 rpm
|
Max. Fan RPM
|
3400 rpm
|
Min. Single Fan Airflow
|
9.58 m³/h
|
Max. Single Fan Airflow
|
27.15 m³/h
|
Noise
|
|
Min. Single Fan Noise dB(A)
|
16.5 dB(A)
|
Max. Single Fan Noise dB(A)
|
28.98 dB(A)
|
Internal Ports
|
|
Fan connectors
|

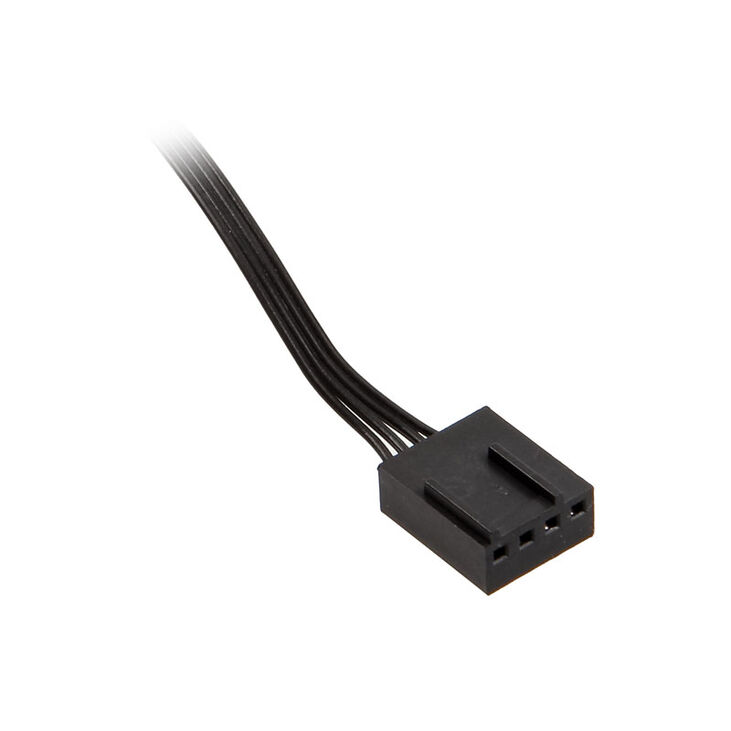

4 Pin (PWM)
|
Thermal Specifications
|
|
Max. TDP
|
65 W
|
Materials
|
|
Base Plate Material
|
Copper
|
Heat Sink Material
|
Aluminium
|
Lighting
|
|
Lighting / RGB
|
No
|
Additional Contents
|
|
Included fans
|
1x 80 mm
|
