Super Flower LEADEX III GOLD UP 1000W 80 PLUS Gold Power Supply, PCIe 5.1, ATX 3.1 - 1,000 Watt, black
The LEADEX III GOLD UP ATX 3.1 1000W Power Supply: Plenty of Power for Your Gaming Setup
The LEADEX III GOLD UP is an ATX-3.1 compatible power supply, perfectly designed for your gaming system and high-performance applications. With 1.000 watts, it delivers enough power to reliably supply your CPU and high-performance graphics cards. Thanks to the 80 PLUS Gold certification, you can achieve up to 90% efficiency, helping you save energy and reduce heat output.
Fully Modular Design for More Flexibility

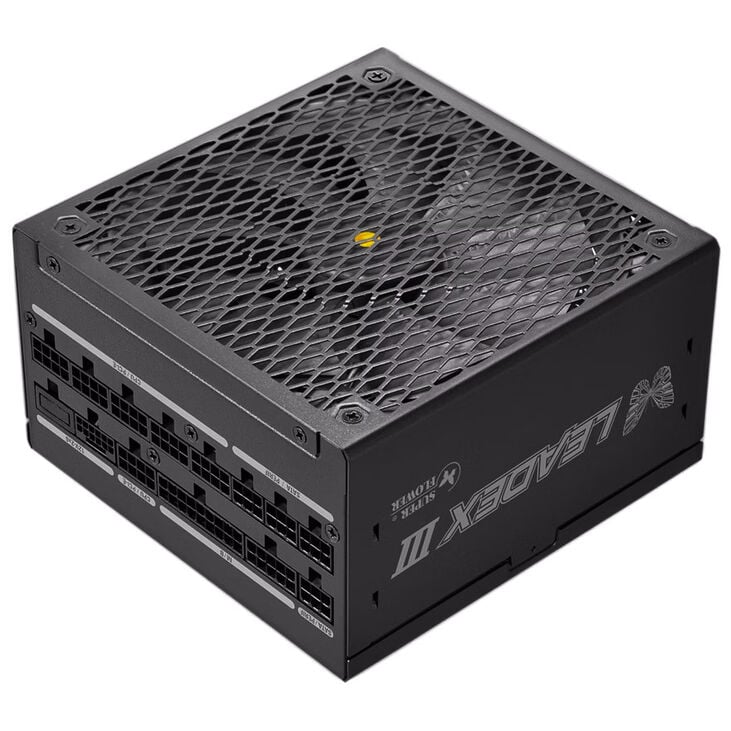

The fully modular cable management allows you to use only the cables you need. This not only makes installation easier but also optimises airflow within your case. With the compatible PCIe 5.1 connectors with 12+4 pin 12VHPWR plug, you are well-prepared for the latest graphics cards. The 140mm fan ensures efficient cooling while operating quietly.
Safety is a Top Priority
The LEADEX III GOLD UP provides a variety of protection mechanisms, including overvoltage, overcurrent, and short-circuit protection. This ensures your system is safeguarded from potential electrical issues at all times, whether you're gaming intensely or your PC is idle – the LEADEX III GOLD UP ensures a stable and safe power supply.
Only use the supplied cables. Using other, incompatible internal power supply cables may cause damage not covered by the manufacturer’s warranty.- Dimensions: 150 x 86 x 150 mm (W x H x D)
- Colour: Black
- Fan: 140 mm (Fluid Dynamic Bearing)
- Power Output: 1.000 W
- Efficiency: 87% at 20% load, 90% at 50%, 87% at 100% (80 PLUS Gold certified)
- Input Voltage: 100 - 240 V, 50 / 60 Hz, with Active PFC

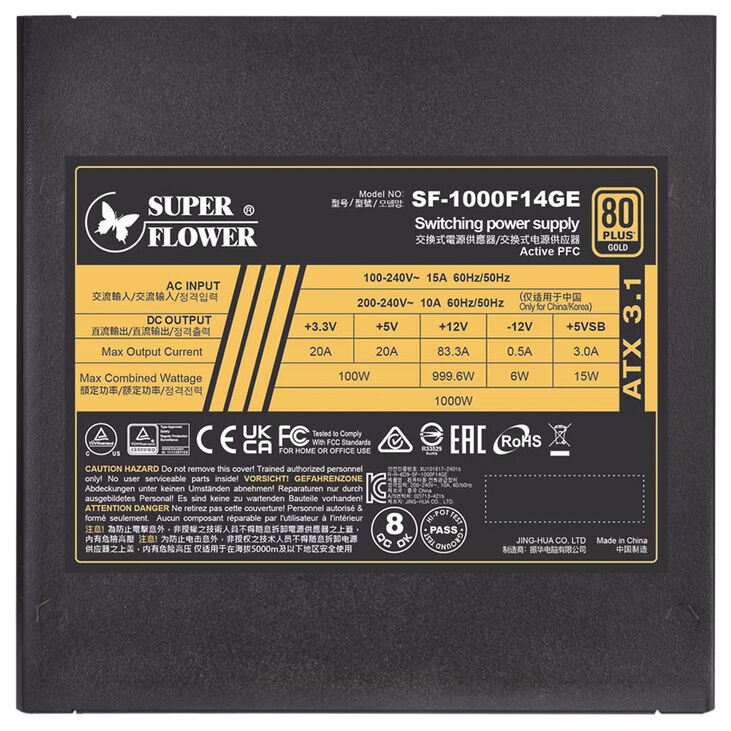

- Power: 1,000 W
+3.3V: 20 A / 66 W
+5V: 20 A / 100 W
+3.3V & +5V: 120 W (combined)
+12V: 83.3 A / 999.6 W (combined)
-12V: 0.5 A / 6 W
+5Vsb: 3 A / 15 W - Protection Circuits:
OVP (Overvoltage Protection)
UVP (Undervoltage Protection)
SCP (Short Circuit Protection)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OCP (Overcurrent Protection)
NLO (No-Load Operation Protection)
SIP (Inrush Current Protection) - Package Contents:
1x Super Flower LEADEX III GE 1000W Power Supply
1x 24-Pin ATX Cable (600 mm)
2x 8(4+4)-Pin CPU Cable (700 mm)
1x PCIe 6+2-Pin Cable (700 mm)
2x SATA Cable (550+130+130+130 mm)
1x Molex Cable (550+150+150+150 mm)
1x 12V-2x6 PCIe Cable (700 mm)
1x Power Cable
1x User Manual
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
150 mm
|
|
Width
|
150 mm
|
|
Height
|
86 mm
|
|
Fan Specifications
|
|
|
Fan Size
|
140 mm
|
|
Power Supply
|
|
|
PSU Format
|
ATX
|
|
ATX Standard
|
ATX 3.1
|
|
12V Distribution
|
single rail
|
|
Modular Power Supply
|
Yes
|
|
Modular Type
|
fully modular
|
|
Power Specifications
|
|
|
Total Power Output
|
1000 W
|
|
Power Output +3.3V
|
66 W
|
|
Power Output +5V
|
100 W
|
|
Power Output +3.3V & +5V (combined)
|
120 W
|
|
Power Output +12V rails
|
999.6 W
|
|
Power Output -12V
|
6 W
|
|
Power Output +5Vsb
|
15 W
|
|
Cable Specifications
|
|
|
Max. CPU Power Cable Length
|
700 mm
|
|
Max. 24-Pin Motherboard Power Cable Length
|
600 mm
|
|
Max. 12V-2x6 Cable Length
|
700 mm
|
|
Max. PCIe Power Cable Length
|
700 mm
|
|
Cooling
|
|
|
Semi Passive Power Supply
|
No
|
|
Switchable Semi Passive Mode
|
No
|
|
Internal Ports
|
|
|
CPU Power Connectors 12V ATX/EPS
|
2
|
|
CPU Power Supply
|
1x 8-Pin
|
|
12V-2x6 Power Connectors
|
1
|
|
6+2 Pin PCIe Power Connectors
|
4
|
|
SATA Power Connectors
|
8
|
|
4 Pin Molex Power Connectors
|
1
|
|
Efficiency Class
|
|
|
80PLUS Efficiency
|
80 PLUS Gold
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
