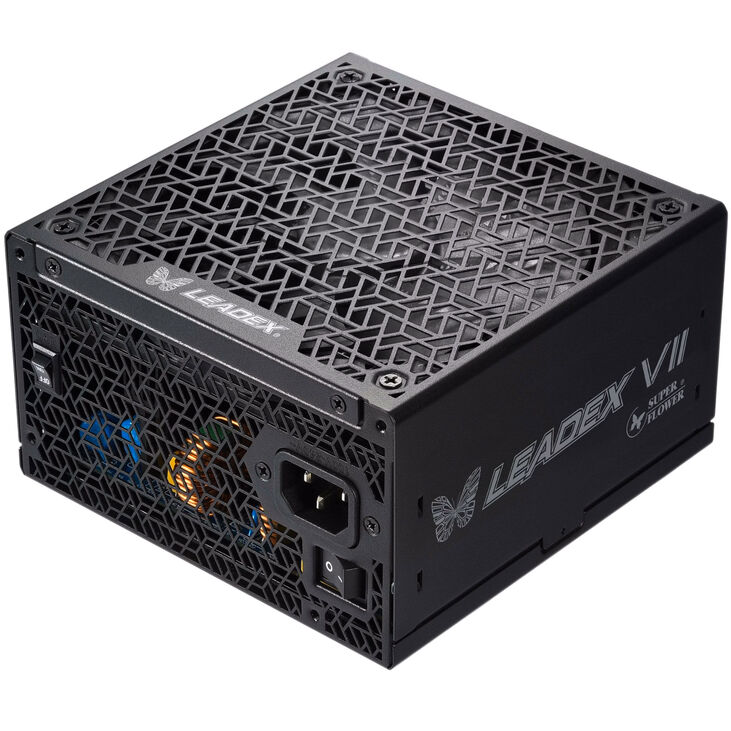

Super Flower Leadex VII XG 80 PLUS Gold, ATX 3.0, PCIe 5.0 - 1300 Watt
- ATX 3.0 power supply with 1,300 watts and a very strong 108.3 A single rail
- High efficiency with 80 PLUS Gold certification
- Quiet 140 mm fan, switchable to semi-passive mode
- Fully modular cable management with flat cables
- Includes 1x 12+4-pin 12VHPWR PCIe 5.0 cable, 4x 6+2-pin PCIe, 12x SATA and 4x Molex
Super Flower Leadex VII XG: High-End Power Supply with 80 PLUS Gold Efficiency
With the Leadex VII XG series, Super Flower targets those who desire high-end technology with 80 PLUS Gold efficiency. The Super Flower Leadex VII XG offered here, with 1,300 watts continuous power, features fully modular cable management and a quiet 140 mm fan with switchable semi-passive operation.
The Features of the Super Flower Leadex VII XG in Detail

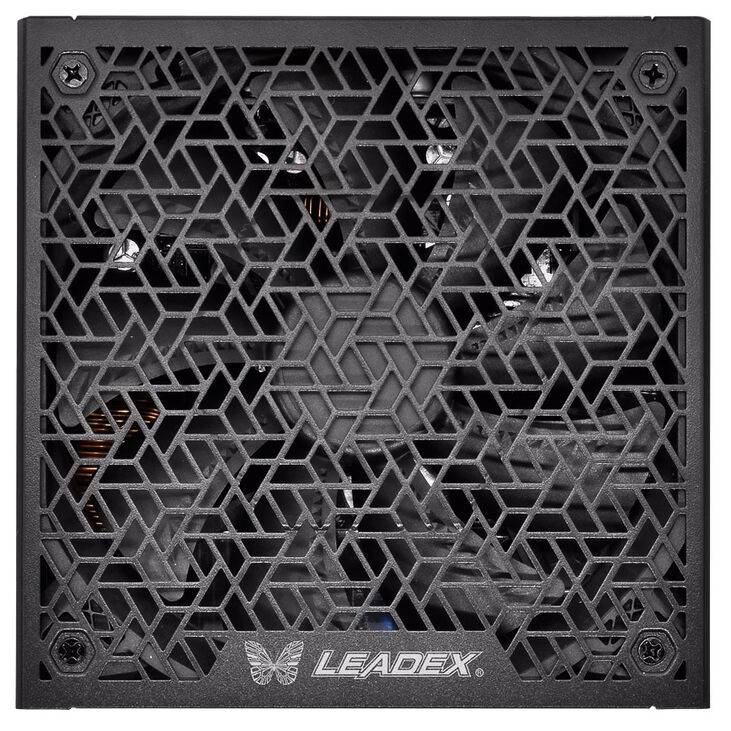

High-quality technology in an elegant yet simple design with high functionality is the principle regarding the external design of the Super Flower Leadex VII XG series. A powerful 140 mm fan ensures adequate cooling of the electronics and is controlled depending on the heat generated.
The Super Flower power supply can operate in semi-passive mode to work completely silently at idle. This means that the fan does not start at low loads because additional cooling is unnecessary. This results in absolutely silent operation. The efficiency averages 90 percent, which is why it has been awarded the 80 PLUS Gold certificate.
Long Lifespan Thanks to Strong Components
Super Flower does not skimp on high-quality electronics in the Super Flower series: thanks to high-quality DC-DC voltage conversion, the output voltages remain close to the target value even in demanding scenarios such as full load or asymmetric loading. The other components also focus on quality: only long-lasting capacitors are used.
With 1,300 watts total power and the strong +12-volt single rail, the Super Flower can reliably and stably supply even the most demanding systems, including high-end graphics cards, with power. To provide this enormous power to every device, the power supply offers sufficient connections for various hardware configurations.
Numerous Connections with Modular Cables

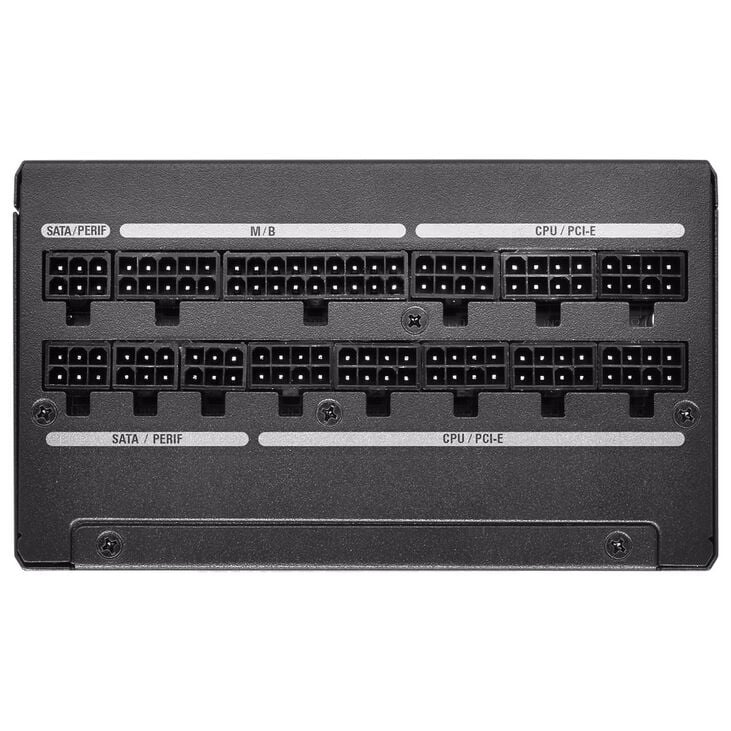

All cables are modular and only need to be connected to the power supply when necessary. This benefits both the aesthetics and airflow within the case. In addition to the 20+4-pin connector and two 4+4-pin ports for supplying the motherboard and CPU, there is a 12+4-pin 12VHPWR PCIe 5.0 to 2x 6+2-pin PCIe as well as four 6+2-pin PCIe cables for graphics cards. With twelve SATA and four 4-pin Molex connectors, all systems in this power class can operate without adapter or DIY solutions.
- Dimensions: 150 x 86 x 150 mm (W x H x D)
- Colour: Black
- Fan: 140 mm (semi-passive mode switchable)
- Standard: ATX 3.0
- Efficiency: 80 PLUS Gold certificate (90 % at 20 % load, 92 % at 50 % load, 89 % at full load)
- Active PFC
- Form Factor: ATX PS/2
- Power: 1,300 W

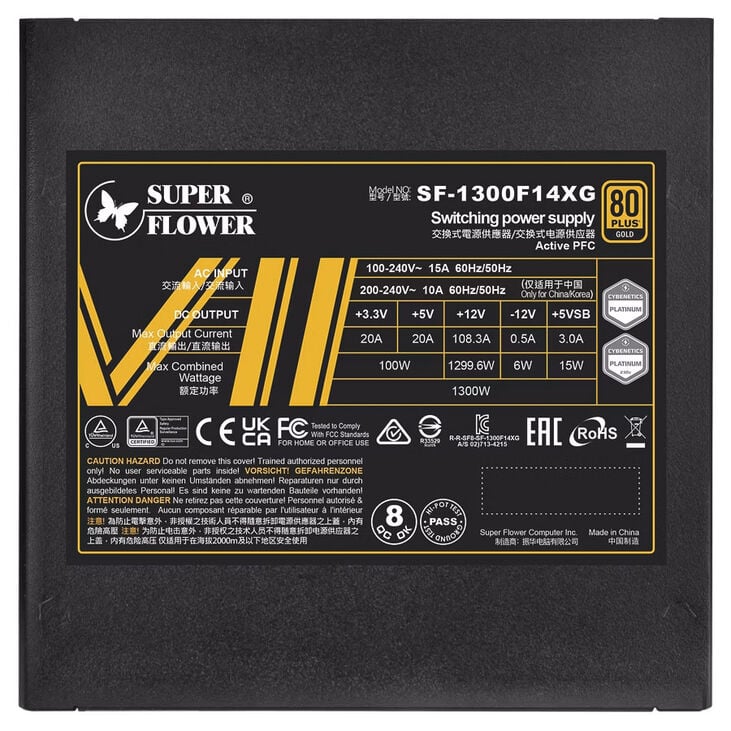

+3.3V: 20 A
+5V: 20 A
+3.3V & +5V: 100 W
+12V: 108.3 A / 1299.6 W
-12V: 0.5 A / 6 W
+5Vsb: 3 A / 15 W - Connectors (removable):
1x 20+4-pin ATX
8x 6+2-pin EPS12V/ATX12V / PCIe
4x 6-pin Peripheral - Protection Circuits:
OVP (Over Voltage Protection)
UVP (Under Voltage Protection)
SCP (Short Circuit Protection)
OPP (Overload Protection)
OTP (Over Temperature Protection)
OCP (Over Current Protection on the +12, +3.3 and +5 Volt rails) - Included:
1x 20+4-pin (600 mm)
2x 4+4-pin ATX 12V (two connectors, 700 mm)
1x 12+4-pin 12VHPWR to 2x 6+2-pin PCIe (650 mm)
4x 6+2-pin PCIe (one connector, 700 mm)
3x SATA (four connectors, straight, 550+130+130+130 mm)
1x Molex (four connectors, 550+150+150+150 mm)
