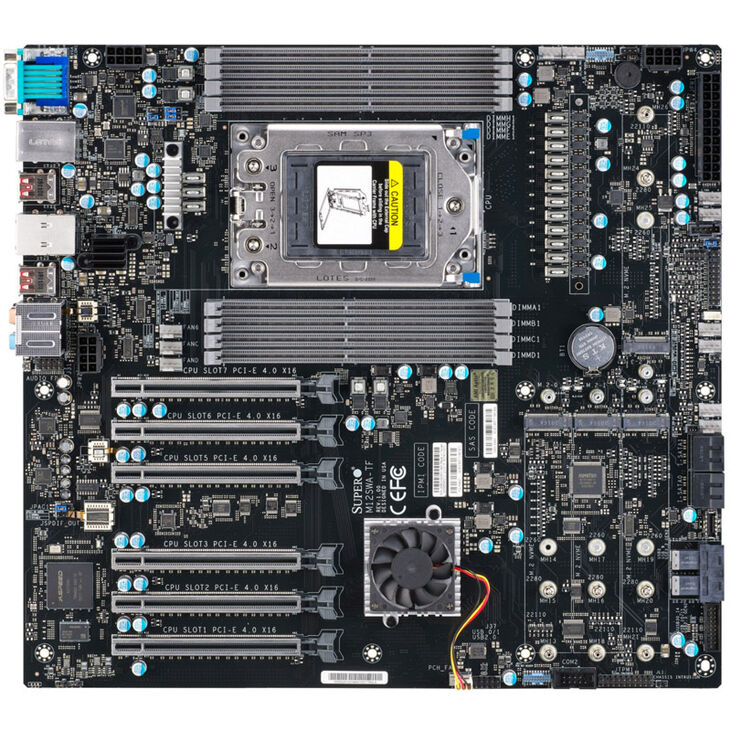

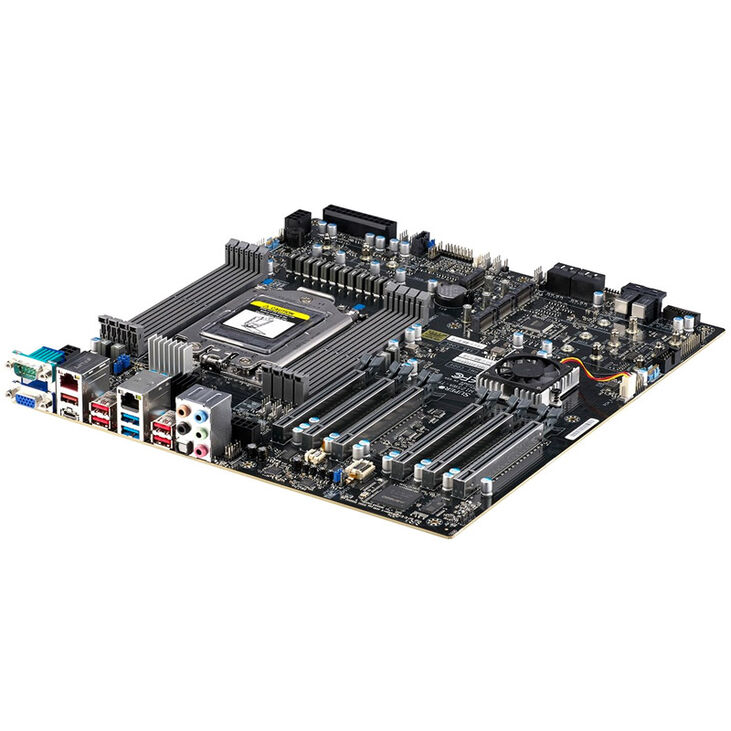

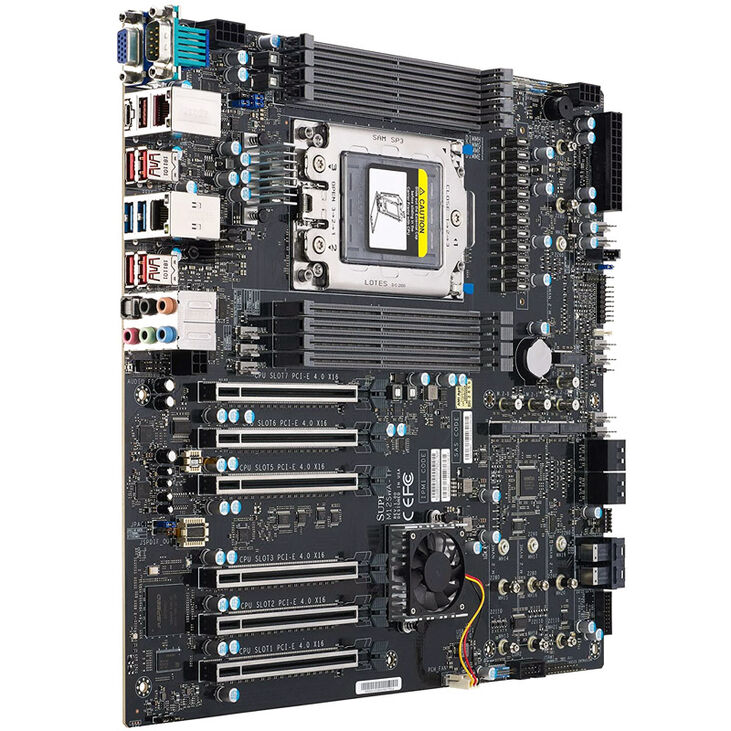

Supermicro M12SWA-TF, AMD WRX80 motherboard socket WRX80
E-ATX motherboard with WRX80 chipset, 6x PCIe 4.0 x16 slots, 4x M.2 slots / 4x SATA, fast LAN
730,81 €
incl. VAT
, add. delivery costs starting from 4.99€
- AMD Ryzen™ Threadripper™ PRO 3000WX Series Processor, up to 64 Cores
- Up to 2TB (RDIMM) / 256GB (UDIMM), ECC/Non-ECC, Unbuffered, U-DIMM, R-DIMM, LRDIMM, and 3DS R-DIMM; 3200Mhz in 8 DIMM slots
- ASPEED AST2600 BMC graphics
- 1x 10GBase-T LAN port
- 1 GbE LAN port (shared with IPMI)
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Form Factor
|
|
|
Motherboard formfactor
|
E-ATX
|
|
CPU
|
|
|
CPU Socket
|
sWRX8
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD WRX80
|
|
Memory
|
|
|
Max. Memory
|
2 TB
|
|
Memory Type
|
DDR4
|
|
Memory slots
|
8x
|
|
Wi-Fi & LAN
|
|
|
LAN Ports
|
1x 10 Gbit/s, 1x 1 Gbit/s
|
|
Wi-Fi / Bluetooth
|
No
|
|
Internal Ports
|
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
4
|
|
USB 3.0 (external) Type A
|
3
|
|
Display Connectors
|
without
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
4
|
|
SAS (internal)
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
6
|
|
PCIe 4.0 x16 mechanical slot
|
6
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
10
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
