Akasa AK-CC6610EP01 Low Profile CPU-Cooler - Socket LGA 1700
Akasa AK-CC6610EP01 in Detail
The Akasa AK-CC6610EP01 is a CPU cooler designed for Intel LGA-1700 CPUs. With its low-profile heatsink measuring only 26.92 mm in height, it doesn't take up much space and fits perfectly in Mini-ITX, cube, and HTPC cases.
Thanks to its bearing, the fan is durable and quiet. The bearing is resistant to contaminants and high temperatures. Additionally, the PWM control ensures the fan runs at a pleasant noise level.

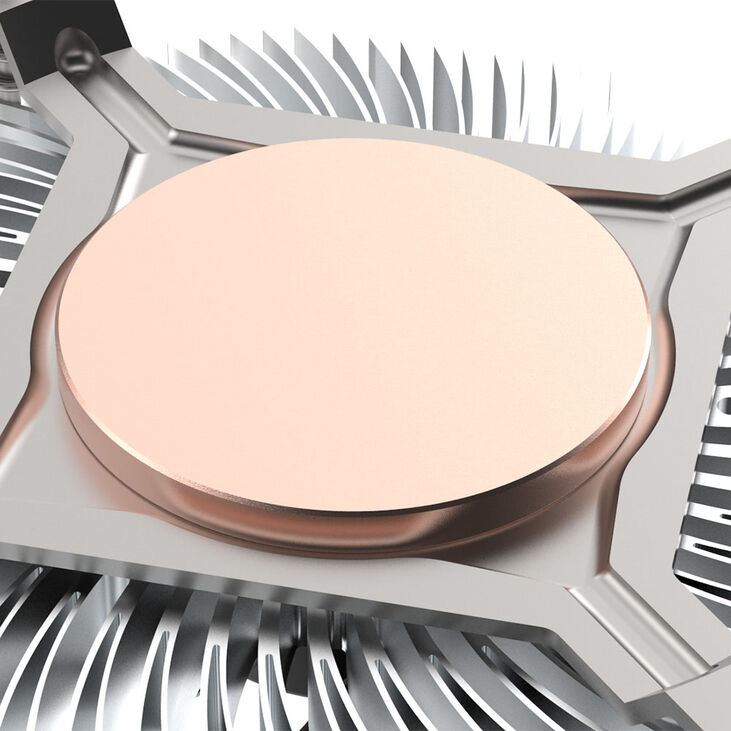

The copper core makes direct contact with your CPU's heat spreader and also connects to the cooling fins, which are arranged in a circular pattern. This design provides more surface area, enhancing heat dissipation.
Easy Installation
Thanks to the push pins, no tools are required for installing the cooler. Simply place it over the mounting holes, then press down with a bit of force to anchor the pins. The top-down design eliminates concerns about large heatsinks or fans getting in the way.
- Dimensions: 87.2 x 85.2 x 26.92 mm (L x W x H)
- Colour: Black, Silver
- Weight: 242 g
- Material: Copper, Aluminium
- TDP Support: 65 W
- Connectors: 1x 4-Pin PWM
- Volume: max. 30.75 dB(A)
- Fan Speed: min. 600, max. 3,000 RPM
- Airflow: 39.84 m³/h
- Static Pressure: 1.81 mmH2O
- Fan Diameter: 75 mm
- Fan Voltage: 12 V DC
- Fan Current: max. 0.19 A
- Compatibility: Intel Socket LGA 1700
- Operating Hours: 40,000 hours
- Scope of delivery:
1x Akasa AK-CC6610EP01 Low Profile CPU Cooler - Socket LGA 1700
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Fan Main Colour (Frame)
|
Silver
|
|
Fan Main Colour (Rotor)
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
87.2 mm
|
|
Width
|
85.2 mm
|
|
Height
|
26.92 mm
|
|
Weight
|
242 g
|
|
Cooler Specifications
|
|
|
Ventilation type
|
active
|
|
CPU
|
|
|
CPU Socket
|
1700, 1851
|
|
Fan Specifications
|
|
|
Min. Fan RPM
|
600 rpm
|
|
Max. Fan RPM
|
3000 rpm
|
|
Max. Single Fan Airflow
|
39.84 m³/h
|
|
Max. Static Pressure
|
1.81 mmH2O
|
|
Noise
|
|
|
Max. Single Fan Noise dB(A)
|
30.75 dB(A)
|
|
Internal Ports
|
|
|
Fan connectors
|
4 Pin (PWM)
|
|
Thermal Specifications
|
|
|
Max. TDP
|
65 W
|
|
Materials
|
|
|
Materials
|
Aluminium, Copper
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
