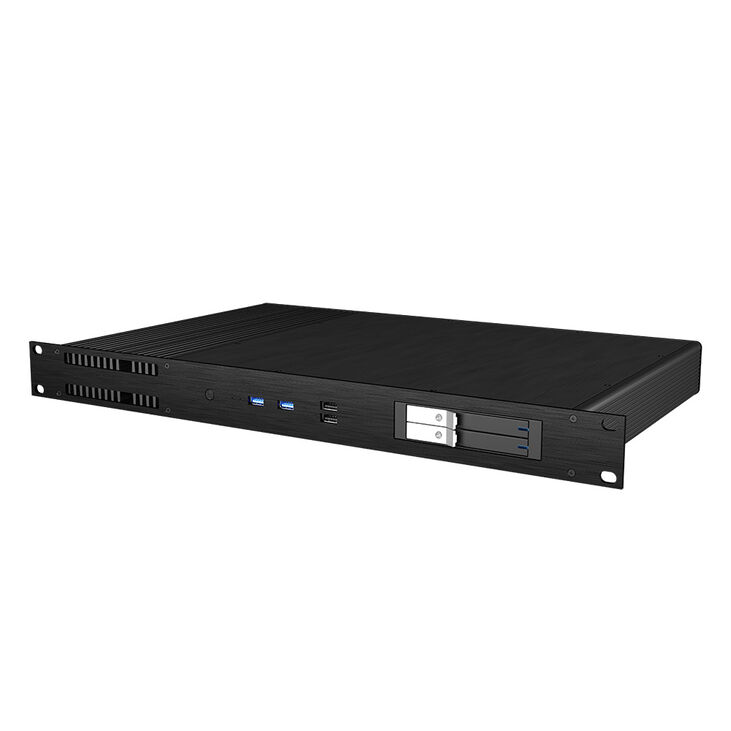

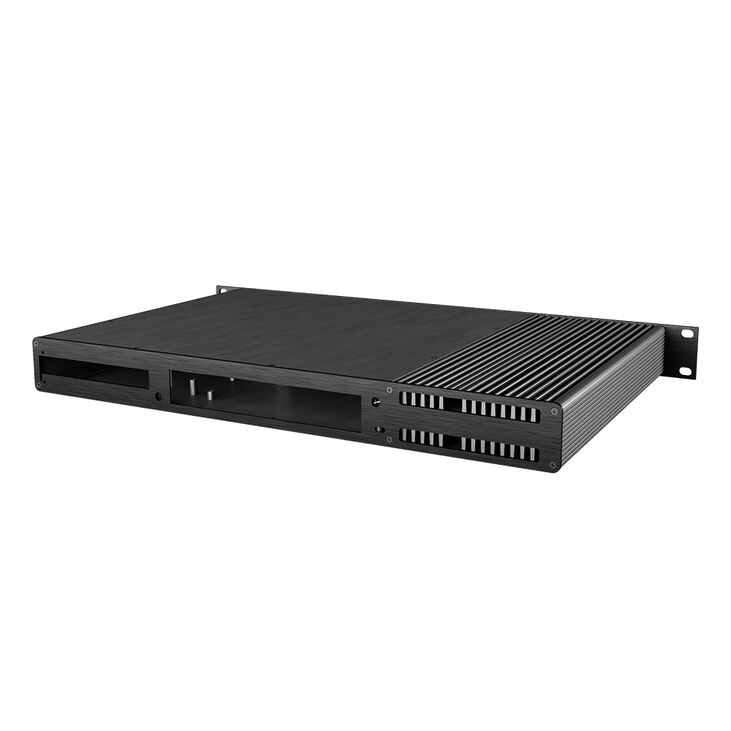

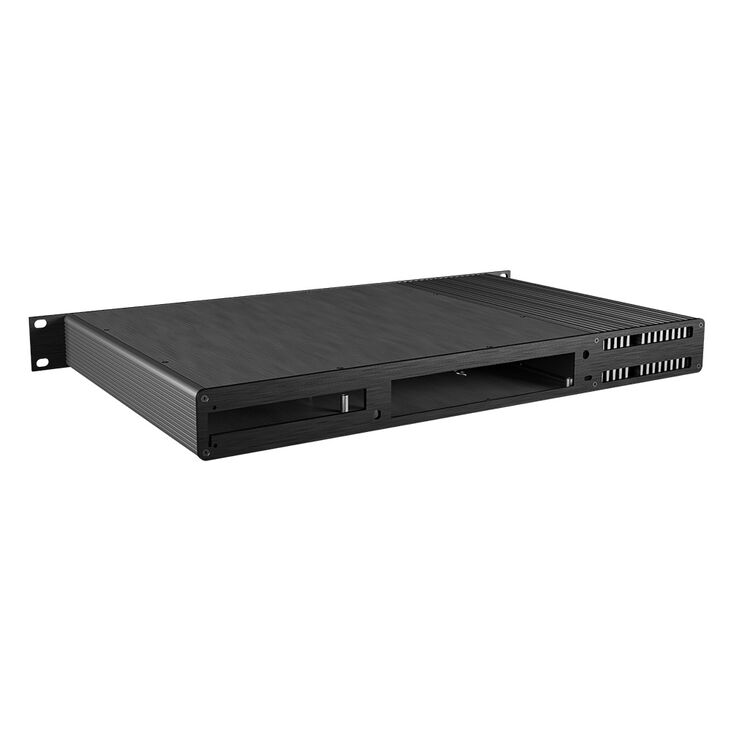

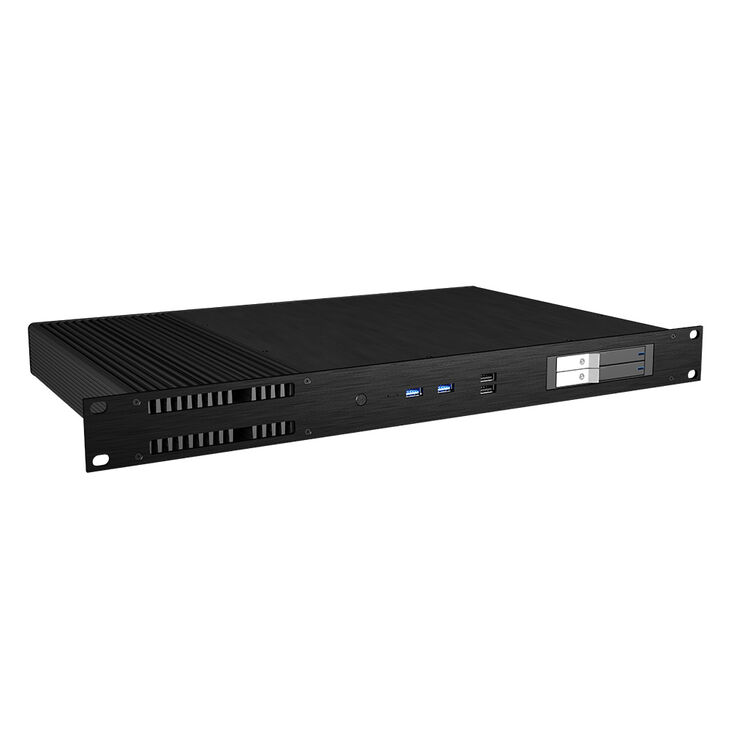

Akasa Galileo TU1 Plus MKII
Galileo TU1 Plus MKII: Functional Case
The Galileo TU1 Plus MKII from Akasa is a special rack case that impresses primarily with its completely fanless cooling. It can be easily integrated into a server rack.
Effective Fanless Cooling
To keep the processor and drives cool, the case uses a special technique. A key part is the material: aluminum is an excellent heat conductor. Additionally, inside the case is a thermal module and efficient copper heat pipes. The heat is transferred from the processor to the fins on the case and then dissipated externally.
Room for Performance
The case easily accommodates processors with an Intel LGA 1700 socket. However, it is important to note that these processors should not exceed 35 watts TDP. The front features two USB 3.2 and USB 2.0 ports. To ensure enough storage for your programs, two 2.5-inch drives can be installed.
- Color: Black
- Material: Aluminum, heat pipes
- Dimensions: 482.6 x 43.6 x 278 mm (W x H x D)
- Form factor: Mini-ITX
- Total fans possible: none
- Drive bays:
2x 2.5-inch - I/O panel:
2x USB 3.2
2x USB 2.0
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
278 mm
|
|
Width
|
482.6 mm
|
|
Height
|
43.6 mm
|
|
Case
|
|
|
Case Type
|
Server Case
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
Mini-ITX
|
|
Max. Motherboard Format
|
Mini-ITX
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Materials
|
|
|
Materials
|
Aluminium
|
