- Passive cooled NUC case
- For Intel NUC 11 / 12 / 13 Pro models with Intel Core i3 CPUs
- Space for one M.2 NVMe SSD storage
- Many connection options with 2x USB 3.2 Type-A
- 1x LAN port for internet connection & 2x HDMI ports for video transmission
Akasa Newton WS NUC case in detail
With the Akasa Newton WS, Akasa offers a fanless case, specifically for Intel NUC 12 / 13 Pro models with Intel Core i3 / i5 / i7 CPUs. It provides completely passive cooling by dissipating heat through the aluminium case. The compact and slim design makes it ideal for use in noise-sensitive environments, such as living rooms or offices.
The Akasa Newton WS case offers robust protection for the internal hardware while ensuring an elegant and modern appearance. The case supports VESA mounts, allowing for flexible installation, for example, behind a monitor.
Compact and versatile

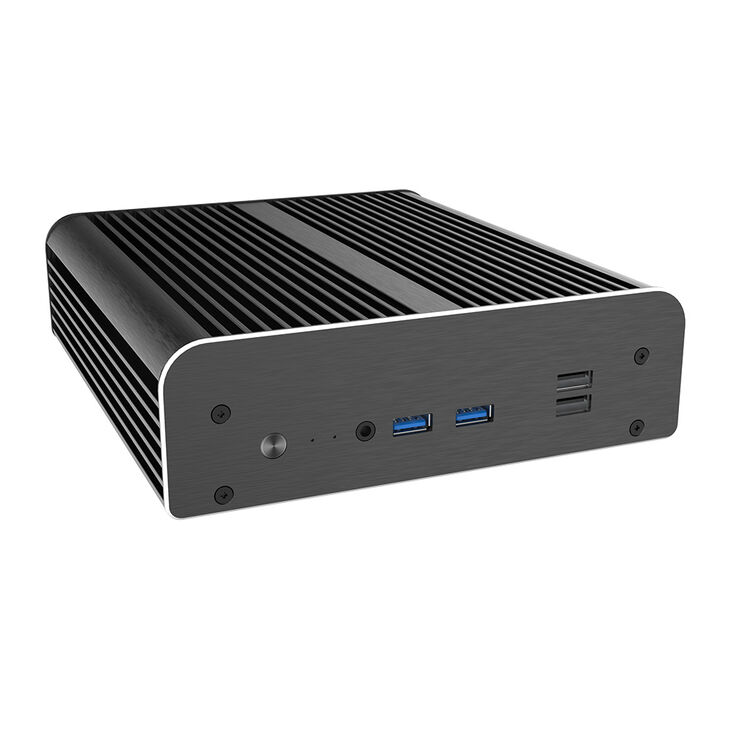

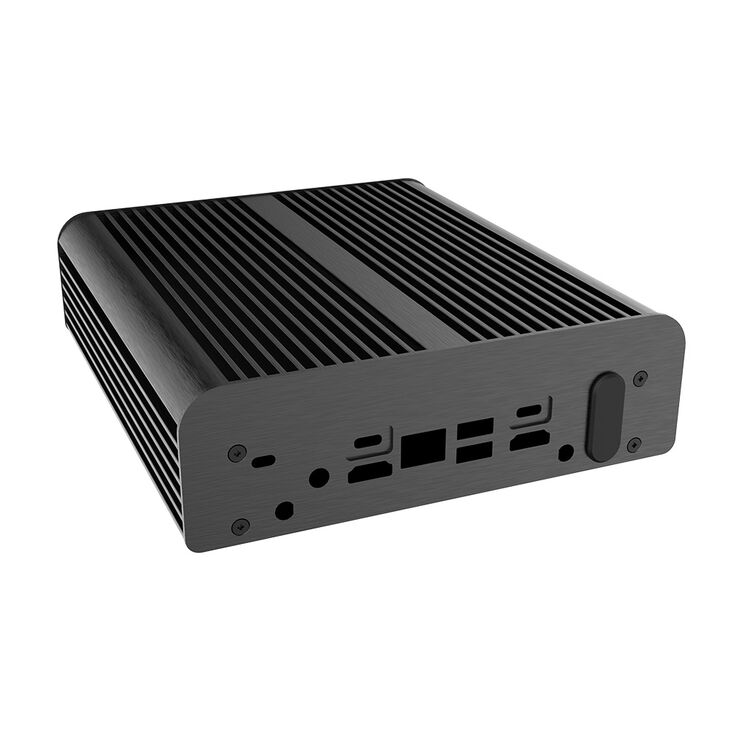

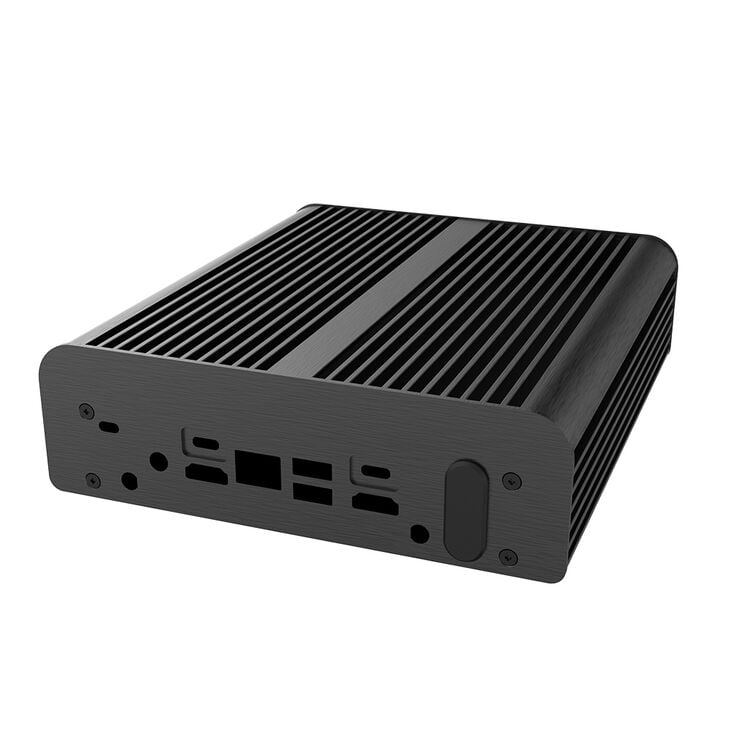

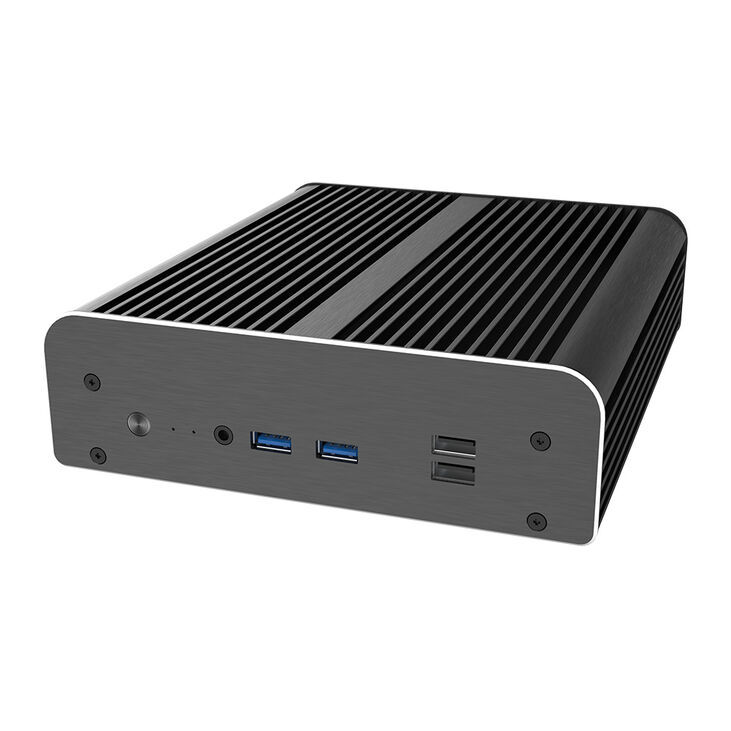

Despite the compact size of 1.89 litres in volume, the Akasa Newton WS case provides a variety of ports for your peripherals. On the front panel, the case offers two USB 3.2 ports, two USB 2.0 ports, and a 3.5mm audio jack. On the back, there are two USB Type-A ports, two USB Type-C ports, a serial port, a LAN port, and two HDMI ports.
Additionally, the case is equipped with a Kensington Lock, which allows for secure attachment against theft, ideal for public or security-sensitive environments.
- Dimensions: 176.6 x 53.6 x 200 mm (W x H x D)
- Material: Aluminium
- Colour: Black
- Compatibility:
Intel NUC 13 Pro Mini PC / Boards / Kits:
NUC13L5Bi3 / NUC13ANBi3 / NUC13ANHi3 / NUC13ANKi3 / NUC13L3Hi3 / NUC13L3Ki3 / NUC13ANKi30WC NUC13L5Bi5 / NUC13ANBv5 / NUC13L5Bv5 / NUC13ANBi5 / NUC13ANHi5 / NUC13ANKi5 / NUC13L3Hv5 / NUC13L3Kv5 / NUC13ANKi50WC NUC13L5Bv7 / NUC13ANBi7 / NUC13ANHi7 / NUC13ANKi7 / NUC13L3Hv7 / NUC13L3Kv7 / NUC13ANKi70QC
Intel NUC 13 Pro Desk Edition Mini PC:
NUC13VYKi70Q / NUC13VYKi50W
Intel NUC 12 Pro (Wall Street Canyon) Mini PC / Boards / Kits:
NUC12WSHv7 / NUC12WSKv7 / NUC12WSHv70Z / NUC12WSKv70Z / NUC12WSHi7 / NUC12WSKi7 / NUC12WSHi70Z / NUC12WSKi70Z / NUC12WSBv7 / NUC12WSBi7 NUC12WSHv5 / NUC12WSKv5 / NUC12WSHv50Z / NUC12WSKv50Z / NUC12WSHi5 / NUC12WSKi5 / NUC12WSHi50Z / NUC12WSKi50Z / NUC12WSBv5 / NUC12WSBi5 NUC12WSHi3 / NUC12WSKi3 / NUC12WSHi30Z / NUC12WSKi30Z / NUC12WSBi3
Intel NUC 11 Pro Mini PC / Boards / Kits:
NUC11TNKi3 / NUC11TNHi3 / NUC11TNBi3 NUC11TNKi5 / NUC11TNHi5 / NUC11TNBi5 / NUC11TNKv5 / NUC11TNHv5 / NUC11TNBv5 NUC11TNKi7 / NUC11TNHi7 / NUC11TNBi7 / NUC11TNKv7 / NUC11TNHv7 / NUC11TNBv7 - I/O openings:
1x Power supply
2x USB Type-A
2x USB Type-C
2x HDMI
1x Serial Port
1x LAN - Front Panel I/O:
1x Power button
2x USB 3.2 Type-A
2x USB 2.0
1x 3.5 mm jack
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
200 mm
|
Width
|
176.6 mm
|
Height
|
53.6 mm
|
Case
|
|
Case Type
|
Mini Case
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
UCFF
|
Max. Motherboard Format
|
UCFF
|
Internal Dimensions
|
|
Inner Volume
|
1.89 l
|
Case Features
|
|
I/O position
|
Back
|
Front door
|
No
|
Cable Management
|
No
|
Filters Included
|
No
|
Noise dampening
|
No
|
Mainboard slide / tray
|
Yes
|
Materials
|
|
Materials
|
Aluminium
|
Lighting
|
|
Lighting / RGB
|
No
|
Fan / RGB control
|
No
|
Additional Contents
|
|
Included fans
|
None
|
