- Solid aluminium fanless cooling design
- Stylish cover panels with diamond effect

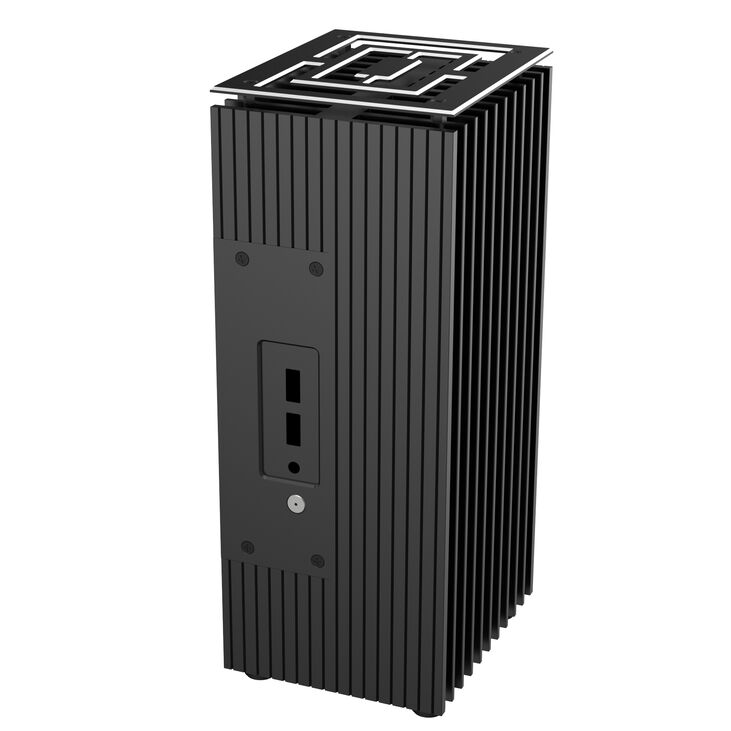

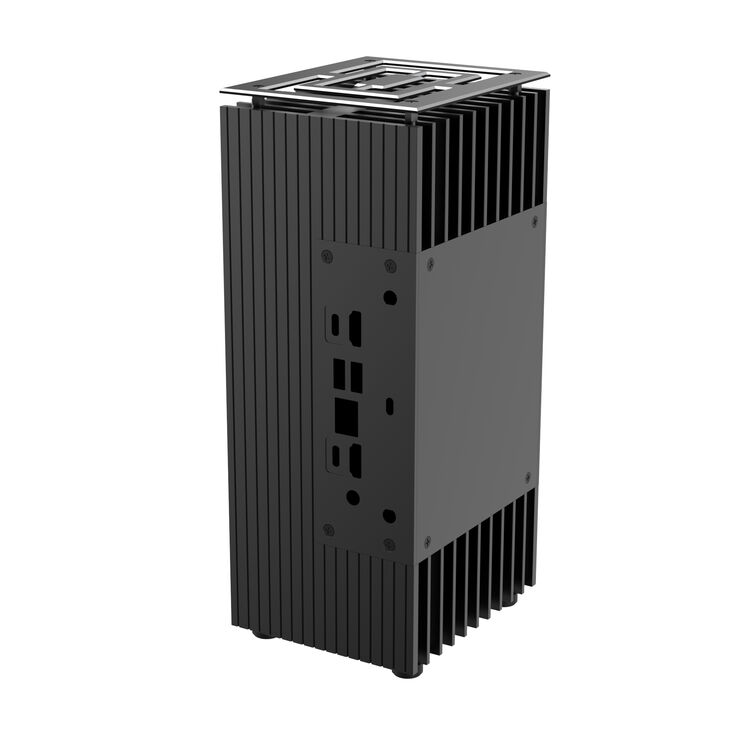

- Positioned vertically or horizontally
- Perfect for home, business and commercial applications
- Designed for Coreâ„¢ i3, i5 and i7 with vPro® technology up to the thermal point of 28W
Perfectly balanced in cooling performance, compact size and contemporary design. Internal M.2 SSD heatsink reduces heat and enhances performance. Compatible with Intel® NUC 12/13 Pro with Core™ i7 up to 28W thermal point.
Superb Cooling Performance
Excess heat from CPU and GPU dies are effectively transferred from thethermal modulesto the all-aluminium body which acts as a heatsink to dissipate the heat to the surrounding. Ensuring the system runs at optimal thermal performance.
Cool Storage, Cool Performance
Internal M.2 SSD heatsink reduces heat and enhances performance.
Contemporary and Made-to-Last Design
Aluminium case provides durability and long-lasting use. Coupled with symmetrically extruded fins and striking classical inspired panels for stunning aesthetics and functionality, which means the case look great in any environment.
Supports up to Four 4K Displays
The Turing WS case provides connector opening for dual HDMI and dual Thunderbolt 4 from the Intel® NUC 12/13 Pro (Wall Street Canyon/ Arena Canyon) for connectivity of four 4K displays. Perfect for an array of business applications such as security and digital signage.
Wide Application Capabilities
Ideal for home and business applications from digital signage to home-theatre setups and more.
Perfect for Casual Gaming
The Turing WS is designed for the Intel® NUC 12/13 Pro (Wall Street Canyon/ Arena Canyon) with Intel® mobile processor up to Core™ i7 with integrated Intel® Iris® Xe Graphics. So play without fan noise so you can focus on your gaming experience!
Perfect for your Build
Optional hi-quality external antenna (A-ATN01-BK) and corresponding pigtail (A-ATC01-150GR) to connect the antenna to the Wi-fi connector. Perfect additions for your fanless Intel NUC build should a wireless connection be required.
The Intel® NUC 12/13 Pro (Wall Street Canyon/ Arena Canyon) is available as a Mini-PC, Kit or Board models. For Board only models, there are optional compatible external power adapters available: 120W, 19V (AK-PD120-04M) for the Core i7 and i5 models, and 90W, 19V (AK-PD090-01M) for the Core i3 model.
Colour
|
|
Primary Colour
|
Black
|
Dimensions
|
|
Length / Depth
|
113.5 mm
|
Width
|
95 mm
|
Height
|
247.9 mm
|
Case
|
|
Case Type
|
Aluminium Case
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
UCFF
|
Max. Motherboard Format
|
UCFF
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
external
|
Power Supply Position
|
External
|
Radiator Support
|
|
Max. Radiator Compatibility
|
no
|
Drive Bays
|
|
2.5 inch internal drive bay
|
1
|
Hot swap drive bays
|
No
|
External Ports
|
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output + 1x input (3.5 mm jack, 3-pin, TRS)
|
Card reader
|
No
|
HDMI sockets
|
2x
|
Case Features
|
|
I/O position
|
Back
|
Side panel
|
closed
|
Front door
|
No
|
Cable Management
|
No
|
Filters Included
|
No
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Remote included
|
No
|
Transport System
|
No
|
Features
|
|
Housing Feedthrough
|
No
|
Materials
|
|
Materials
|
Aluminium
|
Lighting
|
|
Lighting / RGB
|
No
|
Fan / RGB control
|
No
|
Additional Contents
|
|
Included fans
|
None
|
