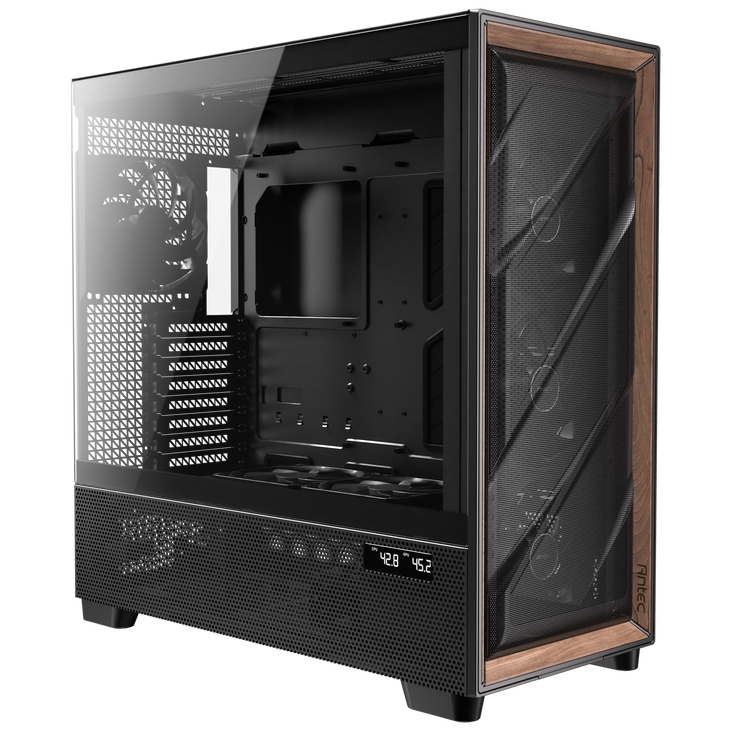

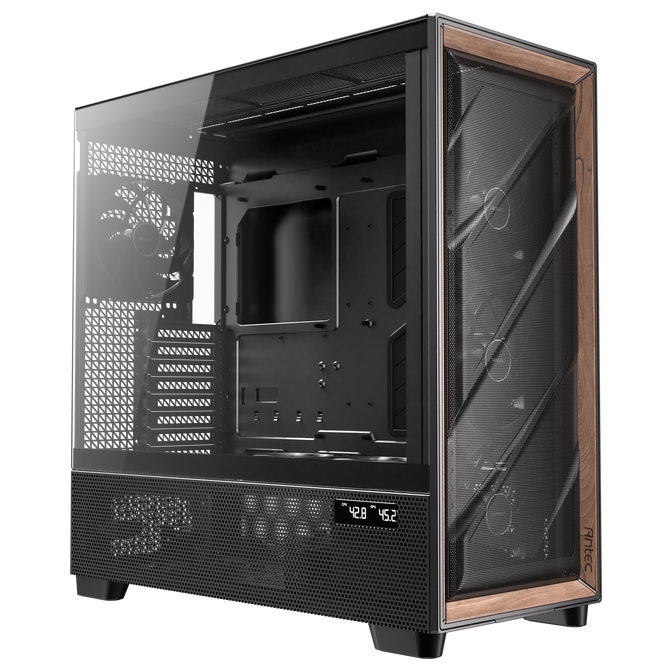

Antec Flux Pro PC case, full tower, E-ATX, tempered glass – black
- Midi tower with real walnut wood appearance and efficient airflow design

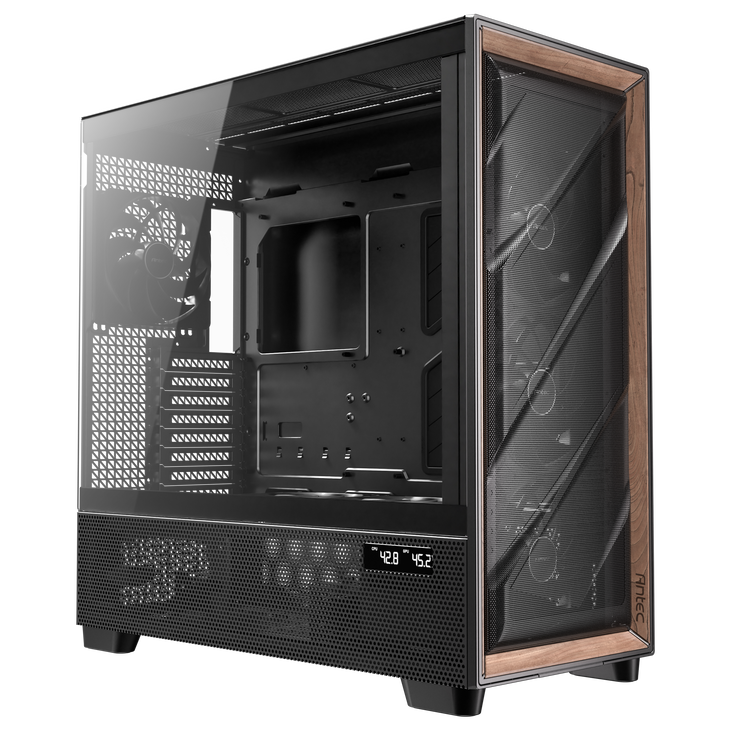

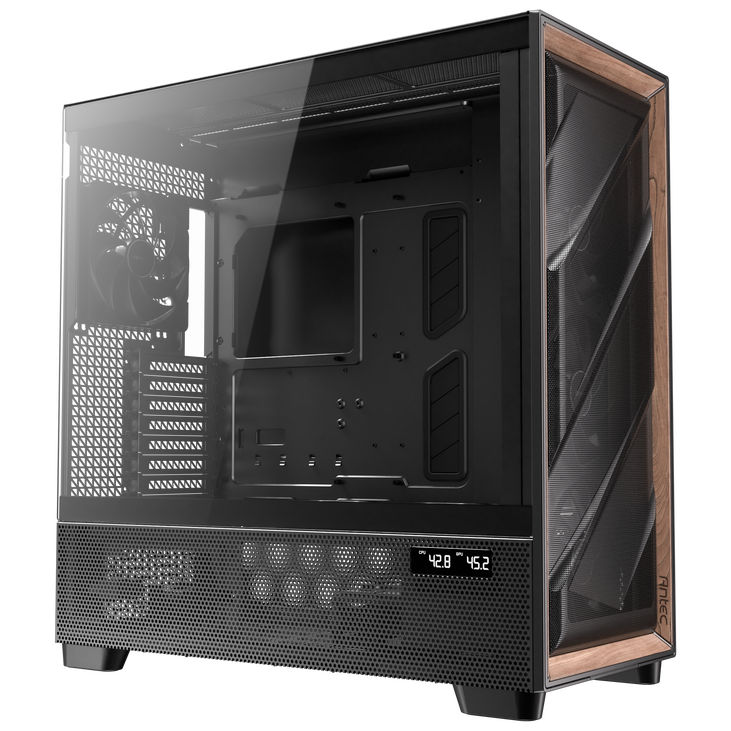

- Left side panel made of tempered glass for better visibility

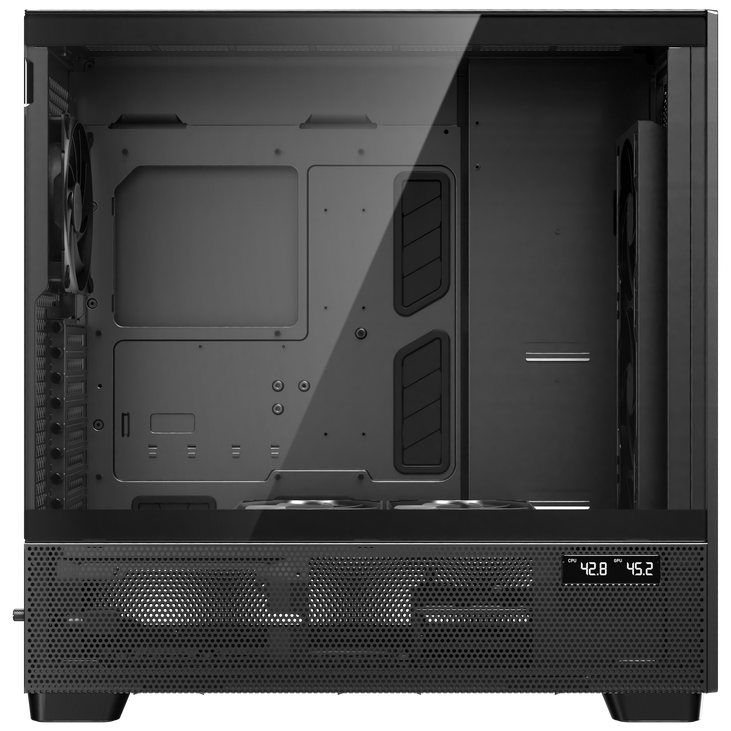

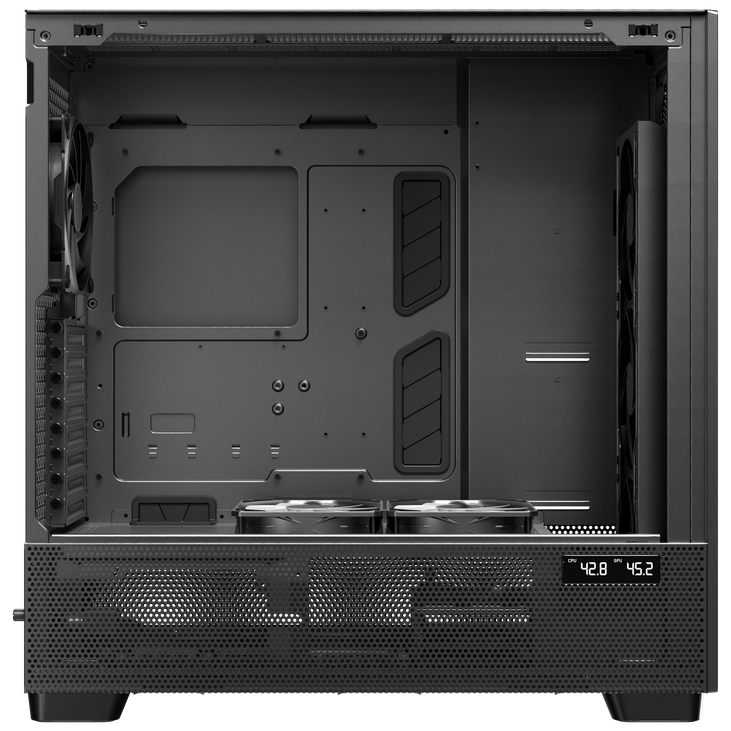

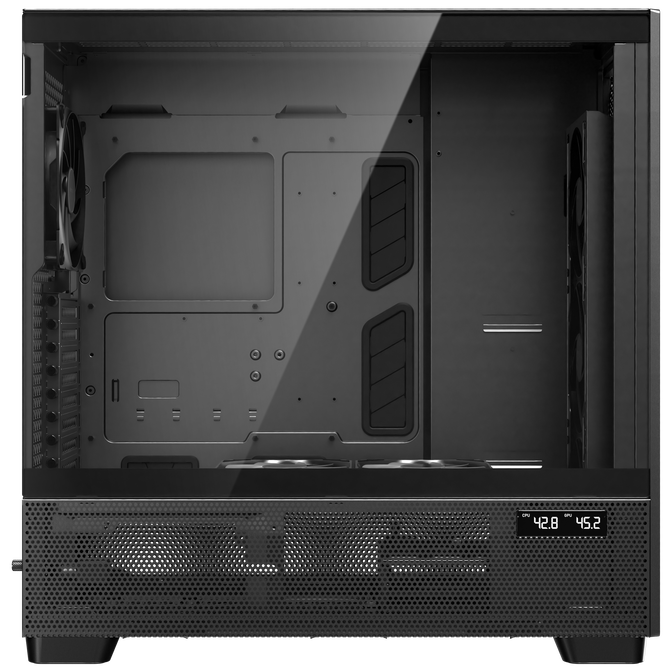

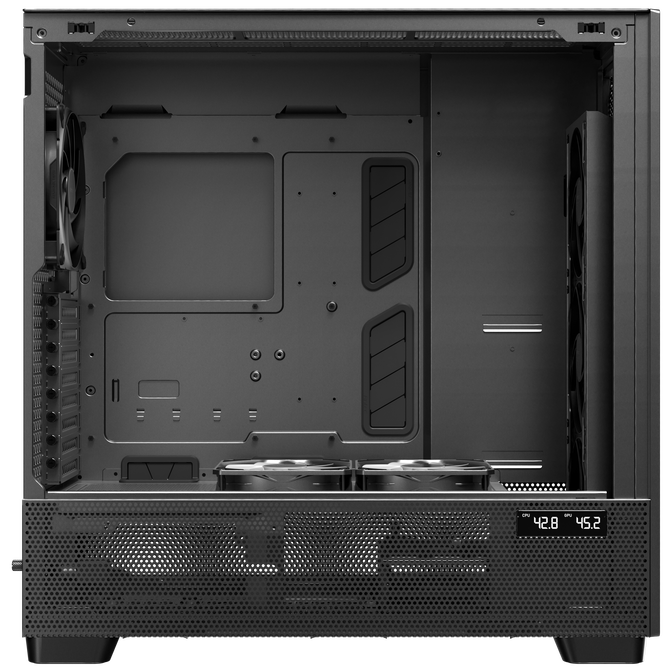

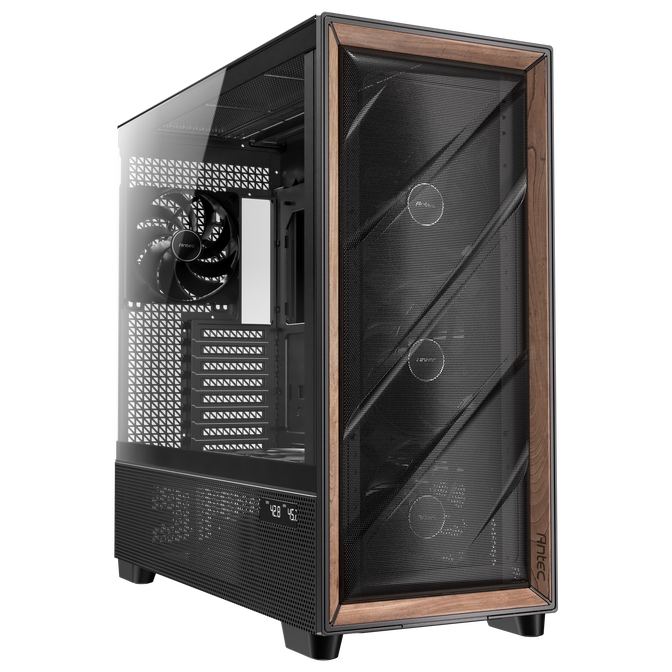

- Temperature display for CPU and GPU on the left side
- Side power supply mounting for easy cable management
- Pre-installed fans: two 120 mm fans and four 140 mm fans
- Integrated ARGB and fan hub for convenient control
- Capacity for up to twelve 120 mm or 140 mm fans
Antec Flux Pro: Advanced cooling and stylish design

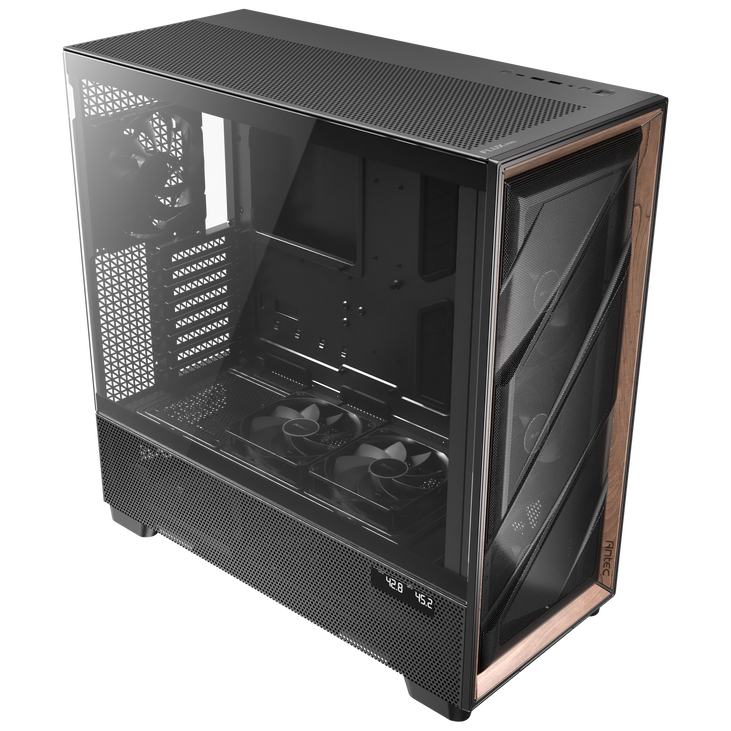

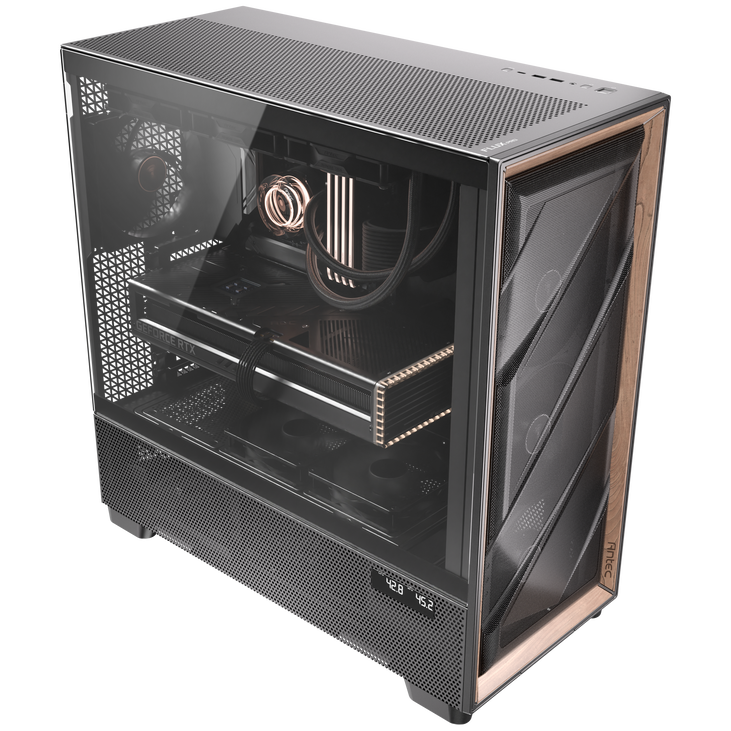

The Antec Flux Pro midi tower case combines effective cooling performance with an elegant design. The thoughtful fan arrangement ensures optimal airflow and keeps the components reliably cool even under heavy load. An integrated temperature display for CPU and GPU allows for constant performance monitoring and adjustments as needed.

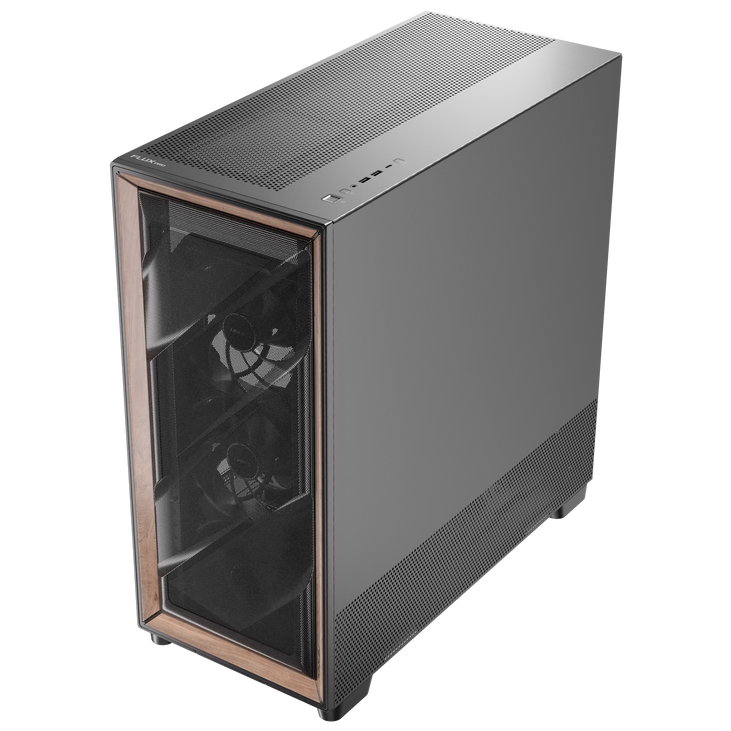

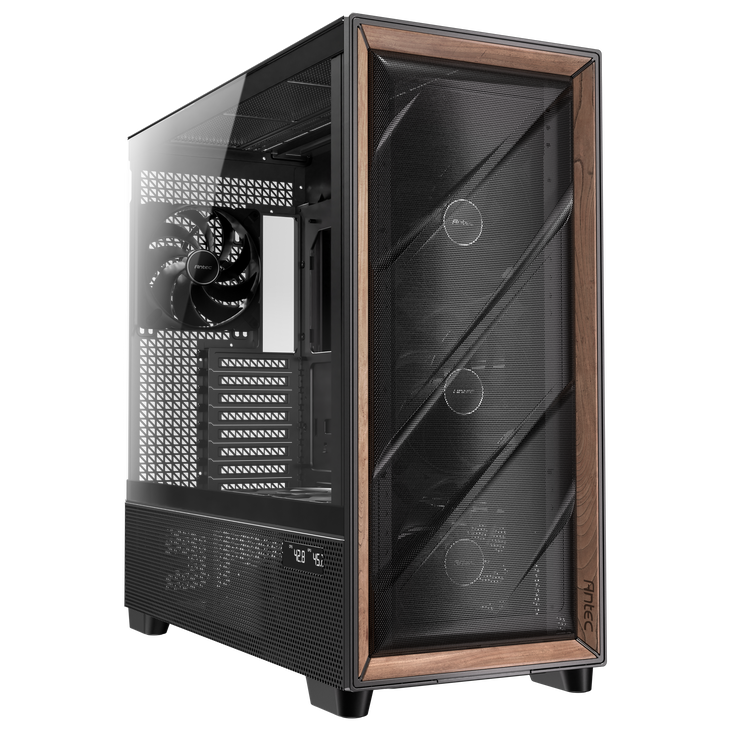

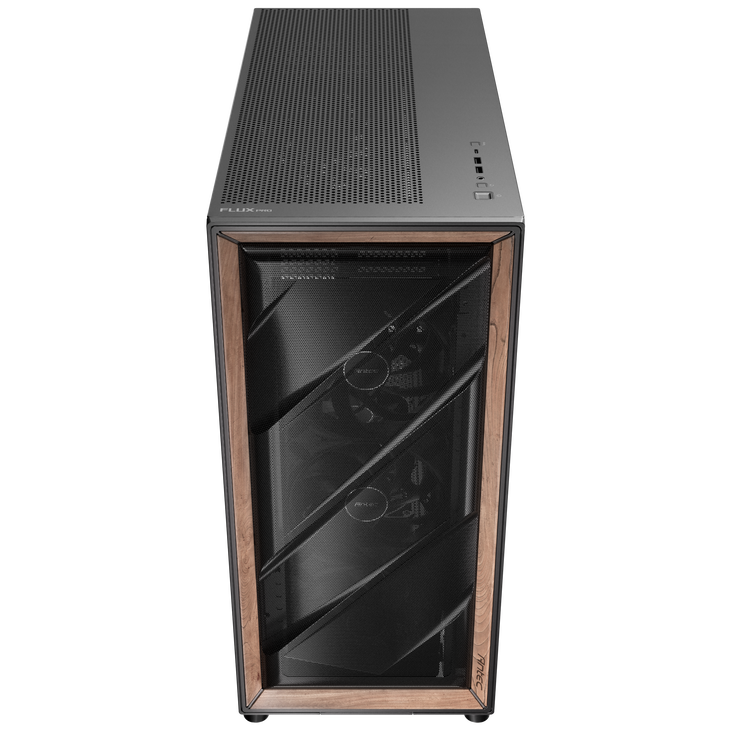

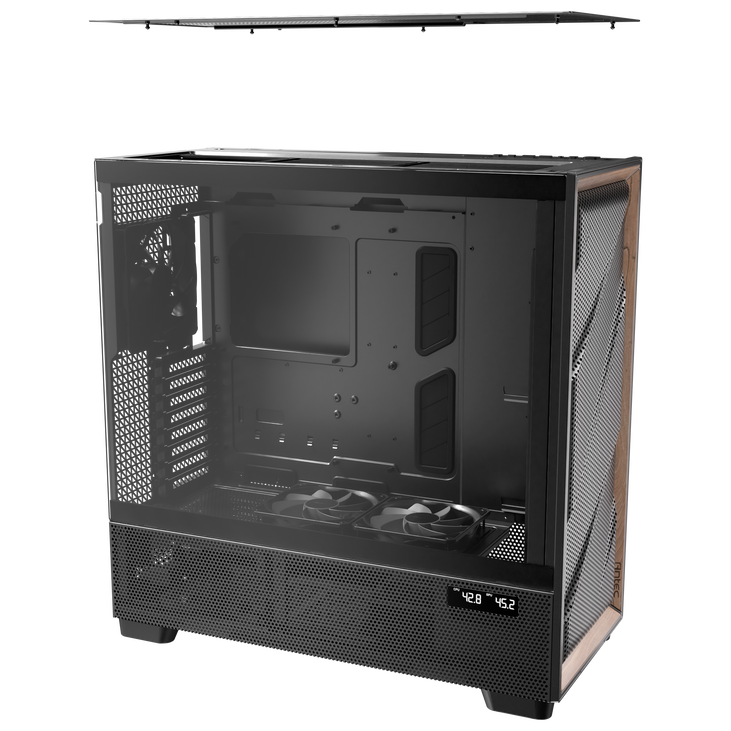

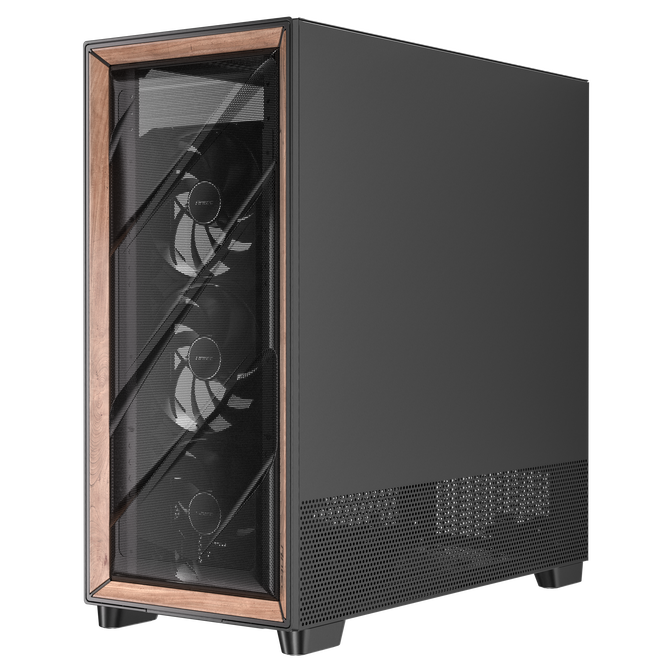

With fine walnut wood details, the case adds a natural, high-quality touch to your setup. The left side panel made of tempered glass completes the timeless design and showcases the installed hardware impressively.
Thoughtful cable management and easy installation

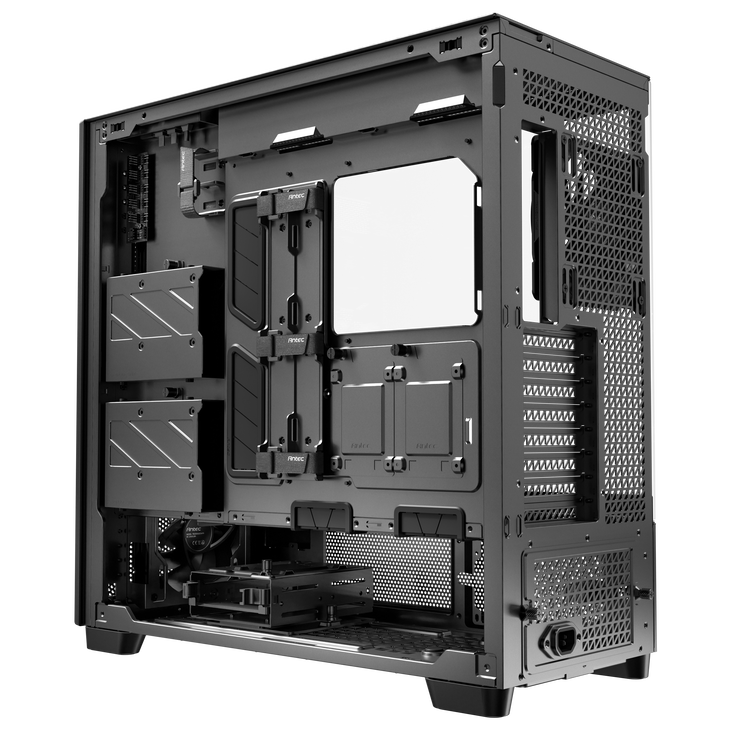

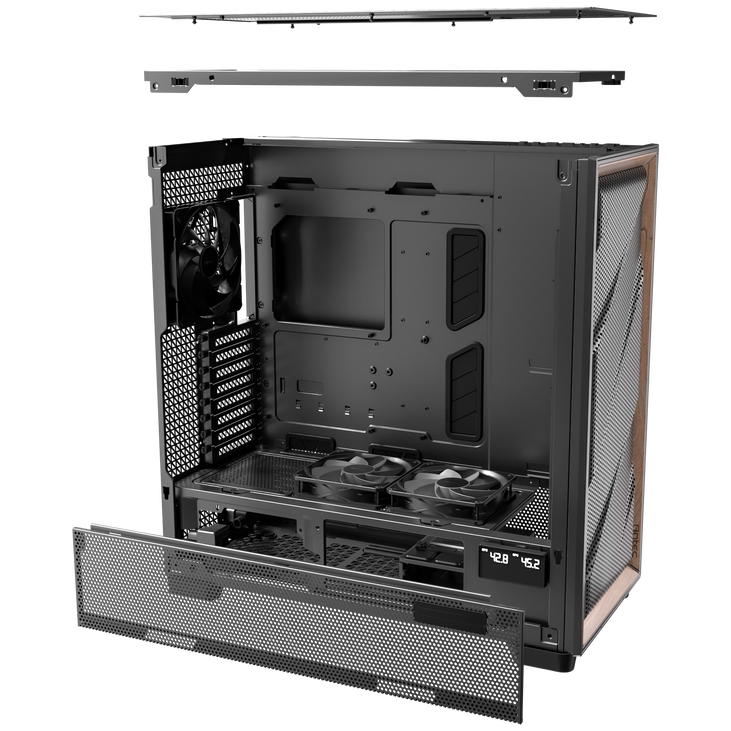

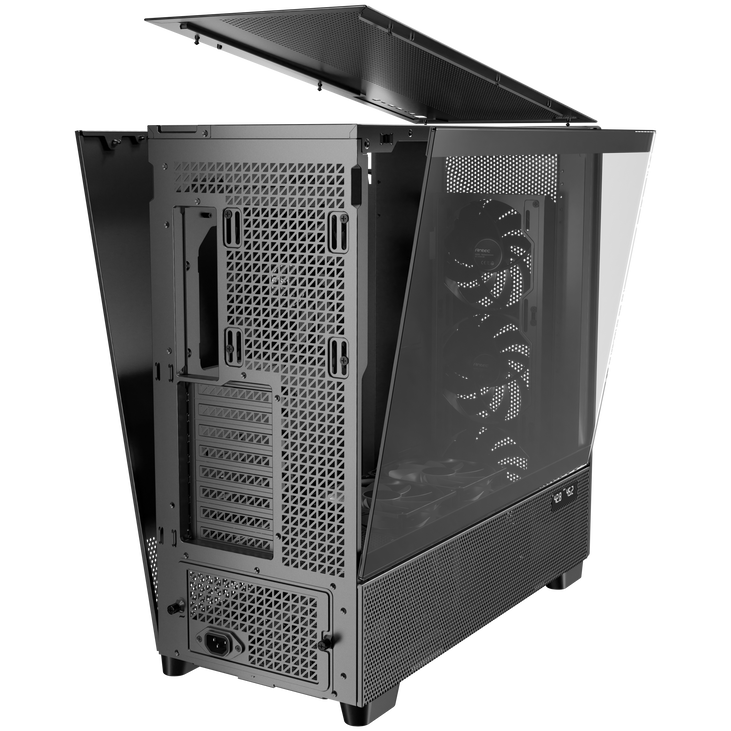

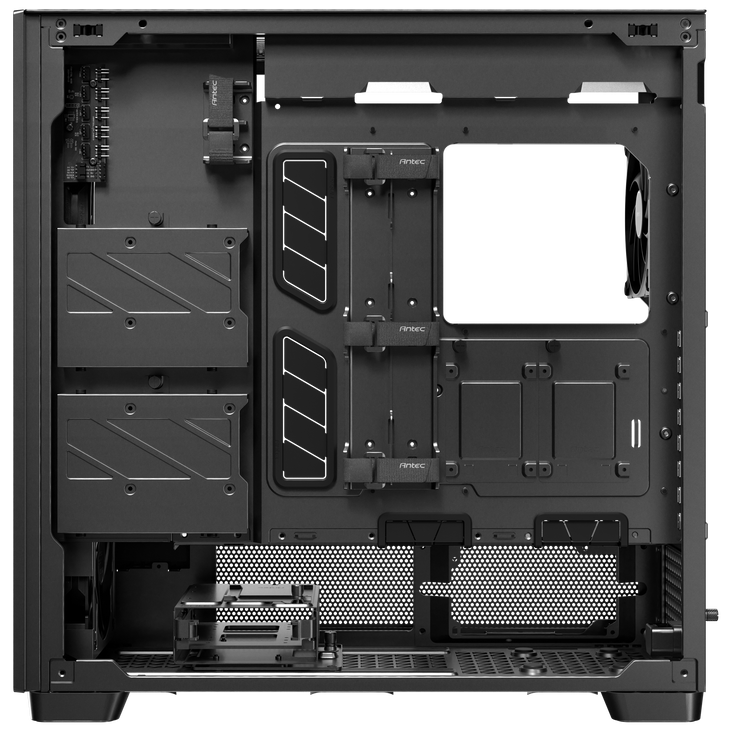

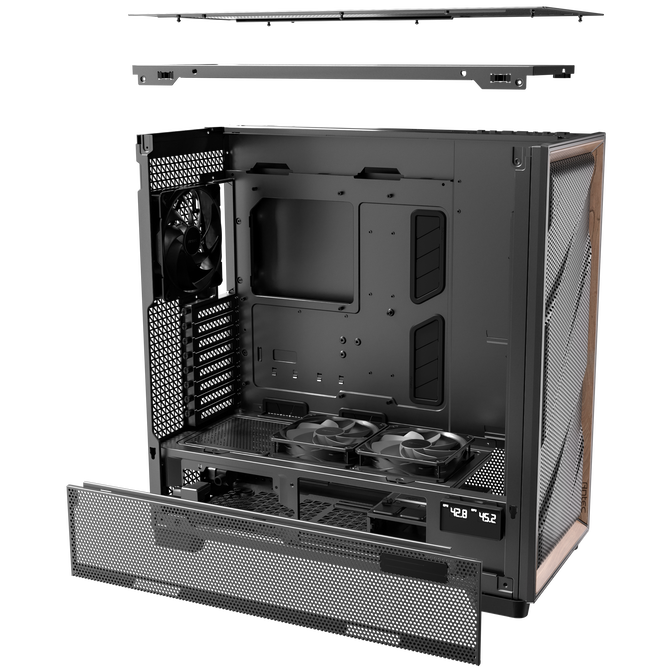

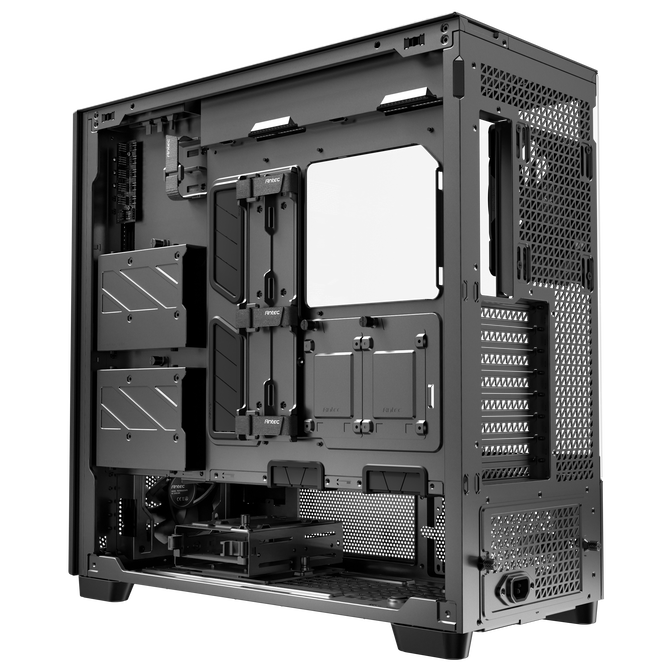

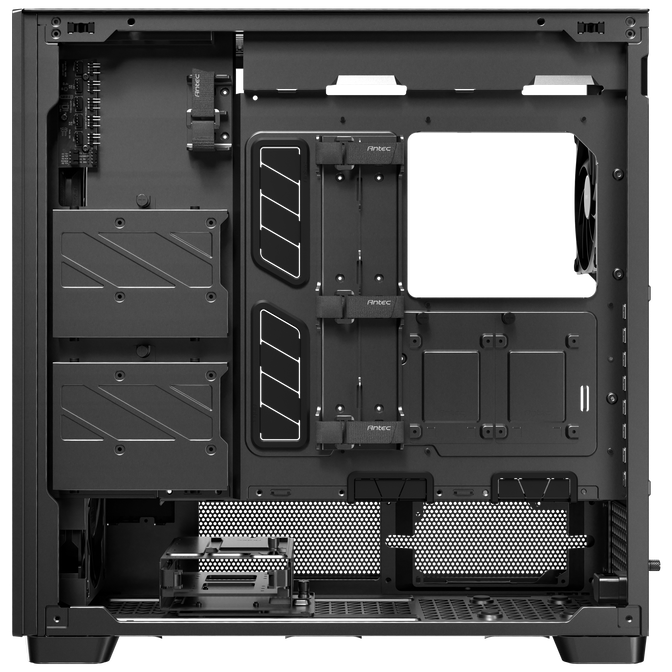

The side power supply mounting creates additional space for tidy cable routing and enables an extended air intake at the bottom, which improves airflow and contributes to system cooling. Integrated Velcro straps and cable ties keep the cables neatly secured and easily accessible, simplifying assembly and later adjustments.
Strong cooling: Whether with air or water

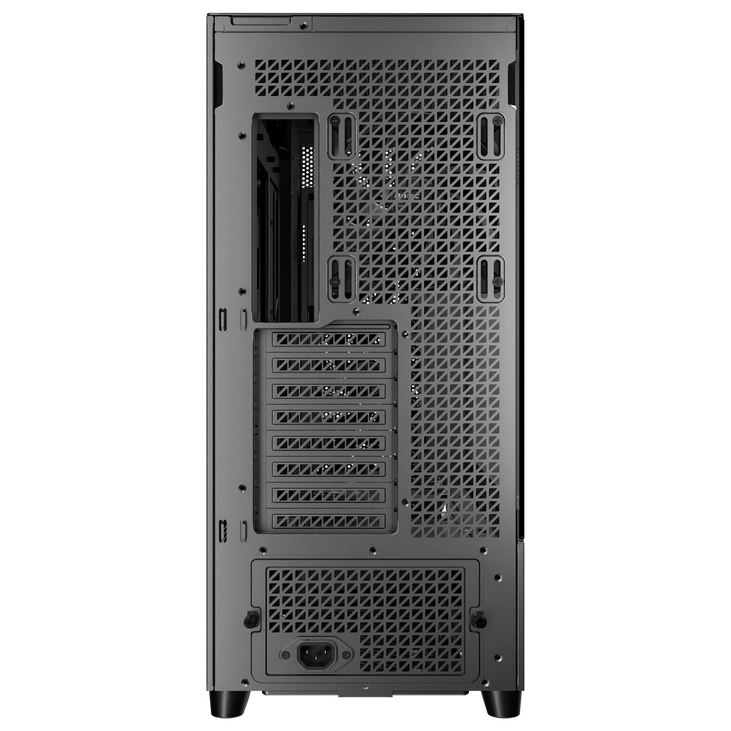

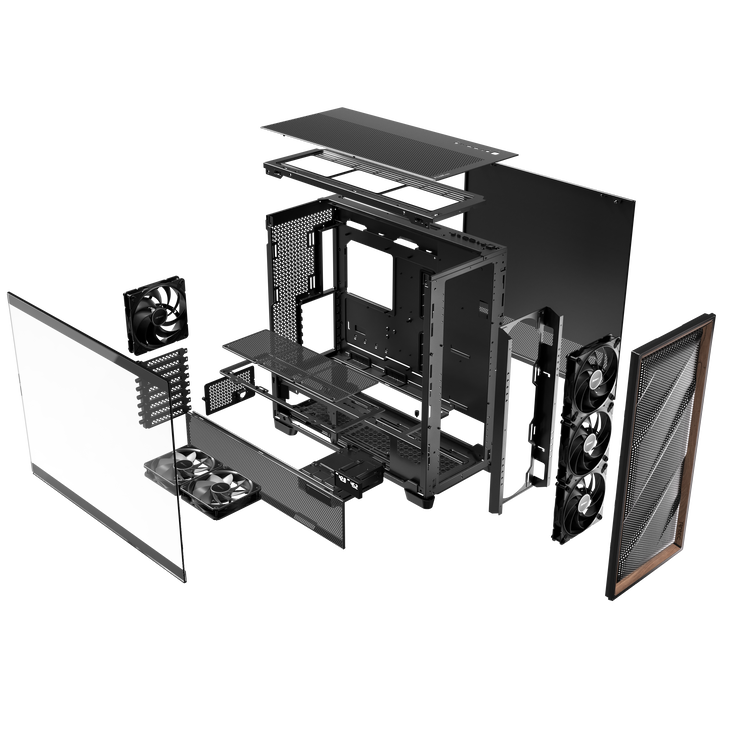

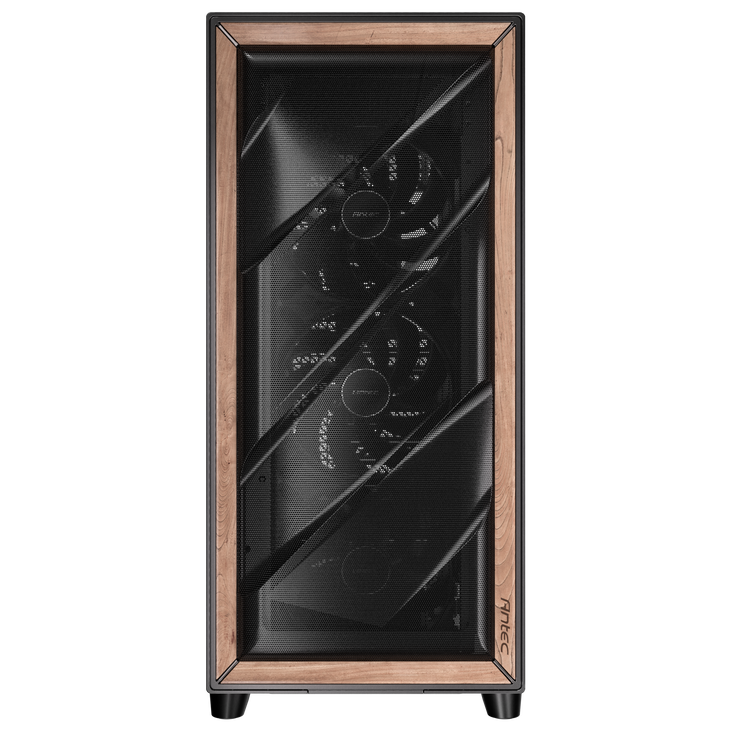

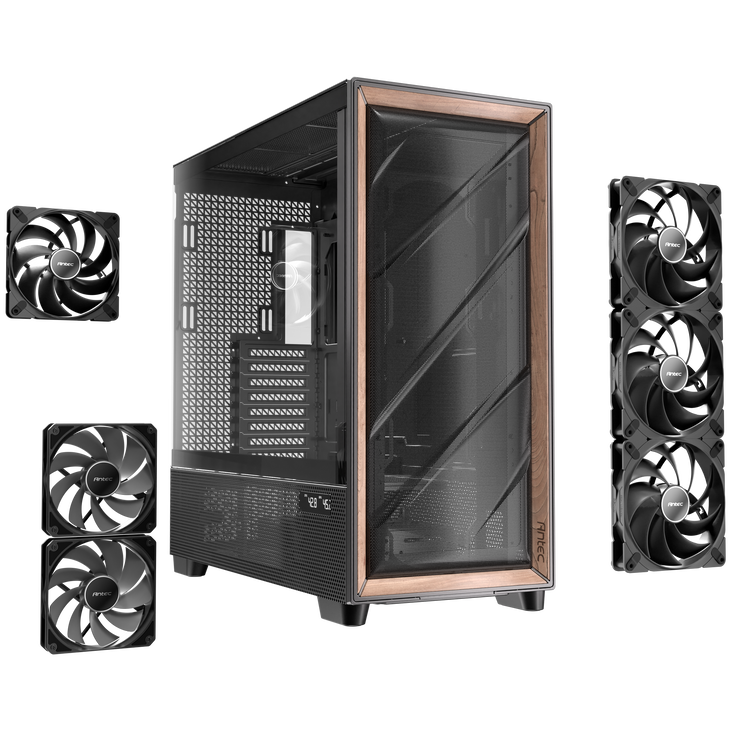

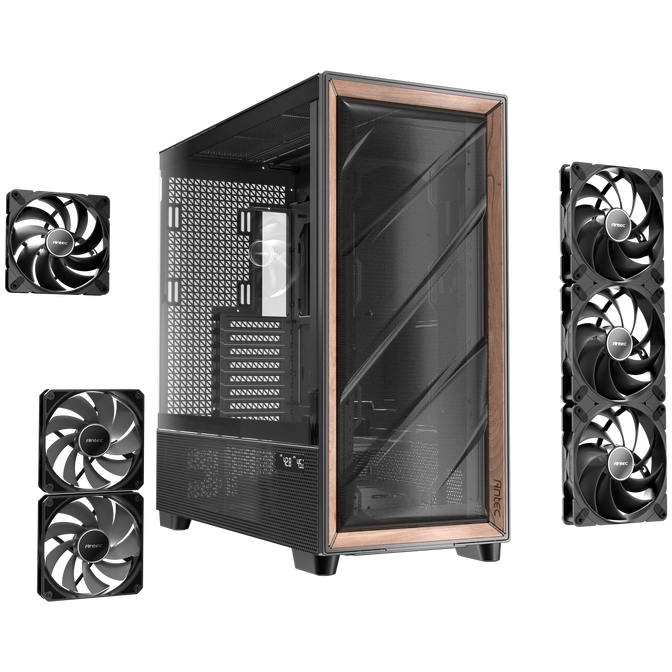

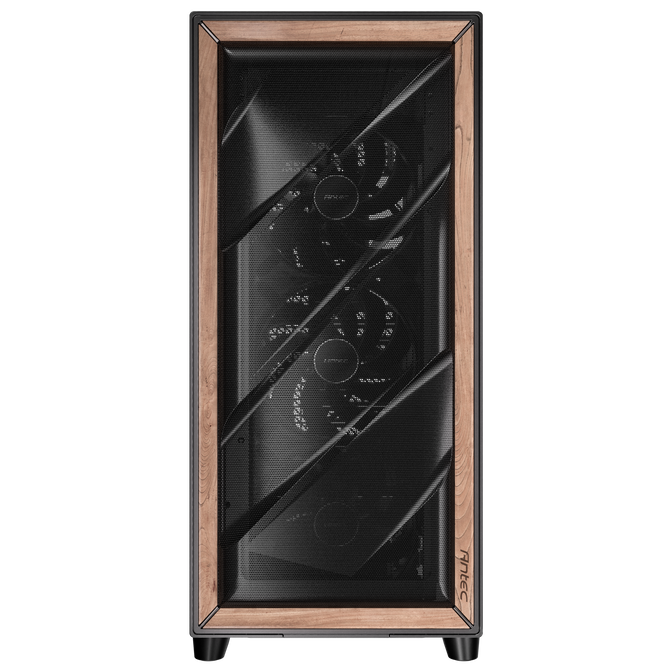

The Antec Flux Pro is equipped with three 140 mm fans at the front, two 120 mm reverse fans on the power supply cover, and one 140 mm fan at the back. This pre-installed fan configuration offers excellent value for money, providing solid baseline cooling without additional investment.

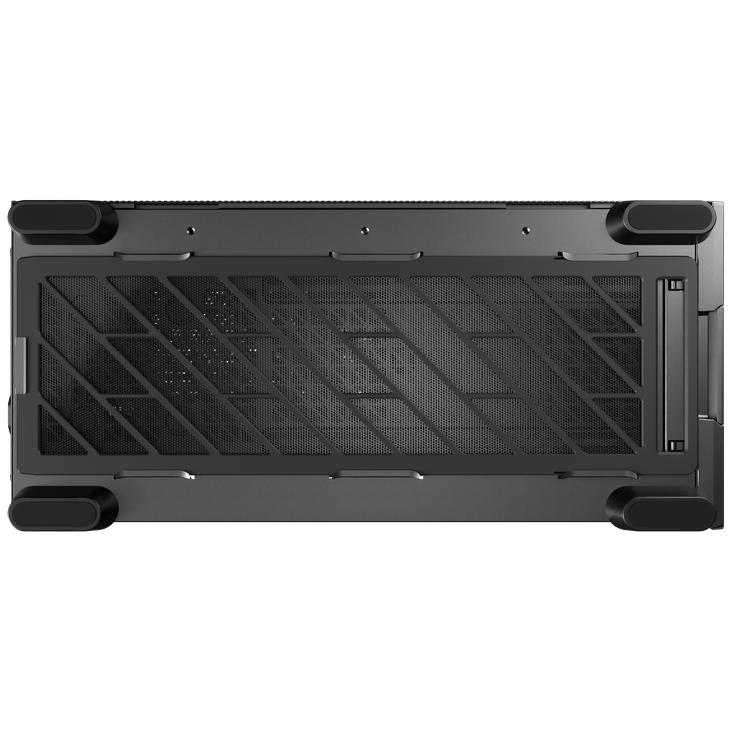

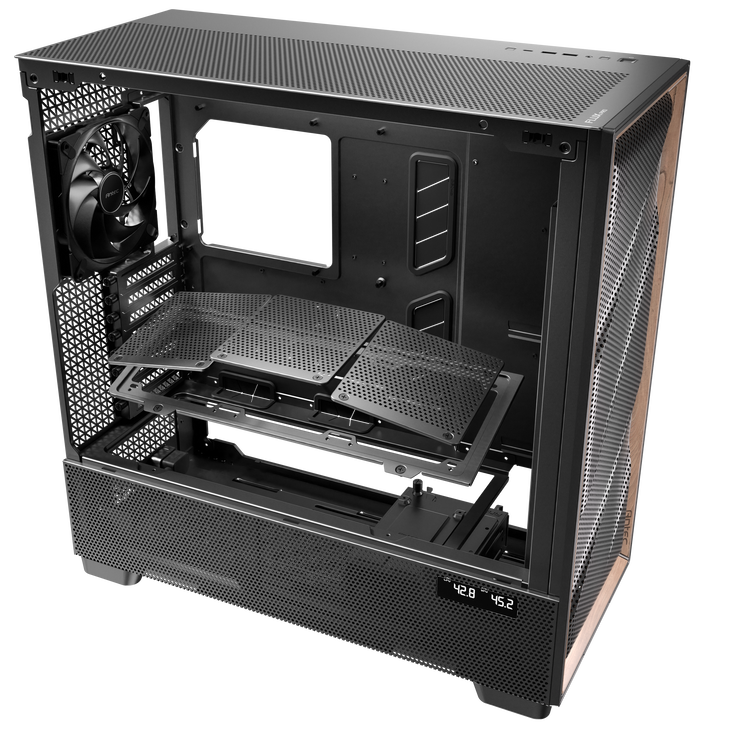

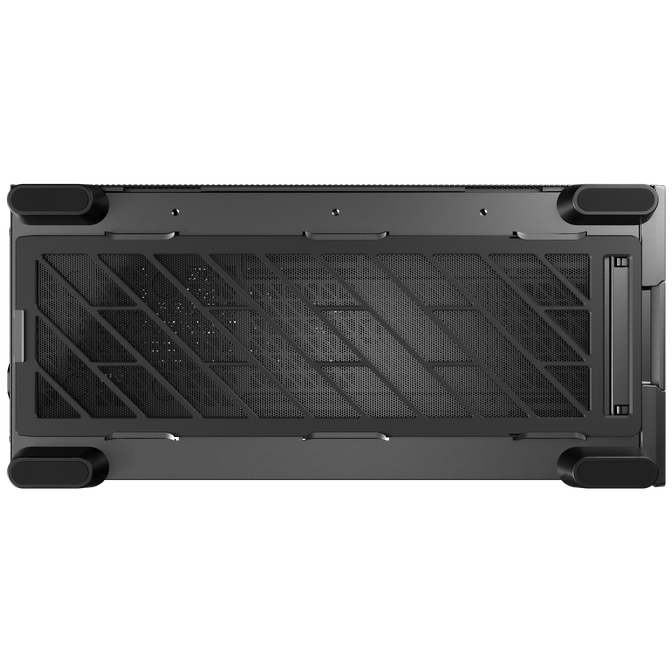

For high flexibility in cooling, the case accommodates up to twelve 120 mm or 140 mm fans. A dust filter at the bottom protects the hardware from dirt. The Flux Pro supports radiators of various sizes: up to 420 mm, two 360 mm radiators, as well as 140 mm and 240 mm. This allows for optimal adjustment of cooling between air and water depending on needs and system requirements.

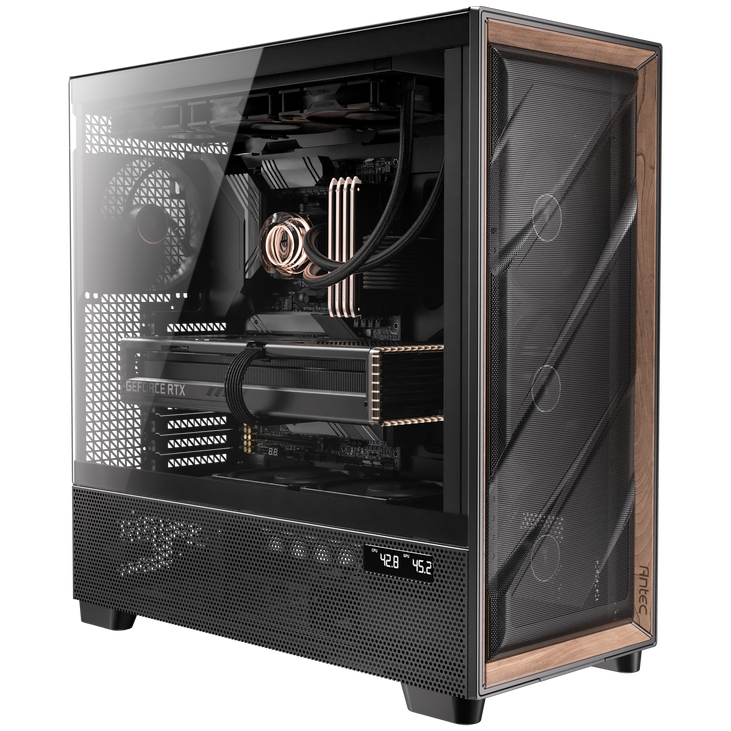

Ample space for components

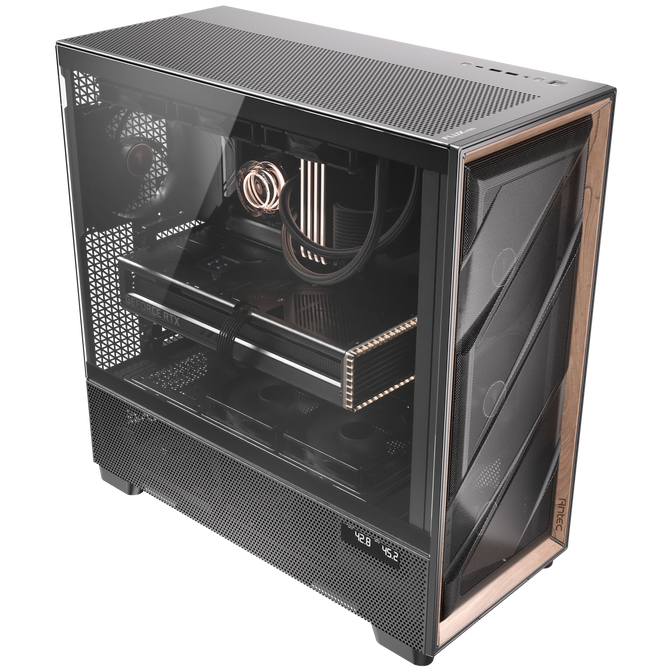

The case provides sufficient space for motherboards up to E-ATX size (up to 285 mm) and allows for the installation of CPU coolers with a height of up to 190 mm.
Depending on the radiator and fan configuration, graphics cards up to a length of 455 mm can be installed. Power supplies up to 470 mm in length also fit easily, ensuring even large components can be optimally accommodated.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
530 mm
|
|
Width
|
245 mm
|
|
Height
|
545 mm
|
|
Weight
|
13.6 kg
|
|
Case
|
|
|
Case Type
|
Full Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, E-ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
E-ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
190 mm
|
|
Max. GPU Length
|
455 mm
|
|
Max. PSU Length / Depth
|
470 mm
|
|
Display
|
|
|
Display Included
|
Yes
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (2x), 140mm Fan (2x)
|
|
Case Fan Support (Front)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x), 140mm Fan (1x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (3x)
|
|
Max. Number of Fans
|
12
|
|
120 mm fans
|
12
|
|
140 mm fans
|
9
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
1x Dual (240 mm), 1x Single (140 mm), 2x Triple (420 mm)
|
|
Radiator/AIO Support (Bottom)
|
120mm Radiator, 240mm Radiator
|
|
Radiator/AIO Support (Front)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
|
|
Radiator/AIO Support (Rear)
|
120mm Radiator, 140mm Radiator
|
|
Radiator/AIO Support (Top)
|
120mm Radiator, 140mm Radiator, 240mm Radiator, 280mm Radiator, 360mm Radiator, 420mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
6
|
|
Max. 3.5 Inch Drives
|
4
|
|
Max. 5.25 Inch Drives
|
0
|
|
2.5 inch internal drive bay
|
2
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
4
|
|
Hot swap drive bays
|
No
|
|

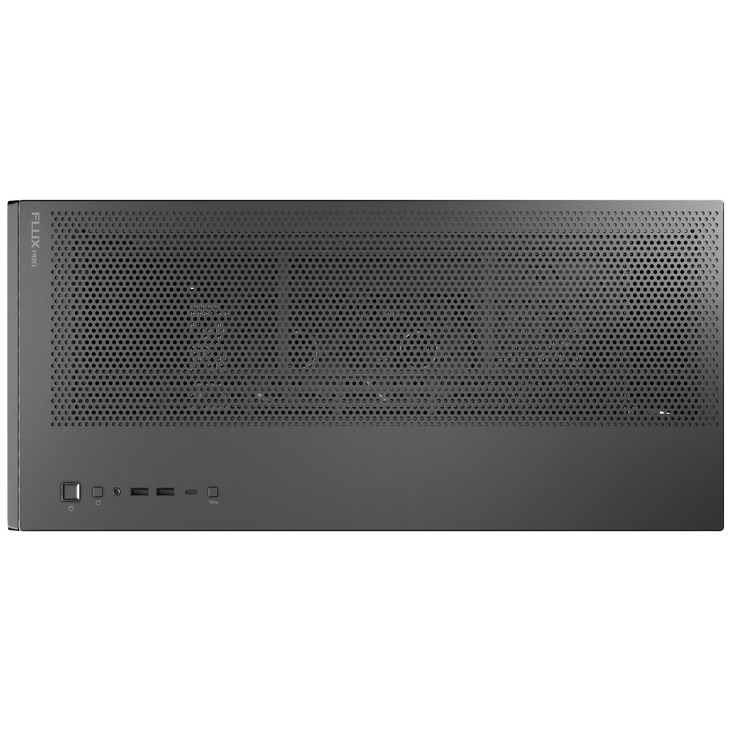

External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|

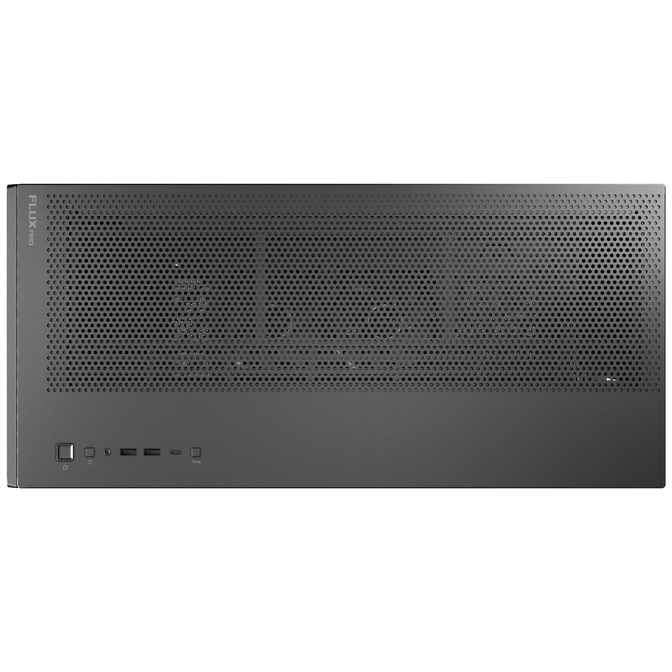

I/O position
|
Top
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
Yes
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Plastic, Steel, Tempered Glass, Wood
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Included fans
|
2x 120 mm, 4x 140 mm
|
