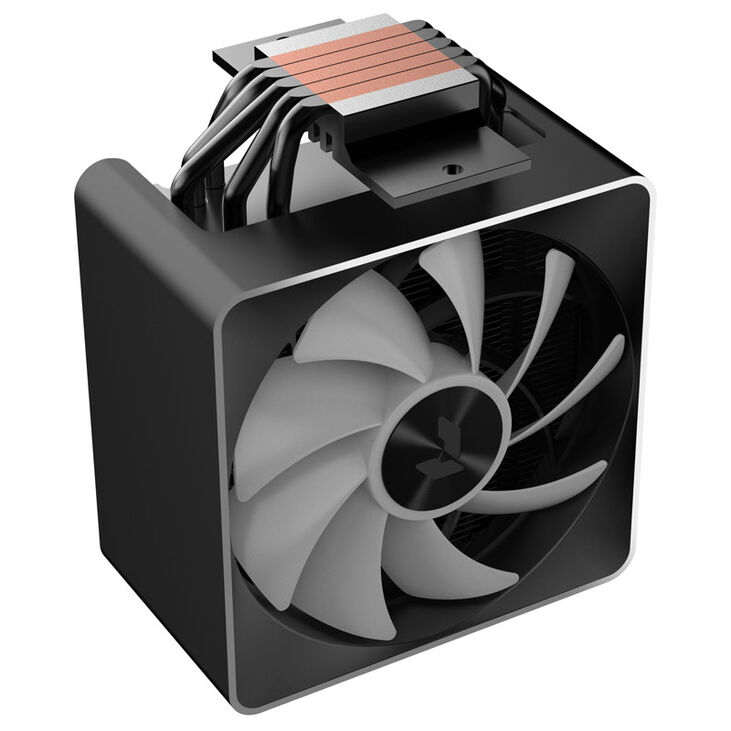

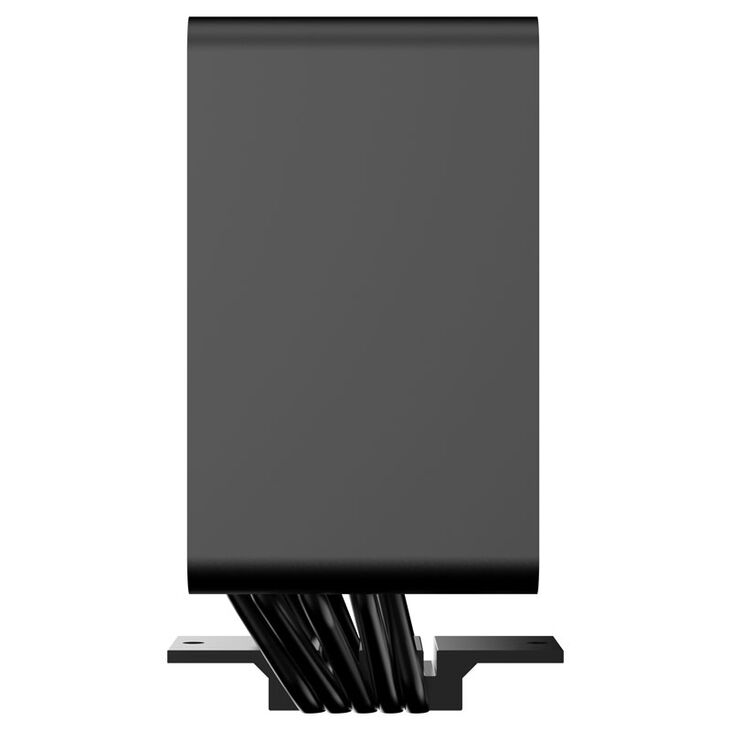

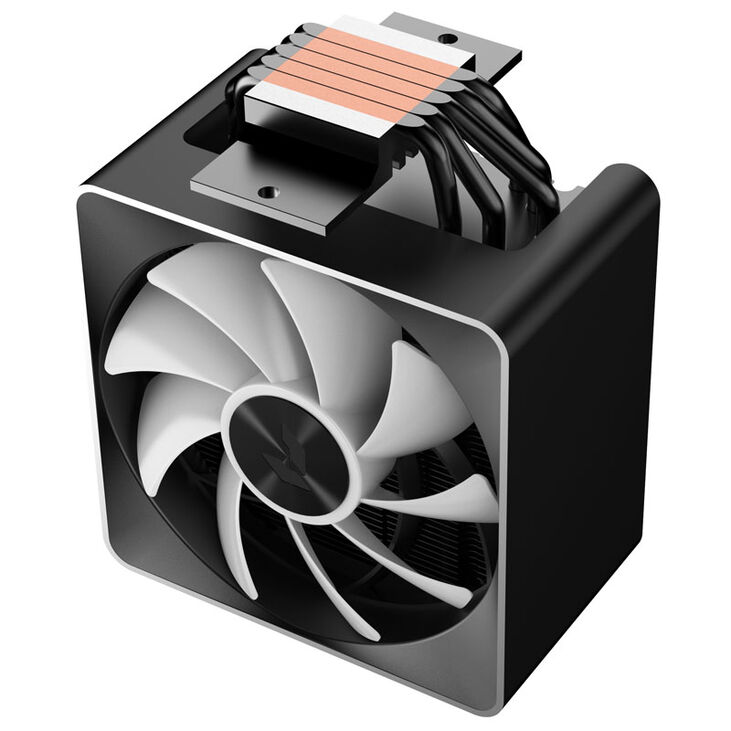

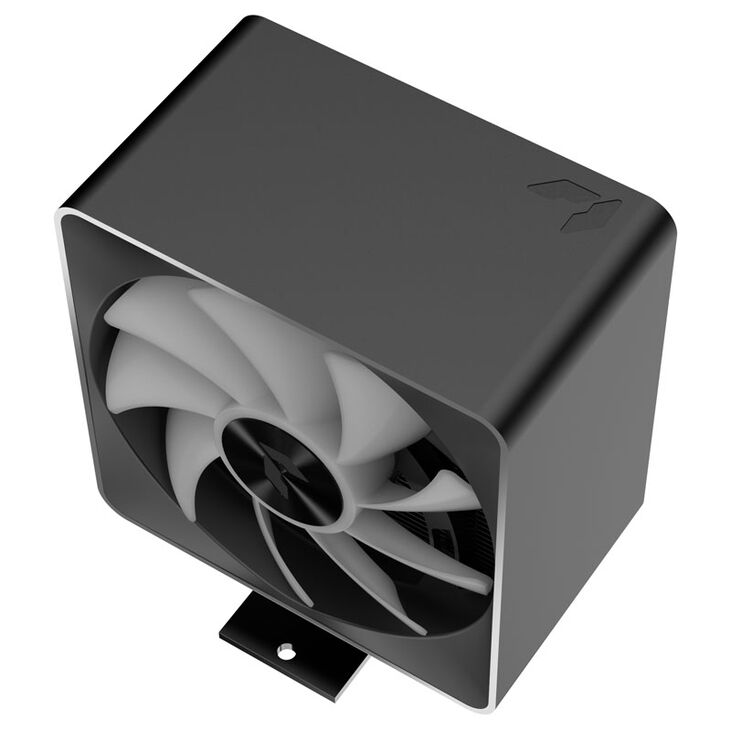

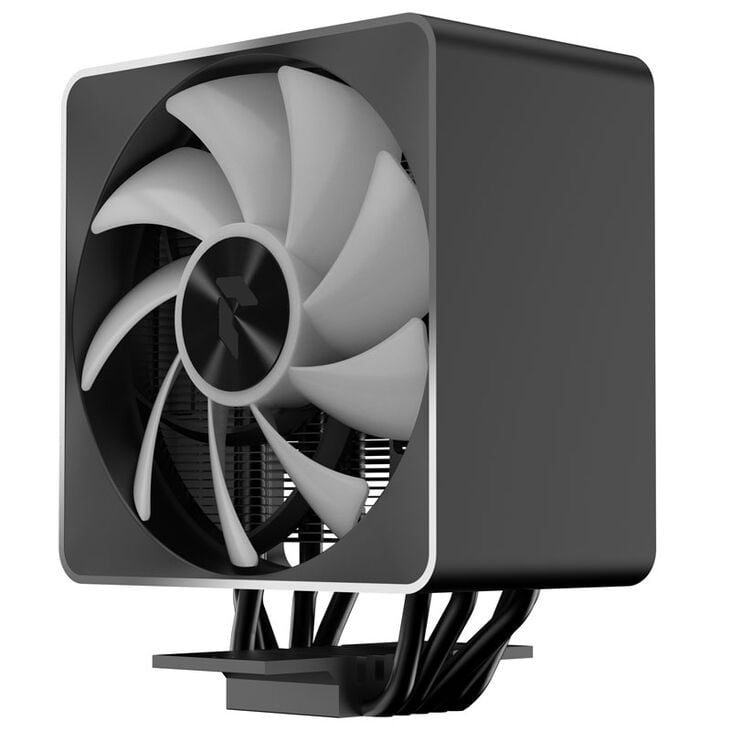

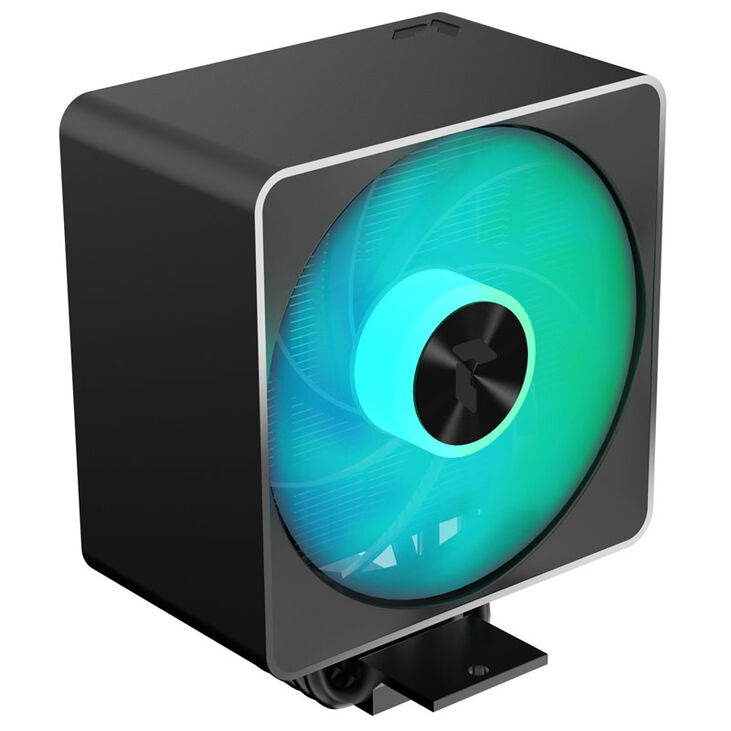

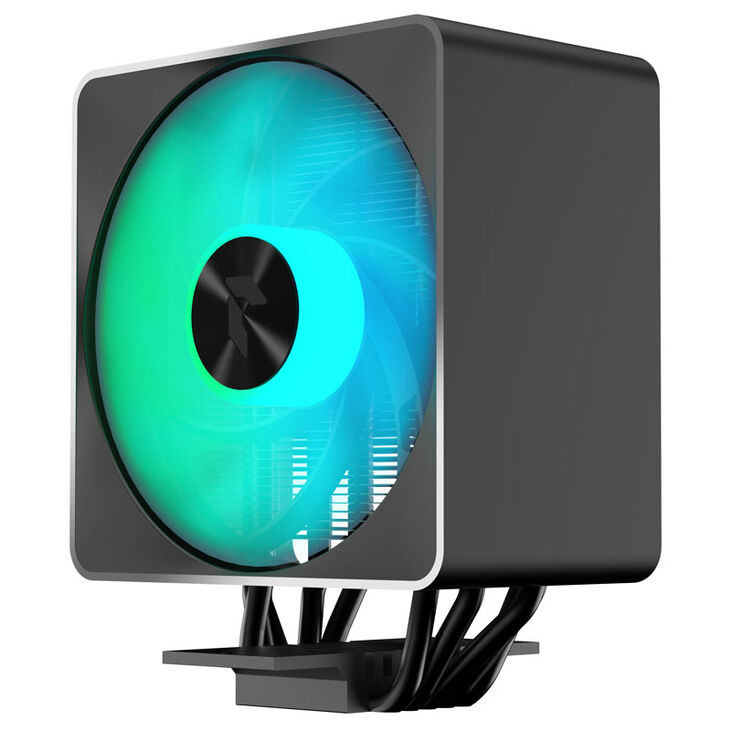

APNX AP1-V CPU Cooler - 120mm, black
Highly efficient CPU cooler, 5x 6mm heatpipes with direct CPU contact, Aluminium cooling tower with aluminium frame, 1x quiet 120mm PWM ARGB fan, High compatibility to socket and RAM, Cooling capacity of up to 245W TDP
This product is no longer available.
- Single tower cooler with a cooling capacity of up to 245W TDP
- Five 6 mm heatpipes and optimised aluminium cooling fins
- Heat sink with aluminium frame increases cooling performance

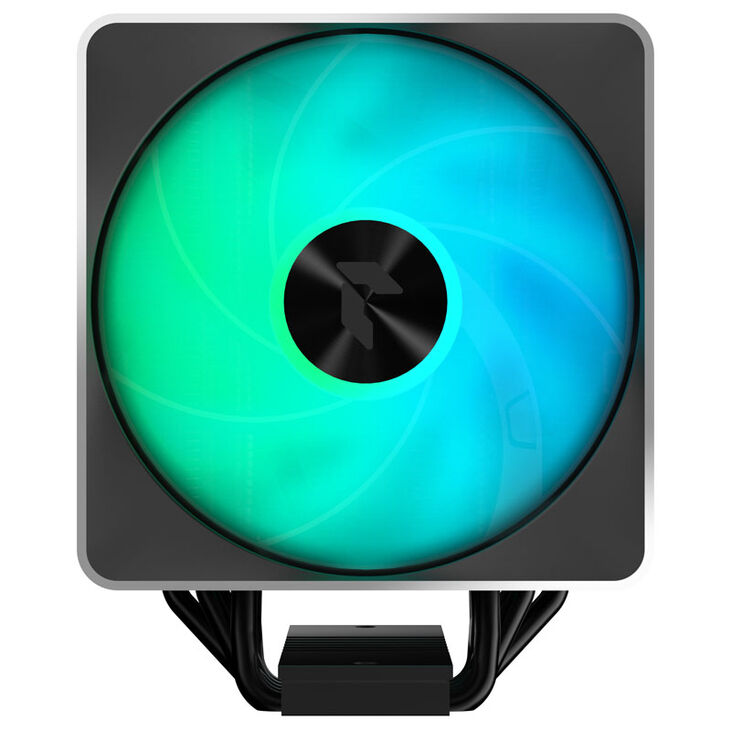

- One fan with PWM and ARGB connection in 120mm format
- Cooling tower design for high RAM compatibility
- High compatibility with processors from AMD and Intel

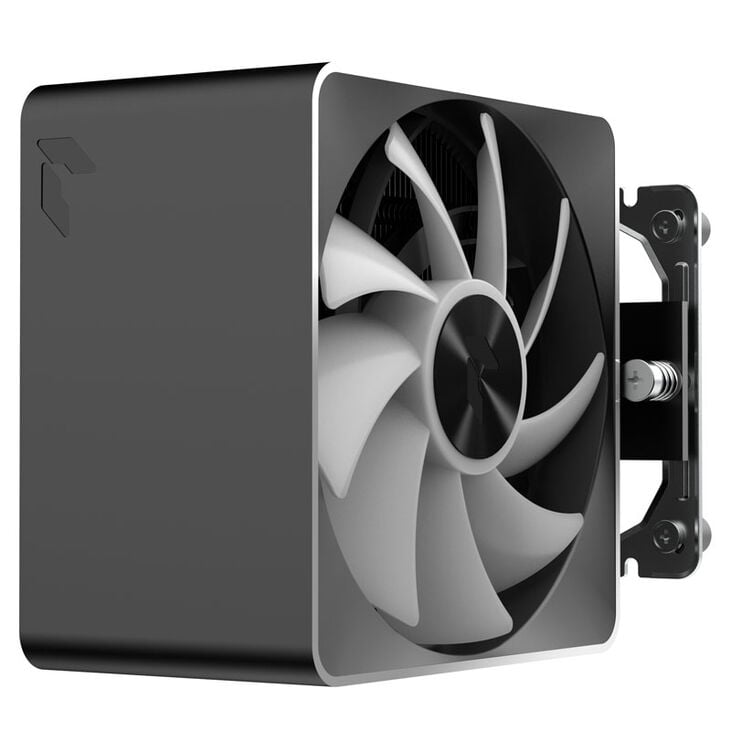

- Mounting system for easy installation included
The APNX AP1-V: Efficient CPU Cooler for Intel and AMD Sockets
With the AP1-V, APNX presents its first CPU cooler that effortlessly combines efficiency and design. The CPU cooler has a large-area heat sink with a chic aluminium frame that fits perfectly into the APNX design concept. The high cooling performance is achieved through the combination of the five 6 mm heat pipes and the integrated 120mm PWM fan with ARGB lighting. The mounting system also offers an optimised and less complicated installation of the cooler.APNX AP1-V: Optimum Cooling Performance and Whisper-Quiet Operation

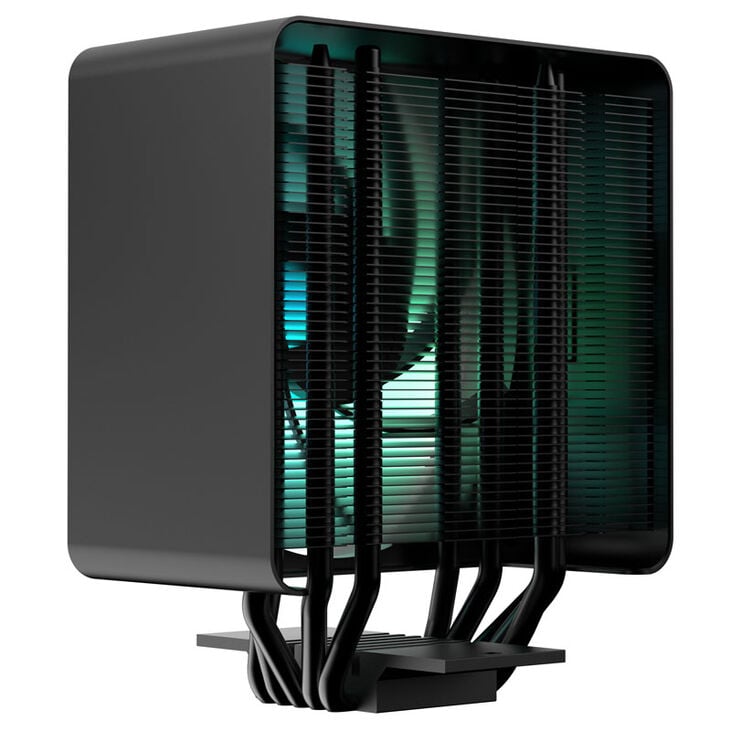

The cooling tower of the APNX AP1-V has aerodynamically optimised fins with adapted fin spacing for particularly quiet operation. Especially in conjunction with the fan, whose airflow-optimised impeller and hydrodynamic bearing ensure outstanding running smoothness with maximum performance.Fan and Performance Data
The fan in 120 mm format can be connected directly to the installed motherboard via a PWM and ARGB connection and rotates at a speed between 600rpm and 1,800rpm, depending on the CPU temperature. Equipped with a durable hydrodynamic bearing, a maximum airflow of 129.6m³/h is generated at full speed and a noise level of maximum 32.8dB(A).Technical Details:
- Size (mit Lüfter): 129mm x 75mm x 165mm (W x H x D)
- Material: Aluminium
- Colour: Black
- Heatpipes: 5x Ø 6mm
- TDP: 245 Watts
- Fan:
Size: 120mm x 120mm x 25mm (W x H x D)
Speed: 600 - 1,800rpm
Airflow: max 129.6m³/h
Static pressure: 3.36mmH2O
Fan Noise Level: 16.1 - 32.8dB(A)
Connection: 4-pin PWM, 3-pin ARGB
Rated Voltage: 12V
Rated Starting Voltage: 5V
Current: 0.32A
Power Consumption: 3.84W
MTBF: 80.000h - Compatibility:
Intel Sockets: LGA 1700, 1200, 115x
AMD Sockets: AM5, AM4
|
CPU
|
|
|
CPU Socket
|
1150, 1151, 1155, 1156, 1200, 1700, AM4, AM5
|
|
Internal Ports
|
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
|
Lighting
|
|
|
Lighting Colour
|
RGB
|
