- High-quality finishing with aluminium top plate
- Two Arctic P12 PWM PST fans in push-pull operation with easy installation through click system
- Optimised design with four direct-touch heatpipes, each with 6 mm Ø
- Laterally opened aluminium fins for optimal air intake
- Incl. Intel LGA 1851 / 1700 Contact Frame for even better contact between cooler and CPU
- Compatibility with Intel LGA 1700 / 1851 and AMD AM4 / AM5
- Including high-performance MX-6 thermal paste

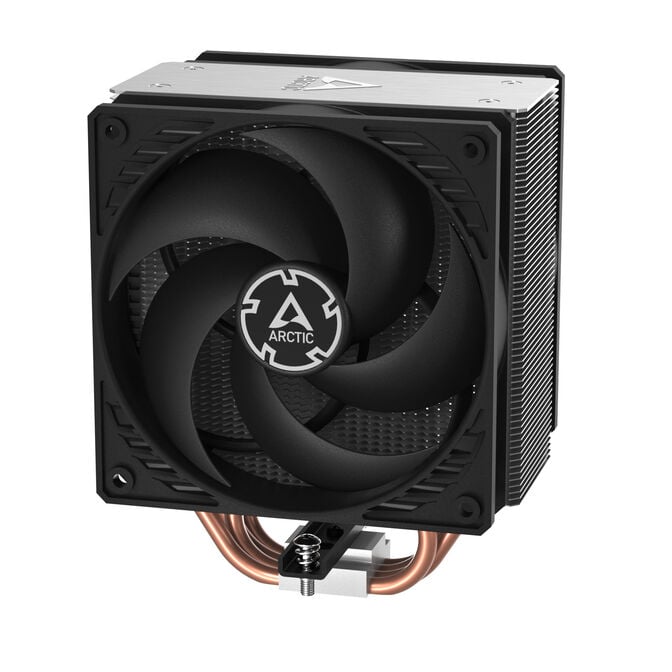

Improved cooling and design: The new Arctic Freezer 36

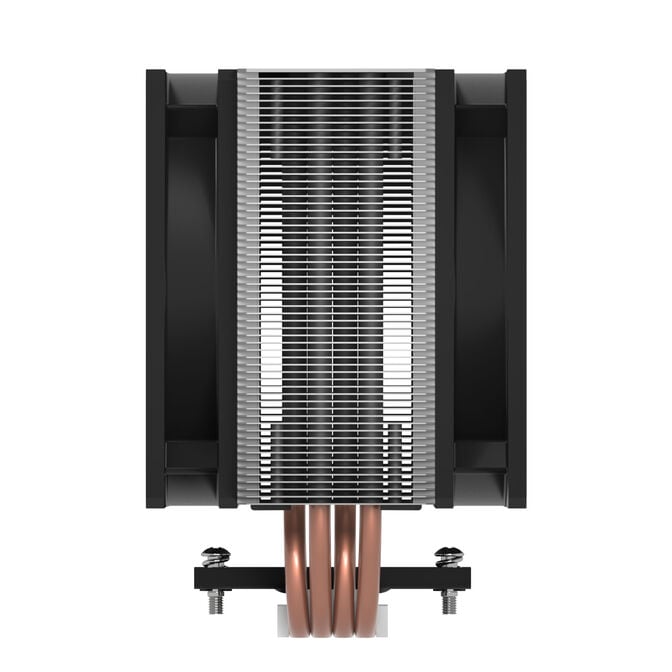

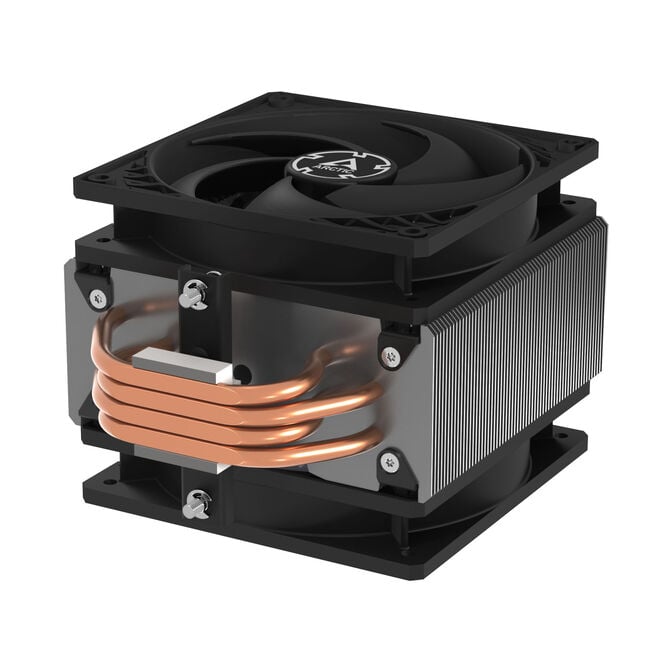

Arctic impresses with their new Freezer 36 series: The four Direct-Touch Heatpipes efficiently absorb the CPU's heat, as the cooling surface is directly above the CPU die of the processor. The total of 59 cooling fins made of 0.4 mm thick aluminium are laterally open, allowing the pull fan to draw cool air from the case through the heatsink. This side-flow design achieves even better temperatures.
Proven ventilation by Arctic P12 PWM PST fans

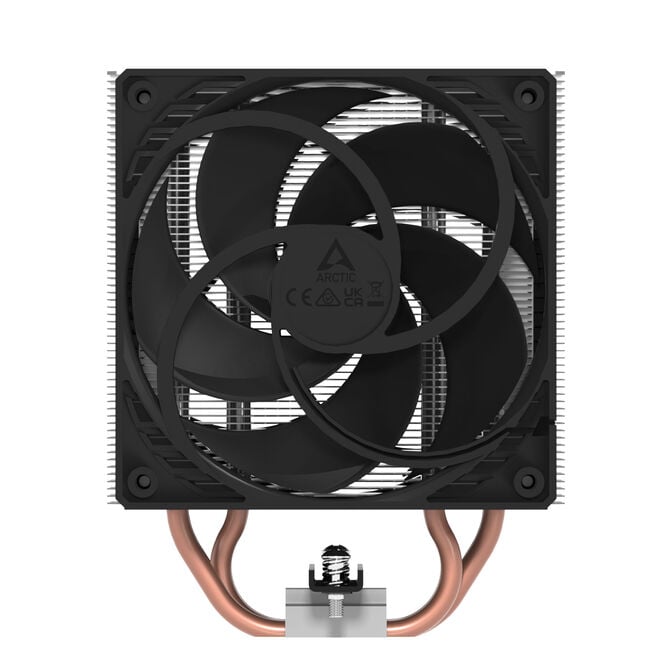

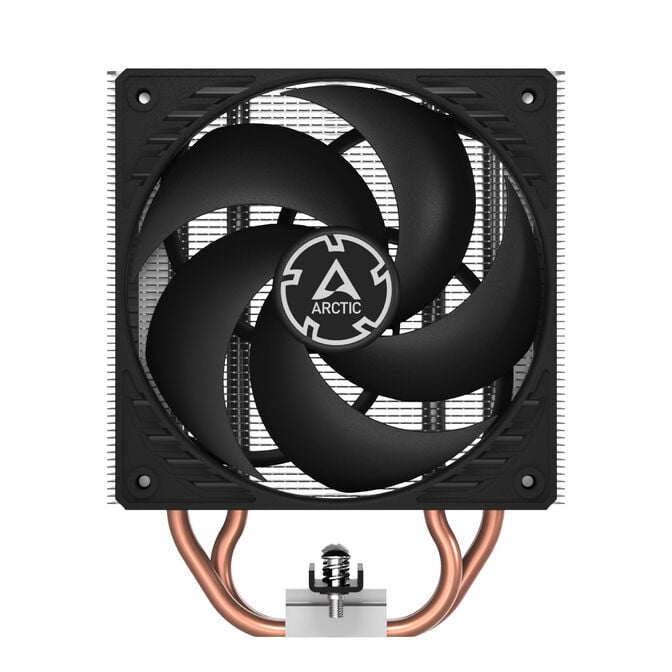

Here, the two Arctic P12 PWM PST 120 mm fans are used in a push-pull configuration, allowing the hot air to circulate more quickly out of the heatsink. The fans' hydrodynamic bearings reduce heat and noise generation while increasing their lifespan. Running at a speed of 1,800 RPM, the fans operate quietly with effective cooling.
High compatibility and Intel Contact Frame
The Arctic Freezer 36 is compatible with Intel sockets LGA1700 / 1851 and AMD sockets AM4 / AM5. A special contact frame for Intel processors is included in the purchase, ensuring an even contact between the CPU block and the CPU for better temperatures. A pack of 0.8 g Arctic MX-6 thermal paste is also included.
Choose your favourite version of the new Arctic Freezer 36 and enjoy the visually high-quality design with the aluminium top plate, discreetly covering the soldered ends of the heatpipes. Arctic stands for extremely low temperatures at a great price!
- General:
Total weight (with fans): 890 g - Dimensions (with fans): 104 x 126 x 159 mm (L x W x H)
- Material: Copper (base, heatpipes), aluminium (fins)
- Heatpipes: 4x Ø 6 mm
- Fans:
Dimensions: 120 x 120 x 25
Quantity: 2x Arctic P12 PWM PST
Speed: 200 – 1,800 RPM
Airflow: 95.7m³/h
Static pressure: 2.2 mmH2O
Noise level: 30 dB(A)
Rated voltage: 12 V
Rated current: 0.1 A
Connections: 4-pin PWM socket + 4-pin connector - Thermal paste: 0.8 g Arctic MX-6
- Compatibility:
AMD sockets: AM4 / AM5
Intel sockets: 1700 / 1851
Colour
|
|
Primary Colour
|
Silver
|
Secondary Colour
|
Black
|
Fan main colour (cage)
|
Silver
|
Fan main colour (rotor)
|
Black
|
Dimensions
|
|
Length
|
104 mm
|
Width
|
126 mm
|
Height
|
159 mm
|
Weight
|
890 g
|
Cooler Specifications
|
|
Additional fans possible
|
No
|
Heatpipe diameter
|
6 mm
|
Number of heatpipes
|
4
|
Ventilation type
|
active
|
Type
|
|
CPU Cooler Type
|
Single Tower
|
CPU
|
|
CPU Socket
|
1700, AM4, AM5
|
Fan Specifications
|
|
Min. Fan RPM
|
200 rpm
|
Max. Fan RPM
|
1800 rpm
|
Max. Single Fan Airflow
|
95.7 m³/h
|
Max. Static Pressure
|
2.2 mH2O
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
30 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
Materials
|
|
Materials
|
Aluminium, Copper
|
Base plate material
|
Copper
|
Heat sink material
|
Aluminium
|
Lighting
|
|
Lighting
|
No
|
Set
|
|
Set
|
No
|
Additional Contents
|
|
Included fans
|
2x 120 mm
|
