ASUS Prime Radeon RX 9060 XT OC Edition Graphics Card, 16,384 MB GDDR6
Radeon RX 9060 XT 16 GB Graphics Card, With TBA MHz Game/Boost Clock, 16 GB GDDR6 With 32 MB AMD Infinity Cache, Triple-Fan Cooler Design
498,70 €
Incl. VAT, add. delivery costs starting from 4.99€
- Efficient Triple-Fan Cooler Design With Semi-Passive Cooling
- High Game and Boost Clock: TBA MHz
- 16 GB GDDR6 Graphics Memory With 32 MB Infinity Cache
- High Memory Clock: 20,000 MHz
- 128-Bit Memory Interface
- Large Memory Bandwidth of 320 GB/s

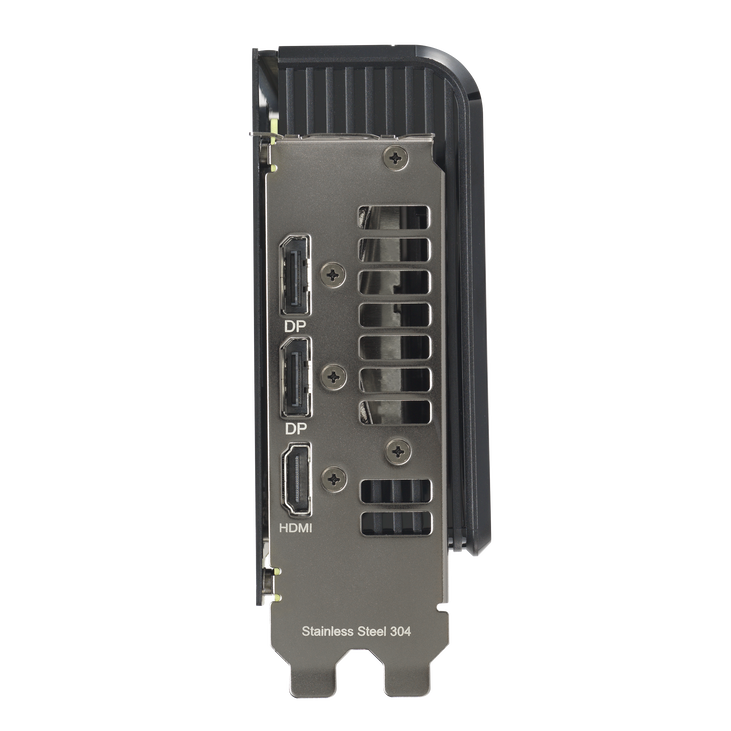

- Video Outputs: 2x DisplayPort and 1x HDMI
- Power Connectors: 1x 8-Pin
The Radeon RX 9060 XT 8 GB Graphics Card in Detail
Thanks to its powerful graphics processor, very high boost clock, and advanced technologies, the Radeon RX 9060 XT 16 GB is the perfect choice for gamers seeking an ideal balance between performance and efficiency. With the ASUS Prime Radeon RX 9060 XT OC Edition, you’ll enjoy smooth gaming in Full HD resolution.
AMD’s RDNA 4 Architecture: Ray Tracing and FSR 4
The latest RDNA 4 architecture, combined with the Navi 44 chip, enables a maximum boost clock of TBA MHz. Third-generation ray tracing accelerators provide stunningly realistic effects. Additionally, AMD FSR 4 ensures fluid visuals and high frame rates—even in demanding AAA titles.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
304 mm
|
|
Width
|
126 mm
|
|
Height
|
50 mm
|
|
Graphics Card
|
|
|
GPU Series
|
RX 9000 Series
|
|
GPU Model
|
AMD Radeon RX 9060 XT 16GB
|
|
GPU Series Name
|
AMD Radeon RX 9060 XT 16GB
|
|
Graphics Chip
|
Navi 44 XT
|
|
Manufacturing Process
|
4 nm
|
|
Shader Units
|
2048
|
|
Raytracing Cores / Ray Acceleratorss
|
32
|
|
GPU Memory Type
|
GDDR6
|
|
Slot Type Standard
|
PCIe 5.0
|
|
Compute Units
|
32
|
|
GPU Memory Size (GB)
|
16
|
|
GPU Memory Interface (bit)
|
128
|
|
GPU Memory Bandwidth (GB/s)
|
322.3
|
|
GPU Memory Clock (MHz)
|
2518
|
|
GPU Memory Clock Effective (Gbps)
|
20.1
|
|
Clock Speeds
|
|
|
Max. GPU Clock (Base)
|
1700 MHz
|
|
Max. GPU Clock (Game)
|
2741 MHz
|
|
Max. GPU Clock (Boost)
|
3311 MHz
|
|
Cooling
|
|
|
Number of GPU Fans
|
3
|
|
Water Cooling
|
|
|
Watercooling
|
No
|
|
Internal Ports
|
|
|
Required Power Connectors
|
8-pin PCIe (1x)
|
|
External Ports
|
|
|
Display Connectors
|
Display Port (2x), HDMI (1x)
|
|
Display Connector Standards
|
DisplayPort 2.1, HDMI 2.1
|
|
Expansion Slots
|
|
|
Expansion Slots Required
|
2 Slots
|
|
Standards / Specifications
|
|
|
Adaptive Sync Technology (G-SYNC / FreeSync)
|
AMD Freesync
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
AI
|
|
|
AI Acceleration
|
Yes
|
|
AI Accelerator
|
AMD AI-Accelerator
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
