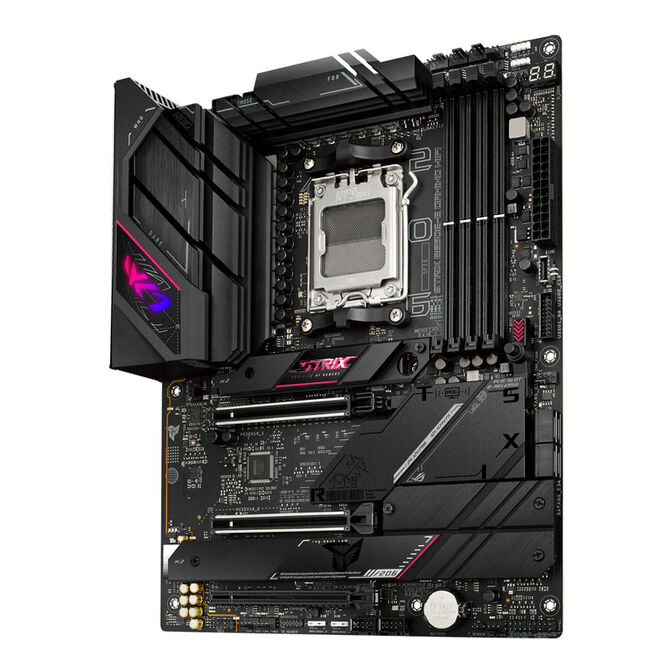

ASUS ROG Strix B650E-E Gaming WiFi Motherboard, Socket AM5, AMD B650E, ATX, DDR5
ATX motherboard with B650E chipset from AMD, 2x PCIe 5.0 x16 / 1x PCIe 4.0 x16, 1x USB-C 3.2 / 2x USB-C 3.1 / 6x USB 3.1 / 2x USB 3.0, 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0) / 4x SATA 6G, 8x 4-pin PWM connectors, for DDR5 RAM
299,90 €
incl. VAT
, add. delivery costs starting from 4.99€
- 1x PCIe 5.0 x16 (x16), 1x PCIe 4.0 x16 (x4), 2x PCIe 4.0 (x1)
- Supports max. 128 GB DDR5 RAM up to 6,400 MHz (OC)
- 4x M.2 (of which 2x PCIe 5.0 and 2x PCIe 4.0) and 4x SATA 6G
- 1x USB-C 3.2, 6x USB 3.1, 1x USB-C 3.1, 4x USB 2.0 on the I/O panel
- OC features: 16+2 phase VRMs, CMOS Reset, Digi+ VRM
- A total of 8x 4-pin PWM fans possible
ROG Strix B650E-E Gaming WiFi: ATX motherboard with AMD B650E chipset for AM5 CPUs
The ROG Strix B650E-E Gaming WiFi is equipped with the B650E chipset for AMD's Ryzen 7000 processors and comes with numerous features for overclockers and gamers. Since the Ryzen 7000 processors require a new socket due to the support of PCIe 5.0 and the enhanced power supply, the AM5 socket (LGA 1718) is used on the 600 series motherboards.
Despite the higher pin count on AM5, the actual size of the socket remains identical to the older generation, allowing most CPU coolers for socket AM4 to be mounted on the motherboard.
Despite the higher pin count on AM5, the actual size of the socket remains identical to the older generation, allowing most CPU coolers for socket AM4 to be mounted on the motherboard.
BIOS Updates at Caseking
Newer CPUs may require a more recent BIOS version than the one installed at the time of delivery of a motherboard. Updates can also bring fixes and optimisations.
Our King Mod Service is happy to carry out a BIOS update to the latest version in advance:
Please note that this may delay the shipping preparation by 1 to 4 working days!
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Secondary Colour
|
Silver
|
|
Dimensions
|
|
|
Length / Depth
|
30.5 cm
|
|
Width
|
24.4 cm
|
|
Form Factor
|
|
|
Motherboard formfactor
|
ATX
|
|
CPU
|
|
|
CPU Manufacturer
|
AMD
|
|
CPU Socket
|
AM5
|
|
Motherboard
|
|
|
Motherboard Chipset
|
AMD B650E
|
|
Memory
|
|
|
Max. Memory
|
128 GB
|
|
Memory Type
|
DDR5
|
|
Memory Form Factor
|
DIMM
|
|
Memory slots
|
4x
|
|
Wi-Fi & LAN
|
|
|
LAN
|
Yes
|
|
LAN Ports
|
1x 2.5 Gbit/s
|
|
Wi-Fi / Bluetooth
|
Yes
|
|
Internal Ports
|
|
|
CPU Power Supply
|
2x 8-Pin
|
|
USB 3.0 / 3.1 / 3.2 (internal) Type C Possible Ports
|
1
|
|
USB 3.0 (internal) Possible Ports
|
2
|
|
USB 2.0 (internal) Possible Ports
|
2
|
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG), 3x RGB (4-Pin 5050 12VGRB)
|
|
External Ports
|
|
|
USB 3.2 (external) Type C
|
2
|
|
USB 3.1 (external) Type C
|
1
|
|
USB 3.1 (external) Type A
|
6
|
|
USB 2.0 (external) Type A
|
4
|
|
Display Connectors
|
Display Port (1x), HDMI (1x)
|
|
Storage Ports
|
|
|
M.2 PCIe 4.0 x4
|
2
|
|
SATA 6G (internal)
|
4
|
|
Expansion Slots
|
|
|
PCIe x16 slots (total)
|
3
|
|
PCIe 5.0 x16 mechanical slot
|
2
|
|
PCIe 4.0 x16 mechanical slot
|
1
|
|
Fan Header
|
|
|
4 Pin Fan Connectors
|
8
|
|
Lighting
|
|
|
Lighting / RGB
|
Yes
|
|
Lighting Colour
|
RGB
|
