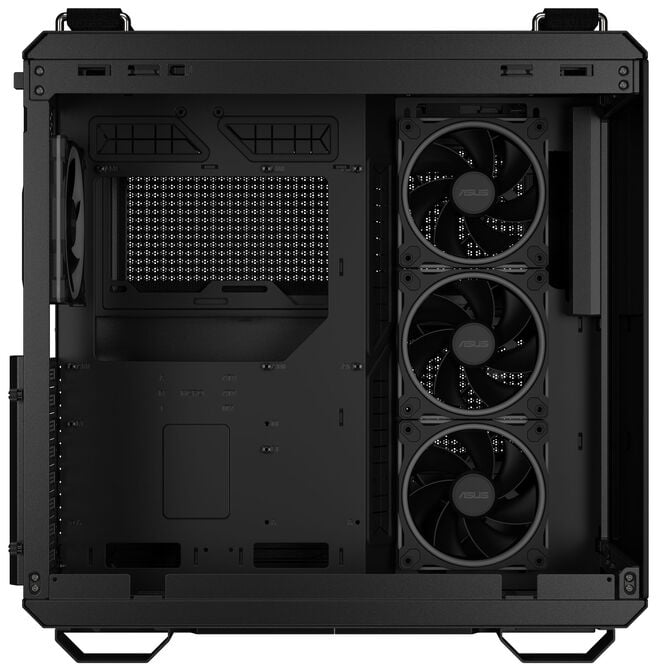

The ASUS TUF Gaming GT502 Horizon case is aimed at PC enthusiasts looking for a functional and aesthetically pleasing chassis. With its seamless panoramic design and dual-chamber structure, it provides optimal conditions for high-performance systems and allows for an impressive presentation of the hardware.
- Panoramic design with tempered glass on the front and side panels

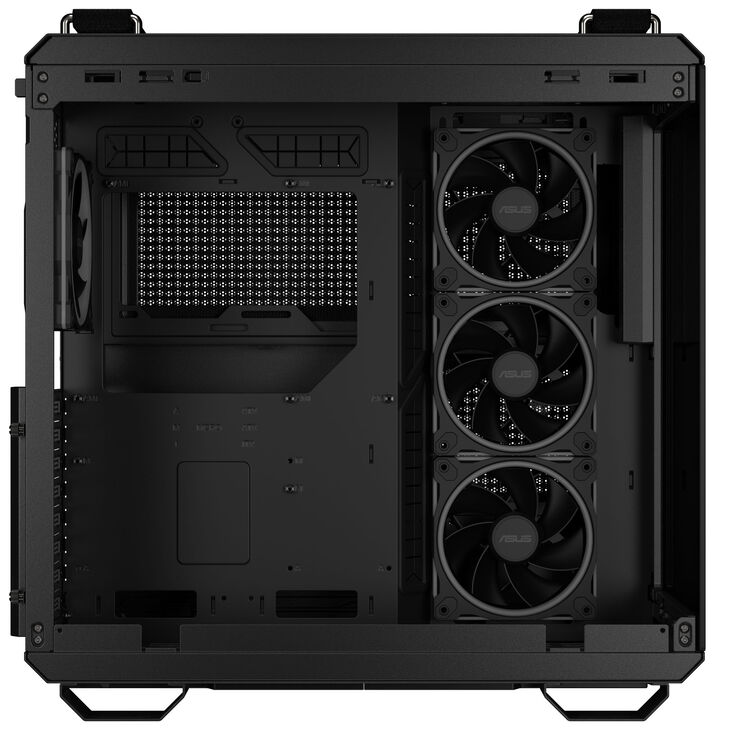

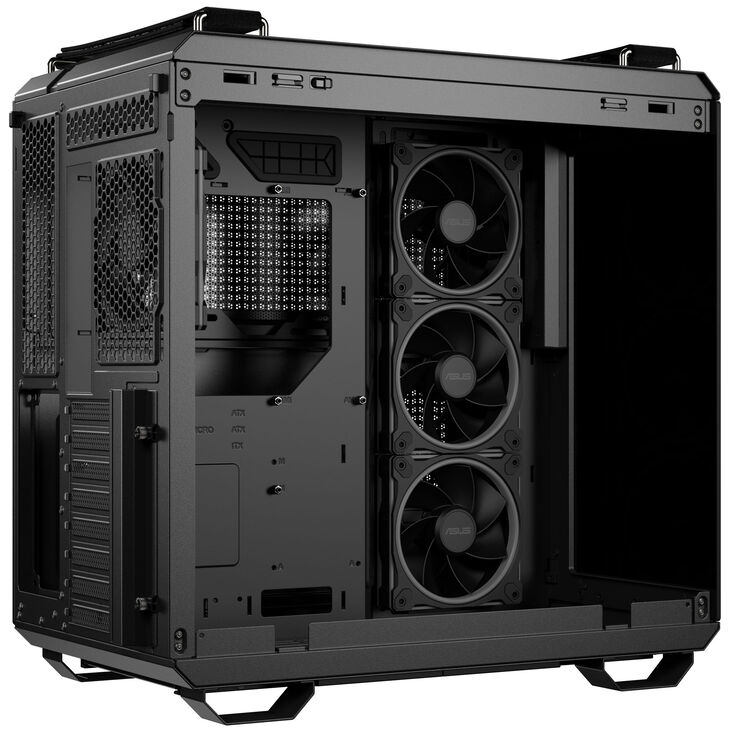

- Dual-chamber structure creates separate cooling zones for the CPU and graphics card
- Front panel features a USB 3.2 Type-C port with up to 20 Gbit/s
- Support for up to 13 fans and three 360mm radiators
- Easy access to the interior thanks to tool-free side panels
Functionality
The TUF Gaming GT502 Horizon case offers an excellent foundation for high-performance systems due to its dual-chamber design and extensive cooling options. The support for numerous fans and radiators allows for flexible adaptation to individual cooling requirements.

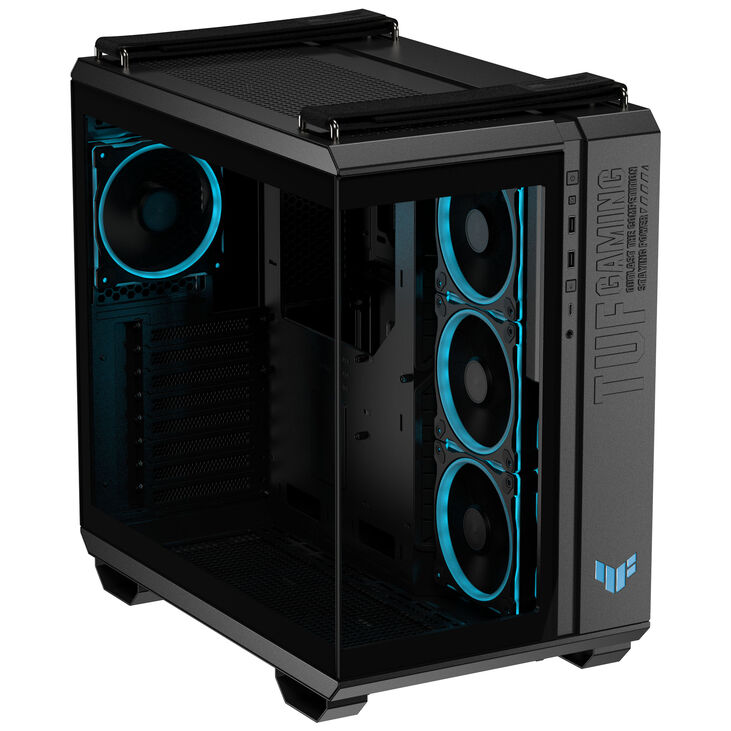

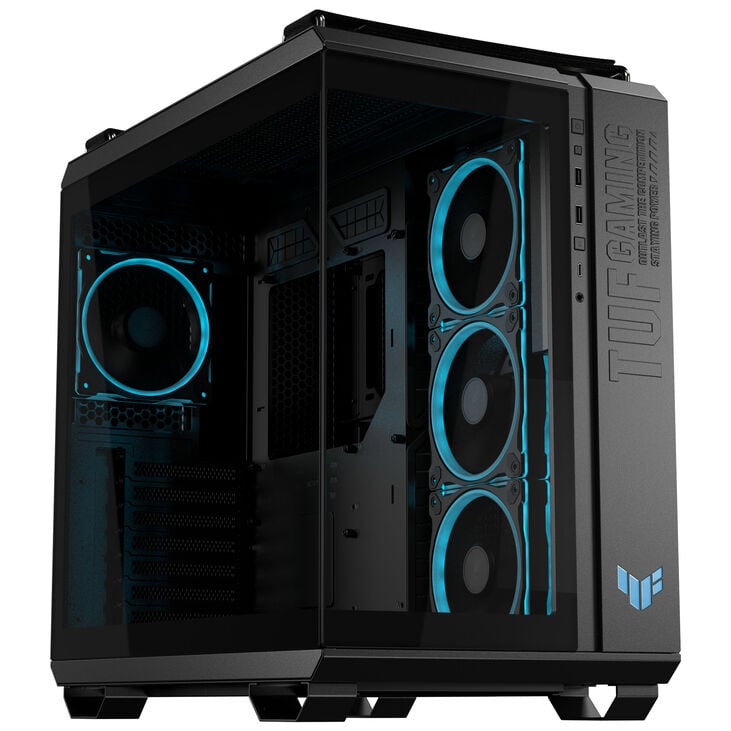

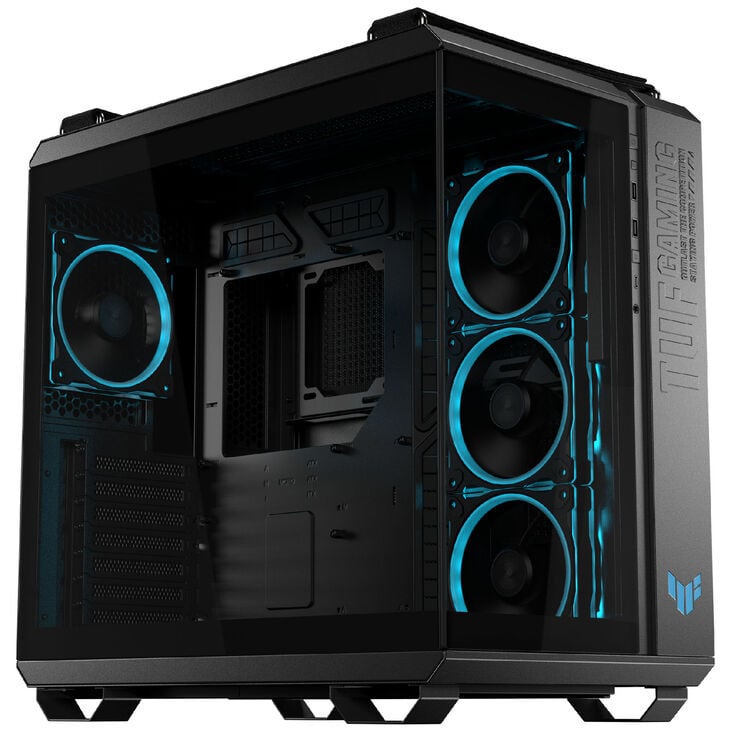

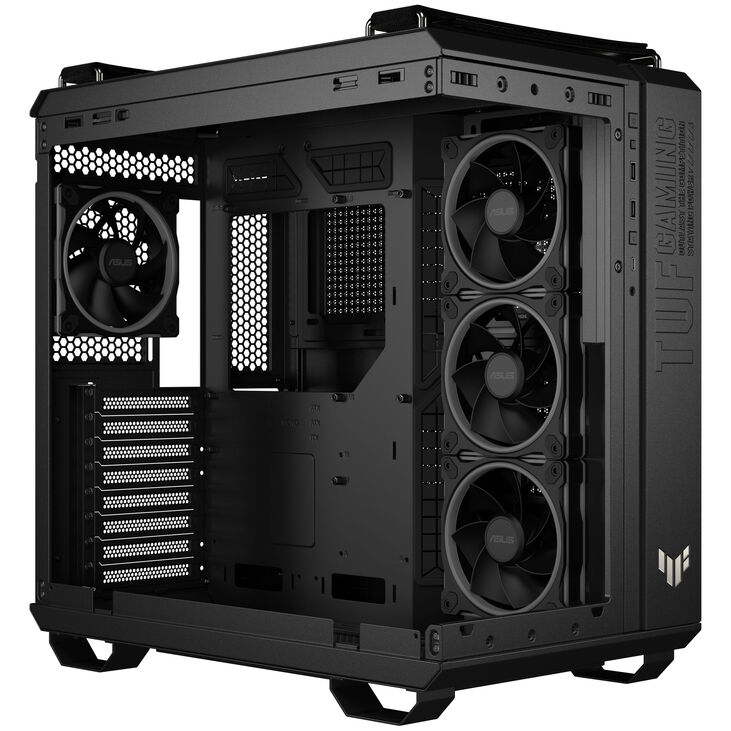

The case showcases your hardware perfectly. Thanks to its generous panoramic design with a glass front and sides, you have an unobstructed view of your hardware at all times – ideal for eye-catching builds with RGB lighting and custom water cooling.
Design

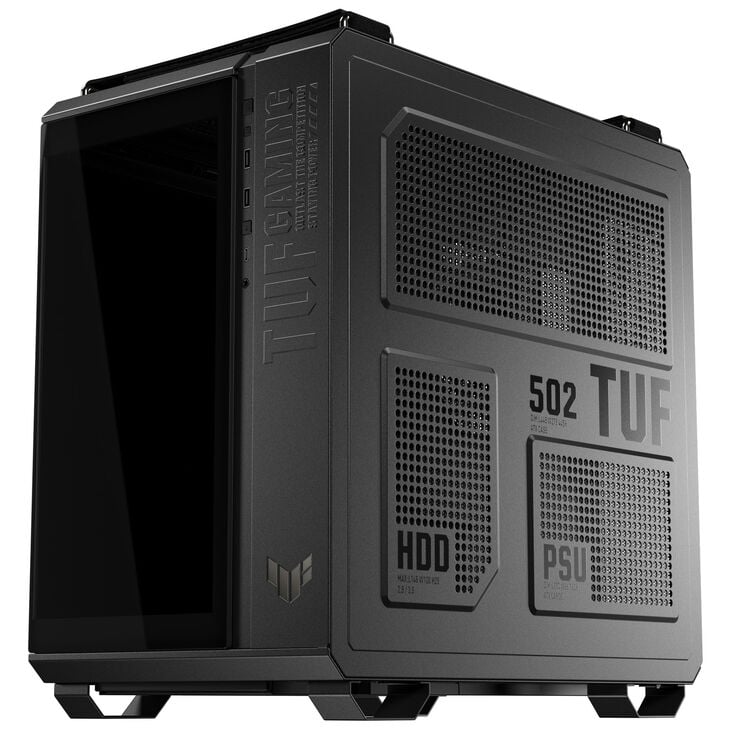

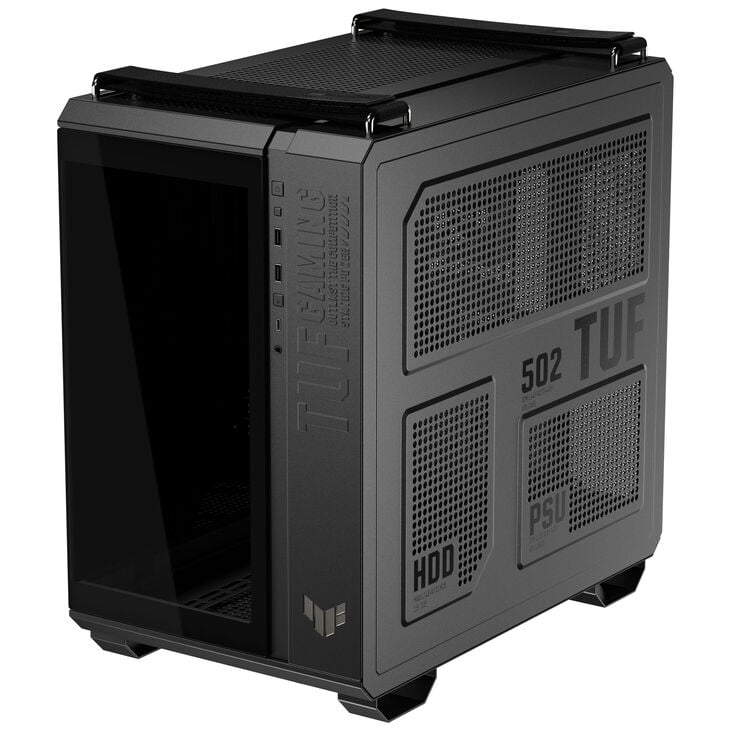

Thanks to its thoughtful design, the GT502 Horizon Midi-Tower combines high compatibility with a compact build. It accommodates large GPUs, powerful cooling systems, and modern cable management – without appearing bulky. The black colour scheme and clean design give the case a modern and elegant look.

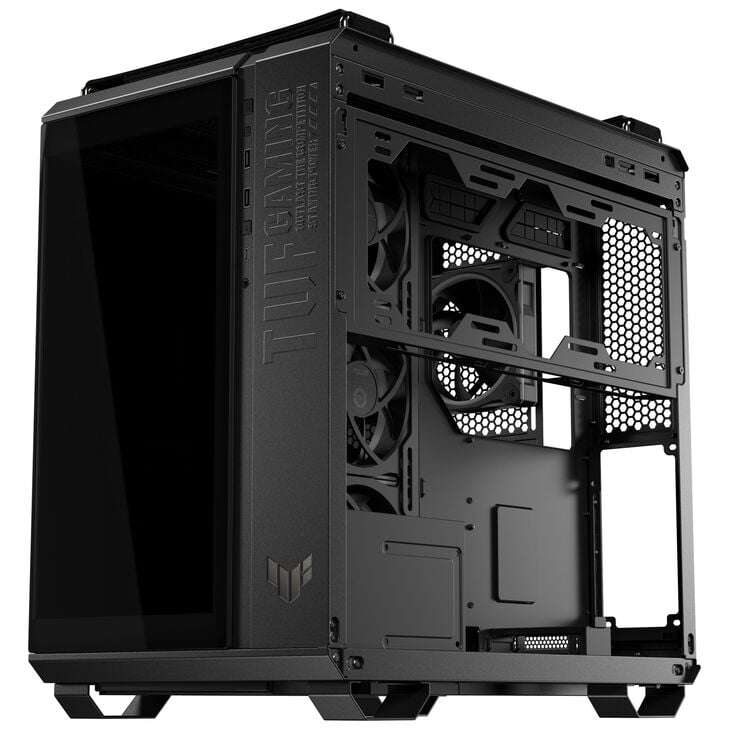

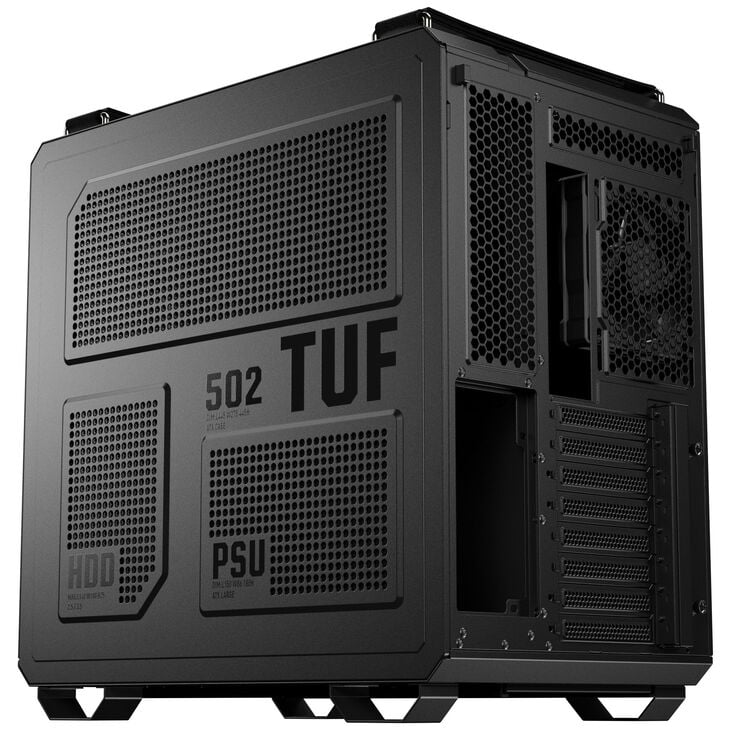

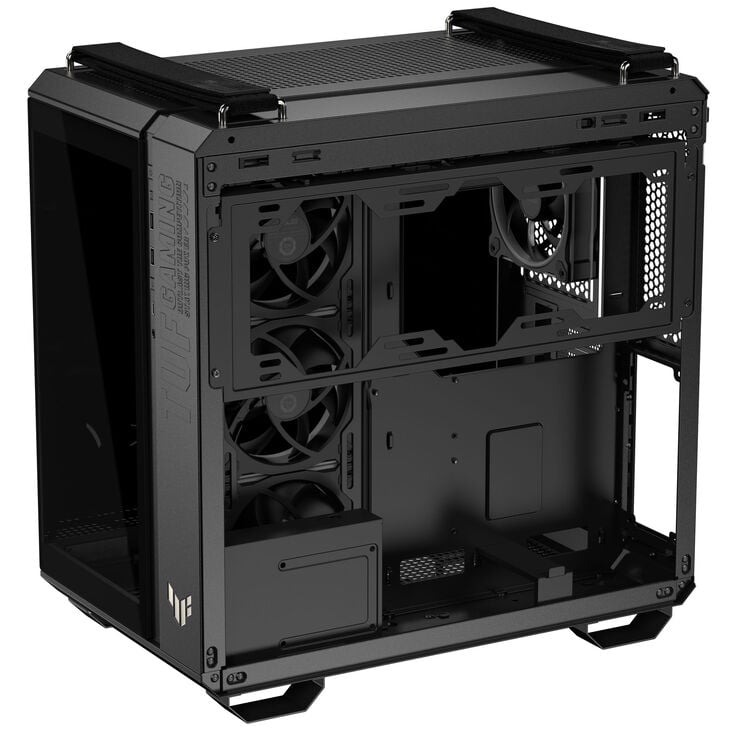

The dual-chamber design separates the power supply and cable management from the main components – for a tidy interior, better airflow, and a clean appearance.
User-friendliness

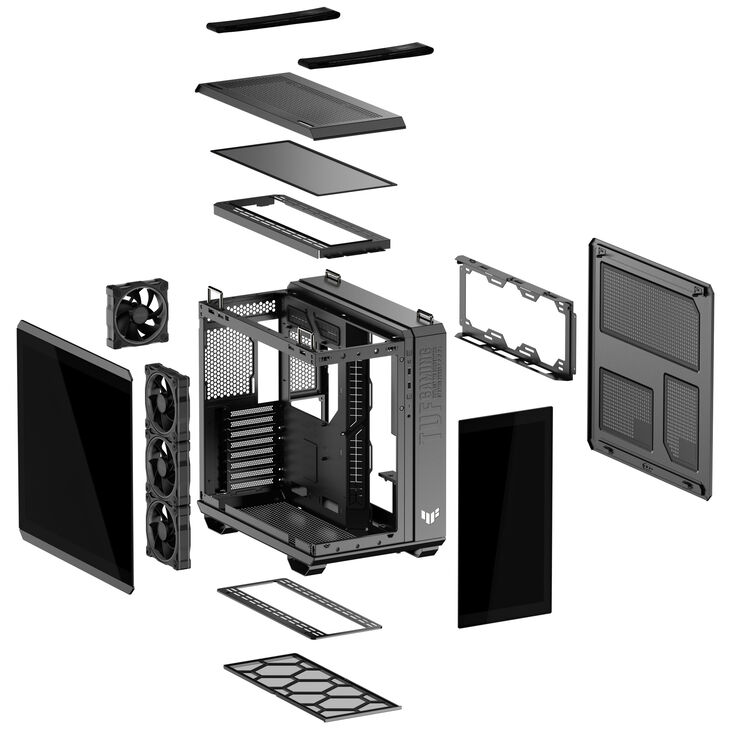

Thanks to the tool-free side panels and the well-thought-out interior layout, the installation and maintenance of components are particularly user-friendly. The USB 3.2 Type-C and two USB 3.1 Type-A ports on the front panel also provide quick and easy access to external devices.
The GT502 Horizon case is also equipped with high-quality dust filters that protect your PC components from dirt and extend the lifespan of your system – for consistently clean performance.
|
Colour
|
|
|
Primary Colour
|
Black
|
|
Dimensions
|
|
|
Length / Depth
|
450 mm
|
|
Width
|
285 mm
|
|
Height
|
446 mm
|
|
Weight
|
11 kg
|
|
Case
|
|
|
Case Type
|
Mid Tower
|
|
Motherboard Support
|
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
|
Max. Motherboard Format
|
ATX
|
|
Internal Dimensions
|
|
|
Max. CPU Cooler Height
|
163 mm
|
|
Max. GPU Length
|
400 mm
|
|
Max. PSU Length / Depth
|
200 mm
|
|
Inner Volume
|
57 l
|
|
Display
|
|
|
Display Included
|
No
|
|
Power Supply
|
|
|
PSU included
|
No
|
|
PSU Format
|
ATX
|
|
Power Supply Position
|
rear bottom
|
|
Cable Specifications
|
|
|
Riser Cable Included
|
No
|
|
Fan Support
|
|
|
Case Fan Support (Bottom)
|
120mm Fan (3x)
|
|
Case Fan Support (Rear)
|
120mm Fan (1x)
|
|
Case Fan Support (Side)
|
120mm Fan (3x)
|
|
Case Fan Support (Top)
|
120mm Fan (3x), 140mm Fan (2x)
|
|
Max. Number of Fans
|
13
|
|
120 mm fans
|
13
|
|
140 mm fans
|
4
|
|
Radiator Support
|
|
|
Max. Radiator Compatibility
|
3x Triple (360 mm)
|
|
Radiator/AIO Support (Side)
|
360mm Radiator
|
|
Radiator/AIO Support (Top)
|
360mm Radiator
|
|
Drive Bays
|
|
|
Max. 2.5 Inch Drives
|
4
|
|
Max. 3.5 Inch Drives
|
4
|
|
Max. 5.25 Inch Drives
|
0
|
|
1x 3.5 / 1x 2.5 Inch Internal Drive Bays (combined)
|
4
|
|
Hot swap drive bays
|
No
|
|
External Ports
|
|
|
Front I/O – USB Type C Ports Total
|
1
|
|
Front I/O – USB Type A Ports Total
|
2
|
|
USB 3.2 (external) Type C
|
1
|
|
USB 3.0 (external) Type A
|
2
|
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
|
Case Features
|
|
|
I/O position
|
Front
|
|
Side panel
|
with window
|
|
Vertical GPU Mount
|
No
|
|
Adjustable Vertical GPU Bracket
|
No
|
|
Front door
|
No
|
|
Cable Management
|
Yes
|
|
Filters Included
|
Yes
|
|
Filter Position
|
Bottom, Side, Top
|
|
Noise dampening
|
No
|
|
Mainboard slide / tray
|
No
|
|
Transport System
|
No
|
|
Back Connect
|
|
|
Back Connect
|
No
|
|
Expansion Slots
|
|
|
Expansion slots / PCI slots
|
8
|
|
Features
|
|
|
Housing Feedthrough
|
No
|
|
Compatibility
|
|
|
Compatibility Note
|
Please refer to the manufacturer's compatibility information. You can find the latest overview on the manufacturer's website.
|
|
Connectivity
|
|
|
Card reader
|
No
|
|
Fan Header
|
|
|
Fan Controller / Fan Hub
|
No
|
|
Mounting
|
|
|
Case VESA Mountable
|
No
|
|
Internal Monitor Mount
|
No
|
|
Materials
|
|
|
Materials
|
Aluminium, Plastic, Tempered Glass
|
|
Lighting
|
|
|
Lighting / RGB
|
No
|
|
Additional Contents
|
|
|
Fans Included
|
Yes
|
|
Included fans
|
4x 120 mm
|
