- Two-chamber case with independent cooling zones for CPU and GPU
- Four built-in 120mm RGB fans with RGB control button
- Anti-dust filter that keeps your PC clean in the long term
- Panoramic view of your precious hardware
- Tinted tempered glass panels
- USB 3.1 Type C port on the front panel with up to 10 Gbit/s
- Removable side panels with eject button
It's wonderfully divided!
Flexible, scalable, and divided in the right way: The TUF Gaming GT502 Plus TG puts your valuable hardware in the spotlight and offers you a range of cooling options to combat heat build-up and achieve ultimate performance. Install, close the case, and enjoy.

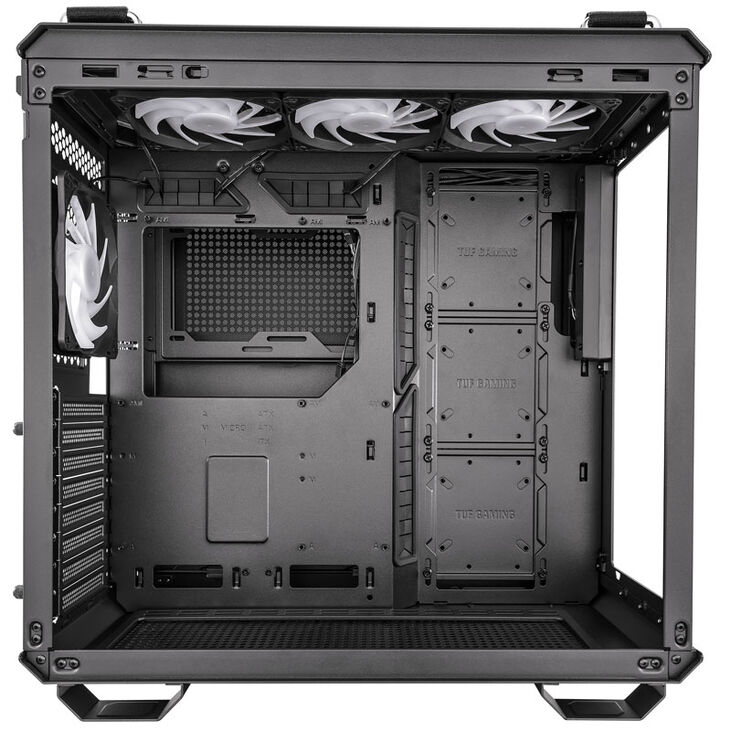

Two-chamber case
Inside the GT502 Plus TG are two chambers, allowing you to create a clean layout and independent cooling zones for the CPU and GPU. Build your rig freely and provide the system components with the ideal environment to distribute frames and handle workloads.
Four built-in 120mm RGB fans and anti-dust filter
The TUF Gaming GT502 Plus TG features four built-in 120mm fans with RGB lighting compared to the regular GT502. With a maximum speed of 1400 RPM, the fans move plenty of warm air out of your case. An RGB control button is located on the case, allowing you to easily select between different effects and colours. Additionally, an anti-dust filter reduces the amount of dust accumulating in your PC.

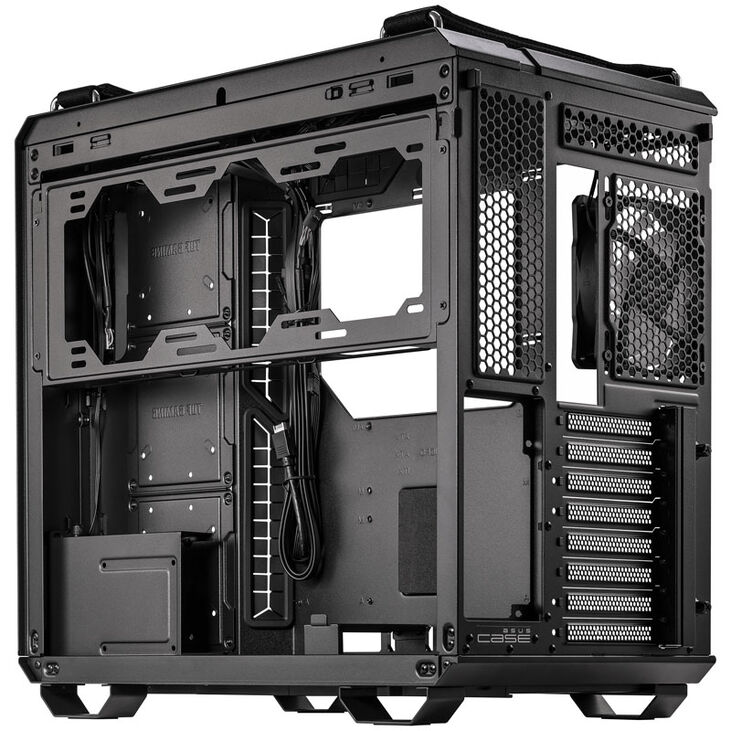

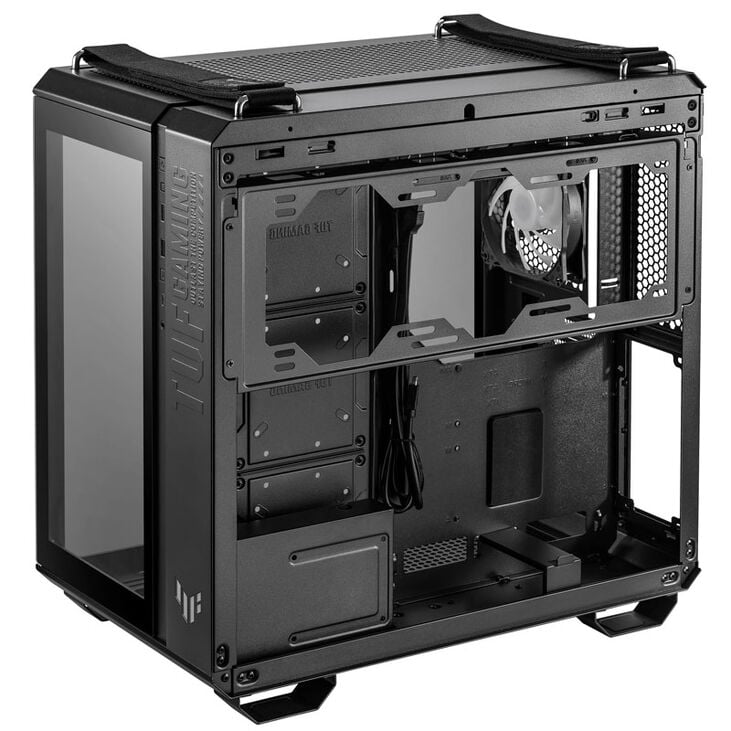

Space for cooling or storage drives
A 360mm mount sits in the rear chamber and can accommodate radiator and fan combinations or three drives.
Tool-less removable side panels
The TUF Gaming GT502 Plus TG continues its optimizations for builders with side panels that can be easily removed by pressing a button hidden on the back of the case.

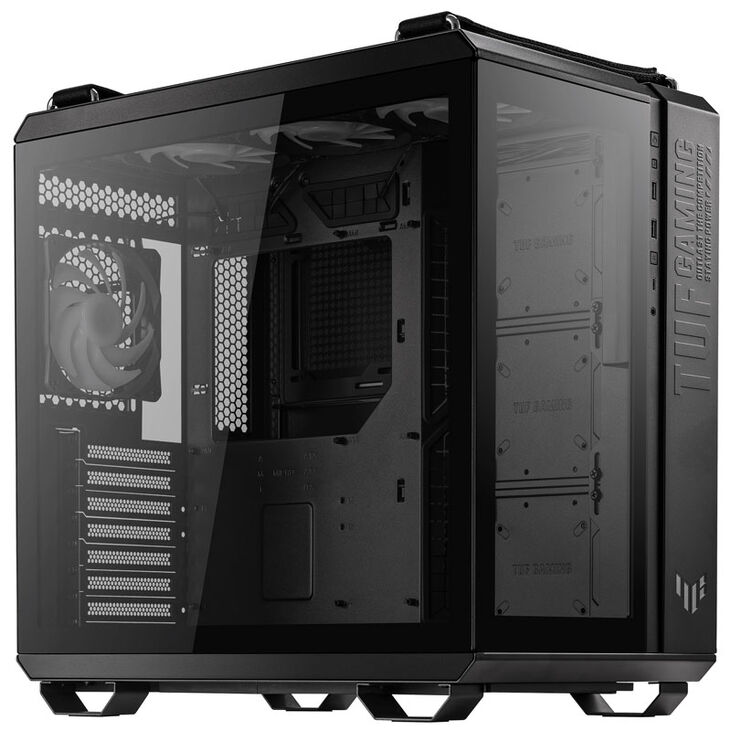

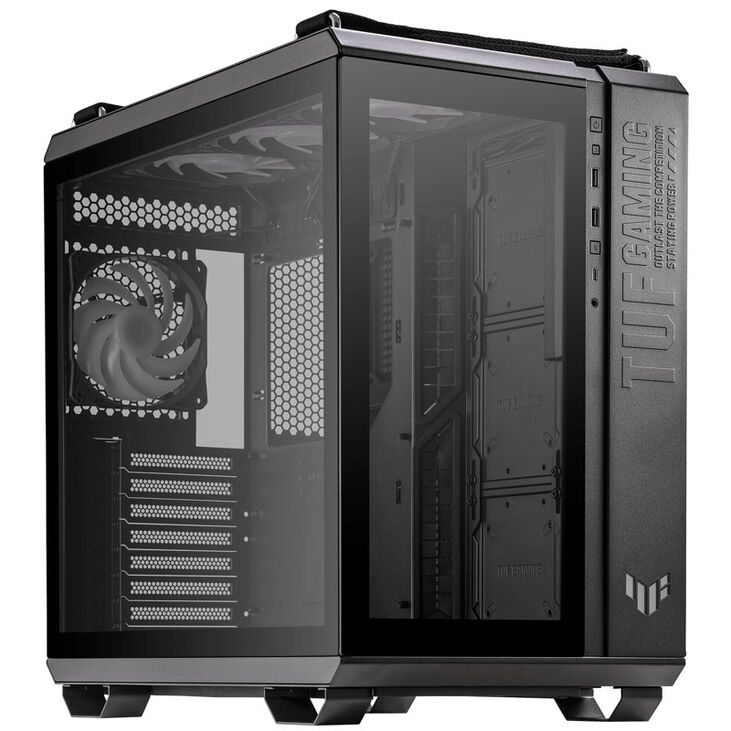

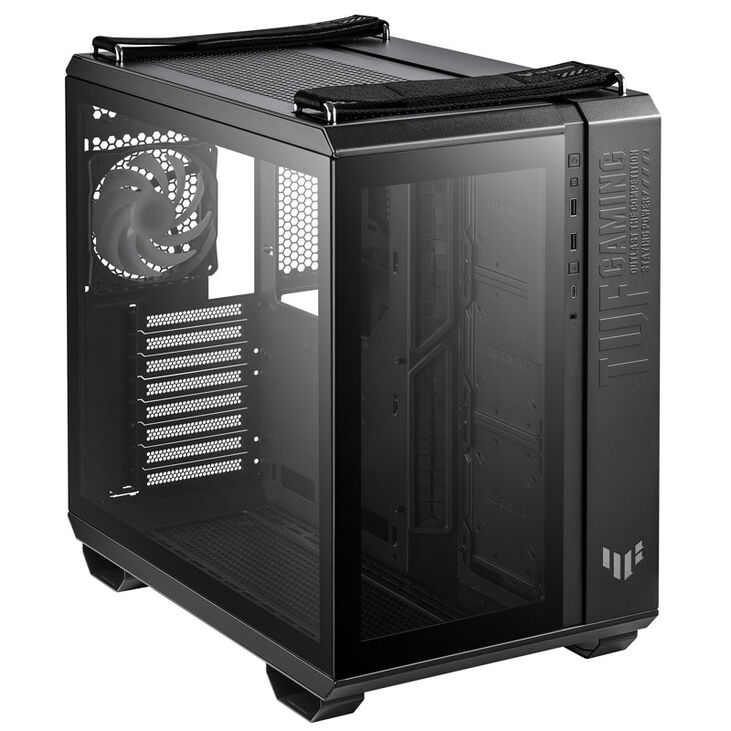

Panoramic view of your precious hardware
Tempered glass panels on the front and sides provide a subtly tinted view of the main chamber, showcasing your build and dominating the space.

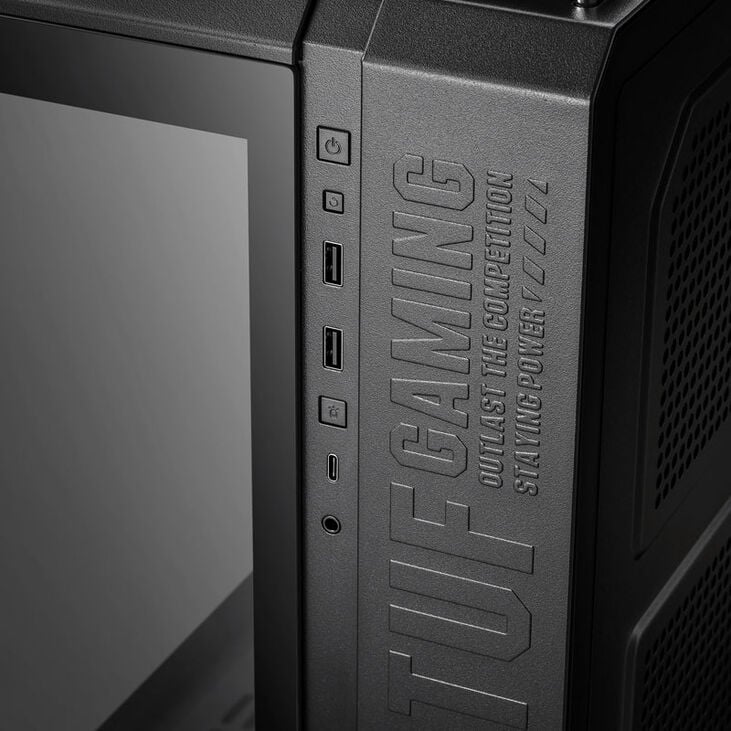

Connectivity
In addition to the two USB-A ports, the TUF Gaming GT502 Plus TG features a USB 3.2 Gen 2 Type-C port designed for transfer speeds of up to 10 Gbit/s.
TUF Gaming-style woven straps
Two durable and detachable straps capable of carrying up to 30 kg make transporting the case easier, even when it's packed full of hardware.
Fully modular design
Whether you prefer a modest build or a fully equipped battle station, the GT502 Plus TG is ready. Most panels and mounts are removable to facilitate hardware installation - take them apart to your heart's content and then build them back together to your ideal vision.
Design
- Form factor: Midi Tower
- Type: PC
- Product colour: Black
- Supported motherboard form factors: ATX, micro ATX, Mini-ITX
- Number of 3.5" expansion bays: 4
- Number of 2.5" expansion bays: 4
- Number of expansion slots: 8
- Side window:
- Suitable for: Gaming
- Tempered glass panel(s):
- Max CPU cooler height: 16.3 cm
- Max graphics card length: 40 cm
- Maximum PSU length: 20 cm
Connections and Interfaces
- USB 3.2 Gen 1 (3.1 Gen 1) Number of Type A ports: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Number of Type C ports: 1
Cooling
- Number of pre-installed RGB fans: 4
- Maximum RPM: 1400
- Dust filters:
- Number of supported rear fans (max.): 1
- Supported rear fan diameter: 120 mm
- Number of supported top fans (max.): 3
- Supported fan sizes (top): 120, 140 mm
- Supported rear fan size: 120 mm
- Supported top fan size: 120, 140, 240, 280, 360 mm
Storage
- Supported Hard-Disk Drive sizes: 2.5, 3.5 inches
- HDD/SSD Combo case:
Weight and Dimensions
- Width: 285 mm
- Depth: 450 mm
- Height: 446 mm
- Weight: 11 kg
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
Black
|
Dimensions
|
|
Length / Depth
|
450 mm
|
Width
|
285 mm
|
Height
|
446 mm
|
Weight
|
11 kg
|
Case
|
|
Case Type
|
Mid Tower
|
Motherboard Support
|
|
Compatible Motherboard Formats
|
ATX, Micro-ATX, Mini-ITX
|
Max. Motherboard Format
|
ATX
|
Internal Dimensions
|
|
Max. CPU Cooler Height
|
163 mm
|
Max. GPU Length
|
400 mm
|
Max. PSU Length / Depth
|
200 mm
|
Display
|
|
Display Included
|
No
|
Power Supply
|
|
PSU included
|
No
|
PSU Format
|
ATX
|
Power Supply Position
|
rear side
|
Fan Support
|
|
120 mm fans
|
10
|
140 mm fans
|
6
|
Radiator Support
|
|
Max. Radiator Compatibility
|
3x Triple (360 mm)
|
Drive Bays
|
|
2.5 inch internal drive bay
|
4
|
3.5 inch internal drive bay
|
4
|
Hot swap drive bays
|
No
|
External Ports
|
|
USB 3.2 (external) Type C
|
1
|
USB 3.0 (external) Type A
|
2
|
Audio outputs & inputs
|
1x output / input comb. (3.5 mm jack, 4-pin, TRRS)
|
Card reader
|
No
|
Case Features
|
|
I/O position
|
Front
|
Side panel
|
with window
|
Front door
|
No
|
Cable Management
|
Yes
|
Filters Included
|
Yes
|
Noise dampening
|
No
|
Mainboard slide / tray
|
No
|
Remote included
|
No
|
Transport System
|
No
|
Back Connect
|
|
Back Connect
|
No
|
Expansion Slots
|
|
Expansion slots / PCI slots
|
8
|
Features
|
|
Housing Feedthrough
|
No
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Fan / RGB control
|
Yes
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
ASUS Aura Sync
|
Set
|
|
Set
|
No
|
Additional Contents
|
|
Included fans
|
4x 120 mm
|
