- 120 mm large fan for efficient cooling performance
- Dynamic fan speed thanks to PWM technology
- Excellent cooling performance with up to 2000 RPM
- Hardly noticeable operation at only 29 dB(A)
- Quiet and durable hydraulic bearing
- Five-year warranty

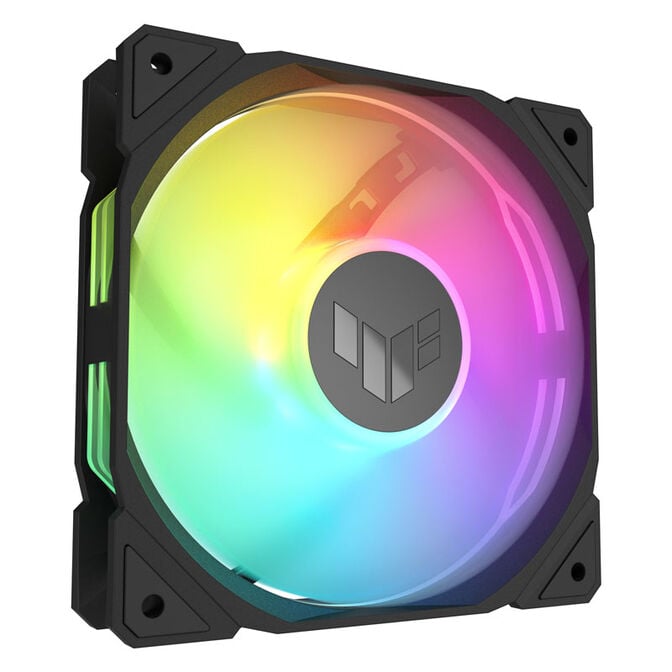

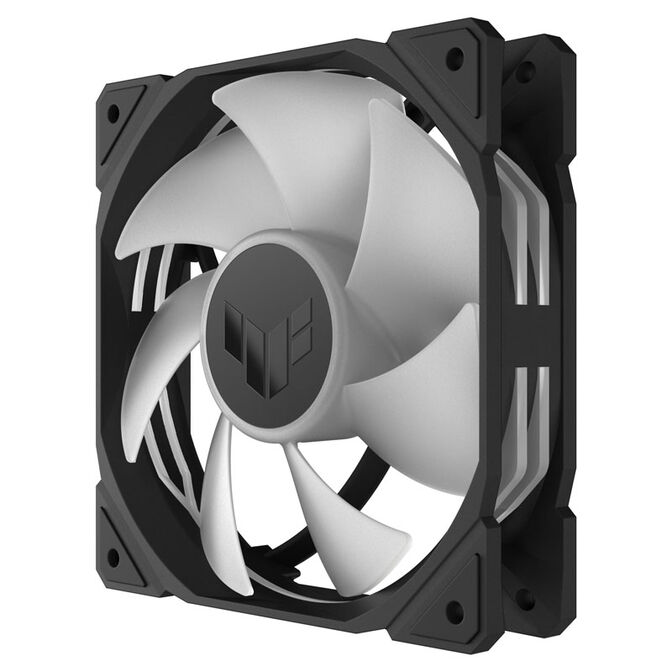

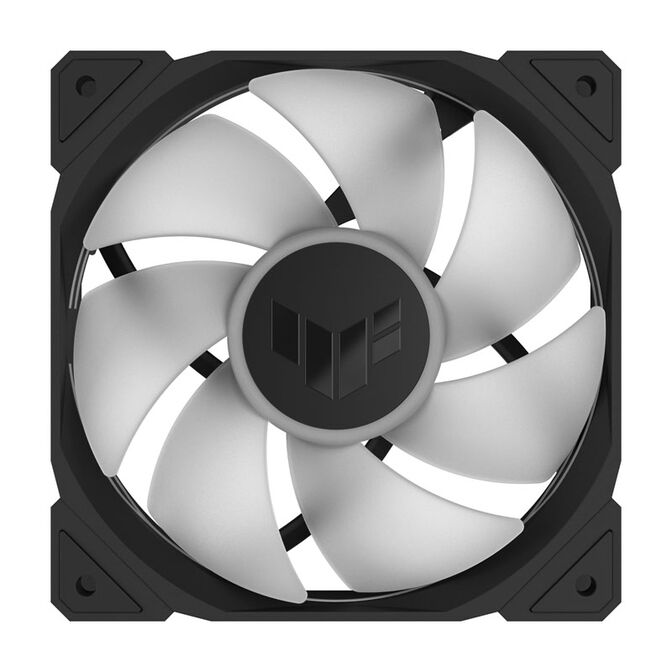

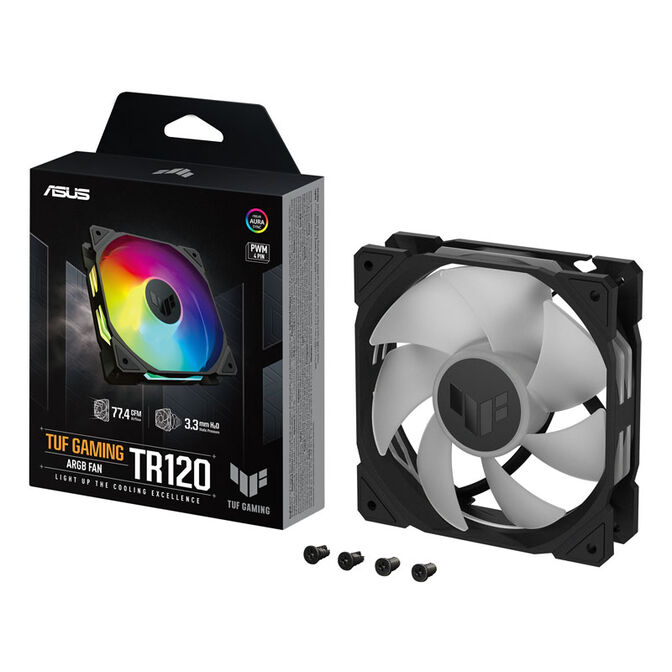

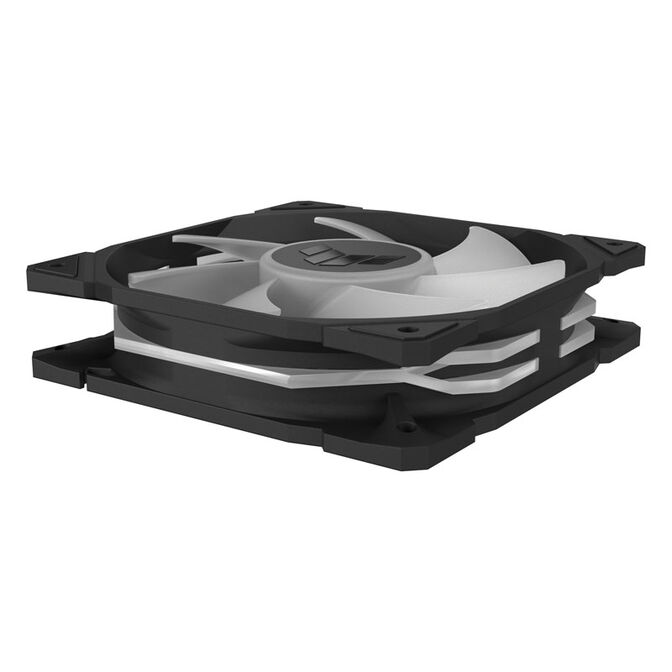

TUF GAMING TR120 ARGB Fan in Detail
With the TUF GAMING TR120 ARGB, ASUS offers a powerful fan in the 120 mm format. The fan adjusts its speed via PWM signal according to the required system performance and operates at very low noise levels even under full load. Thanks to its high airflow and static pressure, it is ideally suited for use on radiators but can also serve as a case fan due to its low noise emissions.
Effective Cooling Performance at Low Noise
The ASUS TUF GAMING TR120 ARGB impresses with its size and a maximum speed of up to 2000 RPM, providing impressive cooling performance. Operating at a noise level of only 29 dB(A), the fan is extremely quiet, making it perfect for quiet computer systems. With a static pressure of 3.3 mmH2O and an airflow of 131.52 m³/h, it is particularly effective for use on water cooling radiators.
Equipped with PWM (Pulse Width Modulation), the fan always spins as fast as the current system performance demands, ensuring consistently quiet operation. To ensure long-term operation, a hydraulic bearing is installed, known for its high durability. In case of unforeseen complications, ASUS provides a five-year warranty.
- Dimensions: 120 x 28 x 120 mm (W x H x D)
- Colour: Black
- Bearing: Hydraulic Bearing
- Noise Level: 29 dB(A)
- Speed: max. 2,000 RPM
- Airflow: 131.52 m³/h
- Static Pressure: 3.3 mmH2O
- Voltage: 12 V
- Connection:
4-Pin PWM
3-Pin ARGB - Manufacturer's Warranty: 5 years
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
White
|
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Fan height
|
28 mm
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Max. Fan RPM
|
2000 rpm
|
Max. Single Fan Airflow
|
131.52 m³/h
|
Max. Static Pressure
|
3.3 mmH2O
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
29 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
RGB / LED connectors
|
1x Digital RGB (3-Pin 5VDG)
|
Lighting
|
|
Lighting / RGB
|
Yes
|
