- 120 mm fan for efficient cooling performance
- Reverse design acts as an intake fan with reversed fan blades
- Dynamic fan speed thanks to PWM technology
- Very good cooling performance with up to 2,000 RPM
- Barely noticeable operation at only 29 dB(A)
- Quiet and durable hydrodynamic bearing
The Features of the TUF Gaming TF120 ARGB Reverse Fan in Detail

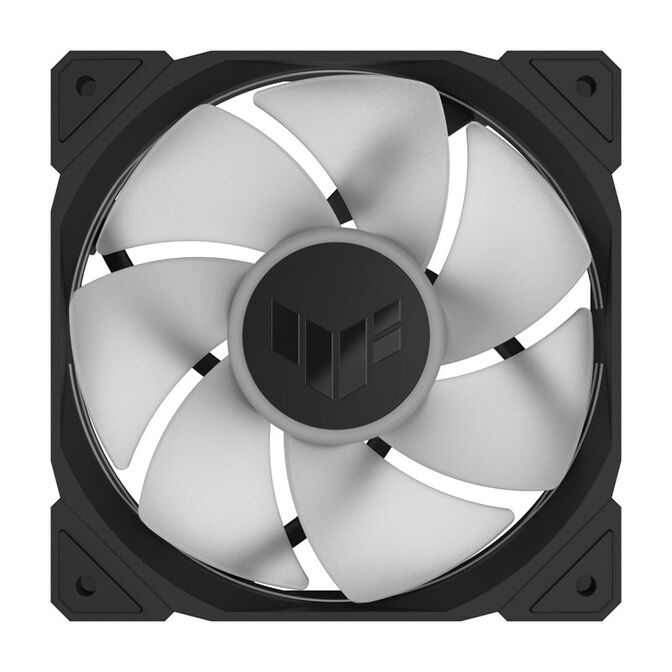

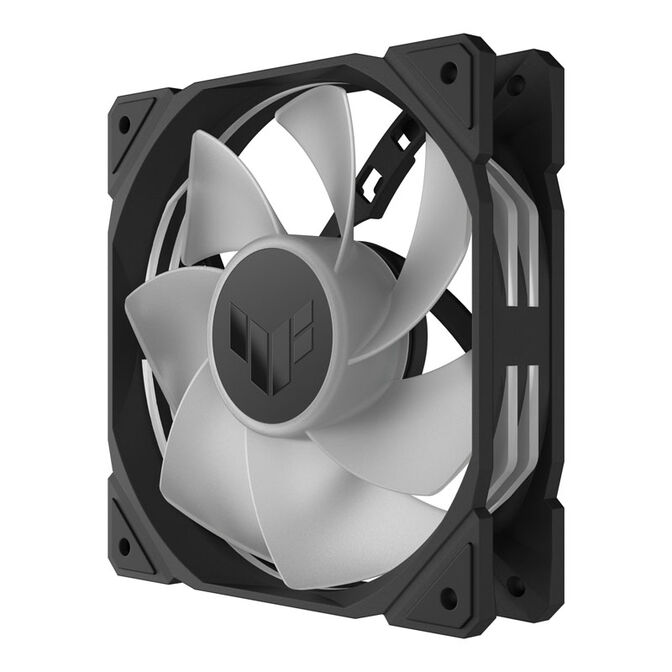

The TUF Gaming TF120 ARGB Reverse is a powerful 120mm intake fan from ASUS. The fan adjusts its speed according to the system's performance requirements via PWM signal, and operates at very low noise levels even under full load. With its high airflow and static pressure, it is well-equipped for use on radiators, but due to its low noise emissions, it can also serve as a case fan.
Strong Cooling Performance at Acceptable Noise Levels
Thanks to its size and speed of up to 2,000 RPM, the TUF Gaming TF120 ARGB Reverse provides very good cooling performance. Emitting a noise level of just 29 dB(A), the fan generates little noise, making it ideal for computer systems focused on quiet operation. The fan produces a static pressure of 2.75 mmH2O and an airflow of 129.65 m³/h, making it suitable for use on water cooling radiators.
Equipped with Pulse Width Modulation, the fan only spins as fast as the current system performance demands, ensuring consistently quiet operation. To ensure long-term operation, a hydrodynamic bearing has been installed, known for its high durability.
- Dimensions: 120 x 28 x 120 mm (W x H x D)
- Colour: Black
- Material: Plastic
- Bearing: Hydrodynamic bearing
- Noise level: 29 dB(A)
- Speed: max. 2,000 RPM
- Air flow rate: 129.65 m³/h
- Static pressure: 2.75 mmH2O
- Connection:
4-Pin PWM
3-Pin ARGB
Colour
|
|
Primary Colour
|
Black
|
Fan Main Colour (Frame)
|
Black
|
Fan Main Colour (Rotor)
|
White
|
Dimensions
|
|
Length / Depth
|
120 mm
|
Width
|
120 mm
|
Fan height
|
28 mm
|
Fan Specifications
|
|
Fan Size
|
120 mm
|
Min. Fan RPM
|
0 rpm
|
Max. Fan RPM
|
2000 rpm
|
Max. Single Fan Airflow
|
129.65 m³/h
|
Max. Static Pressure
|
2.75 mmH2O
|
Noise
|
|
Max. Single Fan Noise dB(A)
|
29 dB(A)
|
Internal Ports
|
|
Fan connectors
|
4 Pin (PWM)
|
RGB / LED connectors
|
1x
|
Materials
|
|
Materials
|
Plastic
|
Lighting
|
|
Lighting / RGB
|
Yes
|
Lighting Colour
|
RGB
|
Lighting Compatibility
|
ASUS Aura Sync
|
Product Series
|
|
Product Series/Family
|
TUF
|
